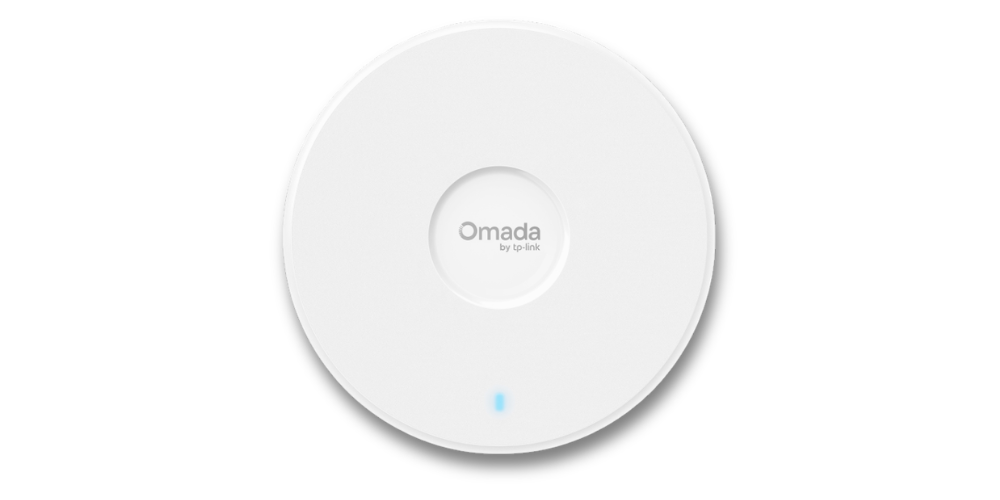

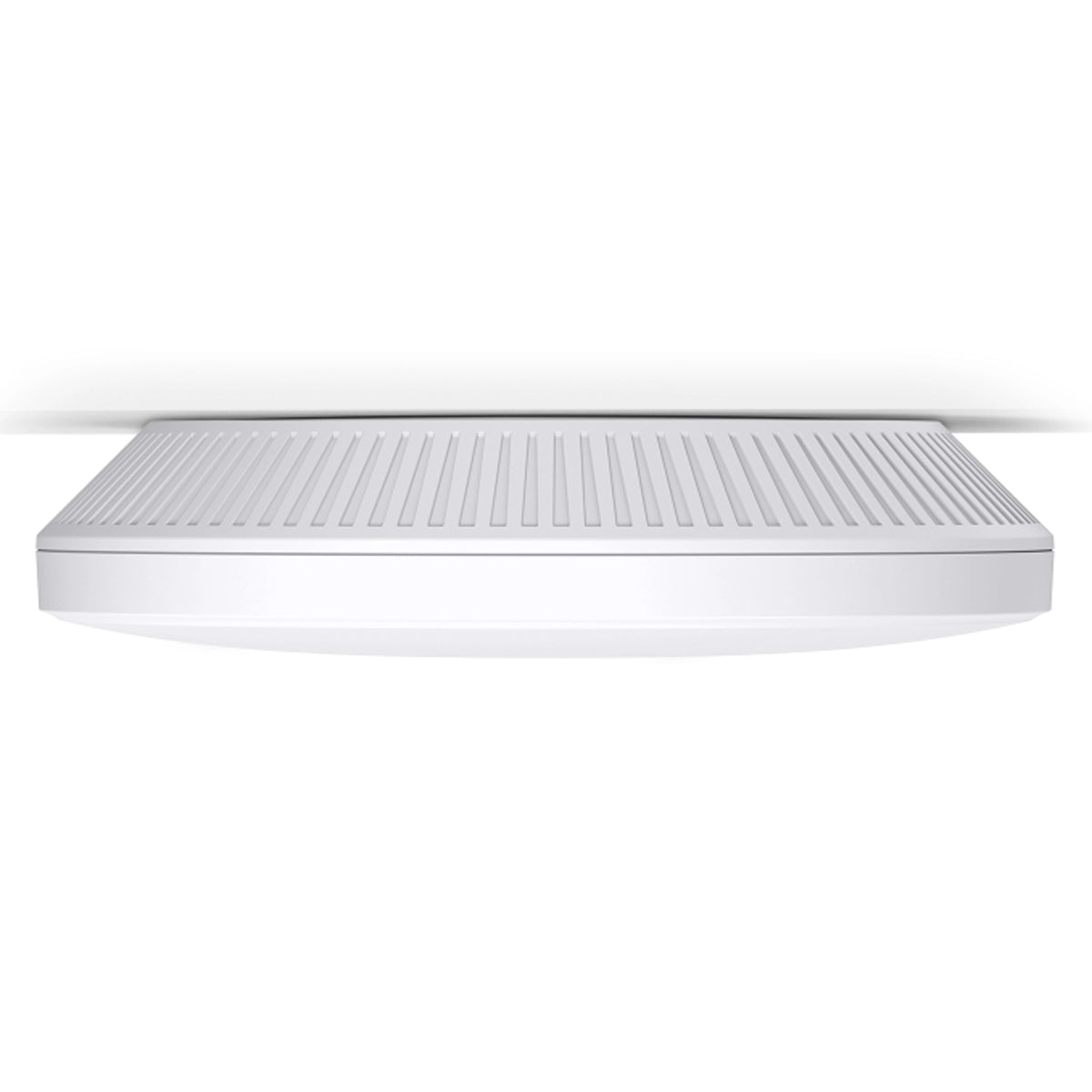

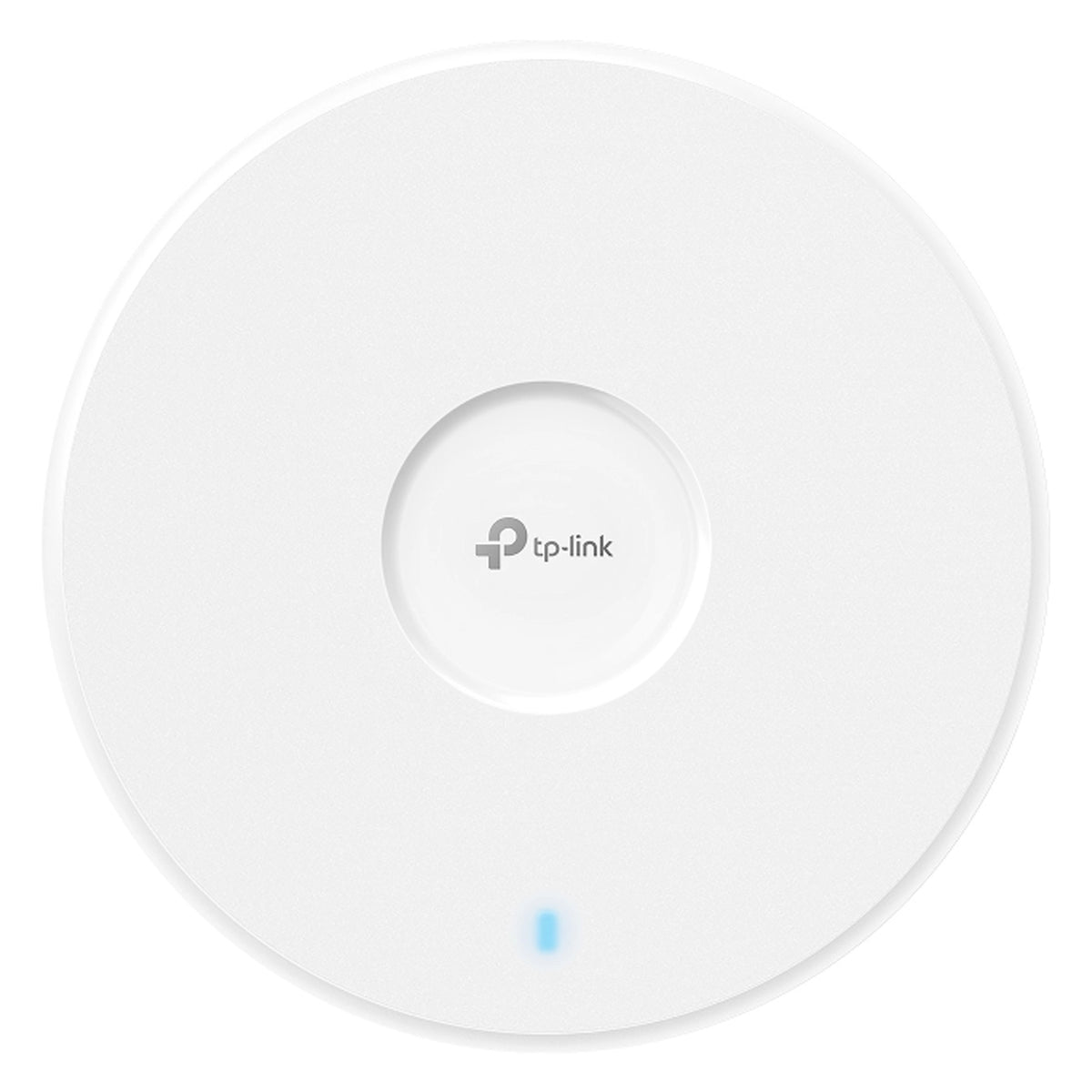

EAP723

$139.99 CAD
$139.99 CAD
Sale Sold out
In stock (13 units), ready to be shipped
  • BE5000 Dual-Band Wi-Fi 7 (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
  • 1× 2.5G port unlocks the full potential of Wi-Fi 7.
  • 240 MHz bandwidth enables many more simultaneous transmissions.‡
  • Multi-RUs ensure the high performance of your network.‡
  • Advanced Functions: Centralized management, Mesh, and Seamless Roaming.△
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • HARDWARE FEATURES

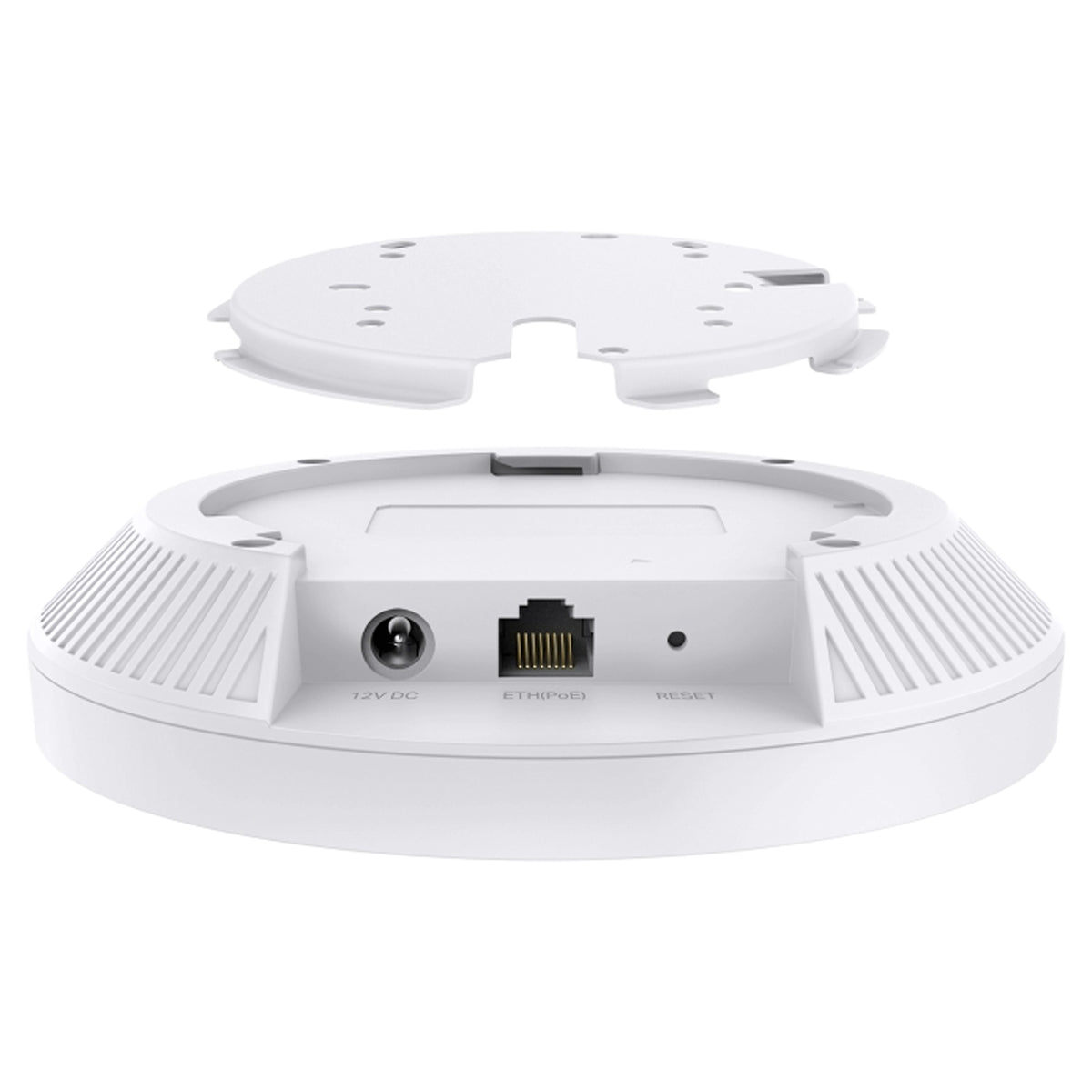

  • Interface: 1× 2.5G Ethernet Port
  • Button: Reset
  • Power Supply: 802.3at PoE, 12V/1.5A DC (Note: DC Power adapter not included, DC interface: 12V, accepts 2.1 mm / 5.5 mm center-positive plug with 9 mm length)
  • Max. Power Consumption: 17.83 W (PoE), 13.99 W (DC)

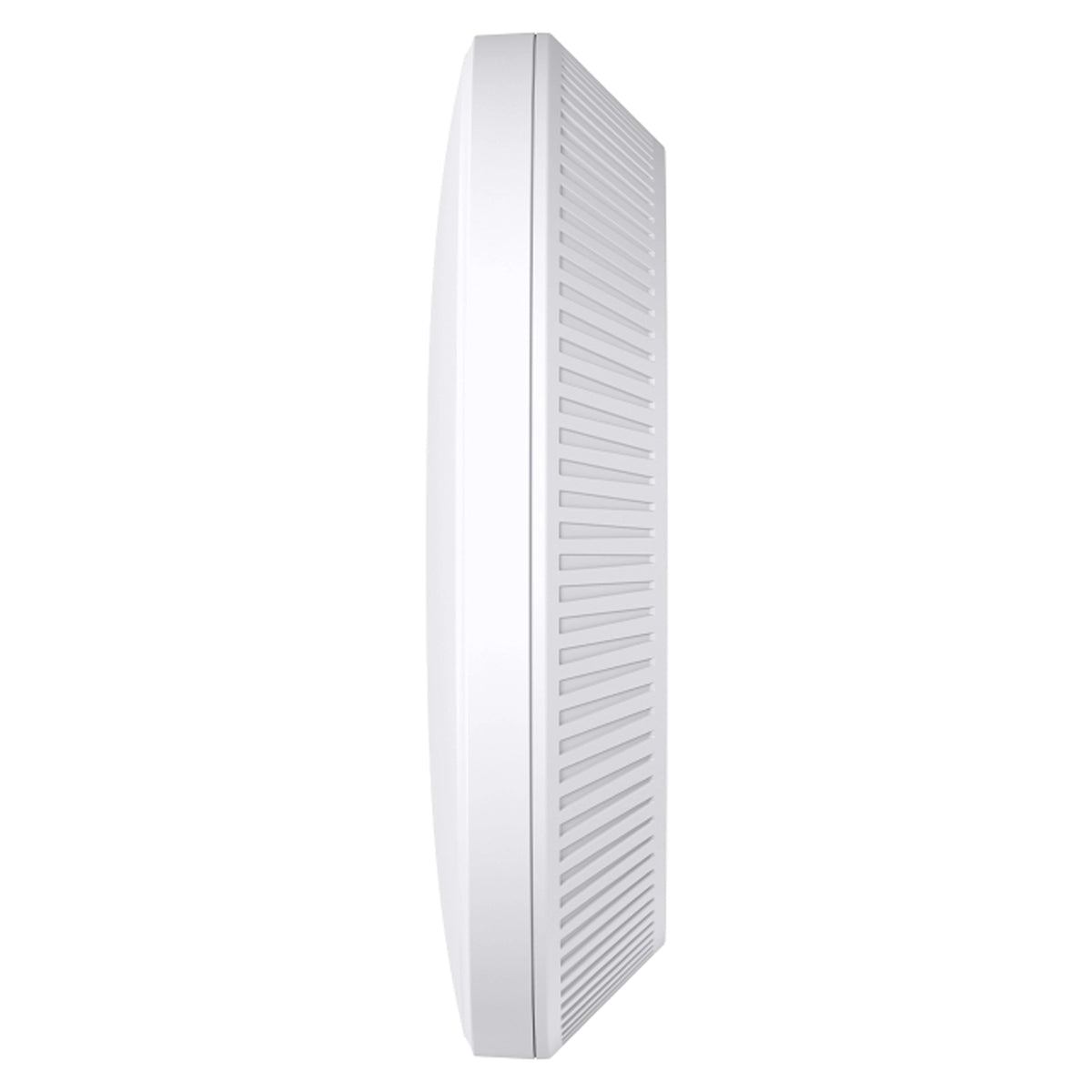

  • Dimensions (W x D x H): 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
  • Antenna: 2.4 GHz: 2× 4.0 dBi, 5 GHz: 2× 5.0 dBi
  • Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)
  • WIRELESS FEATURES
  • Coverage: 1500 ft² (140㎡)*
  • Concurrent Clients: 250+**
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 688 Mbps (2.4 GHz), 4324 Mbps (5 GHz)
  • Wireless Functions: MLO, 4K-QAM, Seamless Roaming, 240 MHz Bandwidth, Mesh, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs:16 (8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
  • Wireless Security: Captive Portal Authentication, Access Control, Maximum MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz, UNII-1 & UNII-4), < 24 dBm (5 GHz, UNII-2 & UNII-3)
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
  • Cloud Access: Yes (Require the use of Omada Controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Yes
  • Web-based Management: Yes
  • OTHERS
  • Certification: CE, FCC, RoHS, IC
  • Package Content: Omada Wi-Fi 7 Ceiling Mount Access Point EAP723, Installation Guide, Ceiling/Wall/Junction Box Mounting Kit
  • Environment: Operating Temperature 0–40 °C (32–104 °F), Storage Temperature -40–70 °C (-40–158 °F), Operating Humidity 10–90% non-condensing, Storage Humidity 5–90% non-condensing
