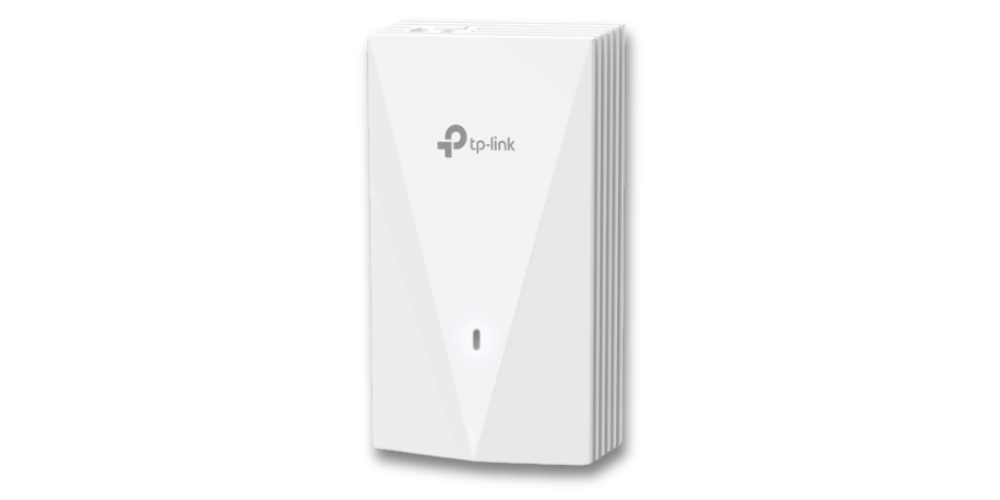

TP-Link EAP655-Wall

$139.99 CAD
$139.99 CAD
Sale Sold out
Only 8 units left
  • Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
  • Higher Network Efficiency: Deliver data to more devices at the same time with less lag.‡
  • Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
  • Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.§
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • Hardware Features
  • Interface: Uplink: 1× Gigabit Ethernet Port; Downlink: 3× Gigabit Ethernet Ports (One port supports PoE out. PoE out requires 802.3at PoE+ input. Max output: 10.5 W EU / 10 W US)
  • Physical Security Lock: No
  • Button: Reset, LED
  • Power Supply: 802.3af/at PoE
  • Max. Power Consumption: EU: 12W (802.3at PoE, PoE Out off); US: 12.6W (802.3at PoE, PoE Out off)
  • Dimensions (W × D × H): 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
  • Antenna: 2 Dual-Band Antennas; 2.4 GHz: 2× 3 dBi; 5 GHz: 2× 5 dBi
  • Mounting: Wall Mounting (Screws included)
  • Wireless Features
  • Coverage: 50㎡ (600 ft²)
  • Concurrent Clients: 120+
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 5 GHz: Up to 2402 Mbps; 2.4 GHz: Up to 574 Mbps
  • Wireless Functions: 16 SSIDs (Up to 8 per band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control; QoS (WMM); Seamless Roaming (802.11k/v/r); Beamforming; Rate Limit; Load Balance; Airtime Fairness; Band Steering; Reboot Schedule; Wireless Schedule; RADIUS Accounting; MAC Authentication; Wireless Statistics; Static IP/Dynamic IP
  • Wireless Security: Captive Portal Authentication; Access Control; Wireless MAC Address Filtering; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise; WPA2-Personal/Enterprise; WPA3-Personal/Enterprise
  • Transmission Power: CE: <20 dBm (2.4GHz), <23 dBm (5GHz bands 1 & 2), <26 dBm (5GHz band 3); FCC: <21 dBm (2.4 GHz), <21 dBm (5 GHz, bands 1–4)
  • Management Features
  • Omada App: Yes
  • Centralized Management: Omada Hardware Controller; Omada Software Controller; Omada Cloud-Based Controller
  • Cloud Access: Yes (Requires Omada Controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging: Local/Remote Syslog
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
  • Others
  • Certification: FCC, RoHS
  • Package Content: AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall; Installation Guide; Mounting Kits
  • System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
  • Environment: Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
