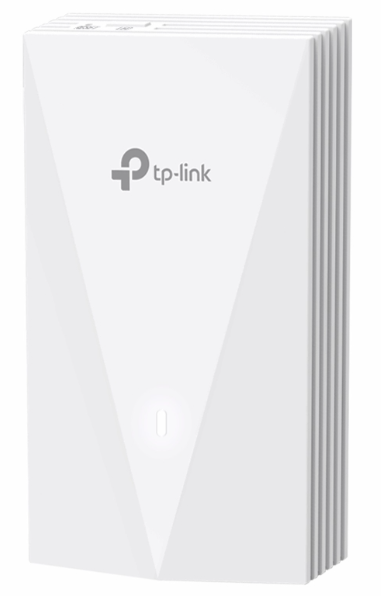

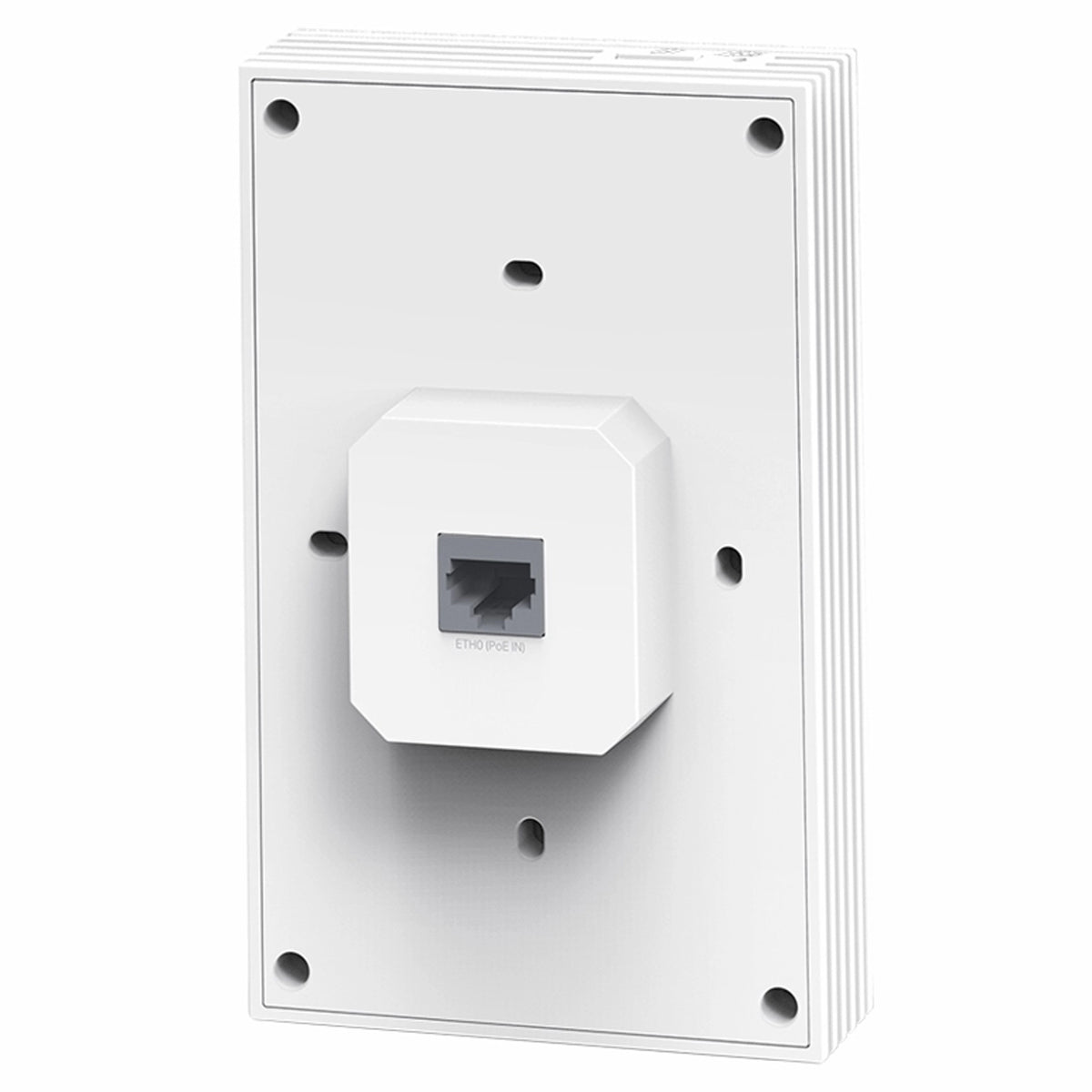

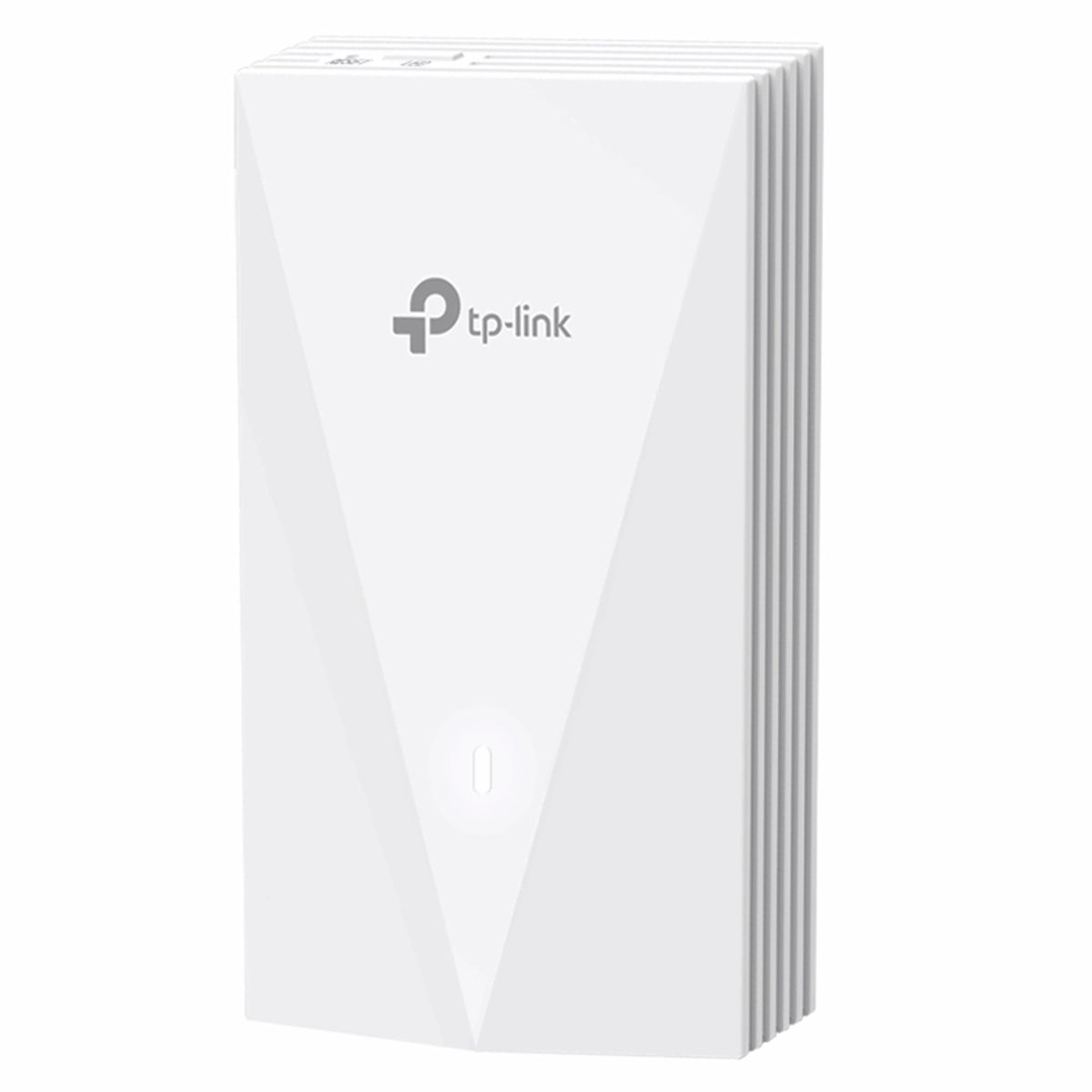

TP-Link Omada EAP655-Wall AX3000 Dual-Band WiFi 6 Wall Plate Access Point

SKU: TP-EAP655-Wall

$135.99 CAD
$135.99 CAD $139.99 CAD
Sale Sold out
Shipping calculated at checkout.
Only 1 units left
  • Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
  • Higher Network Efficiency: Deliver data to more devices at the same time with less lag.‡
  • Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.

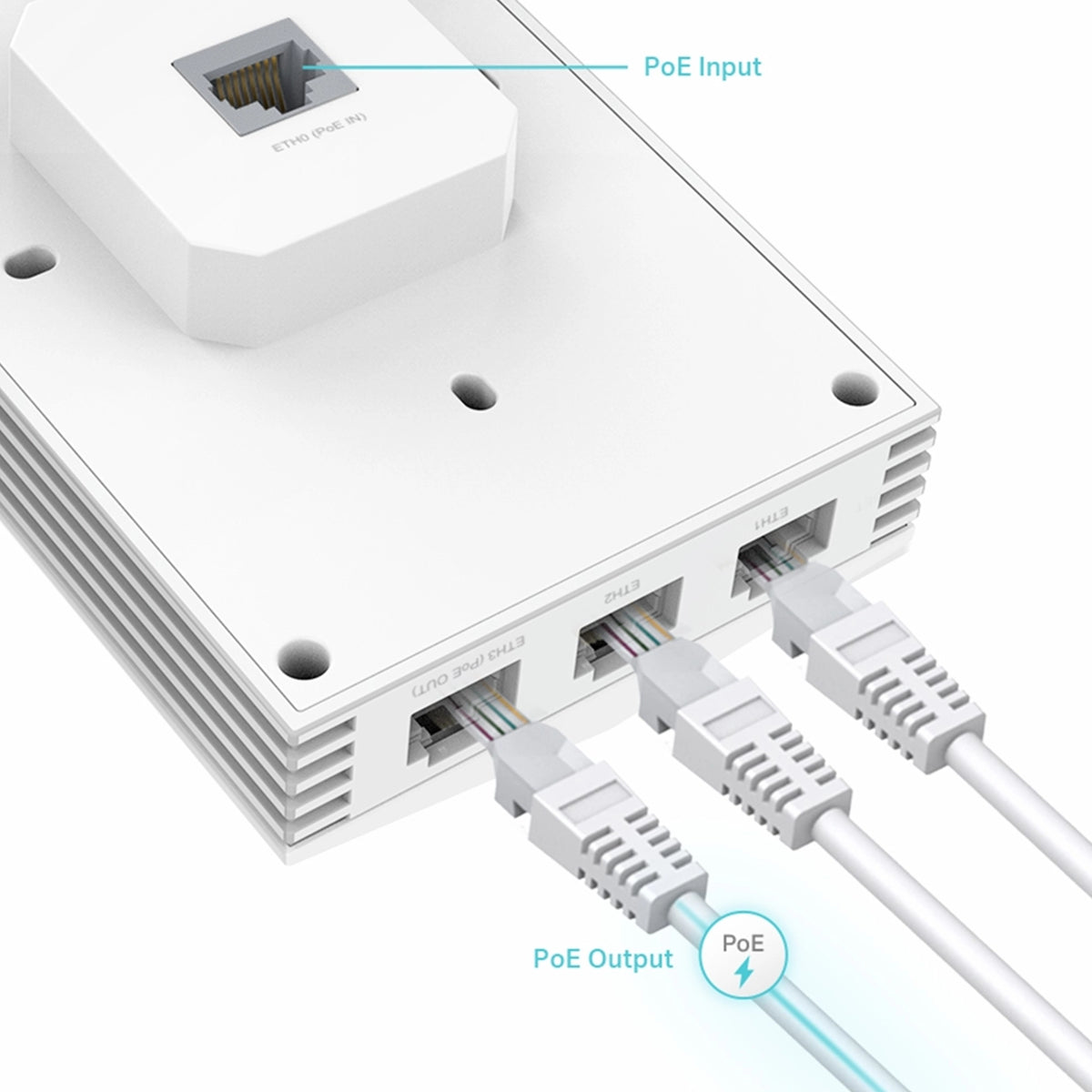

  • Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.§
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • Hardware Features
  • Interface: Uplink: 1× Gigabit Ethernet Port; Downlink: 3× Gigabit Ethernet Ports (One port supports PoE out. PoE out requires 802.3at PoE+ input. Max output: 10.5 W EU / 10 W US)
  • Physical Security Lock: No
  • Button: Reset, LED
  • Power Supply: 802.3af/at PoE
  • Max. Power Consumption: EU: 12W (802.3at PoE, PoE Out off); US: 12.6W (802.3at PoE, PoE Out off)
  • Dimensions (W × D × H): 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
  • Antenna: 2 Dual-Band Antennas; 2.4 GHz: 2× 3 dBi; 5 GHz: 2× 5 dBi
  • Mounting: Wall Mounting (Screws included)
  • Wireless Features
  • Coverage: 50㎡ (600 ft²)
  • Concurrent Clients: 120+
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 5 GHz: Up to 2402 Mbps; 2.4 GHz: Up to 574 Mbps
  • Wireless Functions: 16 SSIDs (Up to 8 per band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control; QoS (WMM); Seamless Roaming (802.11k/v/r); Beamforming; Rate Limit; Load Balance; Airtime Fairness; Band Steering; Reboot Schedule; Wireless Schedule; RADIUS Accounting; MAC Authentication; Wireless Statistics; Static IP/Dynamic IP
  • Wireless Security: Captive Portal Authentication; Access Control; Wireless MAC Address Filtering; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise; WPA2-Personal/Enterprise; WPA3-Personal/Enterprise
  • Transmission Power: CE: <20 dBm (2.4GHz), <23 dBm (5GHz bands 1 & 2), <26 dBm (5GHz band 3); FCC: <21 dBm (2.4 GHz), <21 dBm (5 GHz, bands 1–4)
  • Management Features
  • Omada App: Yes
  • Centralized Management: Omada Hardware Controller; Omada Software Controller; Omada Cloud-Based Controller
  • Cloud Access: Yes (Requires Omada Controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging: Local/Remote Syslog
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
  • Others
  • Certification: FCC, RoHS
  • Package Content: AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall; Installation Guide; Mounting Kits
  • System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
  • Environment: Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
The TP-Link Omada EAP655-Wall is an AX3000 dual-band WiFi 6 wall plate access point designed for professional indoor wireless deployments. It delivers up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, providing a combined wireless rate of approximately 3 Gbps for compatible devices. Its compact wall plate format makes it particularly useful for hotels, offices, apartments, dormitories, and similar environments where room-level WiFi coverage is important. The EAP655-Wall also includes multiple Gigabit Ethernet connections, helping support both wireless and wired client devices from a single installation point. As part of the TP-Link Omada ecosystem, the EAP655-Wall supports centralized management through compatible Omada controllers and the Omada platform. This allows businesses to manage wireless settings, monitoring, security, and network access more efficiently across multiple access points.

FAQs : TP-Link Omada EAP655-Wall

The EAP655-Wall is an AX3000 dual-band WiFi 6 wall plate access point designed to provide high-speed wireless connectivity in professional indoor environments.
It supports up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, giving it AX3000-class wireless performance.
Its wall plate design makes it suitable for hotels, offices, apartments, dormitories, and other locations that need discreet room-by-room WiFi coverage.
