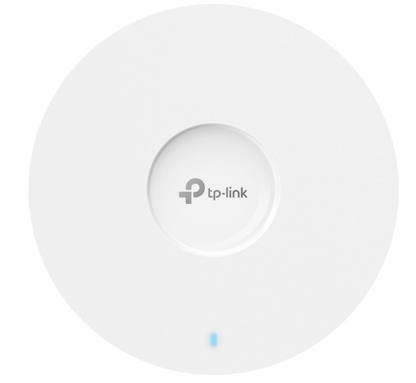

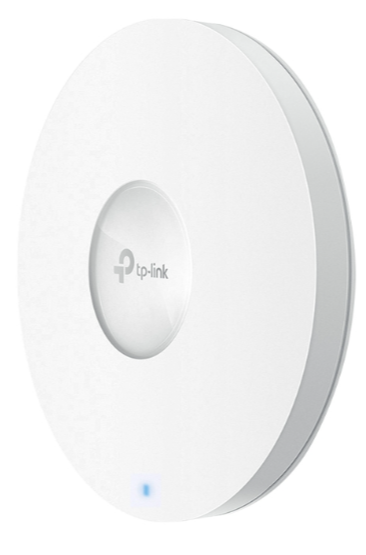

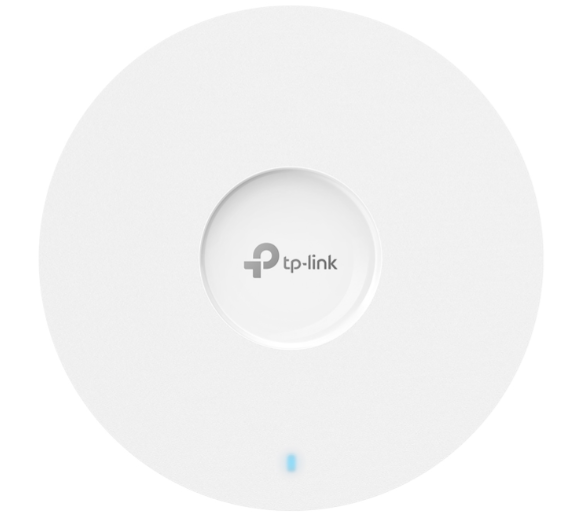

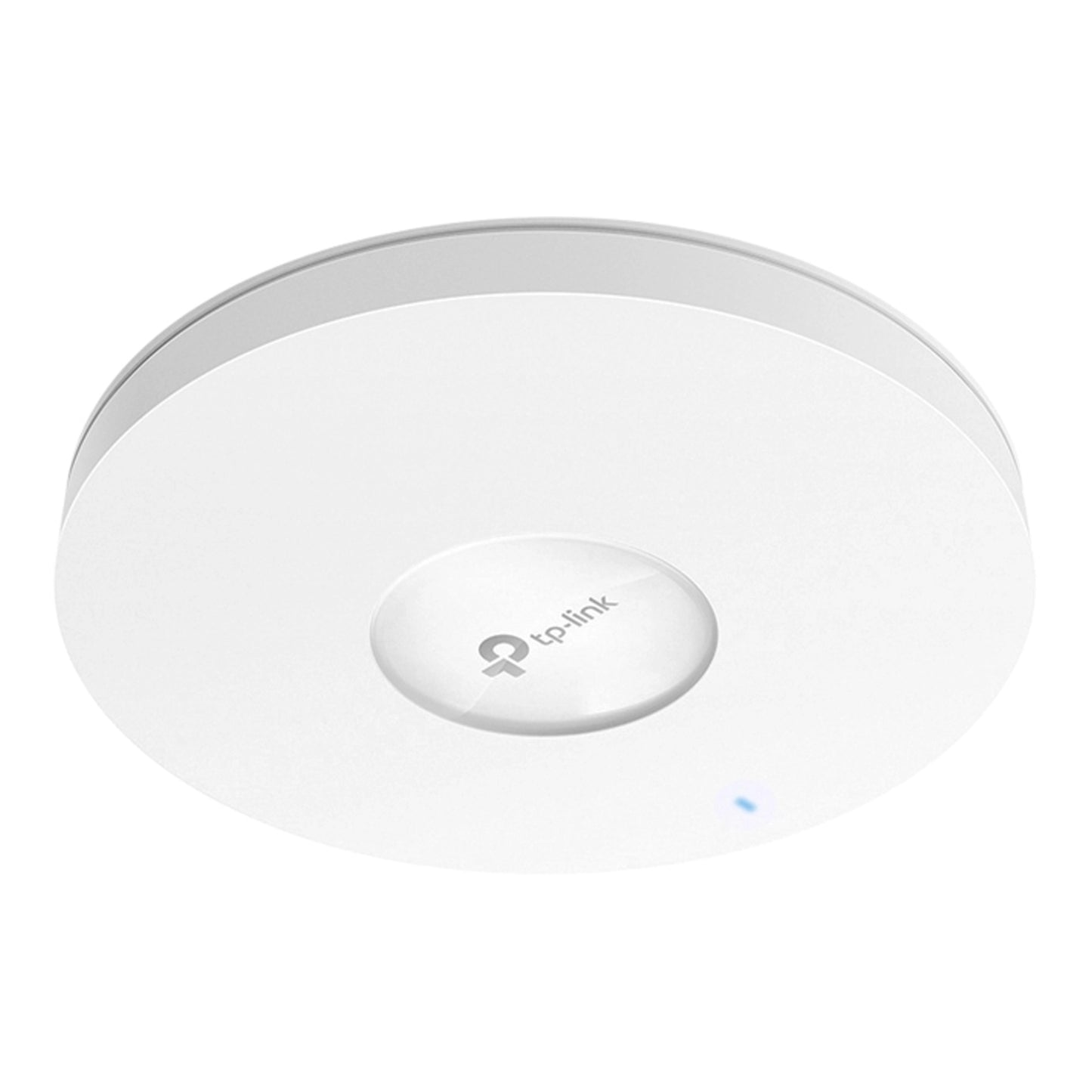

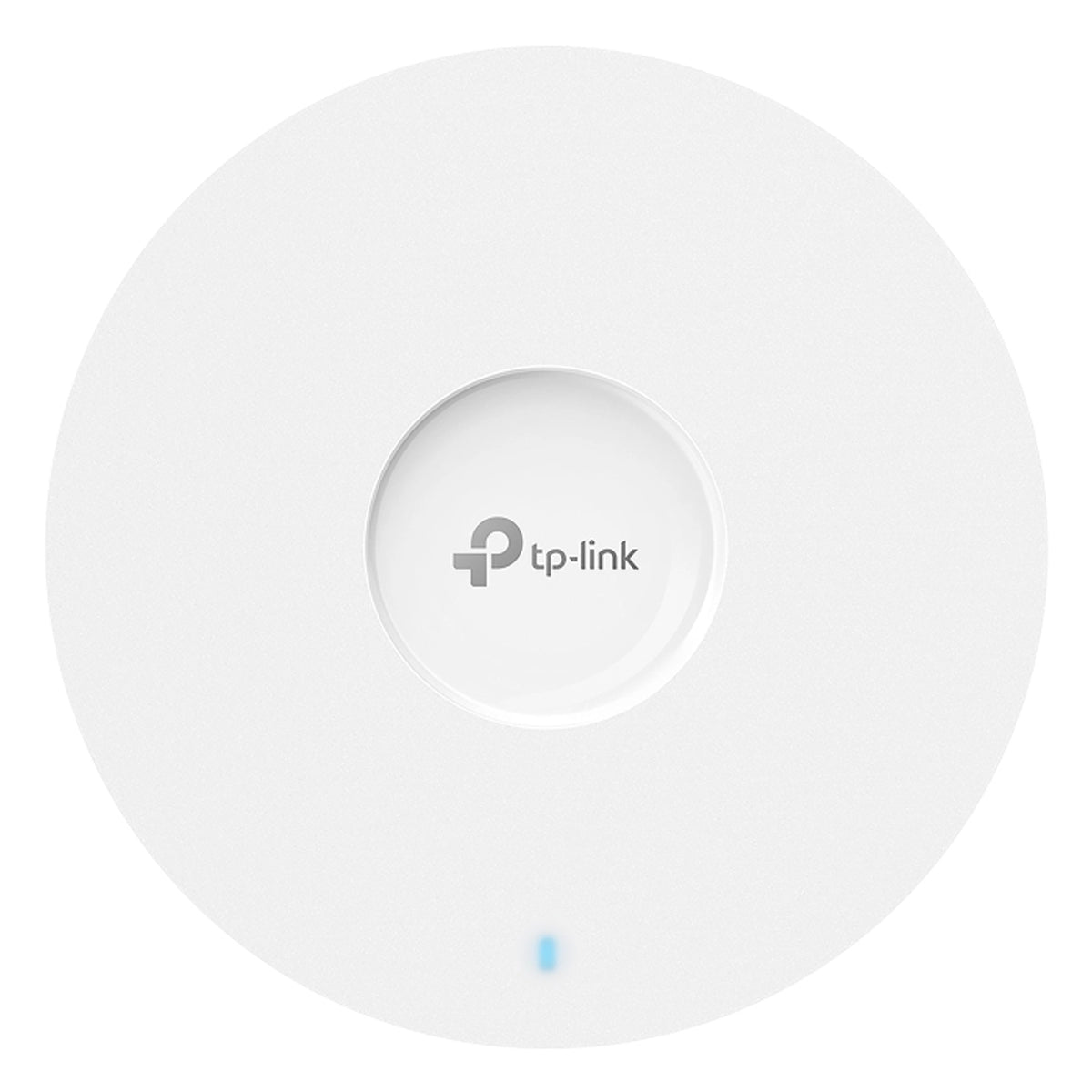

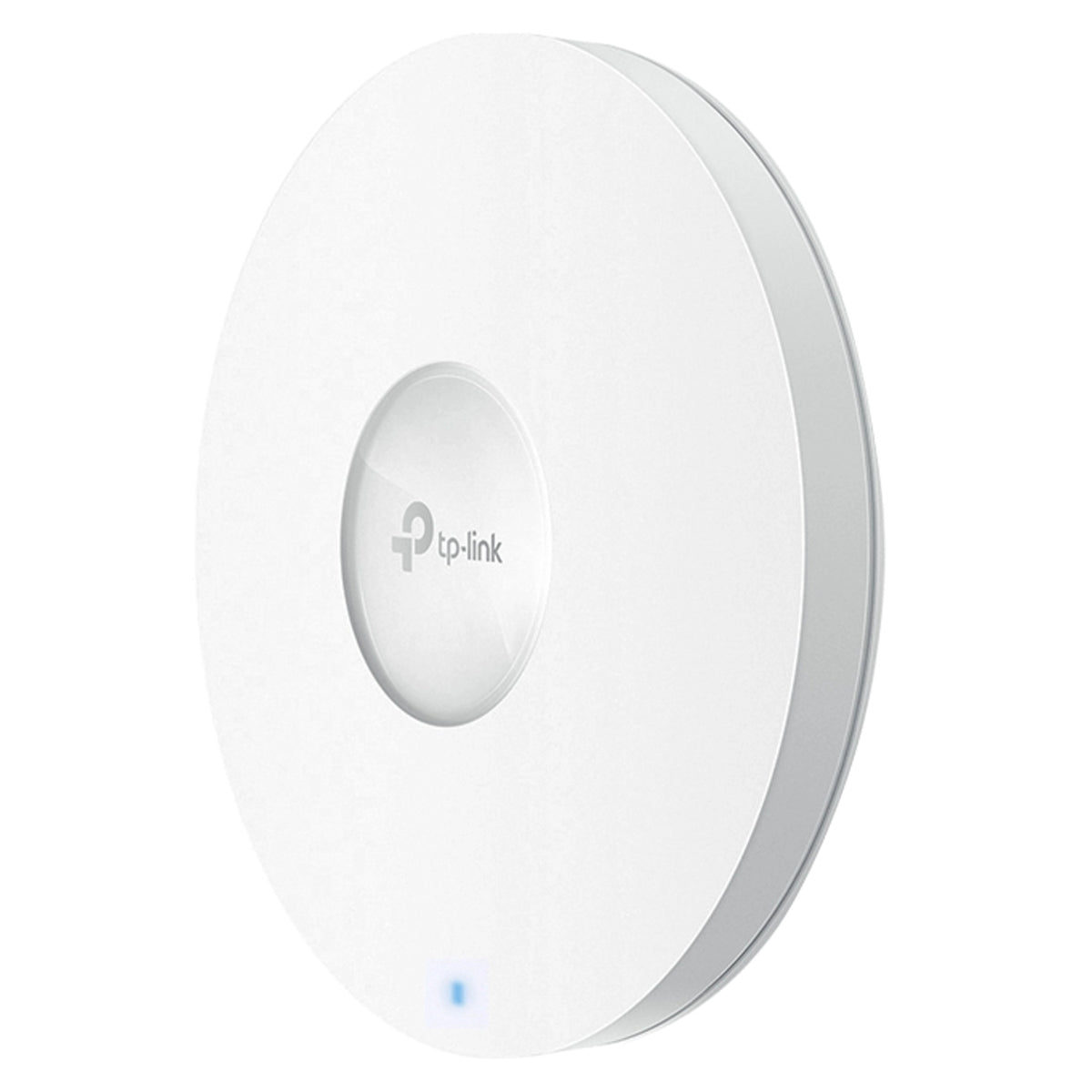

EAP653 UR

⚠️ Out of stock. Contact Us or Call Us for stock status.
$165.74 CAD
$165.74 CAD $169.99 CAD
Sale Sold out
  • Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz†
  • Ultra-range wireless coverage by more antennas with higher transmit power
  • Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡

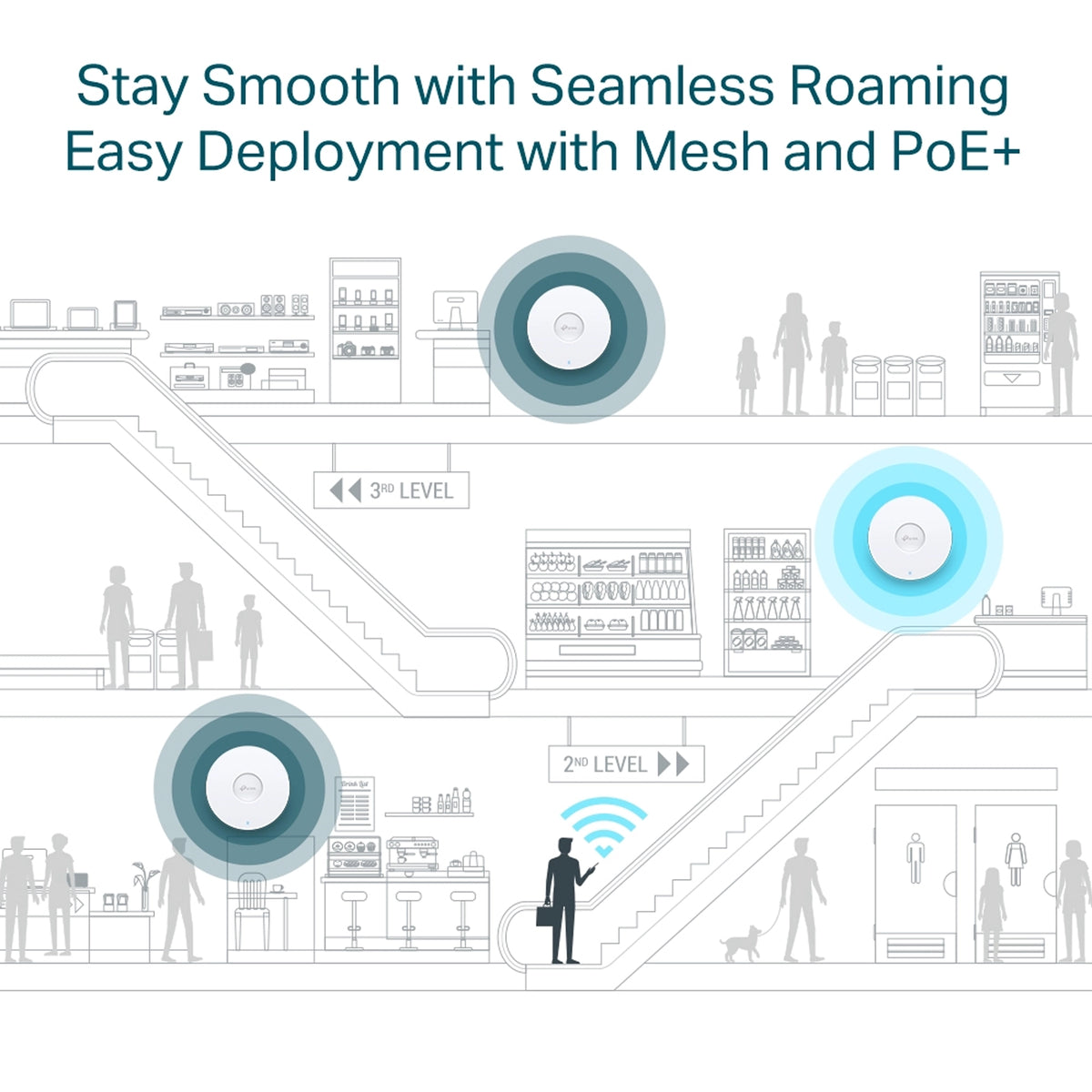

  • Advanced Features: Omada Mesh, Seamless Roaming, etc§
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)

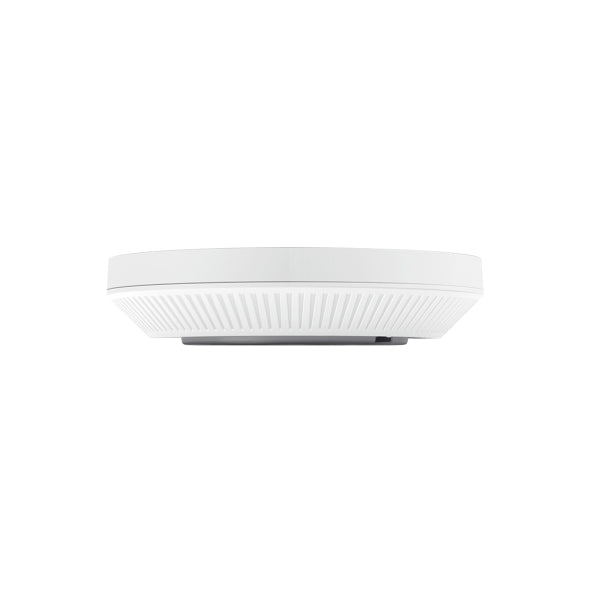

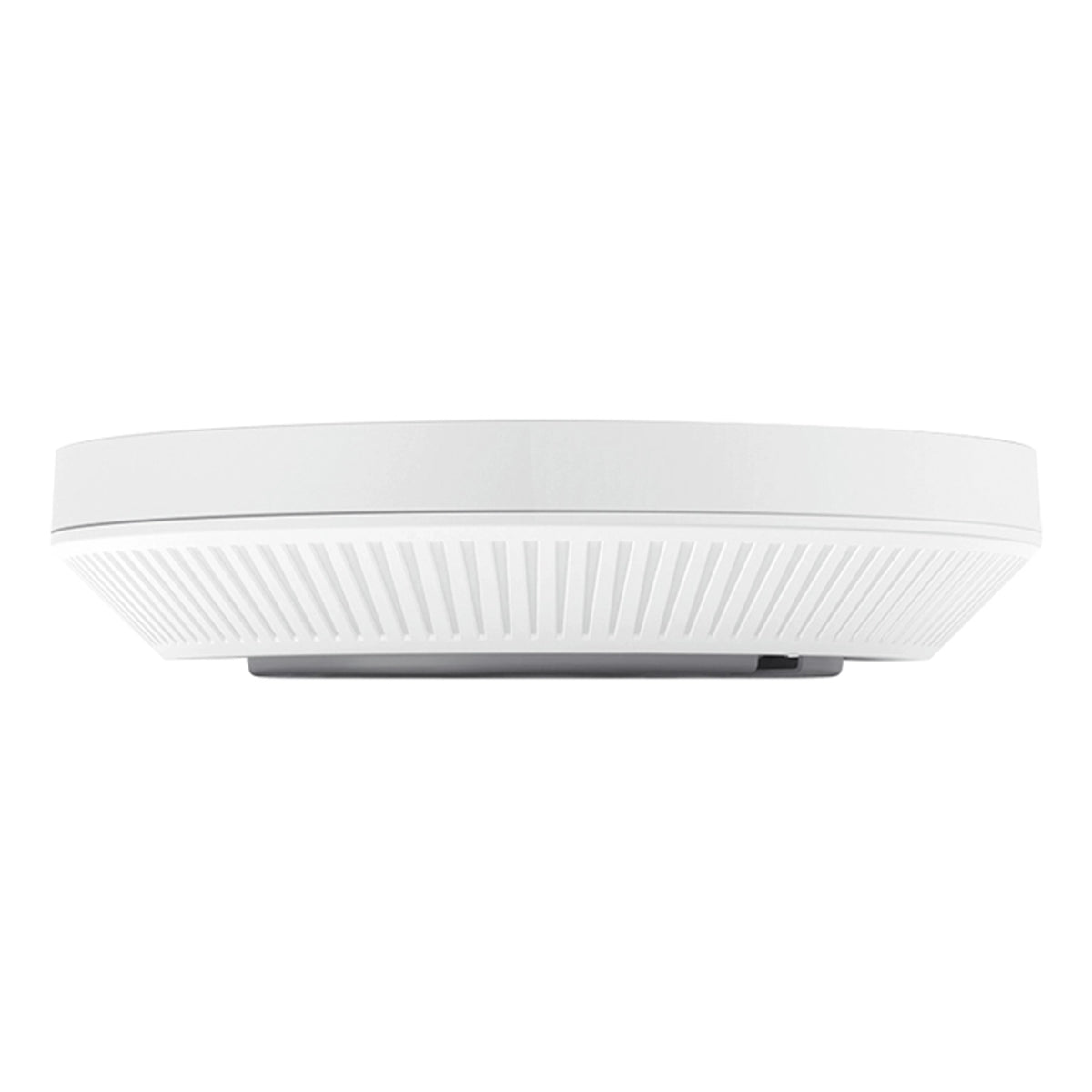

  • Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility

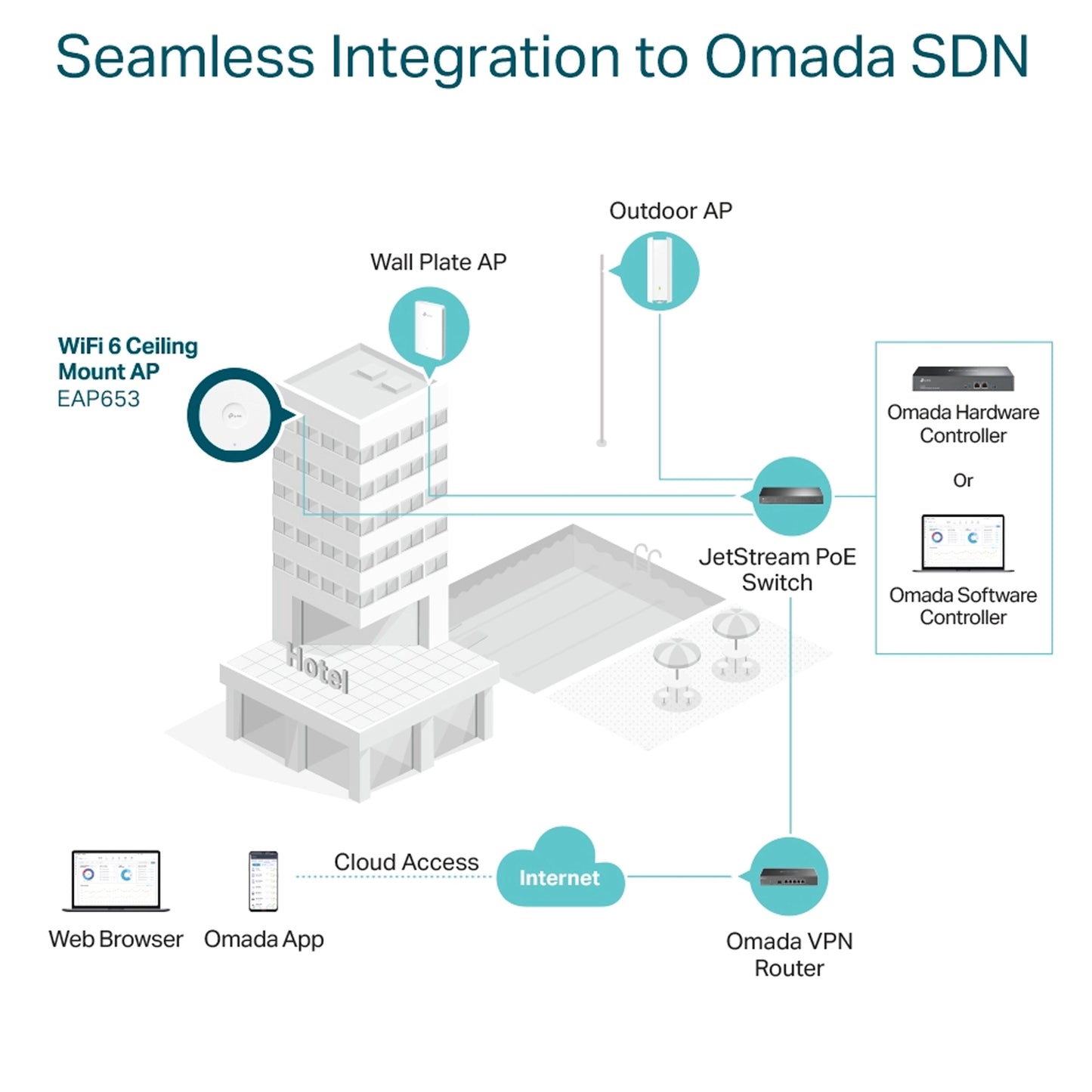

  • Integrates with the Omada SDN platform for centralized management

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • HARDWARE FEATURES

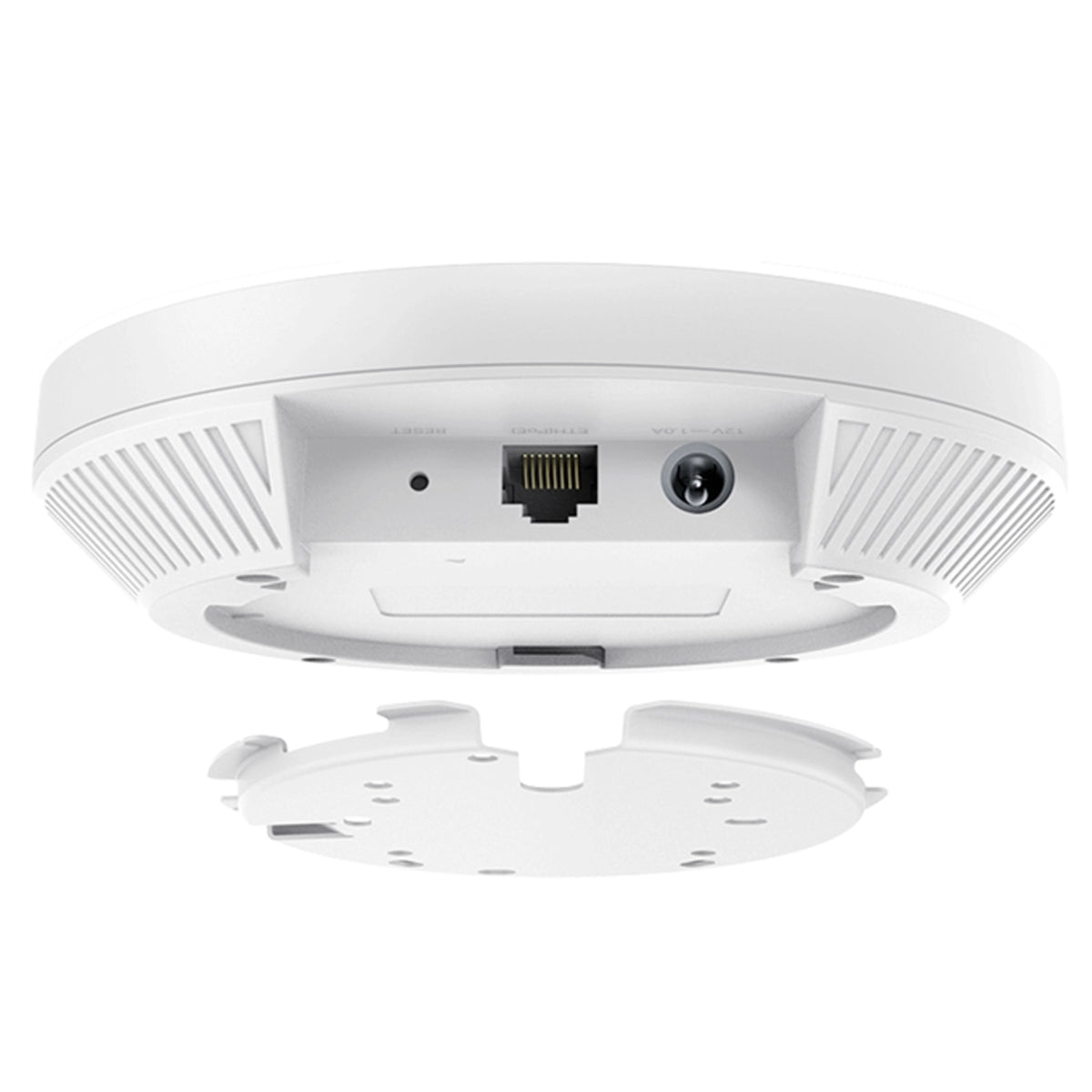

  • Interface: 1× Gigabit PoE+ Port
  • Button: Reset
  • Power Supply: 802.3at PoE, 12V DC / 1.5 A, 48V Passive PoE (Note: DC Power adapter is not included)
  • Max. Power Consumption: EU: 14.2 W, US: 15.5 W
  • Dimensions (W x D x H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
  • Antenna: 2.4 GHz: 2× 5 dBi, 5 GHz: 3× 5 dBi
  • Mounting: Ceiling/Wall/Junction Box/T-Bar Mounting (Kits included)
  • WIRELESS FEATURES
  • Coverage: 2000 ft² (185 ㎡)*
  • Concurrent Clients: 250+**
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 5 GHz: Up to 2402 Mbps†, 2.4 GHz: Up to 574 Mbps†
  • Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO (2G: 2×2 MU-MIMO DL/UL; 5G: 2×2 MU-MIMO DL/UL), HE160 (160 MHz Bandwidth)‡, Seamless Roaming (802.11k/v/r)△, Omada Mesh△, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
  • Wireless Security: Captive Portal Authentication△, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power: CE: 7-20 dBm (2.4 GHz, EIRP), 6-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP), 6-29 dBm (5 GHz, U-NII-2C, EIRP); FCC: 4-26 dBm (2.4 GHz), 4-27 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
  • Cloud Access: Yes (Require the use of an Omada controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Yes
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes (Require the use of an Omada controller)
  • OTHERS
  • Certification: CE, FCC, RoHS, ISED
  • Package Content: EAP653 UR, Mounting Kits, Installation Guide
  • Environment: Operating Temperature 0–40 ℃ (32–104 ℉), Storage Temperature -40–70 ℃ (-40–158 ℉), Operating Humidity 10–90% RH non-condensing, Storage Humidity 5–90% RH non-condensing
