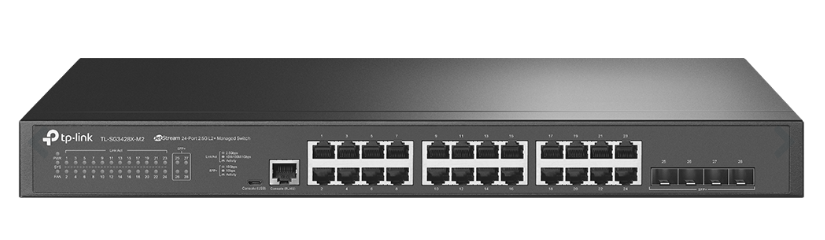

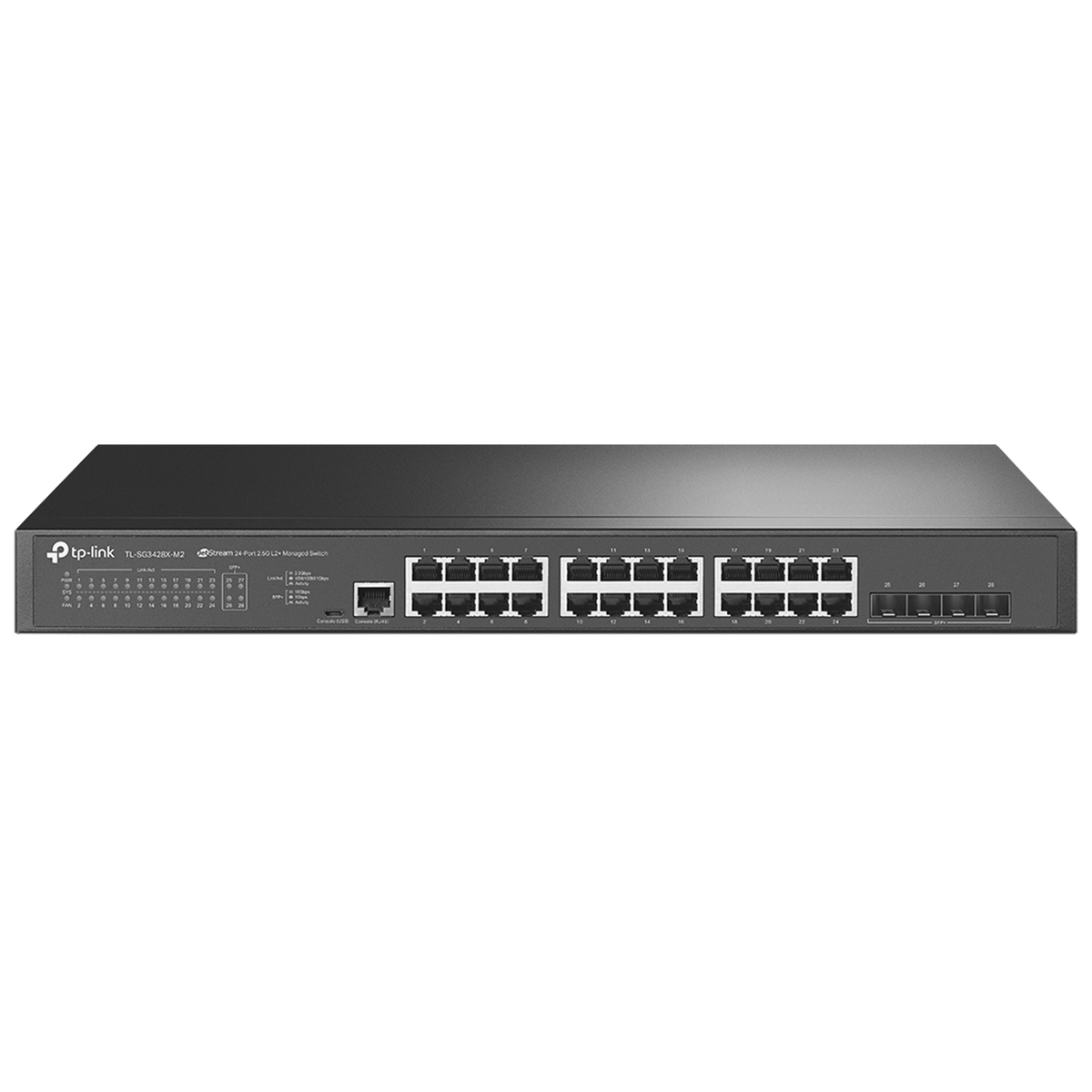

TP-Link JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots TL-SG3428X-M2

SKU: SG3428X-M2

$689.99 CAD
$689.99 CAD
Sale Sold out
Only 4 units left
  • 2.5 Gbps Speeds: 24× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • HARDWARE FEATURES
  • Interface: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console
  • Fan Quantity: 1
  • Power Supply: 100–240V AC, 50/60 Hz
  • Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
  • Mounting: Rack Mountable
  • Max Power Consumption: 45.1 W
  • Max Heat Dissipation: 154.38 BTU/h
  • PERFORMANCE
  • Switching Capacity: 200 Gbps
  • Packet Forwarding Rate: 148.80 Mpps
  • MAC Address Table: 32K
  • Packet Buffer Memory: 16 Mbit
  • Jumbo Frame: 9 KB
  • SOFTWARE FEATURES
  • QoS: 8 Queues, 802.1p/DSCP, SP/WRR/SP+WRR Scheduling, Bandwidth Control, Flow Actions (Mirror, Redirect, Rate Limit, QoS Remark)
  • L3 Features: 32 Interfaces, Static Routing (48 Routes), Static ARP (128), DHCP Server/Relay, Proxy ARP
  • L2 Features: Link Aggregation (LACP), STP/RSTP/MSTP, Loopback Detection, Flow Control, Port Mirroring
  • L2 Multicast: IGMP Snooping v1/v2/v3, MLD Snooping, MVR, Multicast Filtering
  • Advanced Features: Auto Discovery, Batch Config, Firmware Upgrade, Monitoring, Alerts, Reboot Schedule
  • VLAN
  • VLAN: 4K VLANs, 802.1Q, MAC VLAN (256), Protocol VLAN, GVRP, QinQ, Voice VLAN
  • ACCESS CONTROL LIST
  • ACL: Time-based, MAC, IP, IPv6, Combined ACL, Packet Content ACL, Port/VLAN Binding
  • SECURITY
  • Security: IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, IPv6 Guard, DoS Protection
  • Port Security: Up to 64 MAC per port, Storm Control
  • Authentication: 802.1X, MAB, Guest VLAN, RADIUS, AAA (TACACS+)
  • Management Security: HTTPS, SSL/TLS, SSHv1/v2, Access Control
  • IPv6
  • IPv6 Features: Dual Stack, IPv6 Routing, ND, ICMPv6, DHCPv6, IPv6 ACL, SNMP, SSH, SSL
  • MIBs
  • MIBs: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925, TP-Link Private MIB
  • MANAGEMENT FEATURES
  • Omada App: Yes (OC300/OC200/Cloud/Software Controller Required)
  • Centralized Management: Omada Cloud, Hardware Controller (OC300/OC200), Software Controller
  • Cloud Access: Yes
  • Zero-Touch Provisioning: Yes
  • Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, DHCP Client, LLDP, AutoInstall, Dual Image
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Content: TL-SG3428X-M2 Switch, Power Cord, Installation Guide, Rack Kit, Rubber Feet
  • System Requirements: Windows, MAC OS, NetWare, UNIX, Linux
  • Environment: Operating Temp 0–40°C, Storage -40–70°C, Humidity 10–90%
No Data

FAQs : TP-Link TL-SG3428X-M2

The TP-Link TL-SG3428X-M2 is a JetStream L2+ managed switch featuring multi-gigabit Ethernet connectivity for professional and business network deployments.
It features 24× 2.5GBASE-T Ethernet ports along with 4× 10G SFP+ slots, providing flexible high-speed connections and uplinks.
The four 10G SFP+ slots can provide high-bandwidth uplinks for connecting compatible switches, servers, storage, and other network infrastructure.
Yes. Its L2+ management capabilities, 2.5G Ethernet ports, and 10G SFP+ connectivity make it suitable for offices, enterprises, and other bandwidth-intensive networks.
