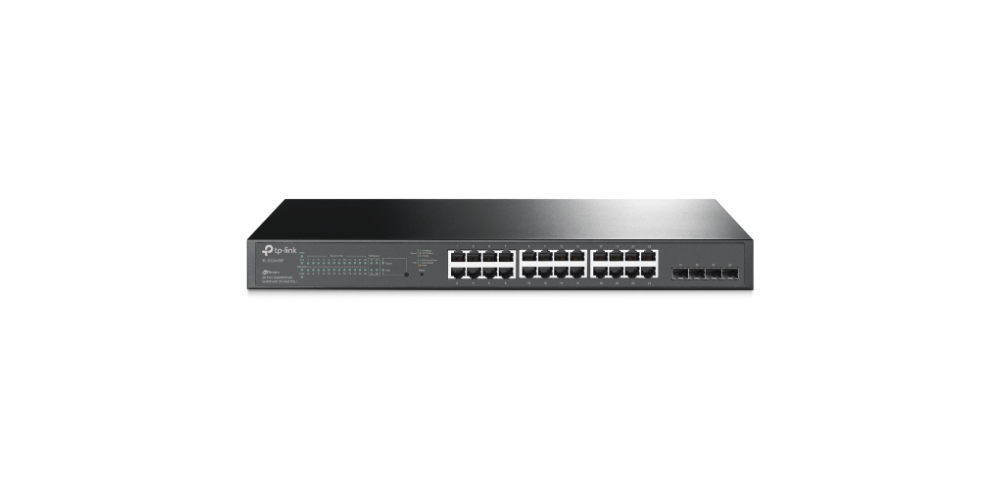

TP-Link SG2428P

$449.99 CAD
$449.99 CAD
Sale Sold out
In stock (17 units), ready to be shipped

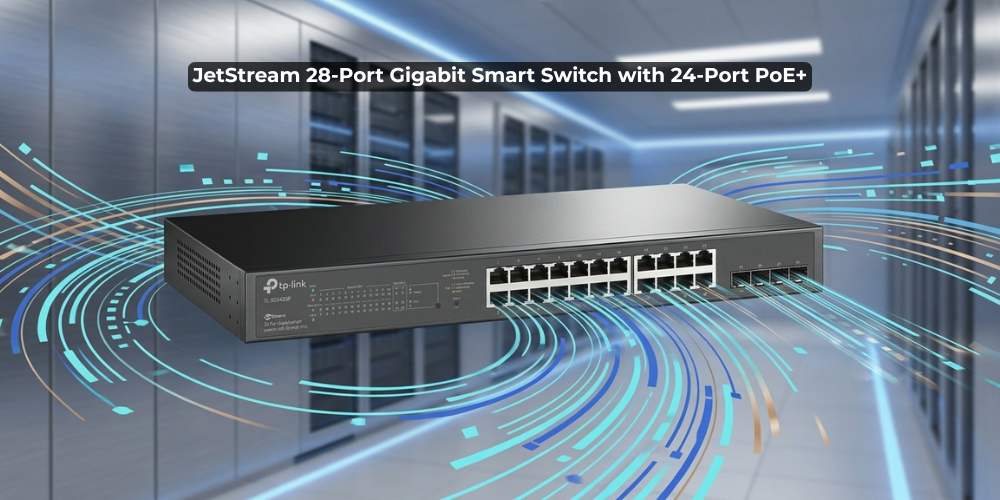

JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

Features & Compatibility

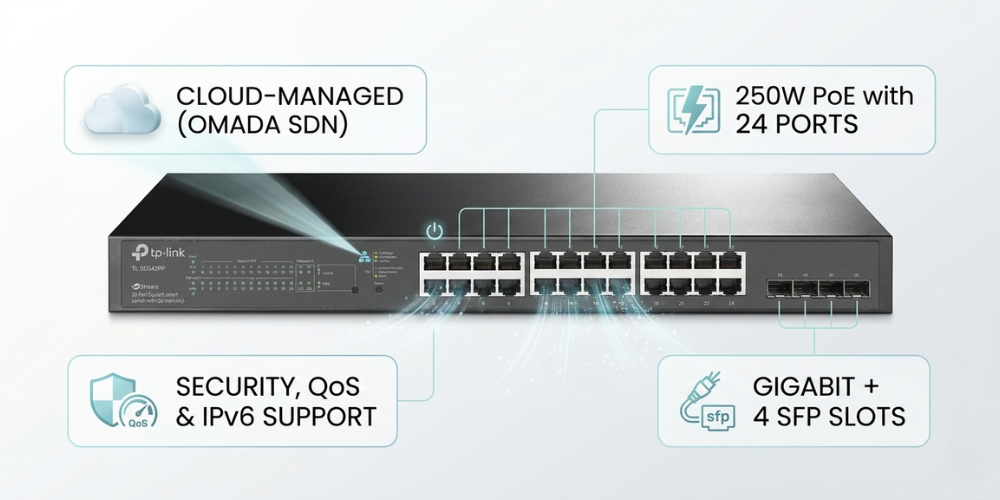

  • 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

HARDWARE FEATURES

  • Standards and Protocols:
    IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
  • Interface:

    24 × 10/100/1000 Mbps RJ45 Ports (Auto Negotiation / Auto MDI/MDIX)
    4 × Gigabit SFP Slots

  • Network Media:

    10BASE-T: UTP Cat3, 4, 5 cable (Max 100m)
    100BASE-TX/1000BASE-T: UTP Cat5, 5e or above (Max 100m)
    1000BASE-X: MMF, SMF

  • Fan Quantity: 2
  • Power Supply: 100–240V AC, 50/60Hz
  • PoE Ports (RJ45):

    Standard: 802.3at/af compliant
    PoE+ Ports: 24
    PoE Power Budget: 250 W*

  • Dimensions (W × D × H): 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
  • Mounting: Rack Mountable
  • Max Power Consumption:

    V1: 308.6 W (110V/60Hz, with 250 W PD connected); 32.1 W (no PD connected)
    V2: 294.7 W (220V/50Hz, with 250 W PD connected)
    V3: 291.9 W (110V/60Hz, with 250 W PD connected)
    V4: 306.9 W (110V/60Hz, with 250 W PD connected)

  • Max Heat Dissipation:

    V1: 1052.94 BTU/h (with 250 W PD connected); 109.53 BTU/h (no PD connected)
    V2: 1005.66 BTU/h (220V/50Hz, with 250 W PD connected)
    V3: 996.01 BTU/h (110V/60Hz, with 250 W PD connected)
    V4: 1047.30 BTU/h (110V/60Hz, with 250 W PD connected)

PERFORMANCE

  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.7 Mpps
  • MAC Address Table:

    V1, V2, V4 and above: 8K
    V3: 16K

  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 9 KB

SOFTWARE FEATURES

  • Quality of Service:

    802.1p CoS/DSCP priority
    8 priority queues
    Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
    Queue Weight Config
    Bandwidth Control (Port/Flow-based Rate Limit)
    Storm Control: multiple control modes (kbps/ratio), broadcast/multicast/unknown-unicast control

  • L2 / L2+ Features:

    16 IP Interfaces (IPv4/IPv6)
    Static Routing (32 IPv4/IPv6 routes)
    DHCP Server, Relay, VLAN Relay, L2 Relay
    Static ARP, Proxy ARP, Gratuitous ARP
    Link Aggregation (Static & 802.3ad LACP, up to 8 groups, 8 ports/group)
    Spanning Tree Protocol: STP/RSTP/MSTP with security
    Loopback Detection, Flow Control, Mirroring (port/CPU/1-to-1/many-to-1/flow-based), DLDP, LLDP/LLDP-MED

  • Advanced Features:
    Automatic Device Discovery, Batch Configuration & Firmware Upgrade, Intelligent Network Monitoring, Event Warnings, Unified Configuration, Reboot Schedule
  • VLAN:
    VLAN Group (Max 4K), 802.1Q Tag VLAN, MAC VLAN (12 entries), Protocol VLAN, GVRP, Voice VLAN
  • Access Control List (ACL):

    Support up to 230 entries, Time-based ACL, MAC ACL, IP ACL, IPv6 ACL, Combined ACL
    Rule Operations: Permit/Deny
    Policy Actions: Mirror, Rate Limit, Redirect, QoS Remark
    ACL Rules Binding: Port/VLAN Binding

  • Security:

    AAA, 802.1X (Port/MAC authentication, PAP/EAP-MD5, MAB, Guest VLAN)
    IP/IPv6-MAC Binding, IP/IPv6 Source Guard
    DoS Defend, Static/Dynamic/Permanent Port Security (up to 64 MAC per port)
    Storm Control, Port Isolation, Secure HTTPS & SSH management, IP/Port/MAC-based access control

  • IPv6 Support:
    IPv6 Static Routing & ACL, Dual IPv4/IPv6, Multicast Listener Discovery Snooping, Neighbor Discovery, Path MTU Discovery, ICMPv6, TCPv6/UDPv6, DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, SSH, SSL, HTTP/HTTPS, TFTP
  • MIBs:
    MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RADIUS Accounting & Authentication Client MIB, Remote Ping/Traceroute MIB, TP-Link Private MIBs, RMON MIB (RFC1757)

MANAGEMENT

  • Omada App: Yes, via OC300, OC200, Omada Software Controller (Cloud Controller not supported on TL-SG2428P v2)
  • Centralized Management: Omada Cloud-Based Controller (v1, v3), OC300, OC200, Omada Software Controller
  • Cloud Access: Yes (same as above)
  • Zero-Touch Provisioning: Yes (Cloud Controller, v1, v3)
  • Management Features:
    Web-based GUI, CLI via Telnet, SNMP v1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9), SDM Template, DHCP/BOOTP Client, Dual Image/Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Contents:

    TL-SG2428P Unit
    Power Cord
    Installation Guide
    Rackmount Kit
    Rubber Feet

  • System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Mac OS, NetWare, UNIX, Linux
  • Environment:

    Operating Temperature: 0–50 ℃ (32–122 ℉)
    Storage Temperature: -40–70 ℃ (-40–158 ℉)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
