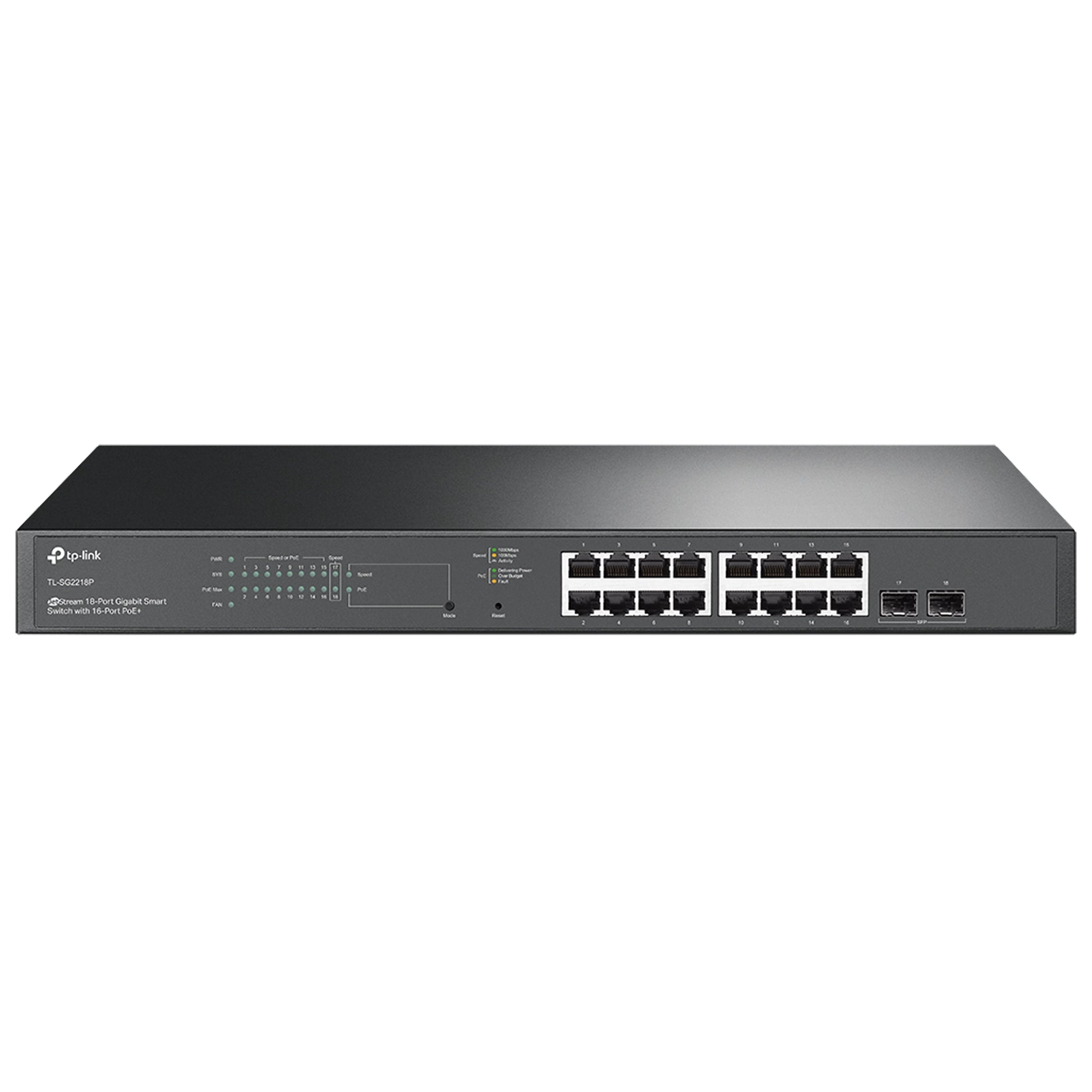

TP-Link SG2218P

$369.99 CAD
$369.99 CAD
Sale Sold out
Only 8 units left
  • 150 W PoE Budget: 16× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
  • Full Gigabit Ports: 16× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • Standards & Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
  • Interface: 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/MDI/MDIX), 2× Gigabit SFP Slots
  • Network Media: 10BASE-T (Cat3/4/5 up to 100m), 100/1000BASE-T (Cat5/5e+ up to 100m), 1000BASE-X (MMF/SMF)
  • Fan Quantity: 1
  • Power Supply: 100-240V AC, 50/60Hz
  • PoE Ports: 16× 802.3af/at PoE+ Ports, Total Budget 150W
  • Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
  • Mounting: Rack Mountable
  • Max Power Consumption: 181.4W (110V), 178.3W (220V) with full PoE load
  • Max Heat Dissipation: 619.06 BTU/hr (110V), 608.52 BTU/hr (220V)
  • Switching Capacity: 36 Gbps
  • Packet Forwarding Rate: 26.78 Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 9 KB
  • QoS: 802.1p/DSCP priority, 8 queues, SP/WRR scheduling, bandwidth control, storm control
  • L2/L3 Features: IPv4/IPv6 interfaces (16), static routing (32 routes), DHCP server/relay, ARP/proxy ARP, link aggregation (LACP), STP/RSTP/MSTP, loopback detection, LLDP
  • Advanced Features: Device discovery, batch config, firmware upgrade, monitoring, alerts, unified config, reboot scheduling
  • VLAN: 4K VLAN groups, 802.1Q tagging, MAC VLAN (12), protocol VLAN, GVRP, voice VLAN
  • ACL: Up to 230 entries, MAC/IP/IPv6 ACL, time-based rules, policy actions (permit/deny, mirror, rate limit, redirect, QoS remark)
  • Security: AAA, 802.1X, MAB, DHCP snooping, ARP inspection, IP Source Guard, DoS protection, port security, HTTPS, SSH
  • IPv6: Dual stack, IPv6 routing & ACL, ND, ICMPv6, DHCPv6, IPv6 SNMP/SSH/HTTP/TFTP
  • MIBs: RFC1213, RFC1493, RFC2674, RMON, Radius MIBs, TP-Link private MIBs
  • Management: Omada cloud/controller (OC300/OC200), Web GUI, CLI, SNMP, RMON, diagnostics tools
  • Certification: CE, FCC, RoHS
  • Package Contents: TL-SG2218P, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
  • System Requirements: Windows, macOS, Linux, NetWare, UNIX
  • Environment: Operating Temp: 0–50°C, Storage Temp: -40–70°C, Humidity: 10–90% RH
