- 62 W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62 W*.
- Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |

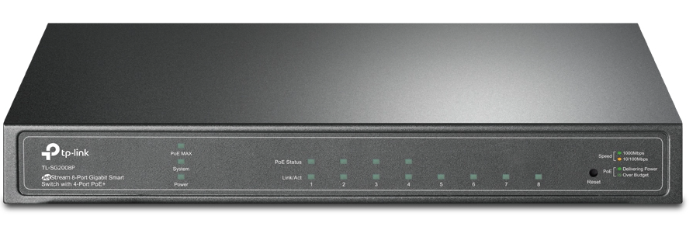

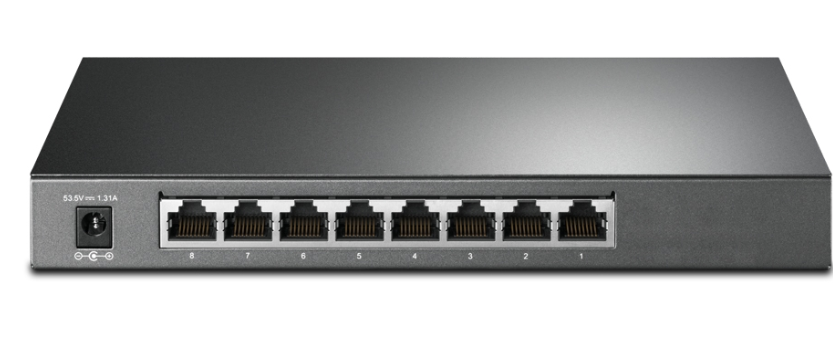

| Interface | • 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+) • Auto-Negotiation/Auto MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | • External Power Adapter (Output: 53.5 VDC/ 1.3 A) |
| Power Consumption | • 7.9 W (no power device connected) • 79.2 W (with 62 W power devices connected) |
| PoE Ports (RJ45) | • Standard: 802.3af/at compliant • PoE Ports: 4 Ports • Power Supply: 62 W* |
| Dimensions ( W x D x H ) | 8.2 x 4.9 x 1.0 in. (209 x 126 x 26mm) |
| Max Power Consumption | • V1: 69.7 W (220 V/50 Hz) (with 62 W PD connected); 7.9 W (220 V/50 Hz) (no PD connected) • V2: 73.8 W (220 V/50 Hz) (with 62 W PD connected) • V3: 77.3 W (110 V/60 Hz) (with 62 W PD connected) |
| Max Heat Dissipation | • V1: 237.82 BTU/hr (220 V/50 Hz) (with 62 W PD connected); 26.95 BTU/hr (220 V/50 Hz) (no PD connected) • V2: 251.84 BTU/hr (220 V/50 Hz) (with 62 W PD connected) • V3: 263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected) |
| PERFORMANCE | |
|---|---|
| Bandwidth/Backplane | 16 Gbps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode – SP (Strict Priority) – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port/Flow-based Rating Limit • Smoother Performance • Storm Control – Multiple Control Modes(kbps/ratio) – Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • DHCP Relay – DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation – Static link aggregation – 802.3ad LACP – Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol – 802.1D STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Flow-Based – Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – Static Group Config • Multicast VLAN Registration (MVR) • Multicast Filtering • MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
| VLAN | • VLAN Group – Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range – Time Slice – Week Time-Range – Absolute Time-Range – Holiday • Time-based ACL • MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type • IP ACL – Source IP – Destination IP – IP Protocol – TCP Flag – TCP/UDP Source Port – TCP/UDP Destination Port – DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation – Permit/Deny • Policy Action – Mirror – Rate Limit – Redirect – QoS Remark • ACL Rules Binding – Port Binding – VLAN Binding • Actions for flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
| Security | • AAA • 802.1X – Port-based authentication – MAC (Host) based authentication – Authentication Method includes PAP/EAP-MD5 – MAB – Guest VLAN – Support Radius authentication and accountability • IP/IPv6-MAC Binding – 512 Binding Entries – DHCP Snooping – DHCPv6 Snooping – ARP Inspection – ND Detection • IP Source Guard – 253 Entries – Source IP+Source MAC • IPv6 Source Guard – 183 Entries – Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • OC300 • OC200 • Omada Software Controller |
| Centralized Management | • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller |
| Cloud Access | Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • OC300 • OC200 • Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2428P v1, v3 and above, while is not supported by TL-SG2428P v2) |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG2008P • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
