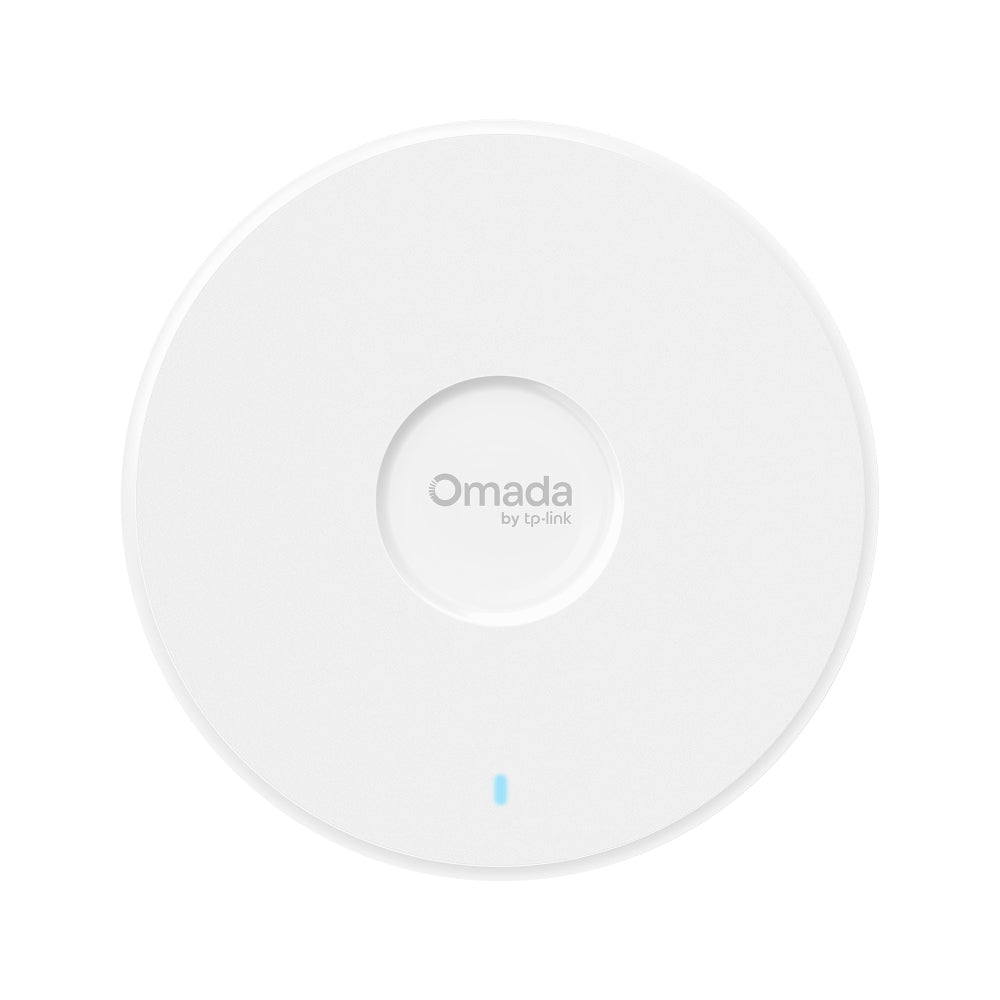

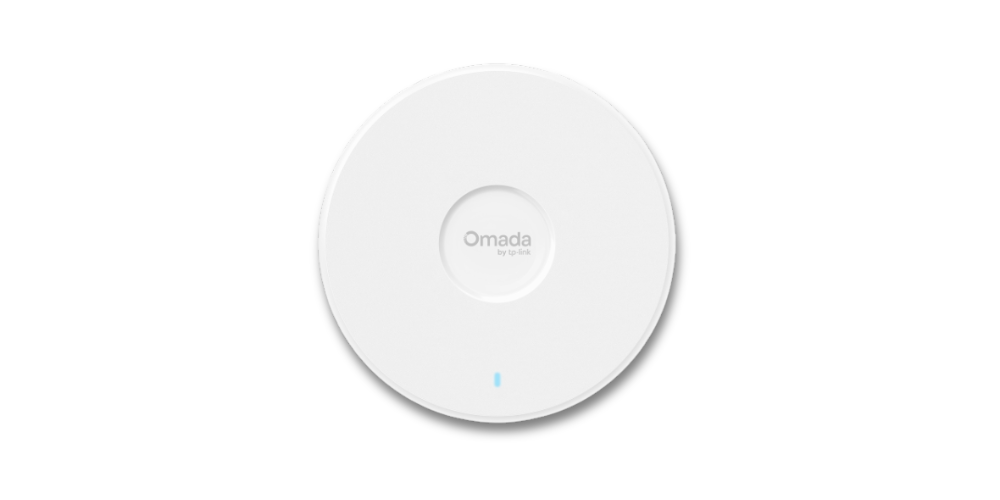

TP-Link Omada EAP787

$419.99 CAD
$419.99 CAD
Sale Sold out
Only 2 units left
  • Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
  • Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
  • Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
  • 1× 10G Port: Ensures fast connectivity throughout the network
  • Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
  • Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
  • Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
  • More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft² (190 m²)* for reliable and extensive wireless connectivity.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • HARDWARE FEATURES

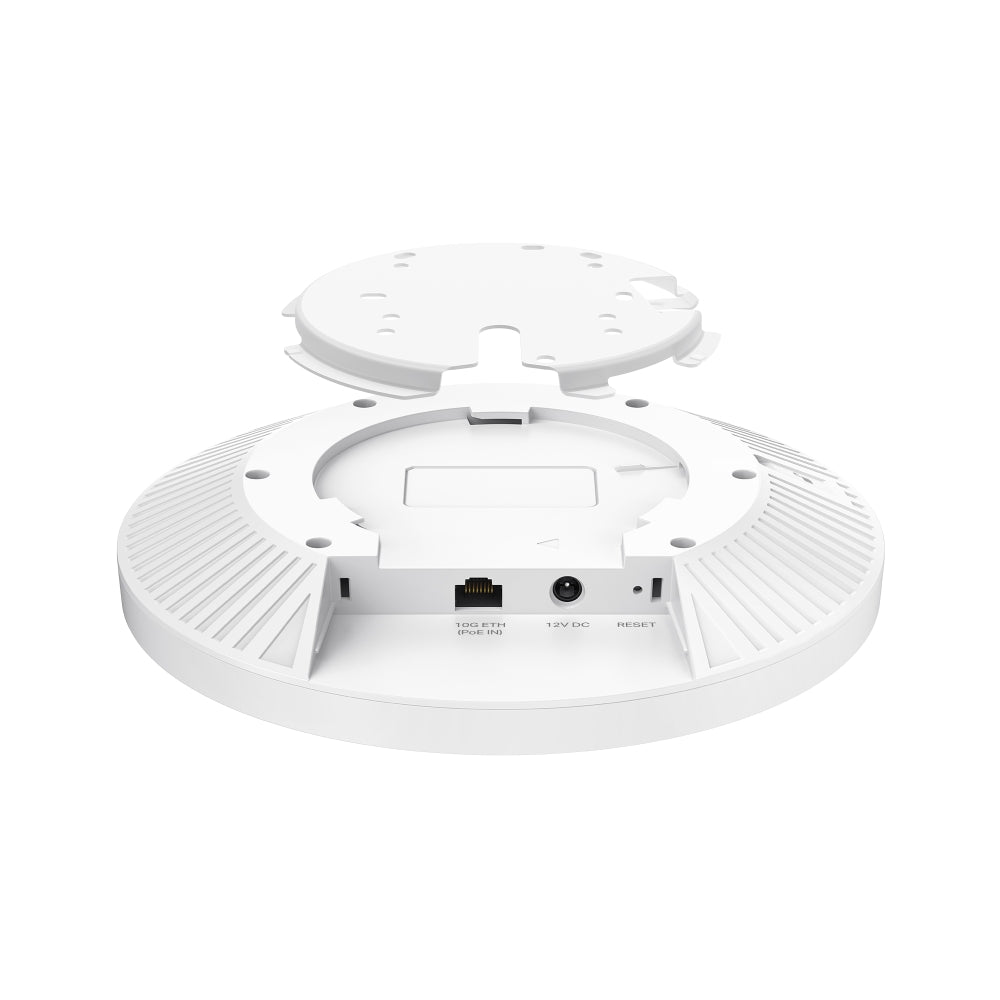

  • Interface: 1× 10G/2.5G Ethernet Port
  • Button: Reset
  • Power Supply: 802.3bt/at PoE, 12V/2.5A DC (Note: DC adapter not included, 2.1mm/5.5mm center-positive, 9mm length)
  • Max. Power Consumption: 29 W (PoE), 24.5 W (DC)

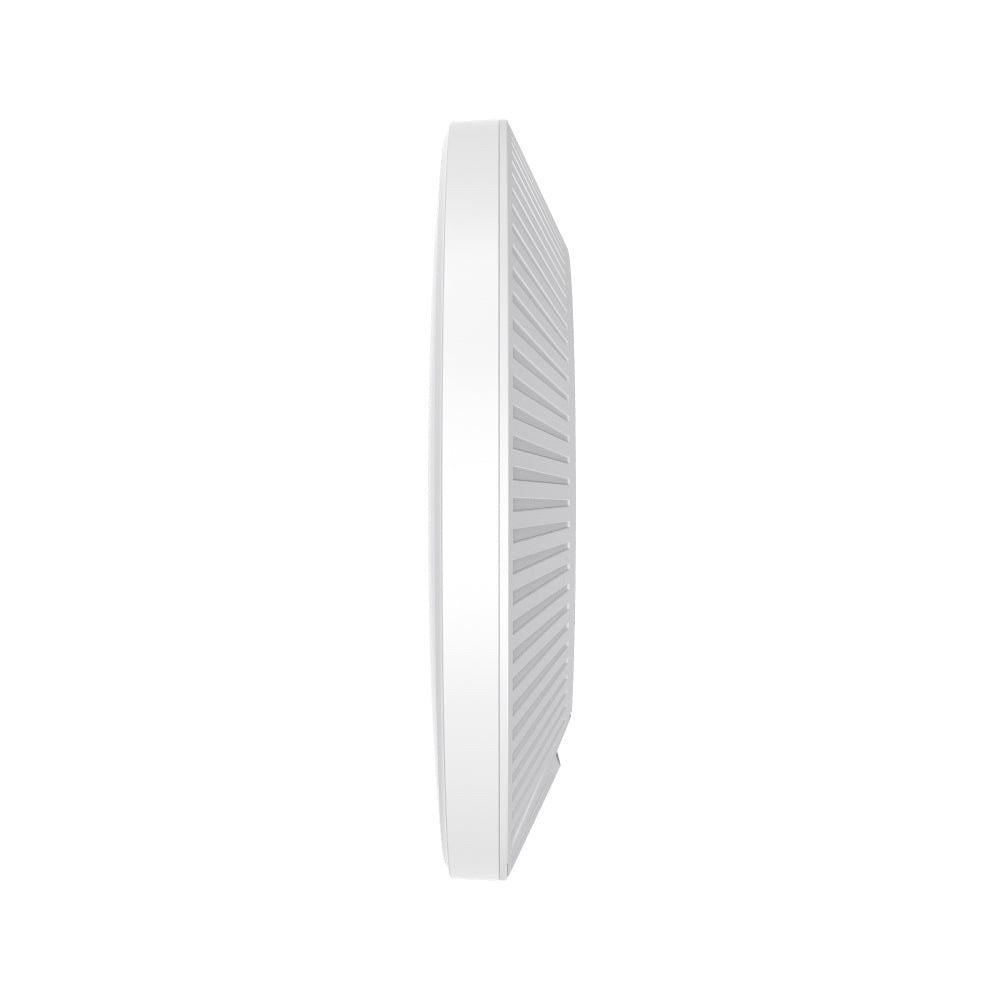

  • Dimensions (W x D x H): 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm)
  • Antenna: 2.4 GHz: 2× 4.0 dBi, 5 GHz: 4× 5.0 dBi, 6 GHz: 2× 5.0 dBi
  • Bluetooth: 1 × 5 dBi (internal antenna, firmware update may be required)

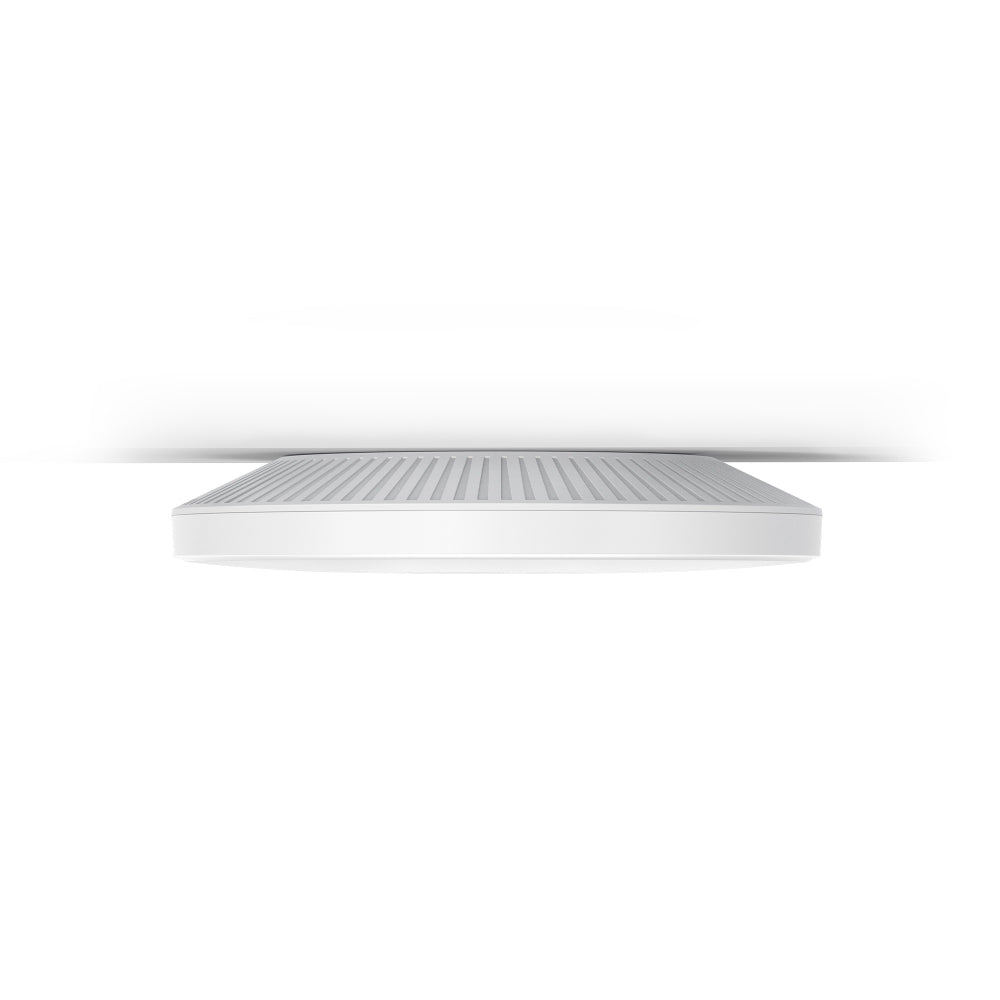

  • Mounting: Ceiling / Wall / Junction Box (kits included)
  • WIRELESS FEATURES
  • Coverage: 2050 ft² (190 m²)
  • Concurrent Clients: 510+
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
  • Frequency: 6 GHz, 5 GHz, 2.4 GHz
  • Signal Rate: 688 Mbps (2.4 GHz), 8648 Mbps (5 GHz), 5765 Mbps (6 GHz)
  • Wireless Functions: 320 MHz Bandwidth, MLO, 4K-QAM, Multi-RUs, Seamless Roaming (802.11k/v/r), MU-MIMO, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs (24), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static/Dynamic IP, RADIUS Accounting, MAC Authentication
  • Wireless Security: Captive Portal, Access Control, MAC Filter, Client Isolation, VLAN, Rogue AP Detection, WPA/WPA2/WPA3 (Personal & Enterprise)
  • Transmission Power: 2.4 GHz: 4–25 dBm, 5 GHz: 7–29 dBm / 7–26 dBm / 7–24 dBm, 6 GHz: 4–23 dBm
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Central (Cloud), Hardware Controller, Software Controller
  • Cloud Access: Yes (requires Omada controller)
  • Email Alerts: Yes
  • LED Control: Yes
  • MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging: Local / Remote Syslog
  • Web Management: Yes
  • OTHERS
  • Certification: CE, FCC, RoHS, IC
  • Package Content: EAP787, Installation Guide, Mounting Kit (Note: Power adapter not included)
  • Environment: Operating Temp: 0°C–40°C, Storage Temp: -40°C–70°C, Operating Humidity: 10%–90%, Storage Humidity: 5%–90%
