SKU:RP-PN8-NHD
RP-PN8-NHD
⚠️
Out of stock.
Contact Us
or
Call Us
for stock status.
Regular price
$0.00 CAD
Sale price
$0.00 CAD
Regular price
Unit price
/
per
Sale
Sold out
Re-stocking soon
Couldn't load pickup availability
- Built-in 2TB HDD
- Expandable Storage up to 32TB
- Supports up to 16MP Resolution
- Heat Mapping Technology
- Smart Event Detection
- AI Video Search
Payment methods
Payment methods-
Vendor:
Reolink
- Tags: Reolink, Rp-pn8-nhd
Hardware Specifications
- IP Video Input: Up to 12 IP Cameras (Max. 8 wired cameras), supports up to 16MP resolution.
- Audio Input: Cameras with built-in microphone (MIC).
- Incoming Bandwidth: 240 Mbps.
- Outgoing Bandwidth: 240 Mbps.

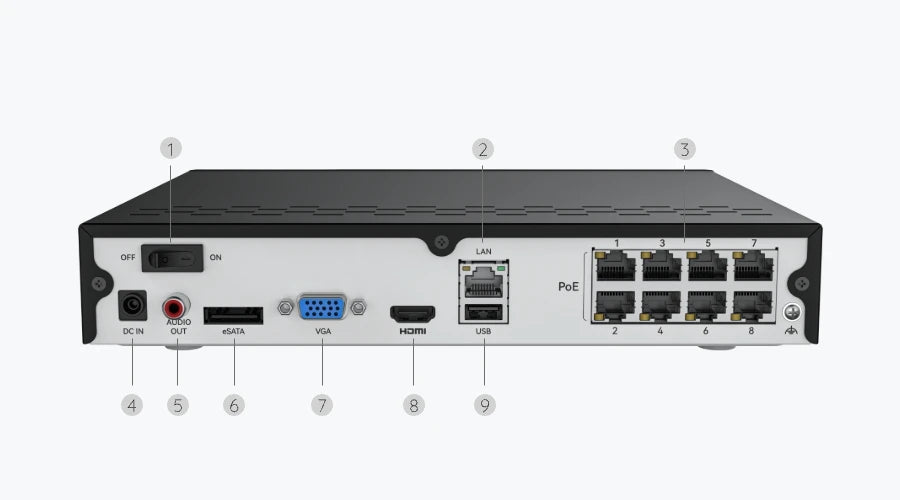

- Video Output: 1 × HDMI, 1 × VGA.
- Display Resolution (HDMI): 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768.
- Display Resolution (VGA): 1920×1080, 1280×1024, 1280×720, 1024×768.
- Audio Output: 1-channel RCA audio output.
- Video Compression: H.265 / H.264.
- Live View & Playback Resolution: Supports up to 7680×2160, including 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080P, and 720P.
- Synchronous Playback: 1–4 channels (Supports only 1-channel playback when viewing 8MP or higher resolution).
- SATA Interface: 1 × SATA interface (1 × 2TB HDD included).
- External HDD: 1 × eSATA interface.
- Maximum Storage Capacity: Up to 32TB (Maximum 16TB per HDD).
- USB Interface: 2 × USB 2.0.
- Network Interface: 8 × RJ-45 10/100 Mbps PoE ports (IP Cameras), 1 × RJ-45 10/100/1000 Mbps LAN/WAN port.
- Alarm In/Out: Not Available (N/A).
- Maximum PoE Power Per Port: 25W.
- PoE Standard: IEEE 802.3af/at.
- Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPnP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP.
- Supported Browsers: Microsoft Edge, Firefox, Chrome, Safari.
- Supported Operating Systems: Windows, macOS, iOS, Android.
- Maximum User Access: 20 Users (1 Admin + 19 Users), Supports up to 12 Simultaneous Video Streams (10 Substreams & 2 Mainstreams).
- AI Video Search: Yes (Requires supported cameras).
- Person & Object Detection: Person, Vehicle, Non-Motorized Vehicle, Animal, and Package (Requires supported cameras).
- Perimeter Protection: Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert (Requires supported cameras).
- Smart Event Detection: Object Removal (Beta), Forgotten Object (Beta) (Requires supported cameras).
- Heat Map: Supported.
- Power Supply: DC 52V / 2.3A.
- Power Consumption: Less than 10W (Without HDD & PoE).
- Operating Temperature: -10°C to +45°C (14°F to 113°F).
- Operating Humidity: 10%–90%.

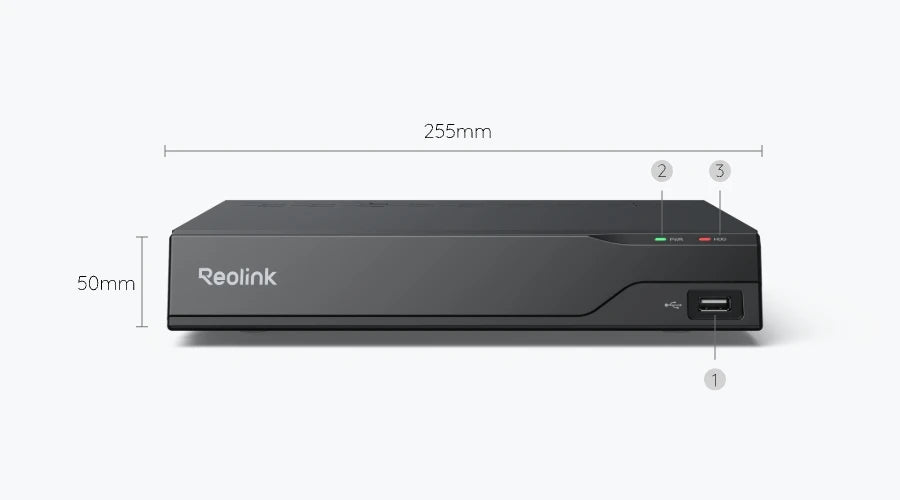

- Dimensions: 255 × 50 × 211 mm.
- Weight: 1.4 kg (Without HDD), 1.8 kg (With HDD).
