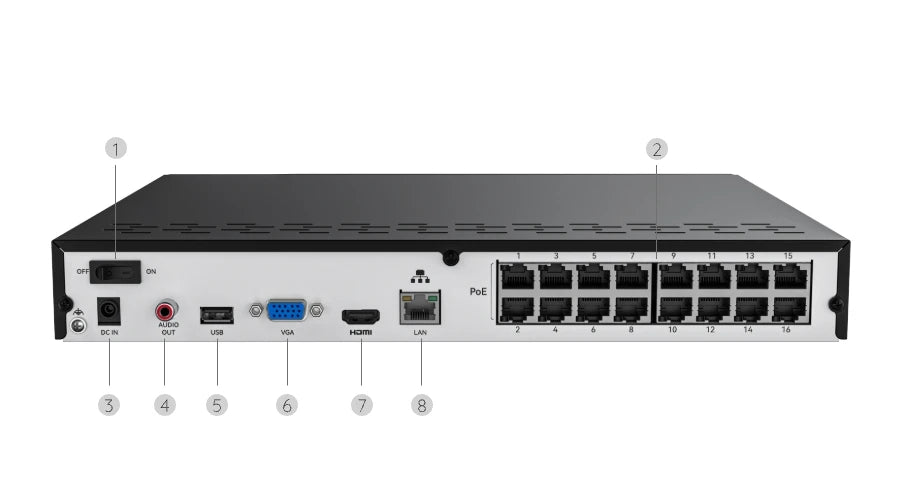

RP-PN16

Hardware Specifications

• IP Video Input: Supports up to 24 IP Cameras (Maximum 16 Wired Cameras), up to 16MP Resolution
• Audio Input: Cameras with Built-in Microphone (MIC)
• Incoming Bandwidth: 400 Mbps
• Outgoing Bandwidth: 400 Mbps
• Video Output: 1 × HDMI, 1 × VGA
• HDMI Resolution: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
• VGA Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
• Audio Output: 1 × RCA Audio Output Channel
• Video Compression: H.265 / H.264
• Live View & Playback Resolution: Supports up to 7680×2160, including 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080P, and 720P
• Synchronous Playback: 1–4 Channels (Supports only 1-channel playback when viewing 8MP or higher resolution)
• SATA Interface: 2 × SATA Interfaces (1 × 4TB HDD Included)
• External HDD: Not Supported
• Maximum Storage Capacity: Up to 32TB (Up to 16TB per HDD)
• USB Interface: 2 × USB 2.0
• Network Interface: 16 × RJ-45 10/100 Mbps Self-Adaptive PoE Ports (IP Cameras), 1 × RJ-45 10/100/1000 Mbps Self-Adaptive LAN/WAN Port
• Alarm In/Out: N/A
• Maximum PoE Power Per Port: 25W
• PoE Standard: IEEE 802.3af/at
• Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPnP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
• Supported Browsers: Microsoft Edge, Firefox, Chrome, Safari
• Supported Operating Systems: Windows, macOS, iOS, Android
• Maximum User Access: 20 Users (1 Admin + 19 Users), Supports up to 12 Simultaneous Video Streams (10 Substreams & 2 Mainstreams)
• AI Video Search: Yes (Requires Compatible Cameras)
• Person & Object Detection: Person, Vehicle, Non-Motorized Vehicle, Animal, and Package Detection (Requires Compatible Cameras)
• Perimeter Protection: Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert (Requires Compatible Cameras)
• Smart Event Detection: Object Removal (Beta), Forgotten Object (Beta) (Requires Compatible Cameras)
• Heat Map: Supported
• Power Supply: DC 52V / 2.3A
• Power Consumption: < 10W (Without HDD & PoE)
• Operating Temperature: -10°C to +45°C (14°F to 113°F)
• Operating Humidity: 10%–90%
• Dimensions: 255 × 50 × 211 mm
• Weight: 1.4 kg (Without HDD), 1.8 kg (With HDD)
