RP-PCT12M

Video & Audio Specifications

• Image Sensor: 1/2.49" CMOS Sensor
• Resolution: 4512 × 2512 (12 Megapixels) @ 25 FPS
• Lens: 4mm Fixed Lens, F1.6, with IR-Cut Filter
• Zoom: No
• Video Compression: H.265 / H.264
• Field of View: Horizontal: 100.4°, Vertical: 50.6°, Diagonal: 123°
• Day & Night: IR-Cut Filter with Auto Switching
• Infrared Night Vision: Up to 30 Meters (2 × 2.8W / 850nm IR LEDs)
• Color Night Vision: 1 × 4.3W Spotlight (6500K, 600 Lumens)
• Frame Rate: Main Stream: 2–25 FPS (Default: 25 FPS), Sub Stream: 4–20 FPS (Default: 10 FPS)
• Bit Rate: Main Stream: 2048–12288 Kbps (Default: 9216 Kbps), Sub Stream: 128–1228 Kbps (Default: 1024 Kbps)
• Audio: Two-Way Audio
• PoE: IEEE 802.3af, 48V Active
• DC Power: DC 12V / 1A, Power Consumption < 12W

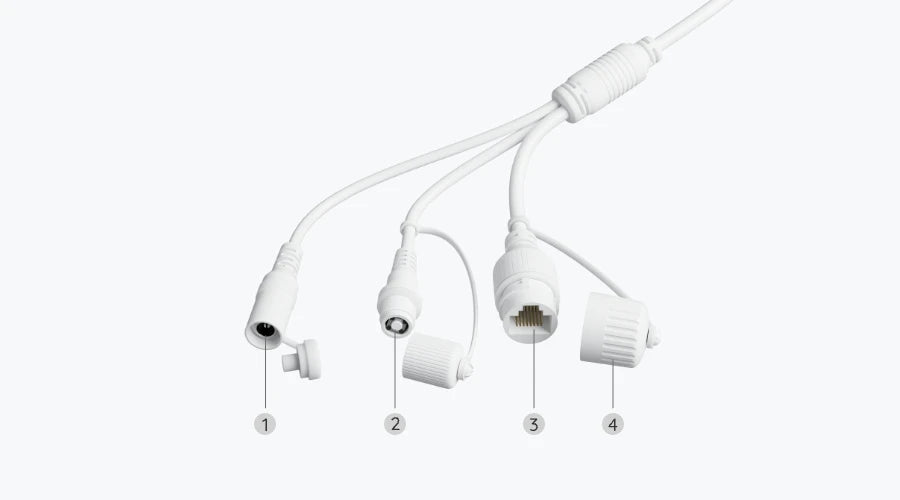

• Power Port: DC Power Port
• Ethernet Port: 1 × 10/100 Mbps RJ45
• Storage: MicroSD Card Slot (Supports up to 512GB)
• Reset Button: Yes
• Alarm In/Out: No
• Audio In/Out: Built-in Microphone & Speaker
• Supported Browsers: Microsoft Edge, Chrome, Firefox, Safari
• Supported Operating Systems: Windows, macOS, iOS, Android
• Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF
• User Access: 20 Users (1 Admin + 19 Users), Supports up to 12 Simultaneous Video Streams (10 Substreams & 2 Mainstreams)
• Smart Alarm: Motion Detection, Person Detection, Vehicle Detection, Animal Detection
• Perimeter Protection: Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert
• Smart Event Detection: Object Removal (Beta), Forgotten Object (Beta)
• Recording Modes: Motion-Triggered Recording (Default), Scheduled Recording, 24/7 Continuous Recording
• Smart Home Compatibility: Google Assistant
• AI Video Search: Yes
• AI ISP: Yes
• HDR: No
• Time Lapse: Yes
• Motion Tracking: No
• Operating Temperature: -30°C to +55°C (-22°F to 131°F)
• Operating Humidity: 10%–90%
• Weatherproof Rating: IP67

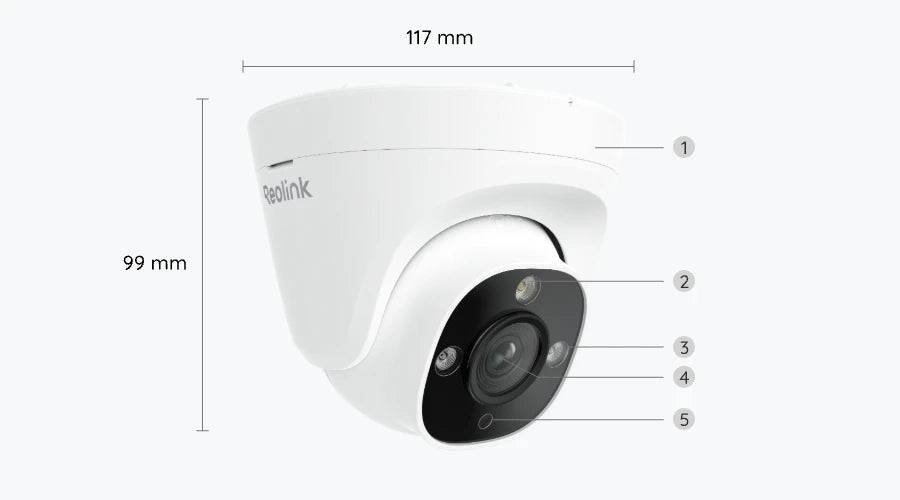

• Dimensions: Ø117.4 × 103.8 mm
• Weight: 526 g (Without Accessories)
