RP-PCB8M

Video & Audio Specifications

• Image Sensor: 1/2.7" CMOS Sensor
• Resolution: 3840 × 2160 (8 Megapixels) @ 25 FPS
• Lens: 2.8mm Fixed Lens, F1.6, with IR Cut Filter
• Zoom: N/A
• Video Compression: H.265 / H.264
• Field of View: Horizontal: 105°, Vertical: 56°, Diagonal: 125°
• Day & Night Mode: IR-Cut Filter with Auto Switching
• Infrared Night Vision: Up to 30 meters (2 × 2.8W / 850nm IR LEDs)
• Color Night Vision: 1 × 4.3W Spotlight (6500K, 700 Lumens)
• Frame Rate: Main Stream: 2–25 FPS (Default: 25 FPS), Sub Stream: 4–15 FPS (Default: 10 FPS)
• Bit Rate: Main Stream: 2048–9216 Kbps (Default: 7168 Kbps), Sub Stream: 64–512 Kbps (Default: 256 Kbps)
• Audio: Two-Way Audio with Built-in Microphone & Speaker
• PoE: IEEE 802.3af, 48V Active
• DC Power: DC 12V / 1A, Power Consumption < 12W

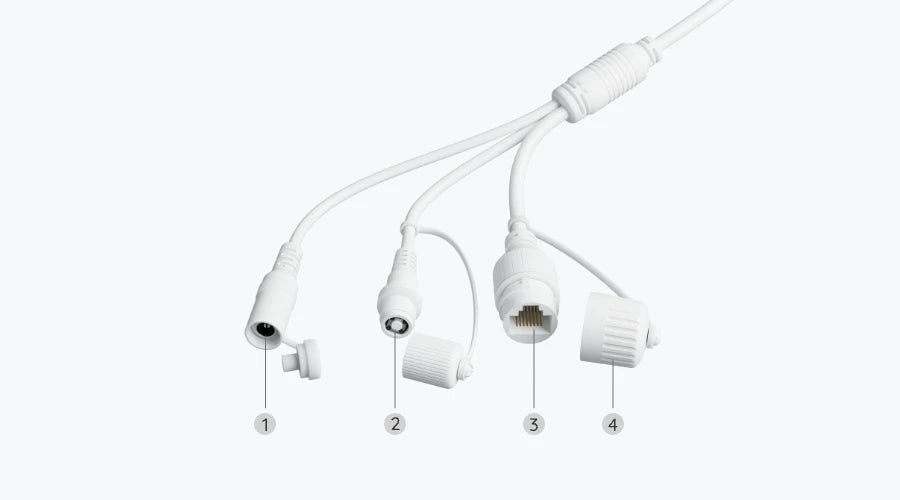

• Power Port: DC Power Port
• Ethernet Port: 1 × 10/100 Mbps RJ45 Port
• Storage: MicroSD Card Slot (Supports up to 512GB)

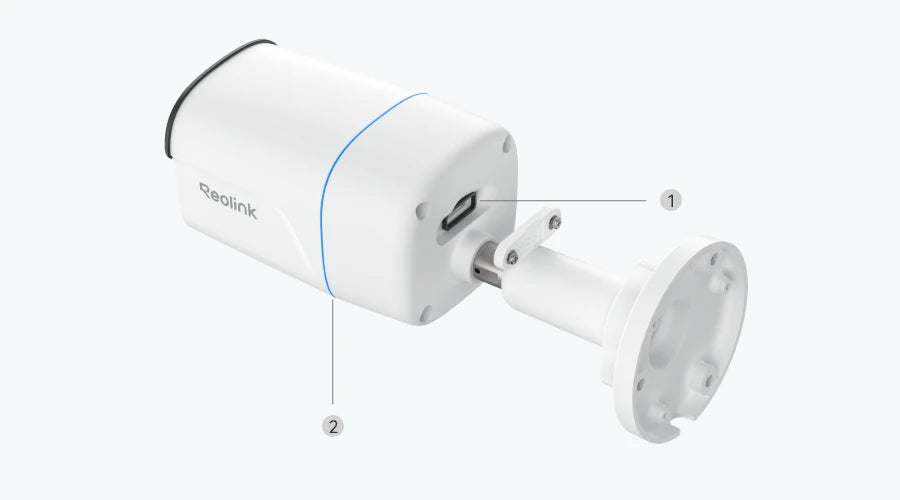

• Reset Button: Yes
• Alarm In/Out: N/A
• Smart Alarm: Motion Detection, Person Detection, Vehicle Detection, Animal Detection
• Perimeter Protection: Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert
• Smart Event Detection: Object Removal (Beta), Forgotten Object (Beta)
• Recording Modes: Motion-Triggered Recording, Scheduled Recording, 24/7 Continuous Recording
• Smart Home Compatibility: Google Assistant
• AI Video Search: N/A
• AI ISP: N/A
• HDR: N/A
• Time Lapse: Supported
• Motion Tracking: N/A
• Operating Temperature: -30°C to +55°C
• Operating Humidity: 10%–90%
• Weatherproof Rating: IP67

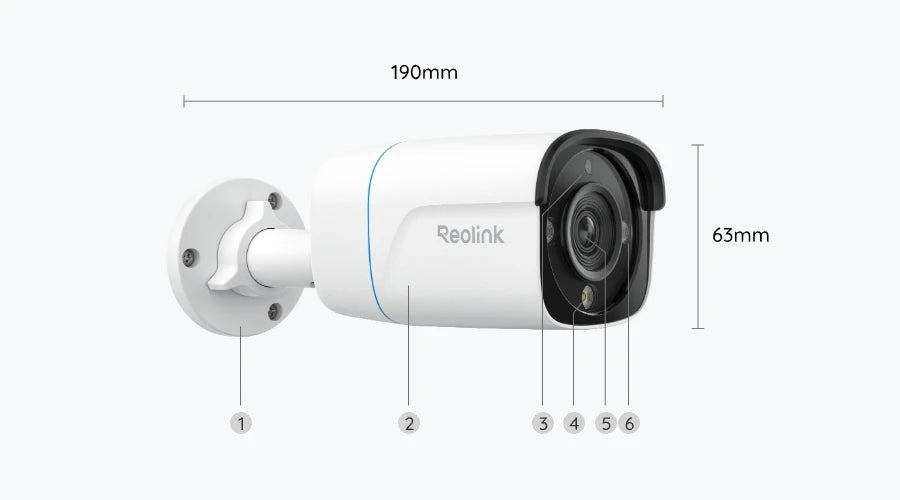

• Dimensions: 68 × 63 × 188 mm
• Weight: 452.4 g (Without Accessories)
