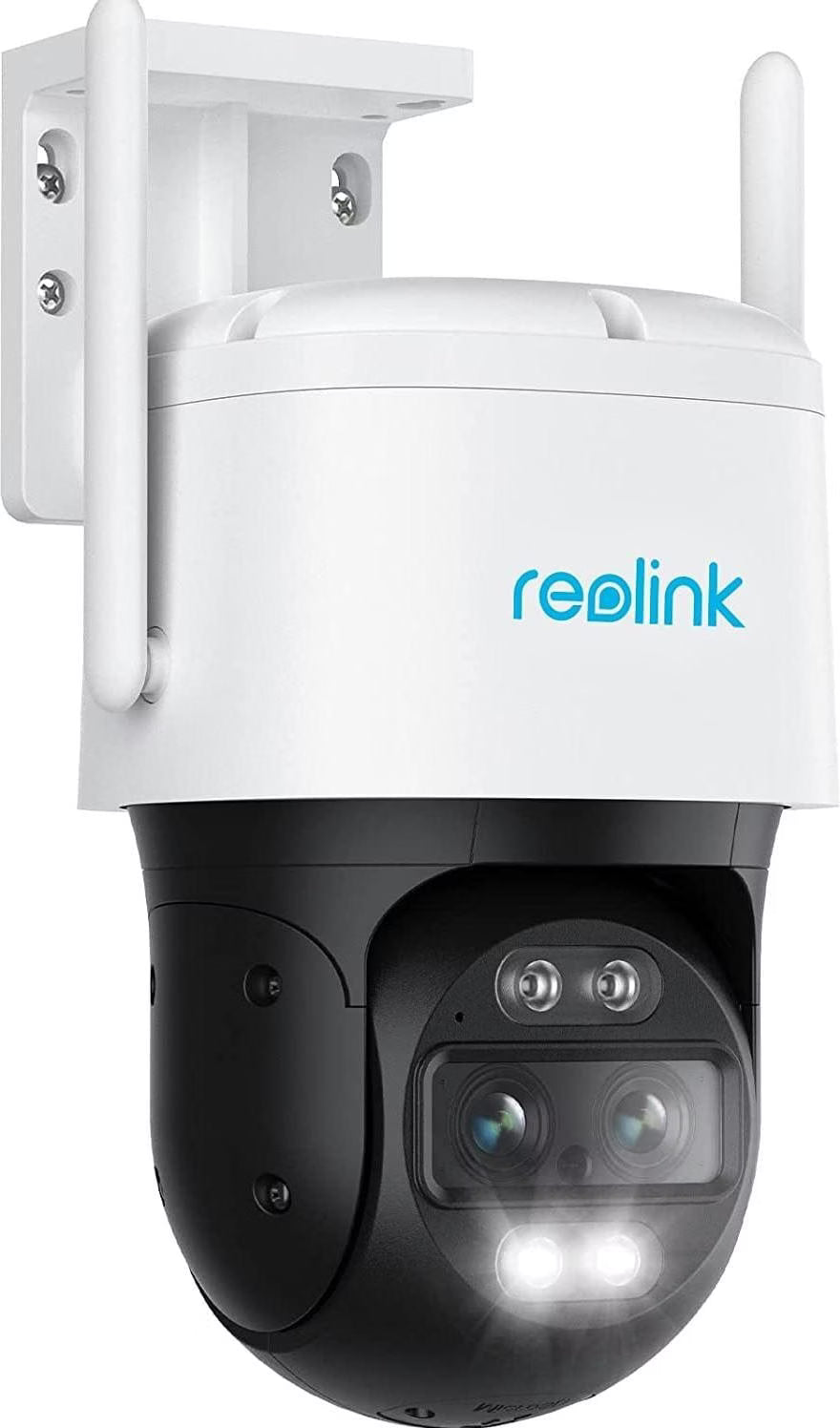

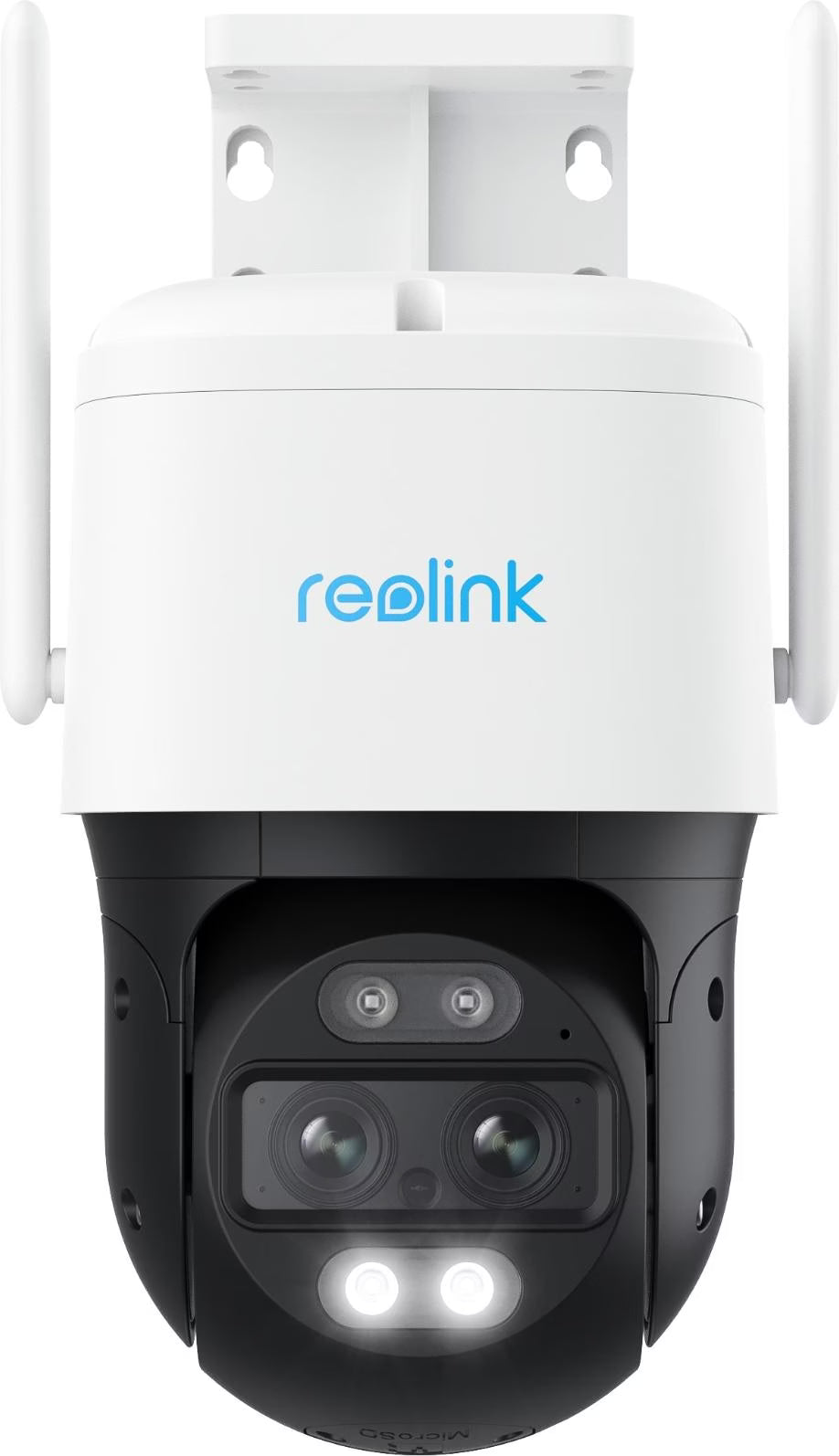

RLN-TRACKMIX SERIES W760

Video & Audio

Image Sensor1/3" + 1/2.8" CMOS Sensors Video Resolution3840 × 2160 (8 Megapixels) @ 20fps Lensf=2.8mm @ F=1.6, f=8mm @ F=1.6 Video CompressionH.264, H.265Field of View

• Horizontal: 104°–38°
• Vertical: 60°–21°

Zoom6× Hybrid Zoom Infrared Night VisionUp to 30 meters (100ft); LED: 2pcs/850nm (Auto-switching with IR-cut filter) Color Night VisionWith Spotlights: 2pcs/4W/6500KFrame Rate

• Main Stream: 4fps–20fps (Default: 20fps)
• Sub Stream: 4fps–20fps (Default: 10fps)

Code Rate

• Main Stream: 2048Kbps–5120Kbps
• Sub Stream: 128Kbps–1128Kbps

AudioTwo-way Audio

Power Requirements

DC PowerDC 12.0V⎓2A

Interface

PowerDC power port Reset ButtonYes Ethernet PortOne 10M/100Mbps RJ45 SD Card SlotSupports microSD cards up to 512GB Audio In/OutBuilt-in microphone and speaker

Pan & Tilt

PT Angle (Max.)Pan: 355°, Tilt: 90° Pan Speed90°/8s–90°/s (Speed Adjustable) Tilt Speed60°/8s–60°/s (Speed Adjustable) Preset PointsSupports 1 Guard Point and up to 64 Patrol Points Power-off Memory FunctionYes Auto TrackingYes

Wi-Fi

Wireless StandardIEEE 802.11 ac/ax/a/b/g/n Operating Frequency2.4GHz / 5GHz Wireless SecurityWPA/WPA2/WPA3

Software

Browsers SupportedEdge, Chrome, Firefox, Safari OS SupportedPC: Windows, Mac OS; Smartphone: iOS, Android Protocols & StandardsHTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2PUser Access

• Maximum 20 users (1 admin and 19 users)
• Maximum 12 simultaneous streams (2 main and 10 sub streams)

Other Features

Smart AlarmMotion detection; person detection; vehicle detection; animal detection Time LapseYes Smart Home CompatibilityGoogle Assistant

Software Features

Record ModeMotion-triggered recording (Default); scheduled recording; 24/7 recording

Working Environment

Operating Temperature-10°C to +55°C (14°F to 131°F) Operating Humidity10%–90% WeatherproofYes

Mechanical

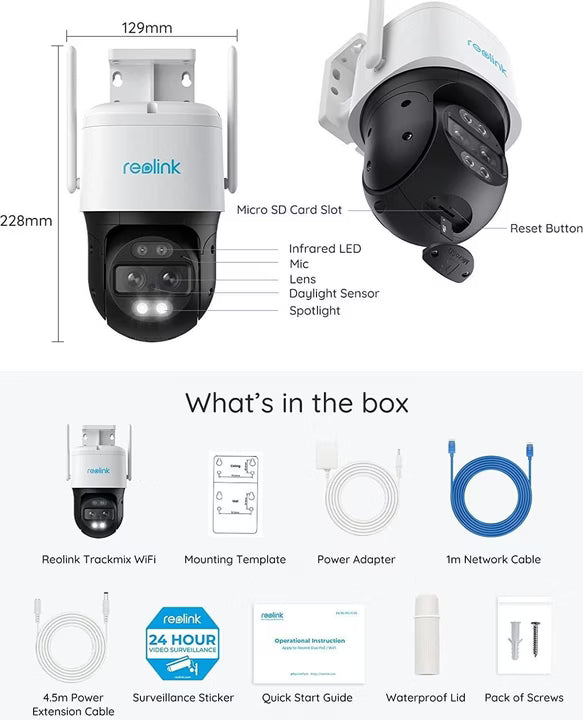

Dimensions228.2 × 147 × 129 mm Weight1.21 kg
