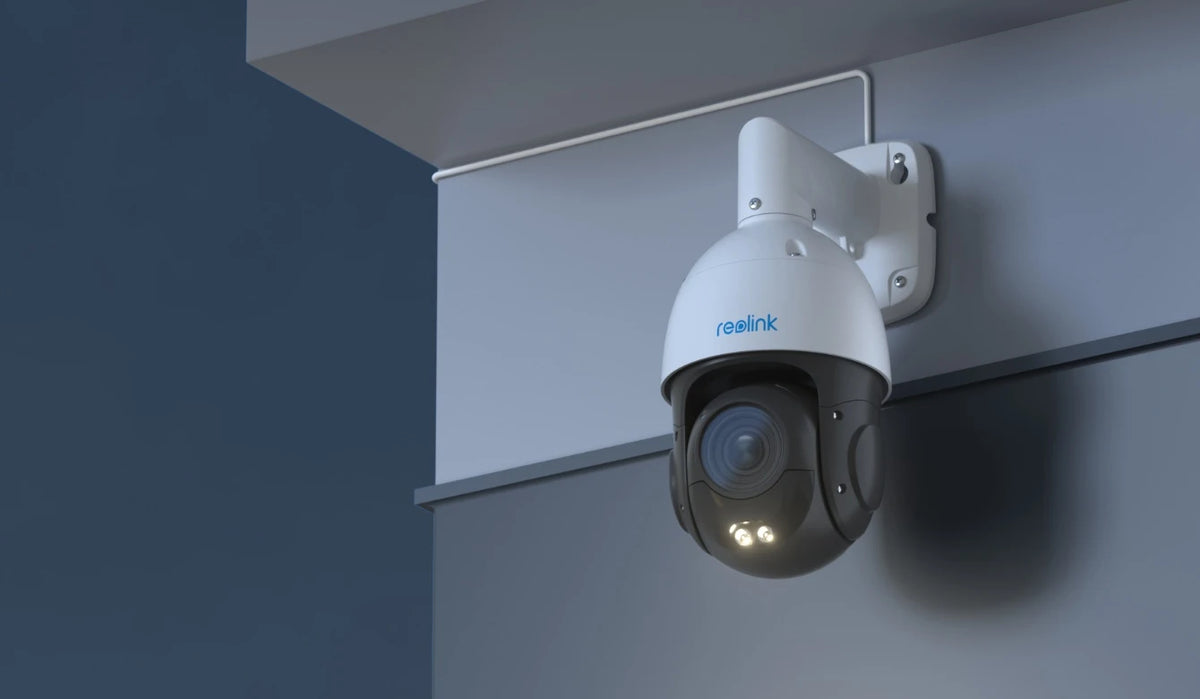

RLN-P850

Video & Audio

Image Sensor 1/2.8" CMOS Sensor

Resolution 3840 × 2160 (8 Megapixels) @ 25 FPS

Lens f = 5.3–86 mm / Max. F1.6

Video Compression H.265 / H.264

Zoom 16X

Field of View
Horizontal: 54.2°–3.6°
Vertical: 41.7°–2.1°
Infrared Night Vision Up to 80 meters (260 ft); 7 IR LEDs, Max. 5.5W, 850nm (Auto-switching with IR-cut filter)

Color Night Vision With spotlights: 2 × 4W / 4000K (Adjustable)Frame Rate
Mainstream: 2–25 FPS (Default: 25 FPS)
Substream: 4–15 FPS (Default: 10 FPS)
Code Rate
Mainstream: 2048–8192 Kbps (Default: 6144 Kbps)
Substream: 64–512 Kbps (Default: 256 Kbps)
Audio Two-Way Audio

Power

PoE IEEE 802.3at, 48V, Active

DC Power DC 12V ⎓ 2A, Less than 24W

Interface

Power Port DC Power Port

Ethernet Port One 10M/100Mbps RJ45 Port

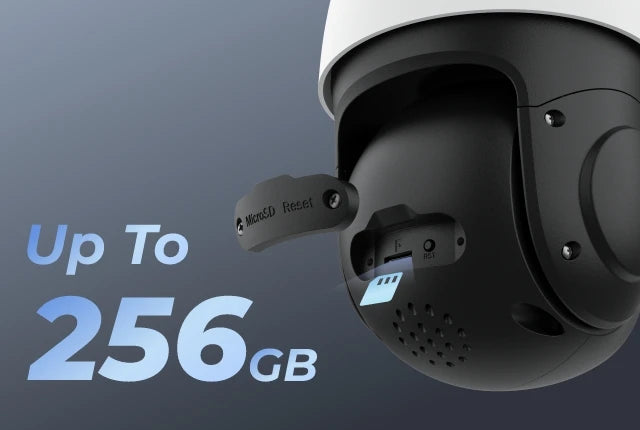

SD Card Slot Supports microSD Cards up to 256GB

Reset Button Yes

Audio In/Out Built-in Microphone and Speaker

Pan & Tilt

PT Angle (Max.) Pan: 360°, Tilt: 90°

Pan Speed 1.4°–90°/s (Configurable)

Tilt Speed 1.4°–56°/s (Configurable)

Preset Points Supports 1 Guard Position and up to 64 Preset Positions

Patrol Supports 1 Patrol with up to 16 Presets per Patrol

Power-Off Memory Function Yes

Auto Tracking Yes

Software

Browsers Supported Edge, Chrome, Firefox, Safari

Operating Systems Supported PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

User Access Maximum 20 Users (1 Admin and 19 Users); Maximum 12 Simultaneous Streams (2 Main and 10 Substreams)

Other Features

Smart Alarm Motion Detection, Person Detection, Vehicle Detection, Animal Detection

Time Lapse Yes

Smart Home Compatibility Google Assistant

Software Features

Recording Modes Motion-Triggered Recording (Default), Scheduled Recording, 24/7 Recording

Working Environment

Operating Temperature -10°C to +50°C (14°F to 126°F)

Operating Humidity 10%–90%

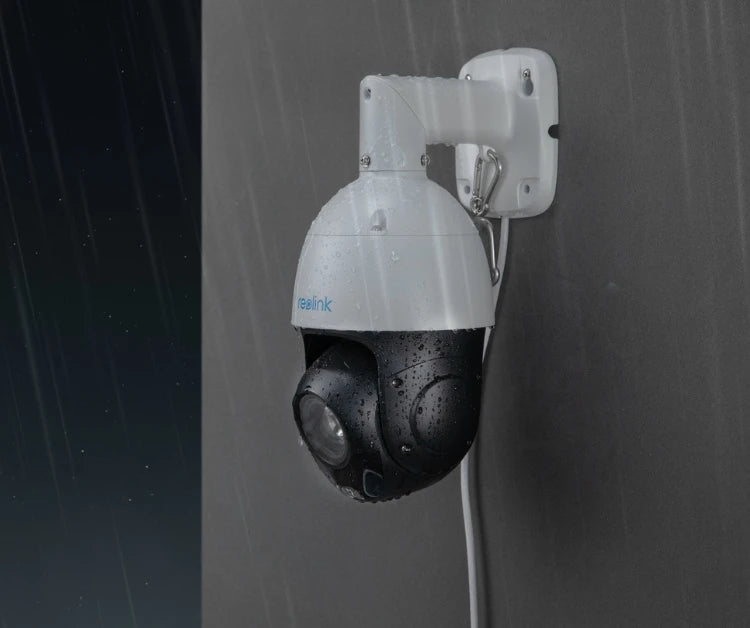

Weatherproof Rating IP66

Mechanical

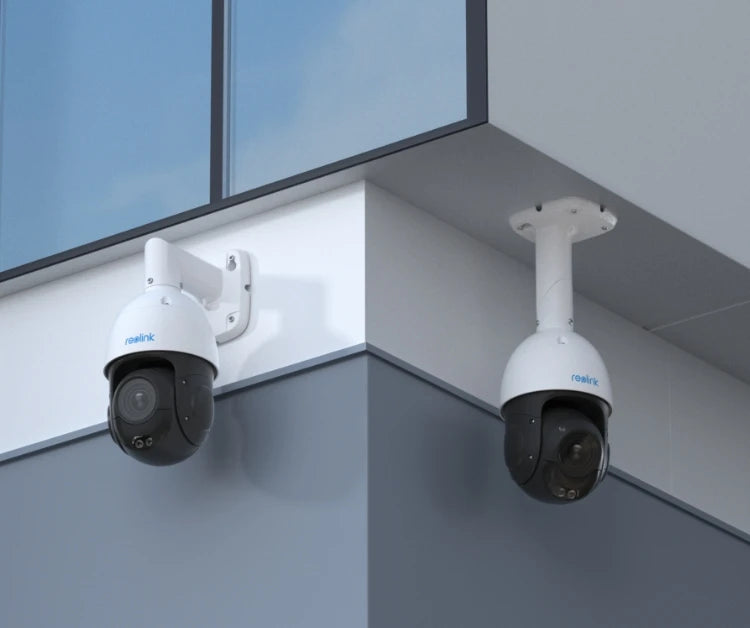

Dimensions 373 × 177 × 140 mm (Ceiling Mount)

Weight 2.34 kg
