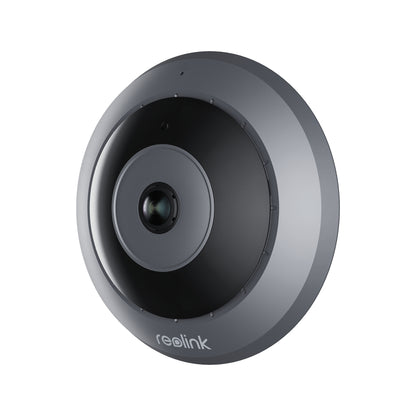

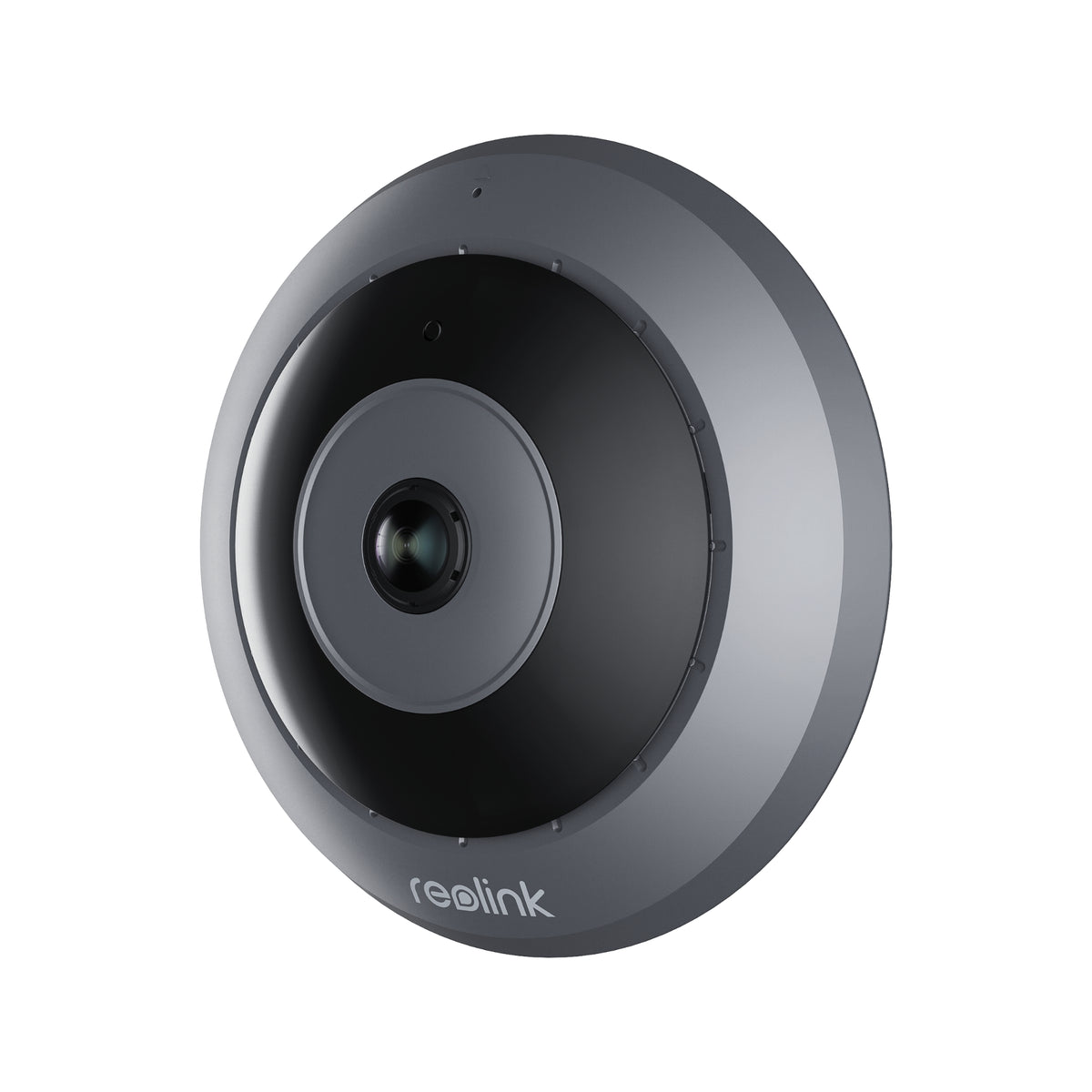

RLN-FISHEYE SERIES P520

Video & Audio

Image Sensor 1/2.5" CMOS sensor

Video Resolution 2560 x 2560 (6.5 Megapixels) @ 25FPS

Lens f=1.98mm F=2.0 IR CUT

Video Compression H.265

Field of View 180° (H), 180° (V), 180° (D)

Day & Night IR-cut filter & auto-switching

Infrared Night Vision 8 Meters (3pcs / 850nm)

Audio Two-Way Audio

Power

PoE IEEE 802.3af, 48V ActiveDC Power DC 12.0V⎓1A, <12W

Interface

Power DC 12V / 1A & PoE (IEEE 802.3af)System Reset buttonEthernet One 10M / 100Mbps RJ45Storage microSD card slot (Max. 256GB); Reolink NVRAudio Built-in Microphone and Speaker

Software Features

Frame Rate 2-25FPS

Code Rate
Main stream: 4096-8192Kbps, default: 6144kbps
Sub stream: 64-512Kbps, default: 256kbps
Browser Supported Edge, Chrome, Firefox, Safari

OS Supported
PC: Windows, Mac OS
Smartphone: iOS, Android
Smart Alarm Motion detection, AI detection

Record Mode
Motion recording (default)
Schedule recording
24/7 recording
Protocols & Standards HTTPS, SSL, TCP/IP, UDP, HTTP, IPV4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access
20 Users (1 admin account & 19 user accounts)
Up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Work With Google Assistant

Working Environment

Temperature -10°C to +55°C (14°F to 131°F)

Humidity 10% – 90%

Size & Weight

Dimensions Φ126 × 49.2mm

Weight 293g
