hEX S(RB760iGS)

$94.05 CAD
$94.05 CAD
Sale Sold out
Only 10 units left

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package

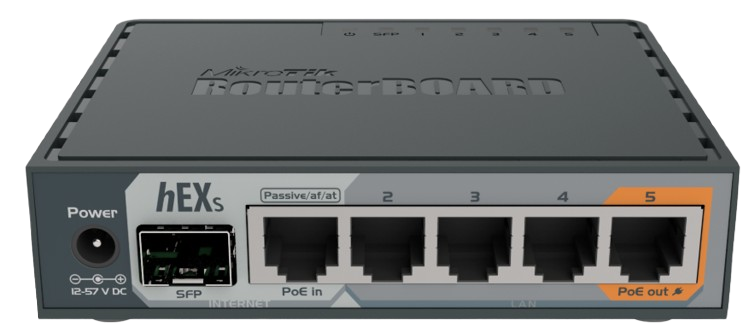

The hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Specifications RB760iGS

Product code RB760iGS
CPU MT7621A
CPU nominal frequency 880 MHz
CPU core count 2
CPU threads 4
Size of RAM 256 MB
10/100/1000 Ethernet ports 5
SFP cages 1
PoE in Passive, 802.3af/at
PoE out Passive PoE up to 57 V (Ether5)
Supported input voltage DC and PoE in: 12 - 57 V
Power output Max out per port output (input < 30 V): 500 mA Max out per port output (input > 30 V): 500 mA Max total out: 500 mA
PCB temperature monitor Yes
Voltage monitor Yes
USB slot USB type A
MicroSD slot 1
Operating temperature -40°C to +70°C
Dimensions 113 x 89 x 28 mm
License level 4
Operating System RouterOS
Max Power consumption 11 W



Click here to download the Datasheet.
