RB260GSP(CSS106-1G-4P-1S)

$67.47 CAD
$67.47 CAD
Sale Sold out
In stock (29 units), ready to be shipped

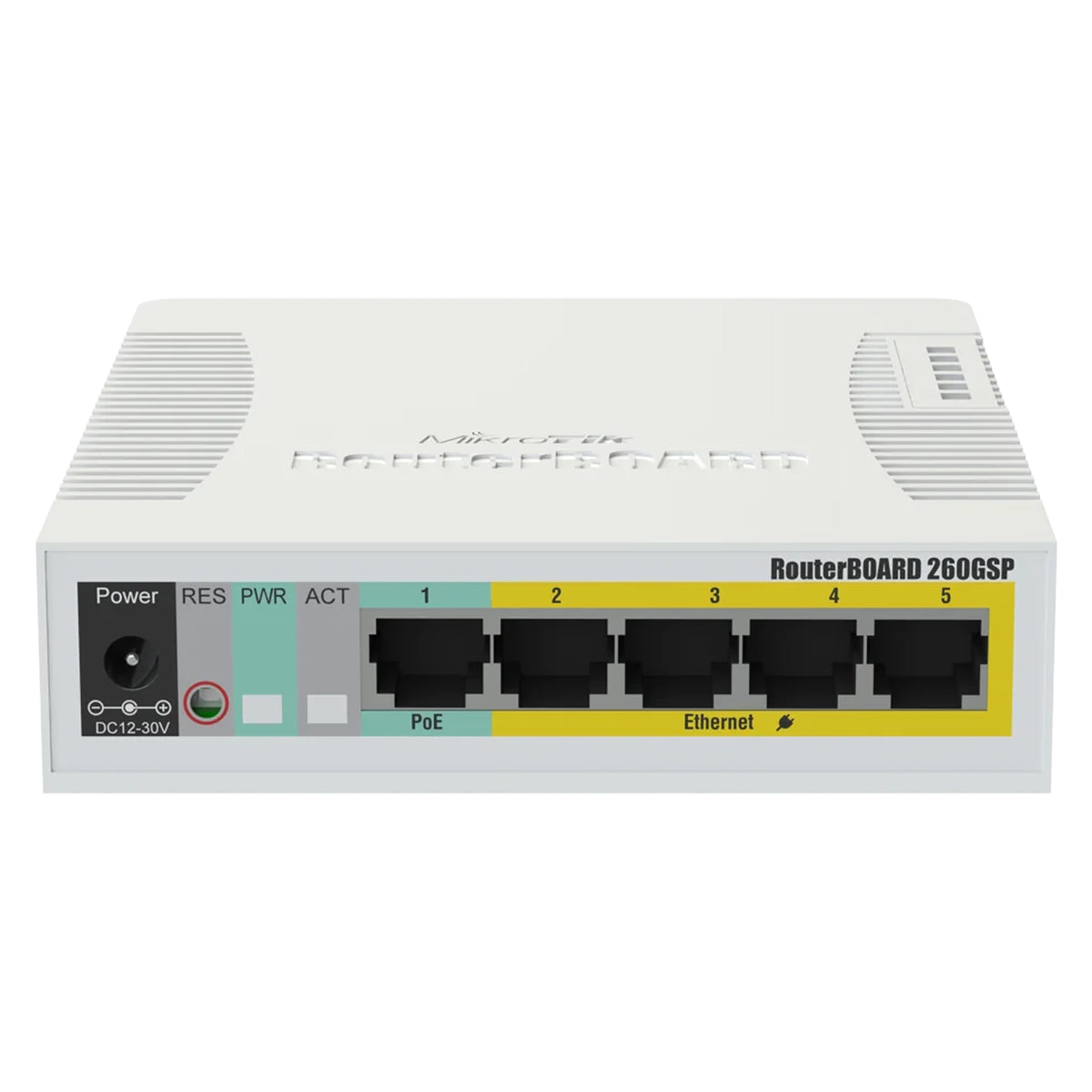

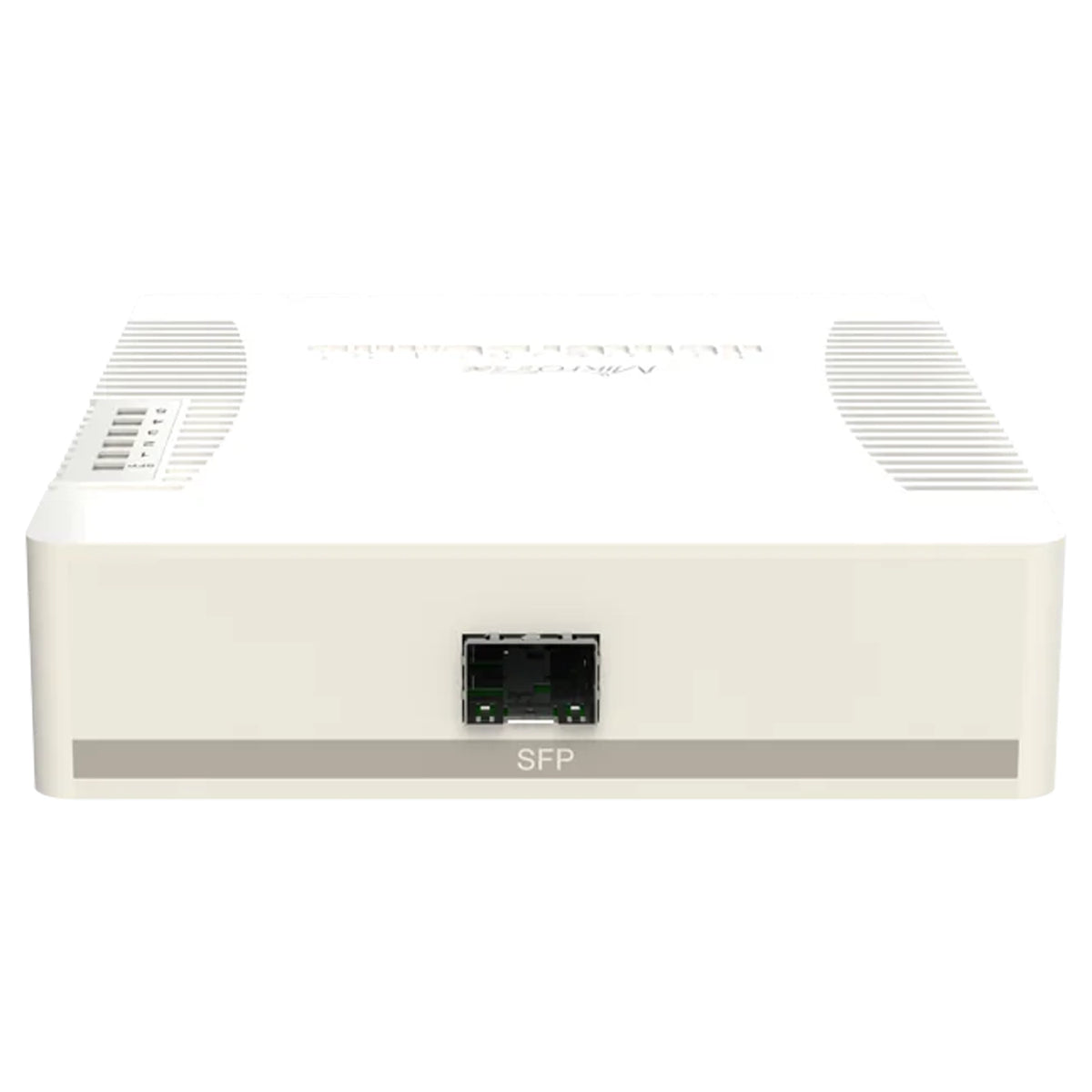

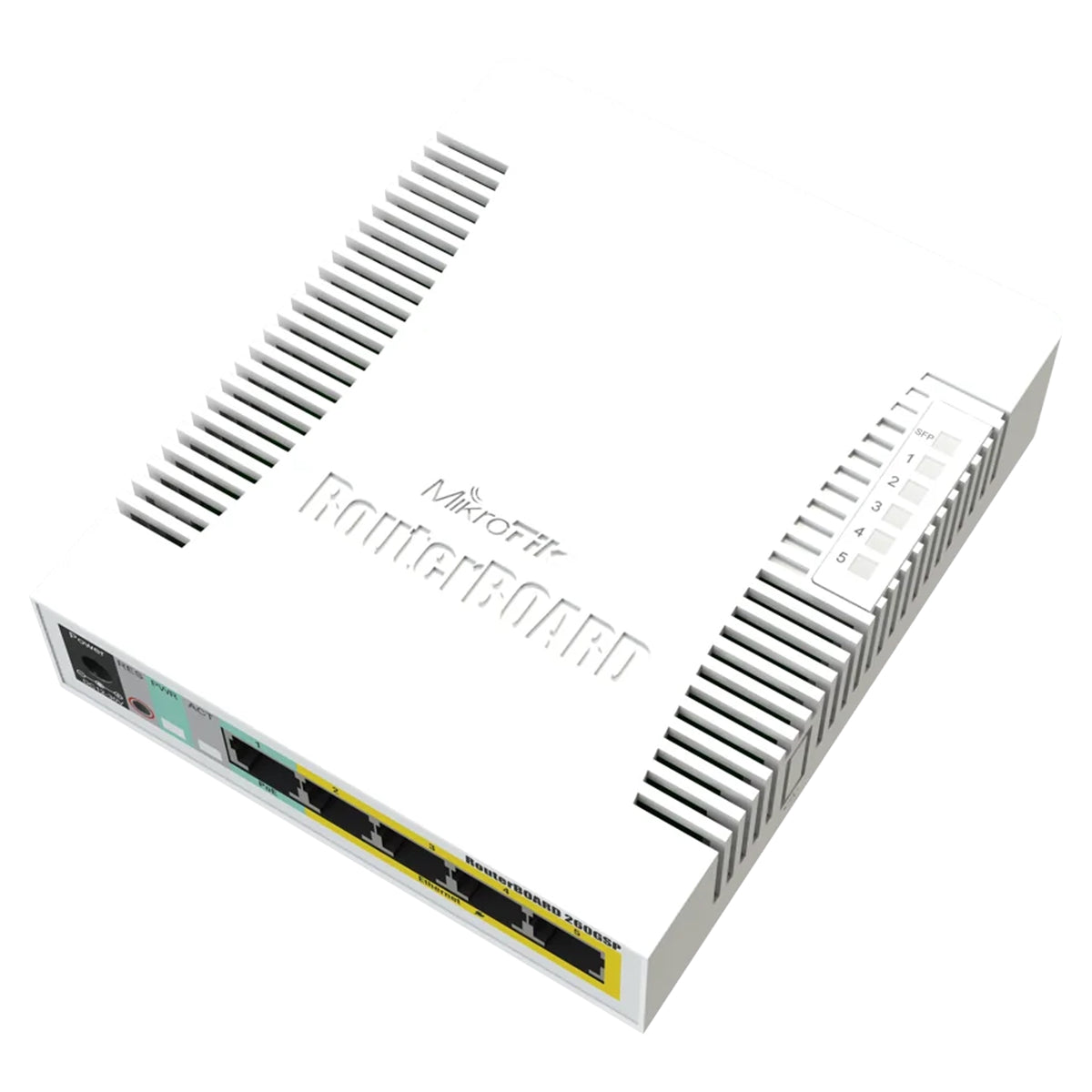

The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.

Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

General

  • Product Code: CSS106-1G-4P-1S
  • Switch Chip Model: QCA8337
  • Dimensions: 113 × 139 × 28 mm
  • Operating System: MikroTik SwOS
  • Storage Size: 128 KB FLASH
  • MTBF: Approximately 100,000 hours at 25°C
  • Operating Temperature: -20°C to 70°C

Powering

  • DC Inputs: 2 (DC jack, PoE-IN)
  • DC Jack Voltage: 11–30 V
  • Max Power Consumption: 53 W (without attachments: 5 W)
  • PoE In: Passive PoE
  • Cooling: Passive
  • PoE Input Voltage: 11–30 V

PoE-Out

  • PoE-Out Ports: Ether2–Ether5
  • PoE Out: Passive PoE
  • Low Voltage Current Limit: 1 A
  • Max Total Output: 2 A

Ethernet & Fiber

  • 10/100/1000 Ethernet Ports: 5
  • SFP Ports: 1
  • SFP DDMI: Yes

Other Features

  • PCB Temperature Monitor: Yes
  • Voltage Monitor: Yes

Certification & Approvals

  • Certifications: CE, EAC, RoHS
  • IP Rating: IP20
