RB960PGS-PB

Regular price $136.00 CAD
Sale price $136.00 CAD Regular price
Sale Sold out
Only 10 units left

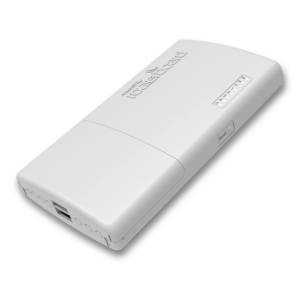

Five Gigabit Ethernet Router with 4xPoE-out ports, SFP cage and outdoor enclosure



Features & Compatibility

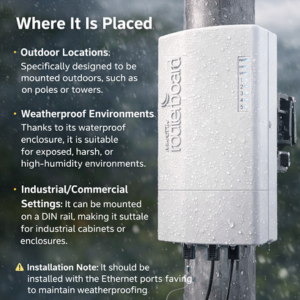

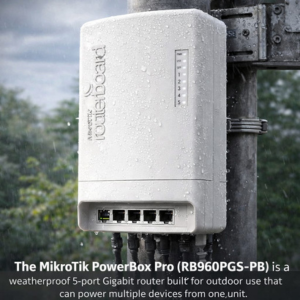

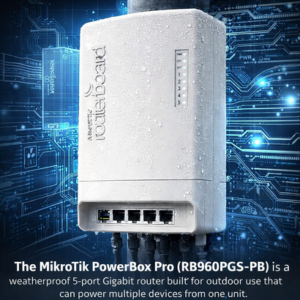

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

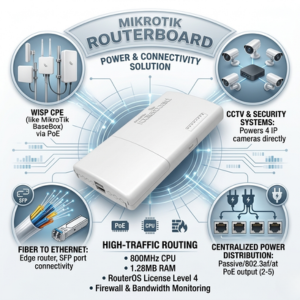

The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.

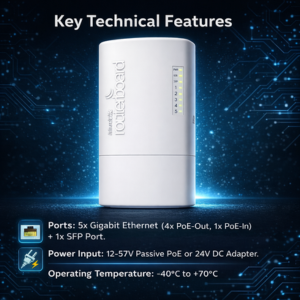

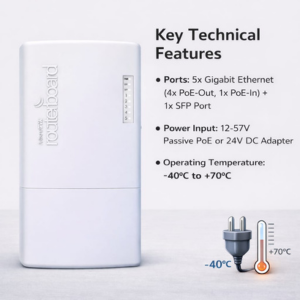

Specifications

DETAILS
Product code RB960PGS-PB
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model QCA8337
Dimensions 125 x 52 x 225 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price


Powering

DETAILS
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 54 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V

PoE-out

DETAILS
PoE-out ports Ether2-Ether5
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 2 A

Ethernet

DETAILS
10/100/1000 Ethernet ports 5

Fiber

DETAILS
SFP ports 1

Other

DETAILS
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

DETAILS
Certification CE, EAC, ROHS

Additional information

Weight .900 kg
Dimensions 12 × 5.2 × 22.5 cm
Brand

Mikrotik



Click here to download the Datasheet.
