NVS8-8MD4

Hardware Specifications

• Model: N7MB01
• IP Video Input: Supports up to 12 IP Cameras (Maximum 8 Wired Cameras)
• Audio Input: Cameras with Built-in Microphone
• Video Output: VGA, HDMI
• HDMI Display Resolution: 4096×3072, 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768
• VGA Display Resolution: 1920×1080, 1440×900, 1280×1024, 1280×800, 1280×720, 1024×768
• Audio Output: 1-Channel RCA
• Live View & Playback Resolution: 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080P, 720P
• Video Format: H.264 / H.265
• Synchronous Playback: Up to 4 Channels
• SATA Interface: 1 × SATA Interface (1 × Seagate 2TB HDD Included)
• Maximum Storage Capacity: Up to 16TB (Maximum 8TB per HDD)
• External HDD: 1 × eSATA Interface
• USB Interface: 2 × USB 2.0

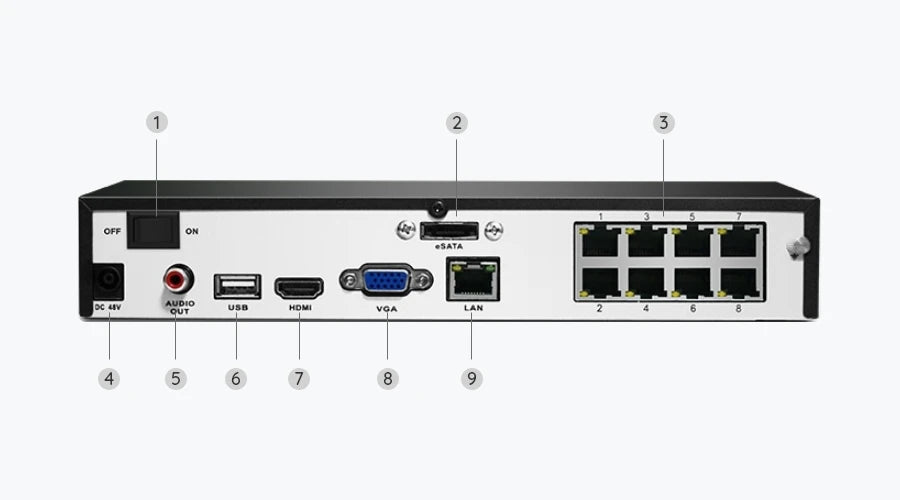

• Network Interface: 1 × RJ-45 10/100 Mbps Self-Adaptive Ethernet Port (LAN/WAN), 8 × RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Ports (IP Cameras)
• Maximum PoE Power Per Port: 25W
• PoE Standard: IEEE 802.3af/at
• Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPnP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
• Supported Browsers: Microsoft Edge, Firefox, Chrome, Safari
• Supported Operating Systems: Windows, macOS, iOS, Android
• Maximum User Access: 20 Users (1 Admin + 19 Users), Supports up to 12 Simultaneous Video Streams (10 Substreams & 2 Mainstreams)
• Power Supply: DC 48V / 1.875–2.5A
• Power Consumption: <10W (Without HDD & PoE)
• Operating Temperature: -10°C to +45°C (14°F to 113°F)
• Operating Humidity: 10%–90%

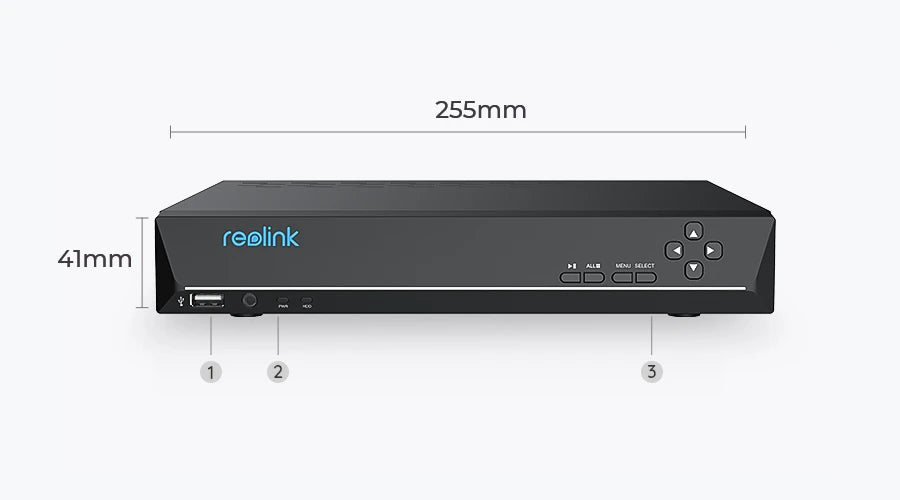

• Dimensions: 260 × 41 × 230 mm
• Weight: 1.4 kg
