wAPR-2nD&EC200A-EU
A refresh of the classic weatherproof wAP LTE kit – with a new LTE modem that brings the PRICE DOWN and the performance UP! Disruptive pricing: the best OUTDOOR LTE/WI-FI deal on the market if you’re on a tight budget.

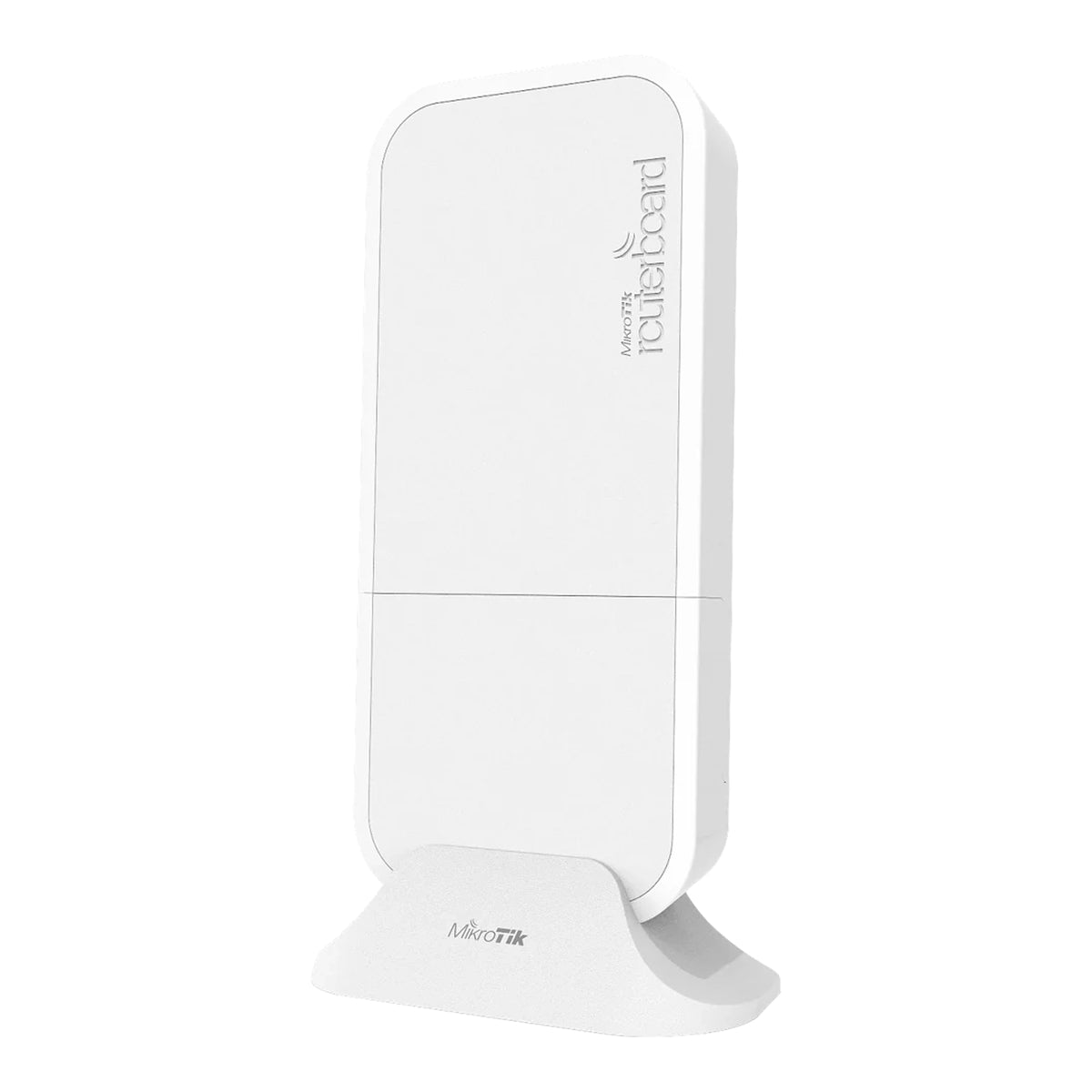

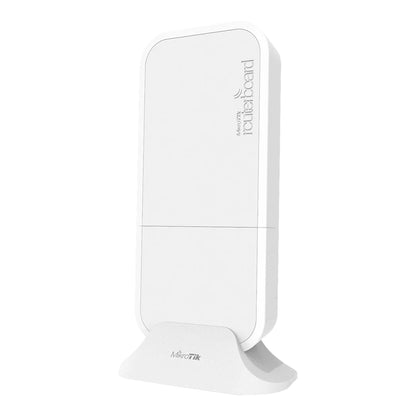

wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there’s also a standard DC jack and an automotive plug.
The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!

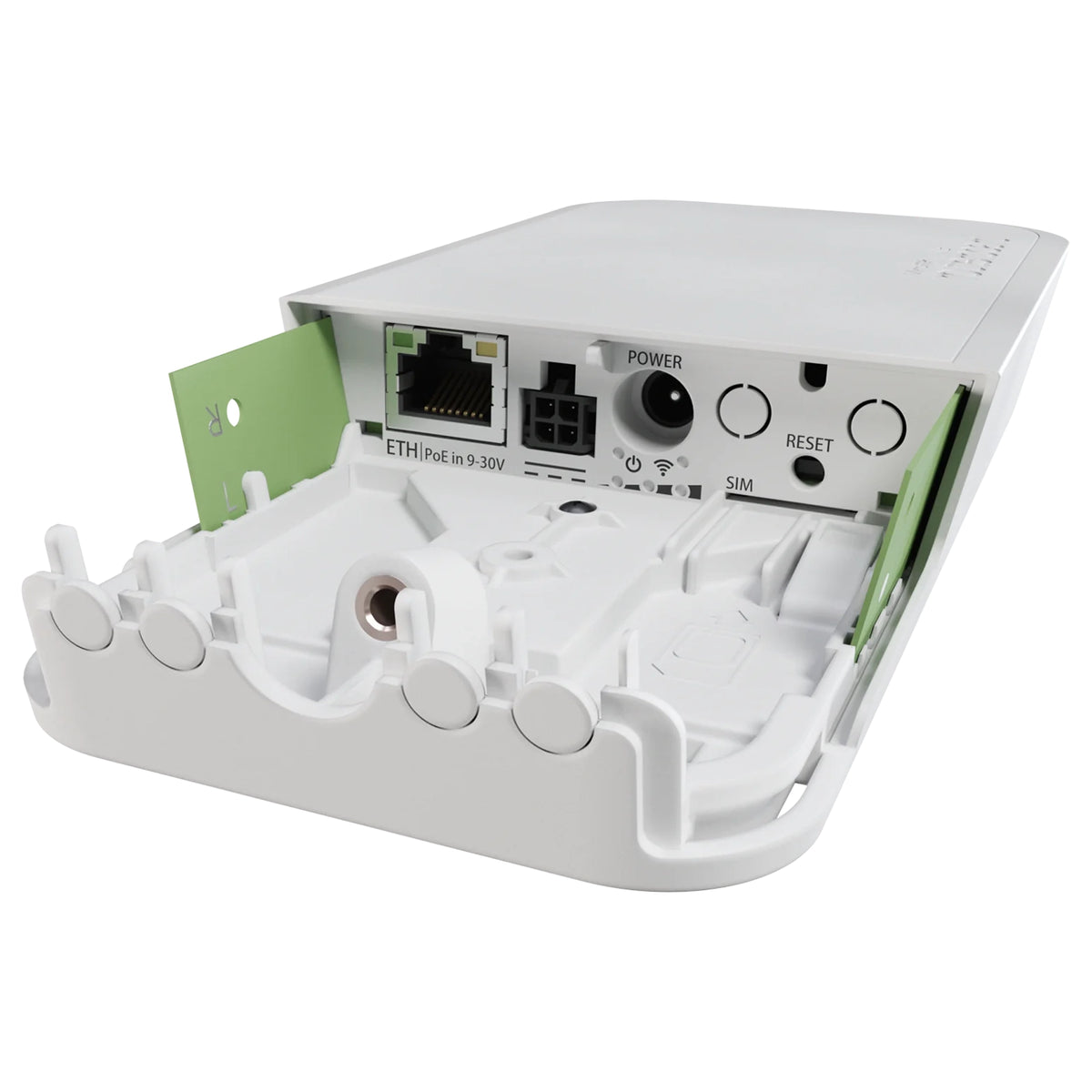

wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.
Specifications
Details | |
---|---|
Product code | wAPR-2nD&EC200A-EU |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
RouterOS license | 4 |
Operating System | RouterOS v7 |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 60°C |
Suggested price | $99.00 |
Powering
Details | |
---|---|
Number of DC inputs | 3 (PoE-IN, DC jack, Automotive) |
DC jack input Voltage | 9-30 V |
Automotive input Voltage | 9-30 V |
Max power consumption | 7 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 9-30 V |
Mobile
Details | |
---|---|
2G Category | Class12 |
2G bands | 8 (900MHz) / 3 (1800MHz) |
3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
3G bands | 5 (850MHz) / 8 (900MHz) / 1 (2100MHz) |
LTE Category | 4 (150Mbps Downlink, 50Mbps Uplink) |
LTE FDD bands | 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz) |
LTE TDD bands | 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz) |
TAC | 86314105 |
Wireless specifications
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2 |
Wireless 2.4 GHz chip model | QCA9531 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 1 |
Peripherals
Details | |
---|---|
Number of SIM slots | 1 Modem (Mini SIM) |
MiniPCI-e slots | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, E-MARK, EAC, ROHS |
IP | 54 |
Included parts
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
Click here to download the Datasheet.
