RB1100x4

Regular price $437.57 CAD
Sale price $437.57 CAD Regular price
Sale Sold out
Only 9 units left

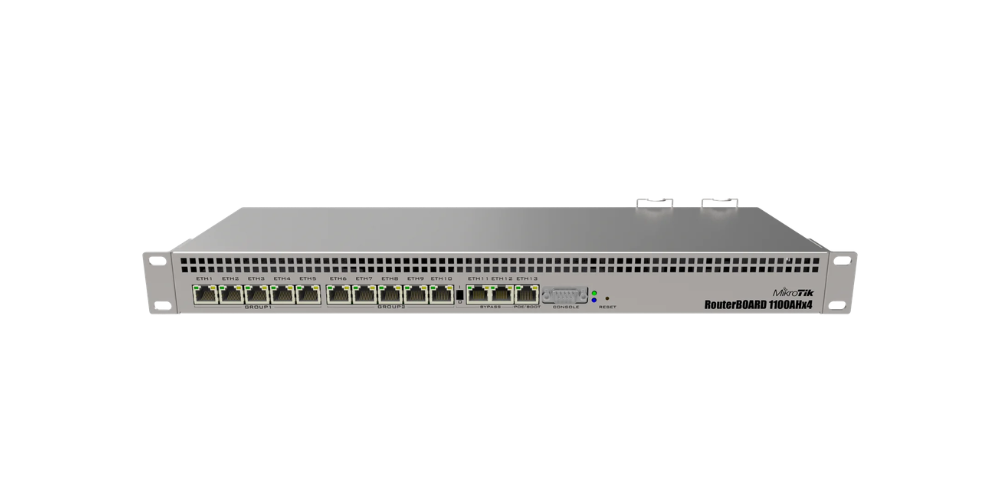

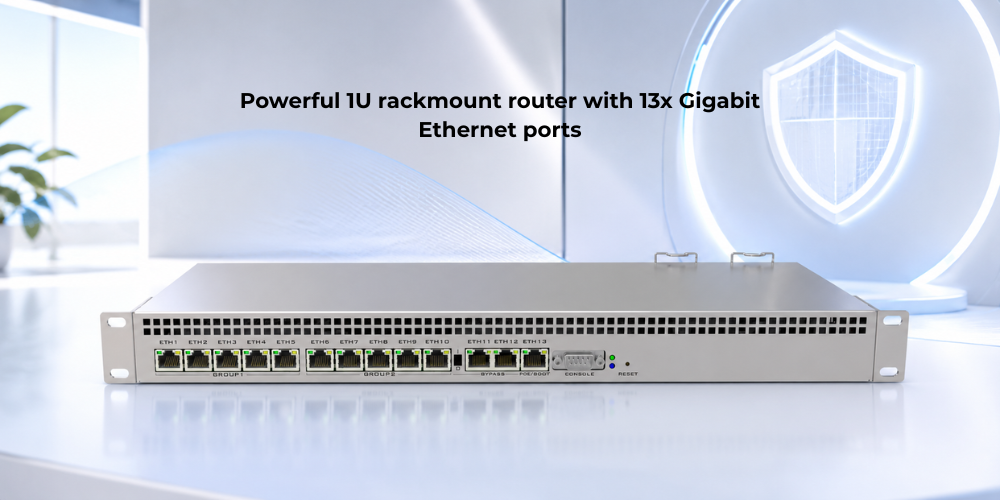

Powerful 1U rackmount router with 13x Gigabit Ethernet ports

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

Specifications

Details
Product code RB1100x4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Switch chip model RTL8367
Dimensions 443 x 148 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $329.00

Powering

Details
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V
Max power consumption 20 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 20-57 V

Ethernet

Details
10/100/1000 Ethernet ports 13

Peripherals

Details
Memory card type microSD
Memory Cards 1
Serial console port RS232

Other

Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20


Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..



Click here to download the Datasheet.
