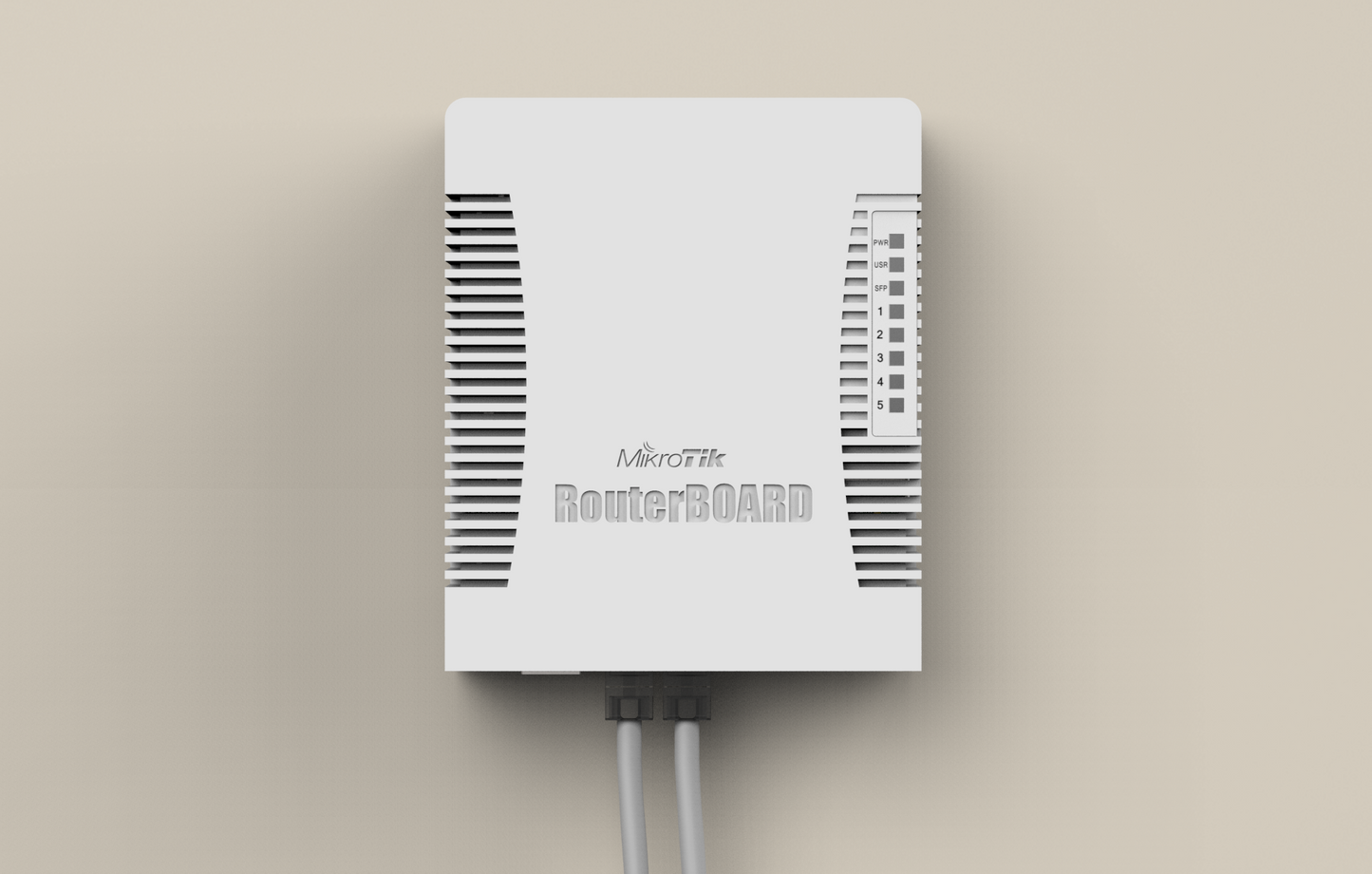

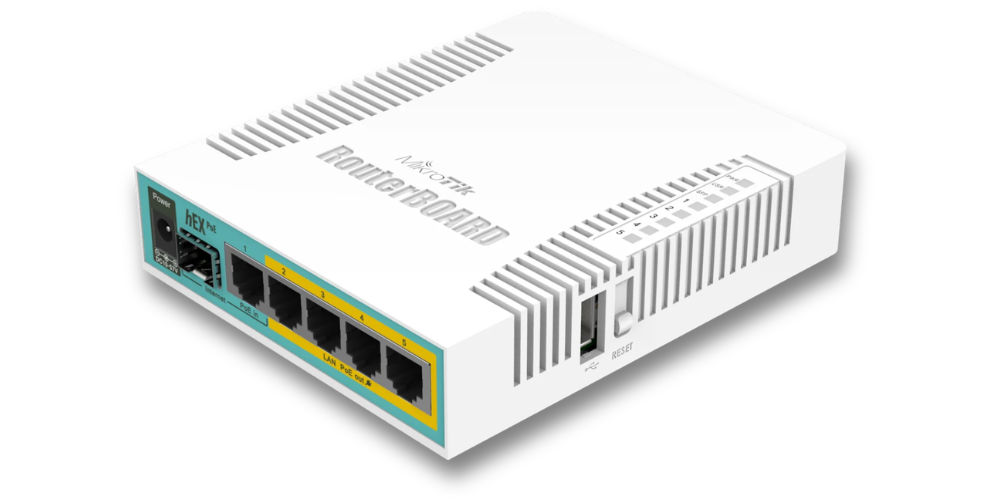

hEX PoE(RB960PGS)

Regular price $113.40 CAD
Sale price $113.40 CAD Regular price
Sale Sold out
In stock (12 units), ready to be shipped

PRODUCT SPECIFICATIONS


hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

Click here to download the Datasheet.

Payment methods

Payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • Product Code: RB960PGS
  • Architecture: MIPSBE
  • CPU: QCA9557
  • CPU Core Count: 1
  • CPU Nominal Frequency: 800 MHz
  • Switch Chip Model: QCA8337
  • RouterOS License: 4
  • Operating System: RouterOS
  • RAM: 128 MB
  • Storage: 16 MB (FLASH)
  • MTBF: Approximately 100,000 hours @ 25°C
  • Tested Ambient Temperature: -40°C to 60°C
  • Powering:

    DC Inputs: 2 (DC jack, PoE-IN)
    DC Jack Input Voltage: 12–57 V
    Max Power Consumption: 54 W
    Without Attachments: 6 W
    PoE In: Passive PoE (12–57 V)
    Cooling Type: Passive
    PoE-Out Ports: Ether2–Ether5
    PoE Out: 802.3af/at
    Low Voltage PoE-Out Current Limit: 1 A
    High Voltage PoE-Out Current Limit: 450 mA
    Max Total Out: 2 A

  • Ethernet: 5 × 10/100/1000 Mbps
  • Fiber: 1 × SFP port
  • Peripherals:

    USB Ports: 1 × Type A
    USB Power Reset: Yes
    Max USB Current: 1 A

  • Other Features:

    PCB Temperature Monitor: Yes
    Voltage Monitor: Yes
    Beeper: Yes

  • Certification & Approvals:

    Certifications: CE, EAC, ROHS
    IP Rating: IP20
