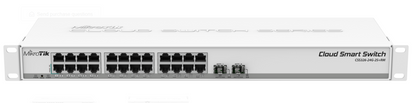

Cloud Smart Switch 326-24G-2S+RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case that provides wire speed connectivity with several new switching features.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Specifications
| DETAILS | |
|---|---|
| Product code | CSS326-24G-2S+RM |
| Switch chip model | 98DX3216 |
| Dimensions | 443 x 144 x 44 mm |
| Operating System | SwOS |
| Storage size | 2 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | |
Powering
| DETAILS | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 19 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Ethernet
| DETAILS | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
Fiber
| DETAILS | |
|---|---|
| SFP+ ports | 2 |
Certification & Approvals
| DETAILS | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Additional information
| Weight | .907 kg |
|---|---|
| Dimensions | 44 × 14.4 × 4.4 cm |
| Brand |
Mikrotik |
