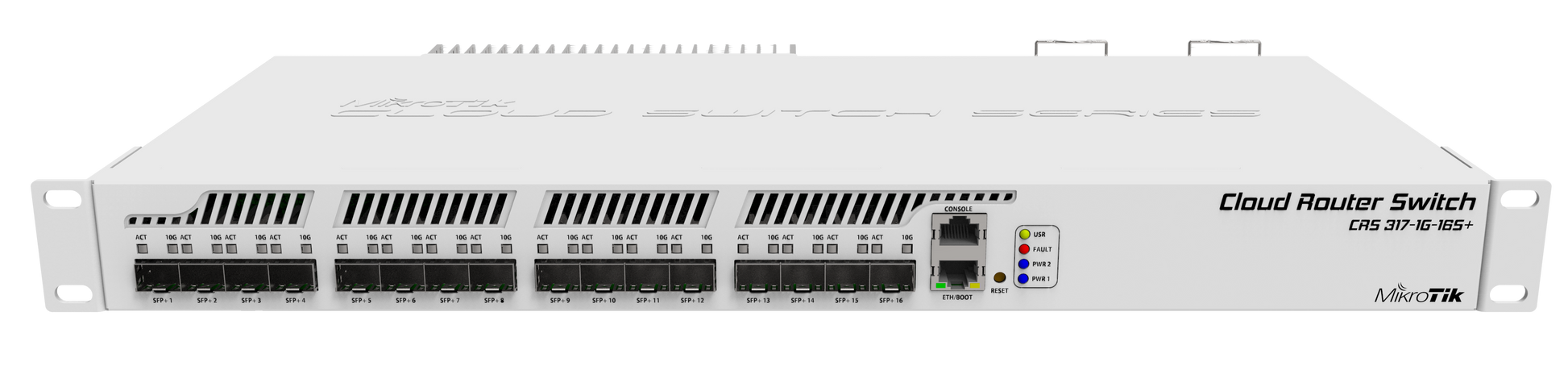

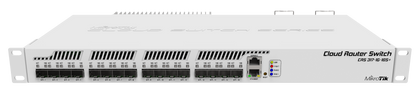

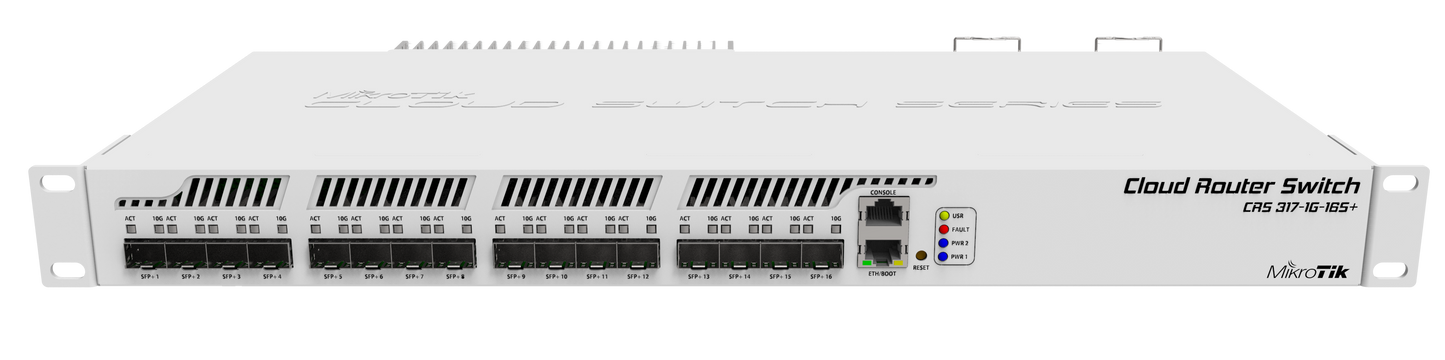

MikroTik CRS317-1G-16S+RM 16-Port 10G SFP+ Cloud Router Switch

$689.99 CAD
$689.99 CAD
Sale Sold out
Only 3 units left

Features & Compatibility

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

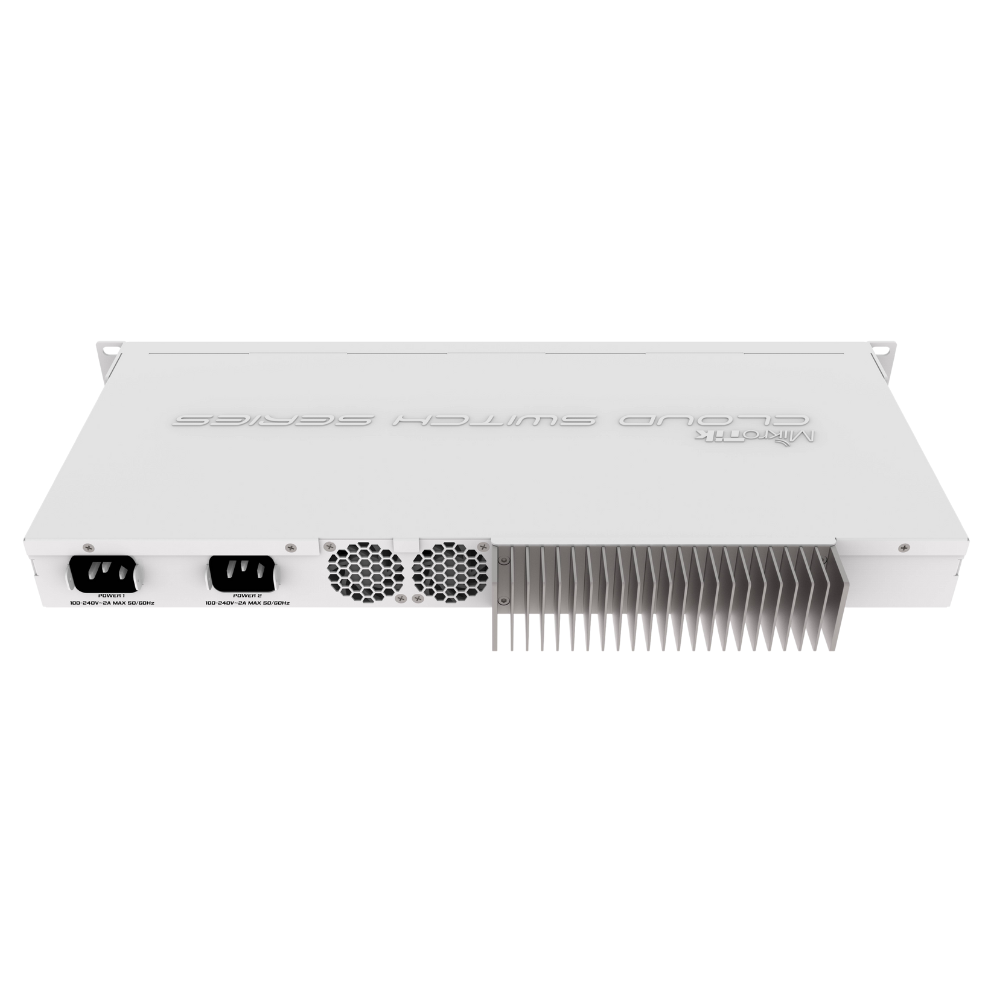

The unit has dual redundant power supplies and passive cooling case – for hot environments two redundant fans will automatically keep the system cool if needed.

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    MikroTik

View Product Details

Specifications

  • Product code: CRS317-1G-16S+RM
  • Architecture: ARM 32-bit
  • CPU: 98DX8216
  • CPU core count: 2
  • CPU nominal frequency: 800 MHz
  • CPU threads count: 2
  • Switch chip model: 98DX8216
  • Dimensions: 443 x 224 x 44 mm
  • RouterOS license: 6
  • Operating System: RouterOS / SwitchOS
  • Size of RAM: 1 GB
  • Storage size: 16 MB
  • Storage type: FLASH
  • MTBF: Approximately 200,000 hours at 25°C
  • Tested ambient temperature: -20°C to 60°C
  • Powering:

    Number of AC inputs: 2
    AC input range: 100-240 V
    Number of PSU slots: 2
    Frequency (Hz): 50-60
    Max power consumption: 44 W
    Cooling type: 2 fans

  • Ethernet: 10/100/1000 Ethernet ports – 1
  • Fiber:

    SFP+ ports: 16

  • Peripherals:

    Serial console port: RJ45

  • Other:

    CPU temperature monitor: Yes
    Beeper: Yes

  • Certification & Approvals:

    Certification: CE, EAC, ROHS

The MikroTik CRS317-1G-16S+RM is a rackmount Cloud Router Switch designed for high-speed professional networks that need dense 10 Gigabit fiber connectivity. It provides 16× SFP+ ports for 10GbE links along with 1 Gigabit Ethernet management port, making it suitable for aggregation, backbone, server, and switch-to-switch connections. Powered by a dual-core 800 MHz ARM processor with 1 GB RAM, the CRS317 supports both RouterOS and SwOS through dual boot. This gives administrators the flexibility to use advanced routing and switching features or a simpler switch-focused interface depending on deployment needs. The switch also includes dual redundant AC power supplies and a 1U rackmount design, helping improve reliability in business, enterprise, ISP, and data-center environments. Its SFP+ interfaces can also support compatible 1.25G SFP modules, providing additional flexibility when integrating different fiber speeds.

FAQs : MikroTik CRS317-1G-16S+RM

The CRS317-1G-16S+RM is a rackmount managed Cloud Router Switch designed for professional networks that require multiple 10G fiber connections and advanced switching capabilities.
It provides 16× SFP+ ports capable of 10 Gigabit Ethernet connectivity, plus one Gigabit Ethernet port for management.
Yes. It supports dual boot with RouterOS and SwOS, allowing administrators to choose the operating system that best suits their routing or switching requirements.
