CRS106-1C-5S

$77.39 CAD
$77.39 CAD
Sale Sold out
In stock (27 units), ready to be shipped

Smart Switch, 5x SFP cages, 1x Combo port (SFP or Gigabit Ethernet), 400MHz CPU, 128MB RAM, desktop case, RouterOS L5



Features & Compatibility

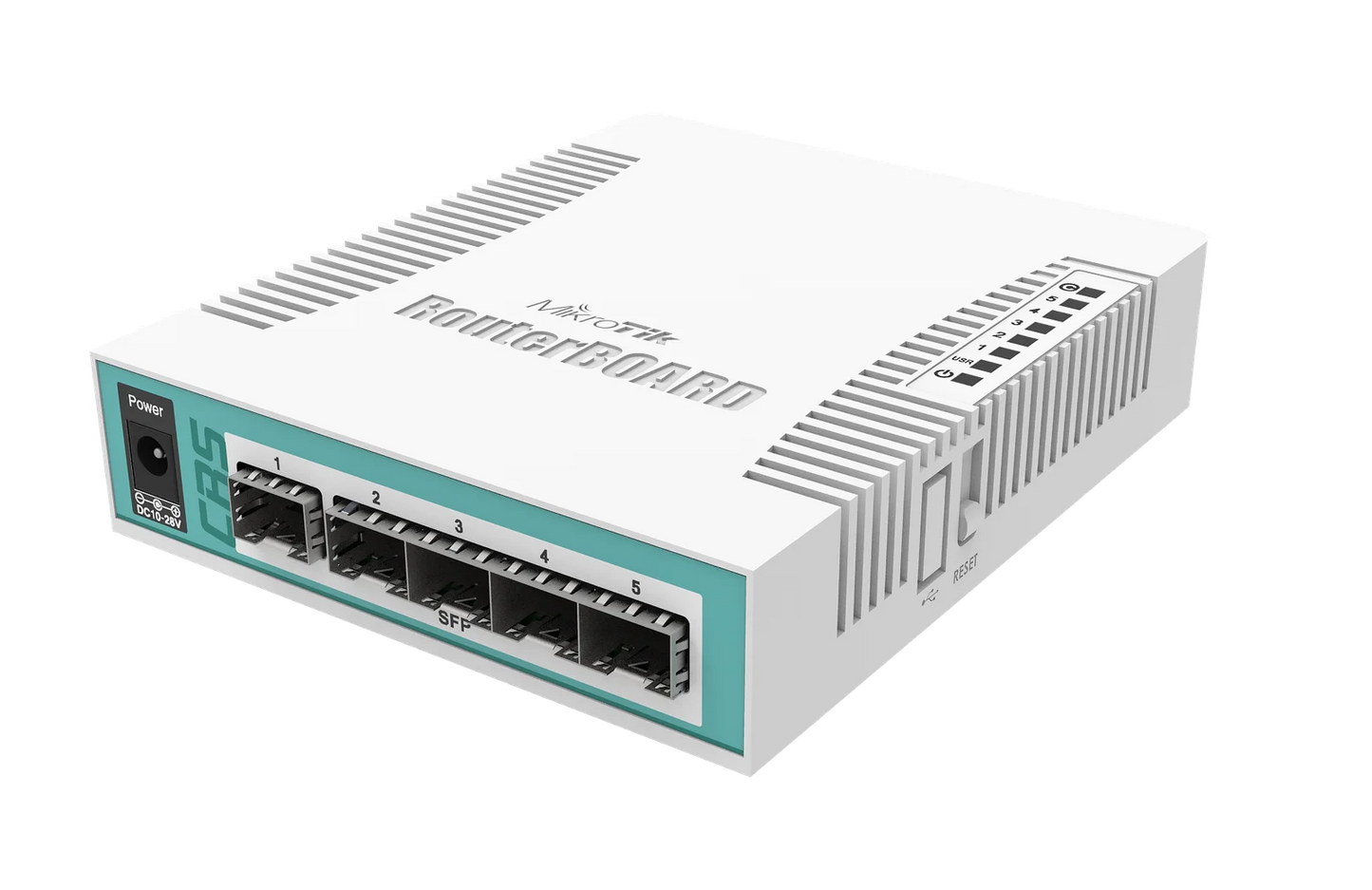

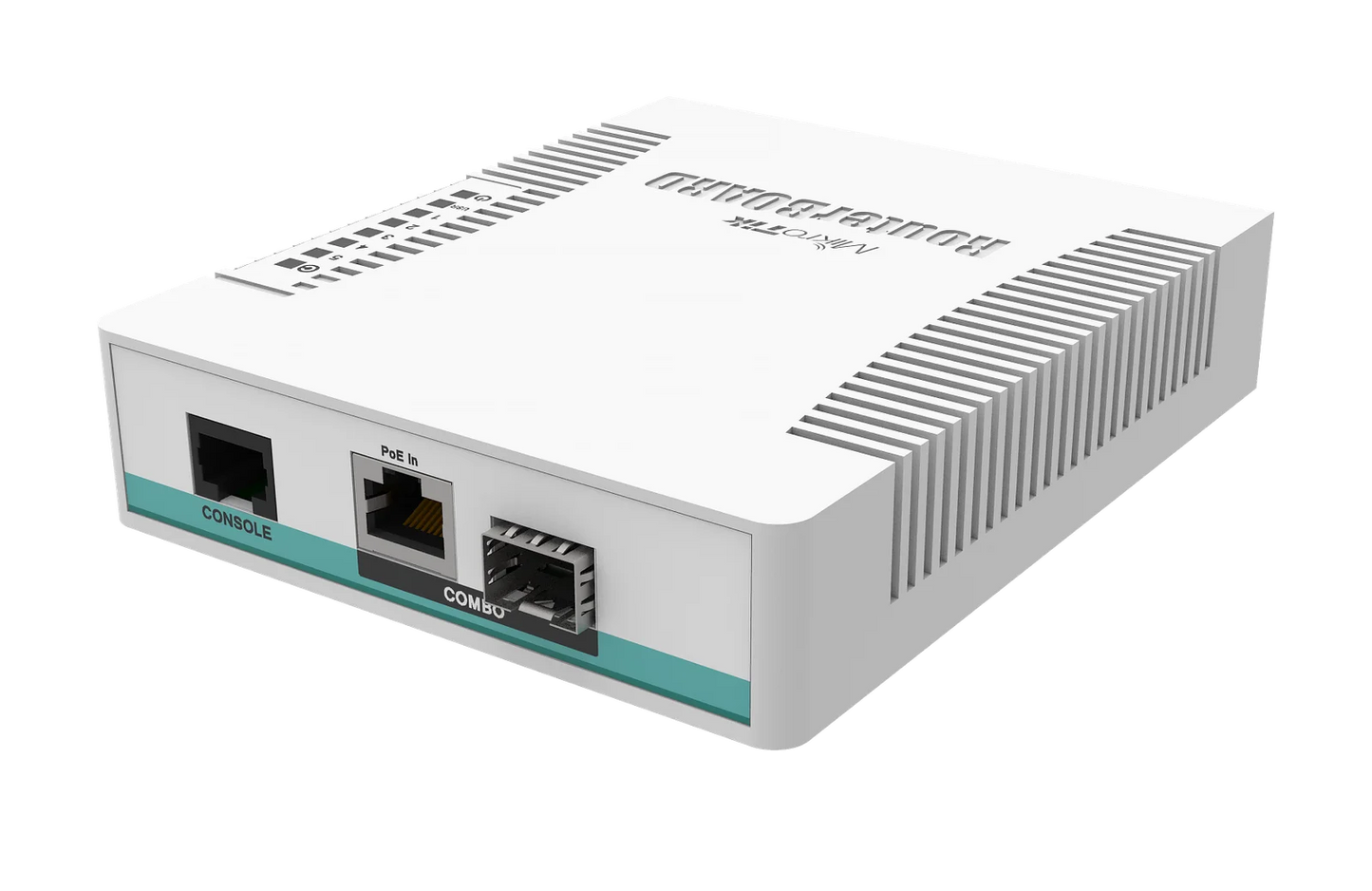

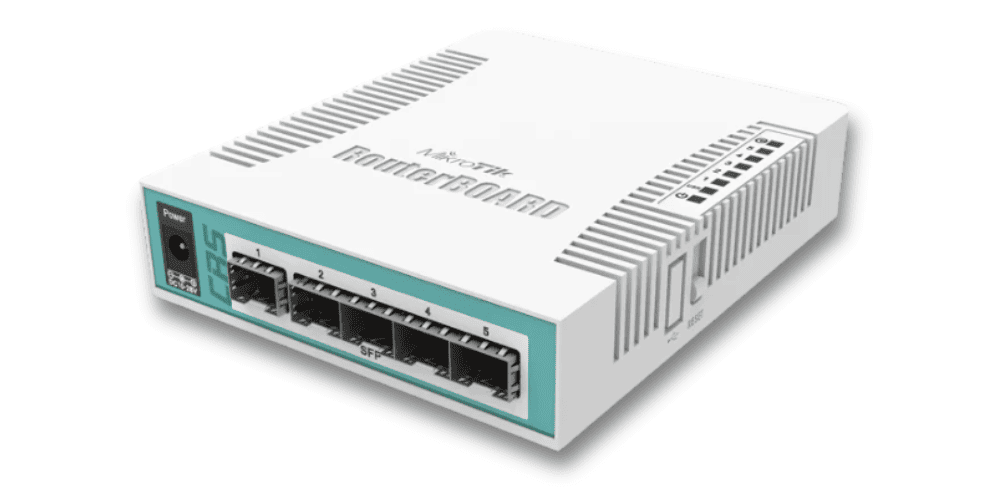

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.

At $59 this product provides a market-leading solution for connecting up to six SFP devices.

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.



Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

  • Product code: CRS106-1C-5S
  • Architecture: MIPSBE
  • CPU: QCA8511
  • CPU core count: 1
  • CPU nominal frequency: 400 MHz
  • Switch chip model: QCA8511
  • Dimensions: 114 x 137 x 29 mm
  • RouterOS license: 5
  • Operating System: RouterOS
  • Size of RAM: 128 MB
  • Storage size: 16 MB
  • Storage type: FLASH
  • MTBF: Approximately 100,000 hours at 25°C
  • Tested ambient temperature: -20°C to 70°C
  • Powering:

    Number of DC inputs: 2 (DC jack, PoE-IN)
    DC jack input voltage: 11-30 V
    Max power consumption: 11 W
    PoE in standard: Passive PoE
    PoE in input voltage: 11-30 V
    Cooling type: Passive

  • Ethernet: Combo port – 1
  • Fiber:

    SFP ports: 5

  • Peripherals:

    Serial console port: RJ45

  • Certification & Approvals:

    Certification: CE, EAC, ROHS
    IP rating: IP20
