PRODUCT SPECIFICATIONS
MikroTik RouterBOARD CRS310-1G-5S-4S+IN
netFiber 9 ARM v7 CPU, 256 MB of RAM, 4x 10G SFP+ ports Indoor Switch with SFP, SFP+ Gigabit Ethernet

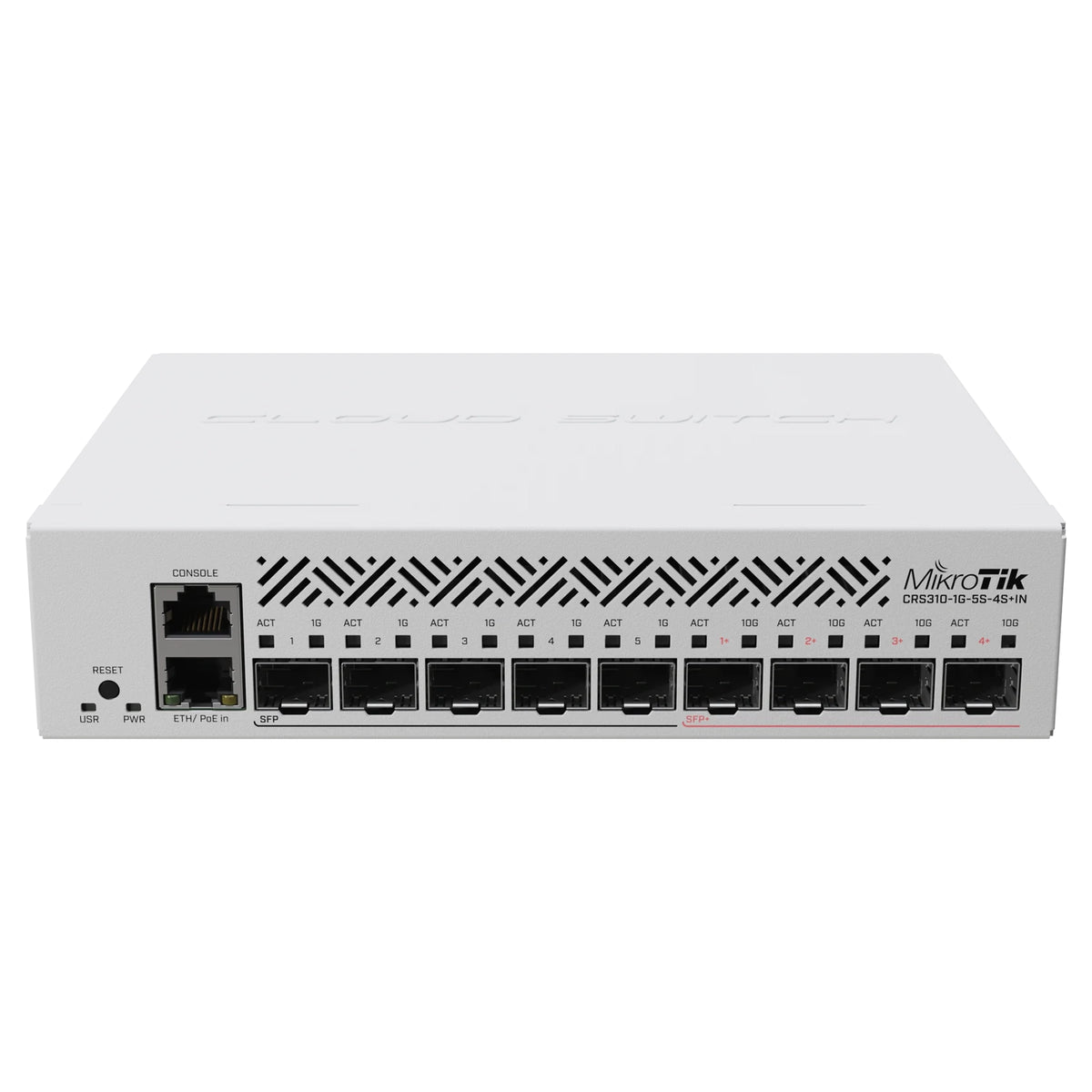

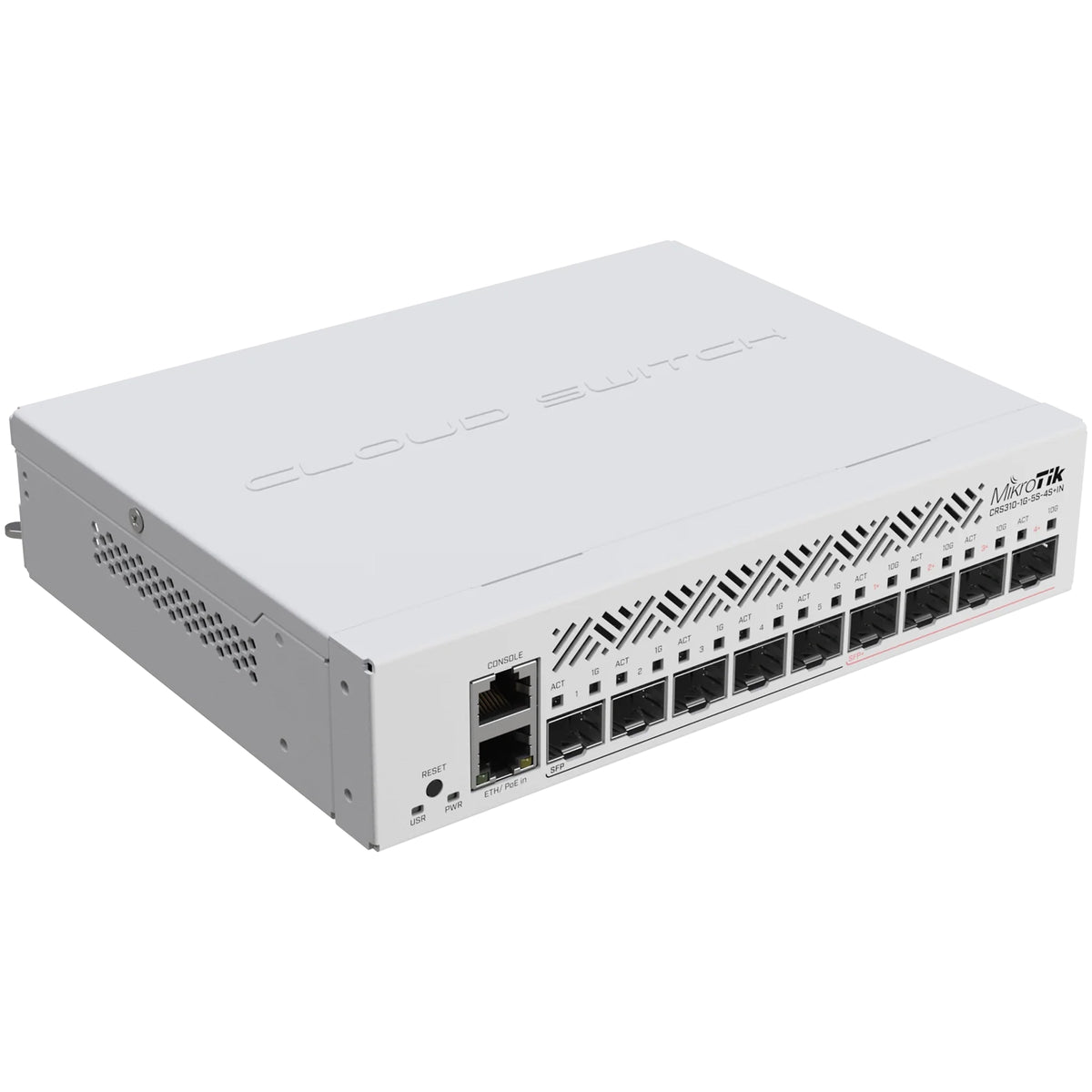

This switch is an indoor variation of the prominent netFiber 9 switch – used by many small and medium ISPs for reliable 10 Gigabit fibre connections stretching over a 100 meters. With five 1G SFP ports, four 10G SFP+ ports, and an additional Gigabit Ethernet port, this is the perfect upgrade for existing CRS212 setups. You’re getting the modern ARM v7 CPU, 256 MB of RAM, and better cooling. The new Marvell switch-chips bring phenomenal performance to the table!
The Gigabit Ethernet port has a direct connection to the switch chip – so you can enjoy full gigabit speed there. And it supports PoE-in, giving you an additional powering option in tricky spots.
You can mount this switch in a standard 1U rack to keep everything organized. And it has all the power you would expect from a rackmount device: CRS310 supports hardware offloaded VLAN- filtering. And even some hardware offloaded Layer-3 routing.

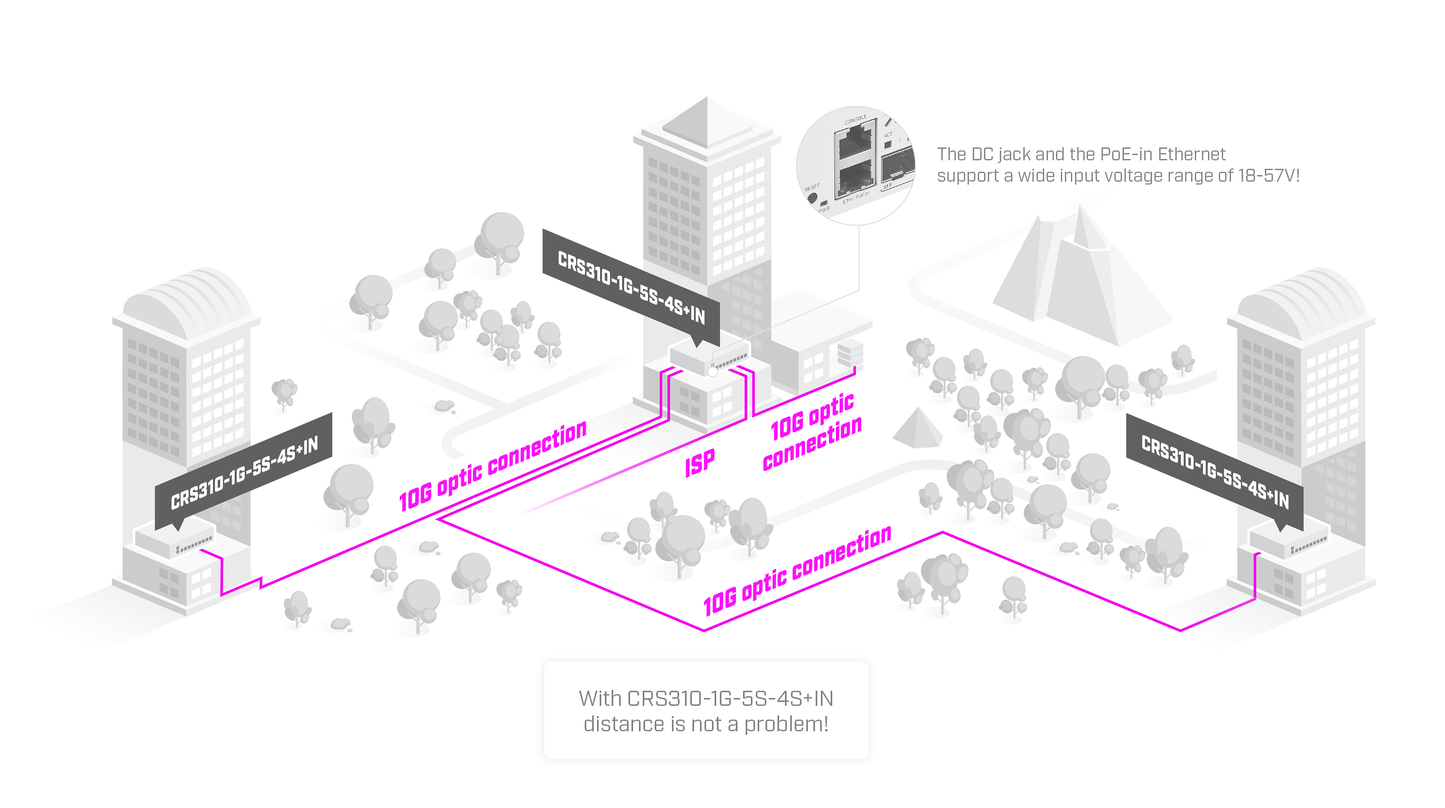

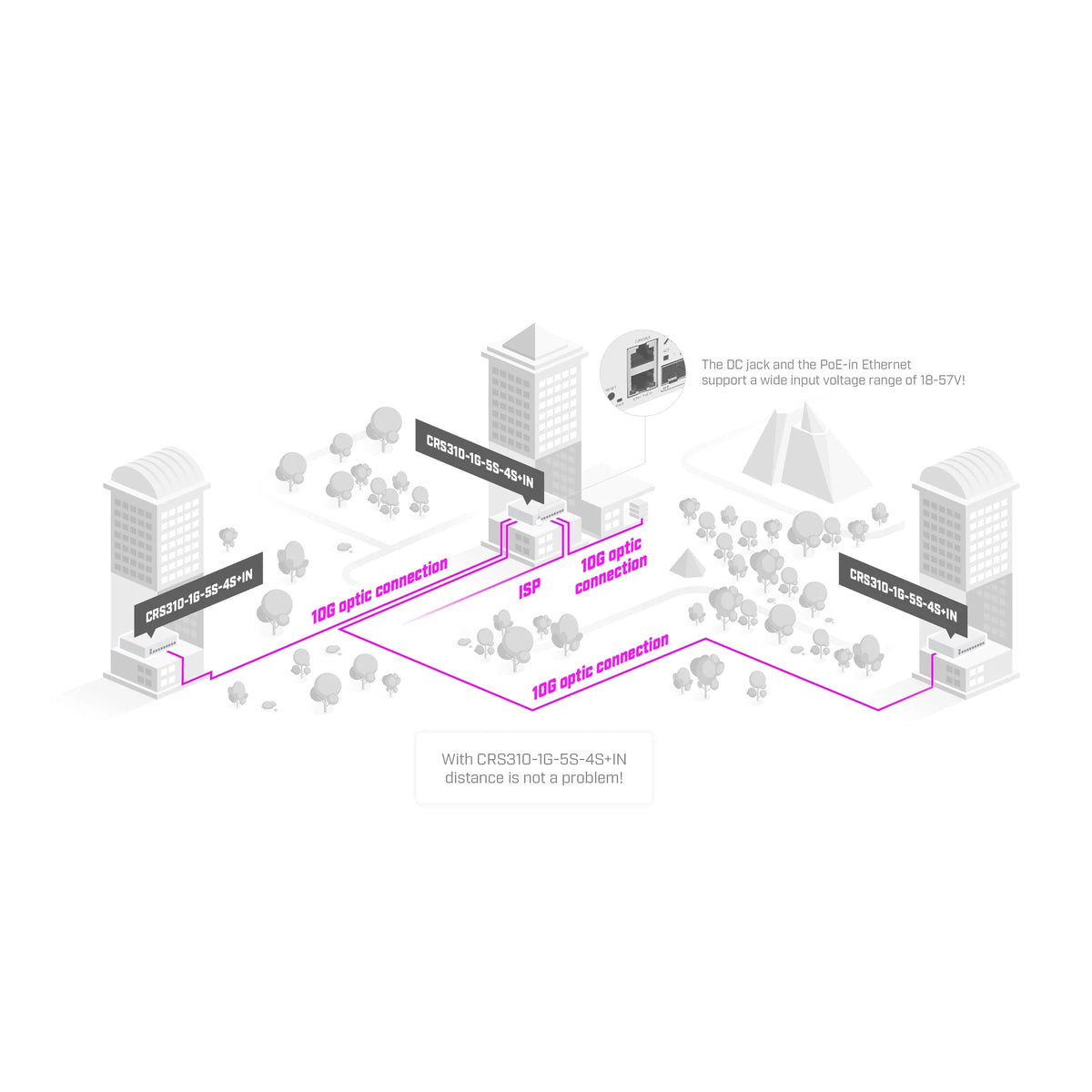

CRS310-1G-5S-4S+IN is a fantastic tool for anyone working with indoor connections over 100 meters while keeping data loss and ping low. Optical fiber can be a great alternative to copper if you are worried about electromagnetic interference, tampering or eavesdropping.
Technical Description
CPU | 98DX226S 800 MHz |
CPU architecture | ARM 32bit |
CPU core count | 1 |
Size of RAM | 256 MB |
RAM type | DDR3 |
Storage | 16 MB, Flash |
Number of 1G Ethernet ports | 1 |
Number of 1G SFP ports | 5 |
Number of 10G SFP+ ports | 4 |
Switch chip model | 98DX226S |
Dimensions | 200 x 166 x 45 mm 7.87″ x 6.53″ x 1.77″ |
Operating system | RouterOS, License level 5 |
Operating temparature | -40°C to +70°C |

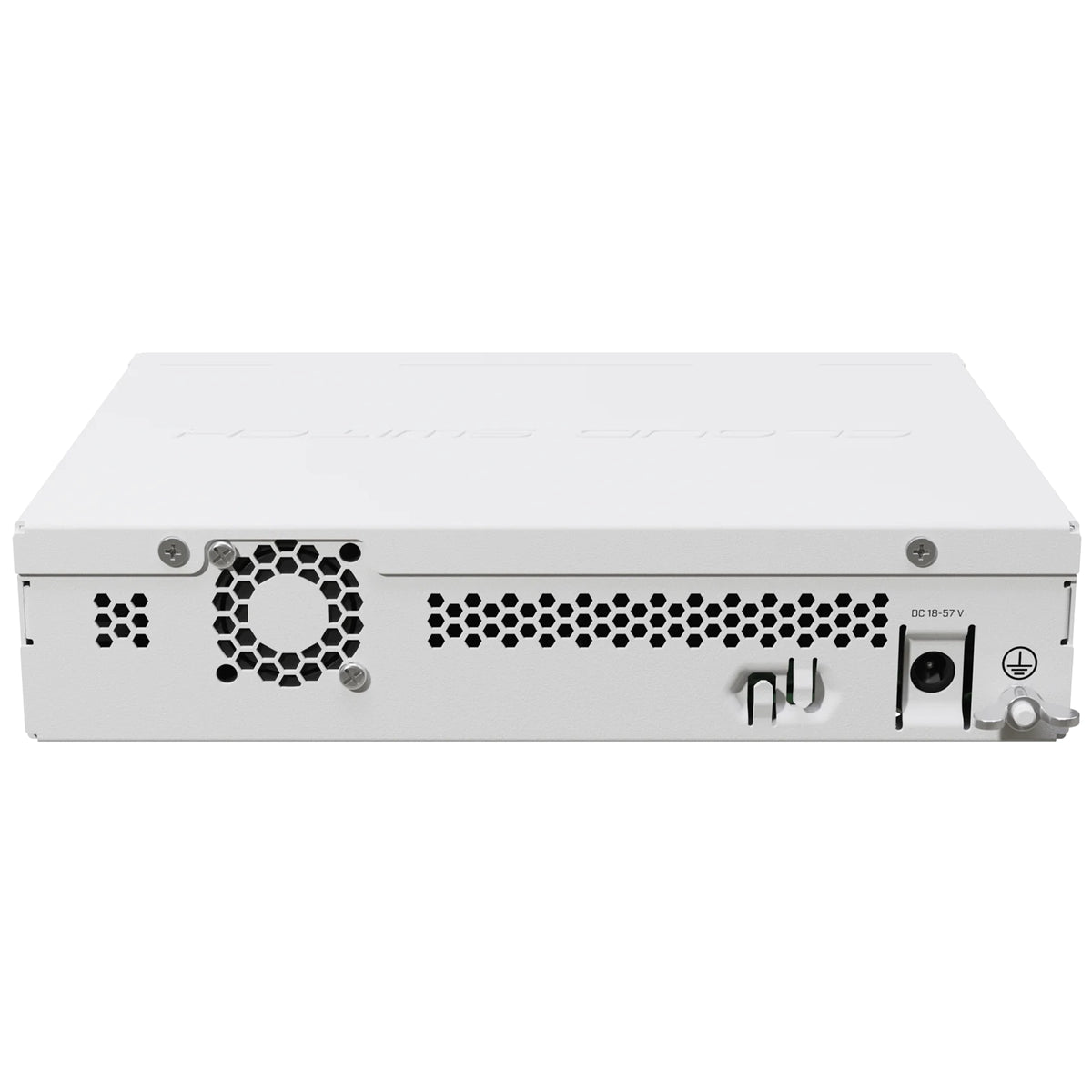

Powering | |
Number of DC inputs | 2 (PoE-in, DC jack) |
PoE-in input Voltage | 18-57 V |
DC jack input Voltage | 18-57 V |
Power adapter nominal voltage | 24 V |
Power adapter nominal current | 1.2 A |
Max power consumption without attachments | 8 W |
Max power consumption | 20 W |
