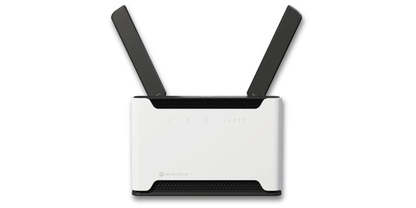

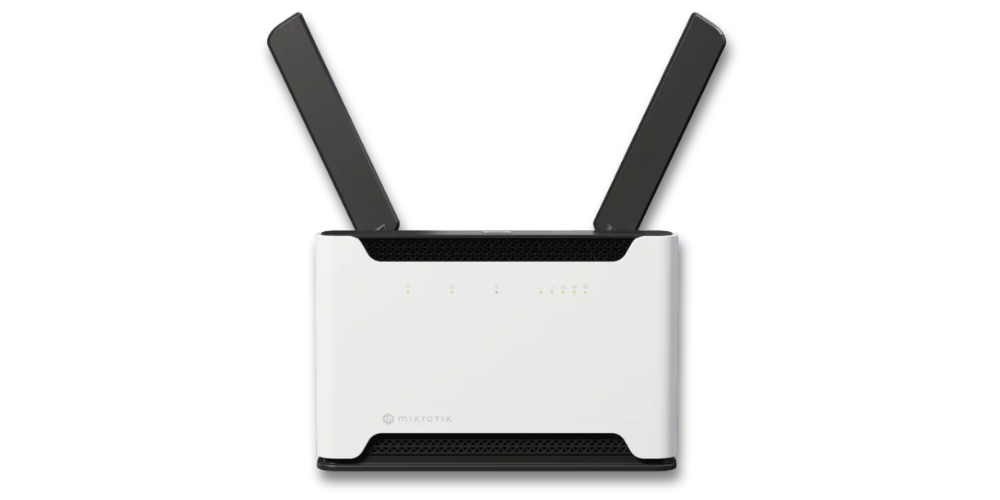

Chateau LTE6 ax

Specifications

• Product Code: S53UG+5HaxD2HaxD-TC & FG621-EA

System

• Architecture: ARM 64-bit
• CPU: IPQ-6010 (Quad-core, 864–1800 MHz)
• Threads: 4
• Switch Chip: IPQ-6010
• Operating System: RouterOS v7
• License Level: 4

Memory & Storage

• RAM: 1 GB
• Storage: 128 MB NAND

Physical

• MTBF: ~200,000 hours at 25°C
• Operating Temperature: -40°C to 70°C
• Cooling: Passive
• IP Rating: IP20

Power

• Input: DC Jack
• Voltage Range: 12–28 V
• Max Power Consumption: 17 W
• Without Attachments: 13 W

Mobile Connectivity

• 3G Category: R8 (42.2 Mbps DL / 11.2 Mbps UL)
• LTE Category: Cat 6 (300 Mbps DL / 50 Mbps UL)
• MIMO: 2x2 DL, 1x1 UL
• LTE FDD Bands: 1, 3, 5, 7, 8, 20, 28
• LTE TDD Bands: 38, 40, 41
• 3G Bands: 1, 3, 5, 8

Wireless (Wi-Fi 6)

• 2.4 GHz: 574 Mbps, 802.11b/g/n/ax, 2 dBi antenna
• 5 GHz: 1200 Mbps, 802.11a/n/ac/ax, 4 dBi antenna

Networking

• Ethernet Ports: 4 × Gigabit
• 2.5G Port: 1 × 2.5 Gigabit

Peripherals

• SIM Slot: 1 × Micro SIM
• USB Port: 1 × USB Type-A
• Max USB Current: 1 A
• USB Power Reset: Yes

Monitoring & Features

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Mode Button: Yes

Certifications

• Certifications: CE, EAC, ROHS
