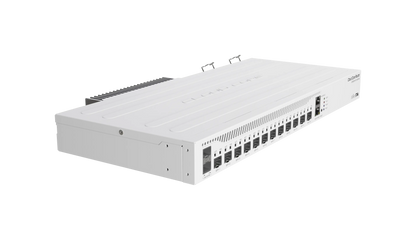

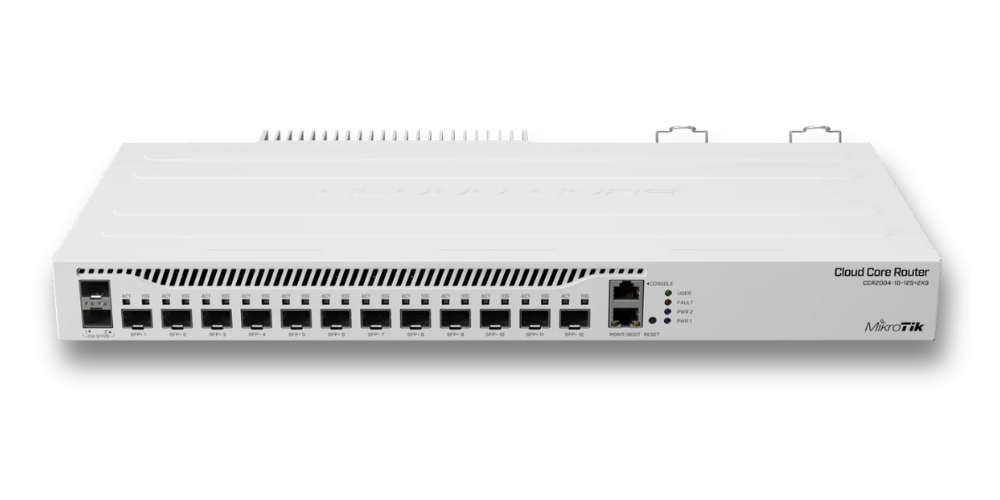

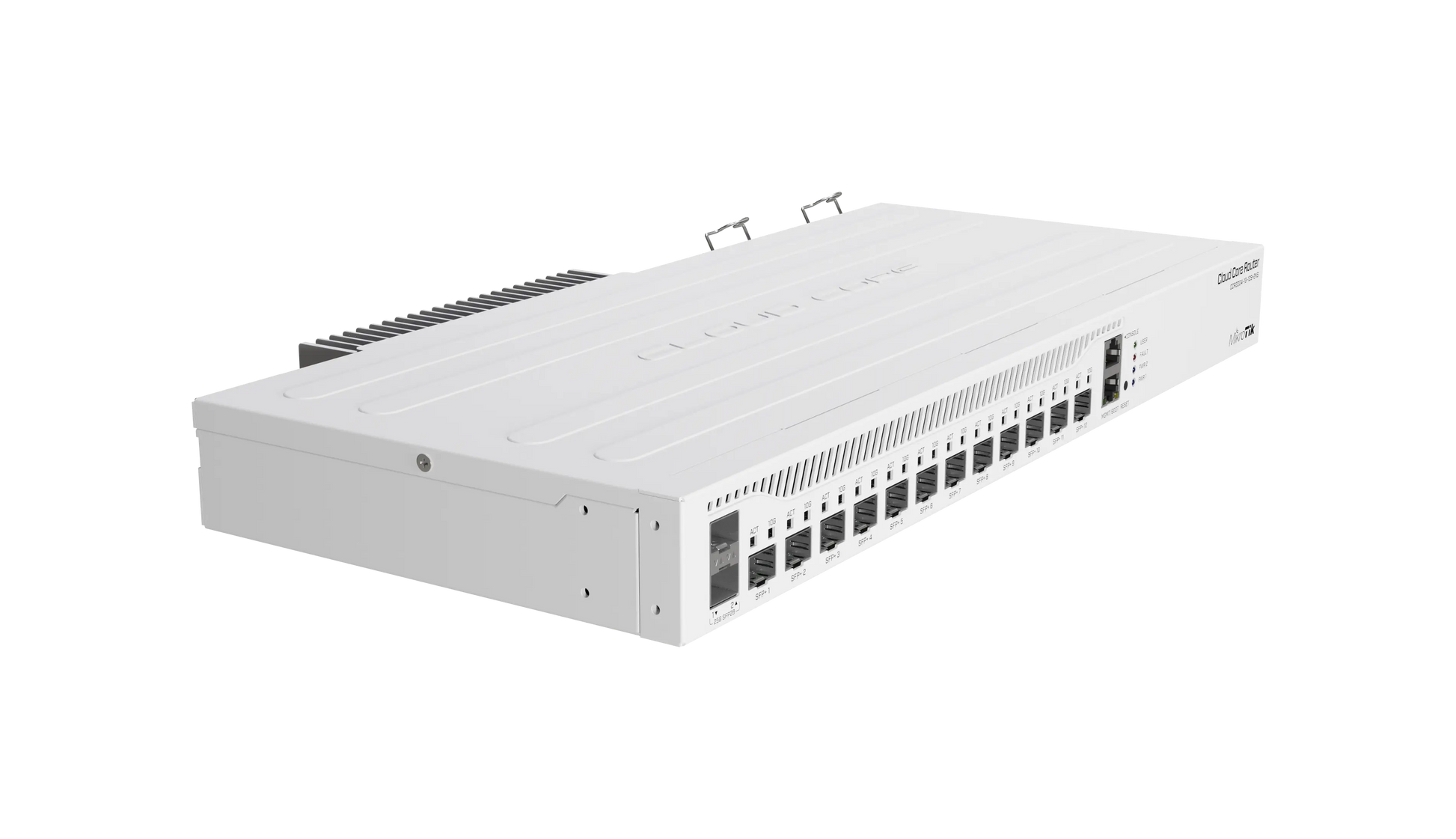

CCR2004-1G-12S+2XS

Regular price $780.42 CAD
Sale price $780.42 CAD Regular price
Sale Sold out
Only 1 units left

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Features & Compatibility

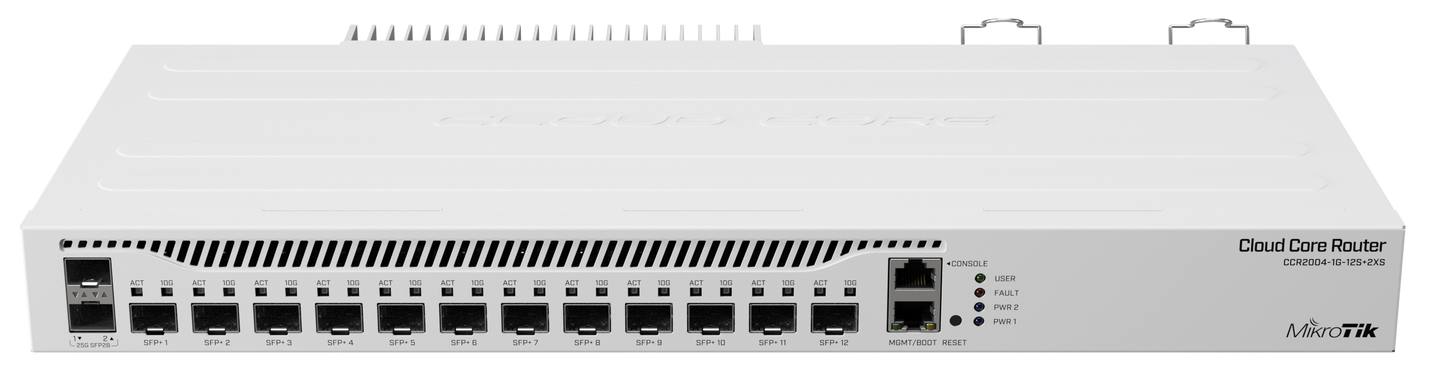

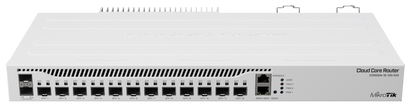

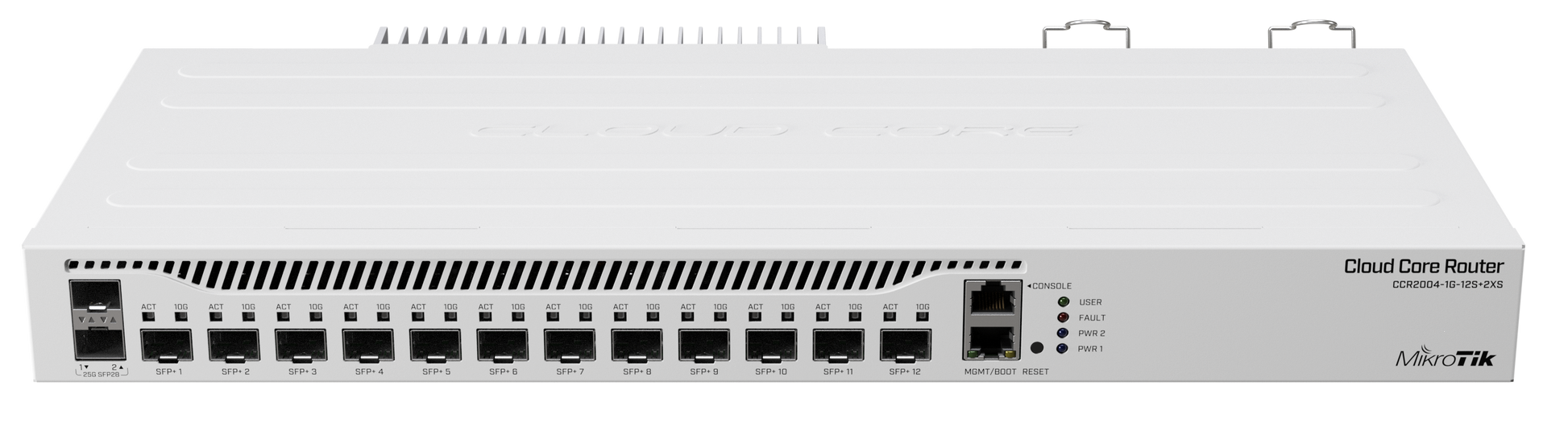

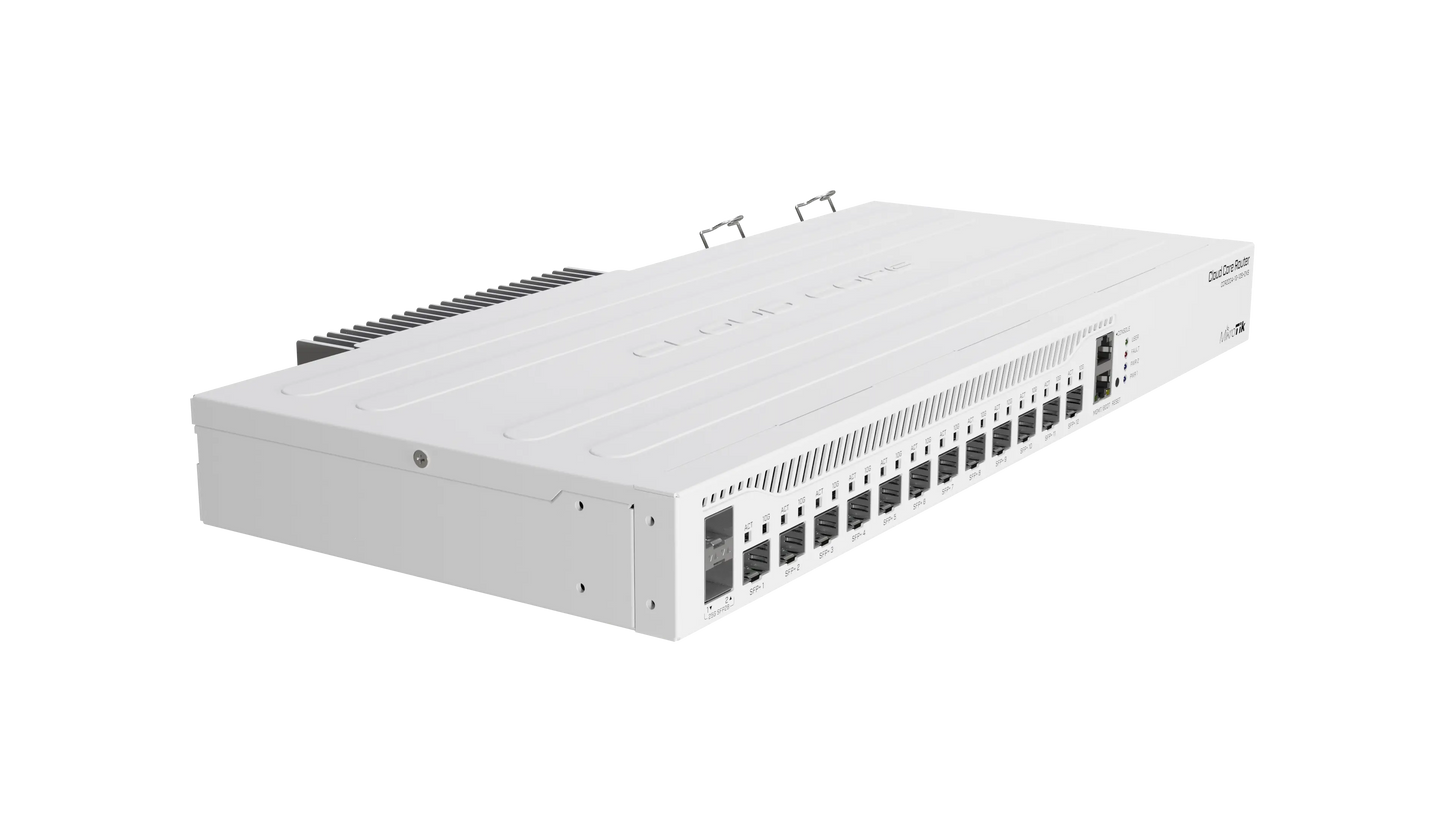

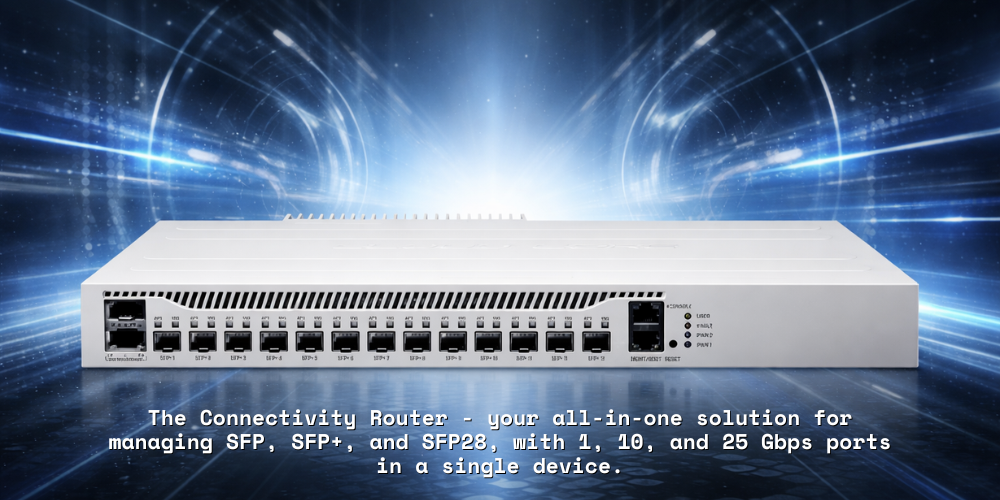

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v7 4GB ECC

All-rounded Protection

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Specifications

DETAILS
Product code CCR2004-1G-12S+2XS

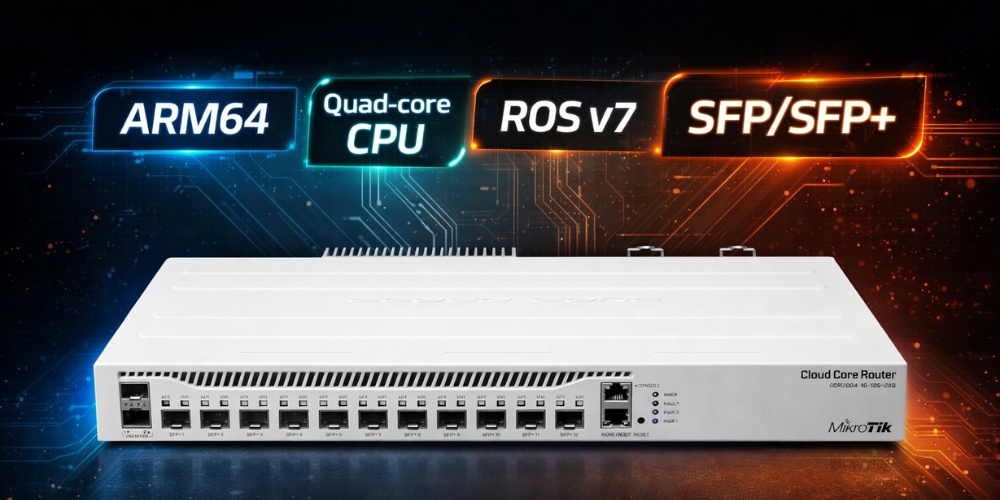

Architecture ARM 64bit
CPU AL32400
CPU core count 4
CPU nominal frequency 1700 MHz
Dimensions 443 x 224 x 44 mm
RouterOS license 6
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $595.00

Powering

DETAILS

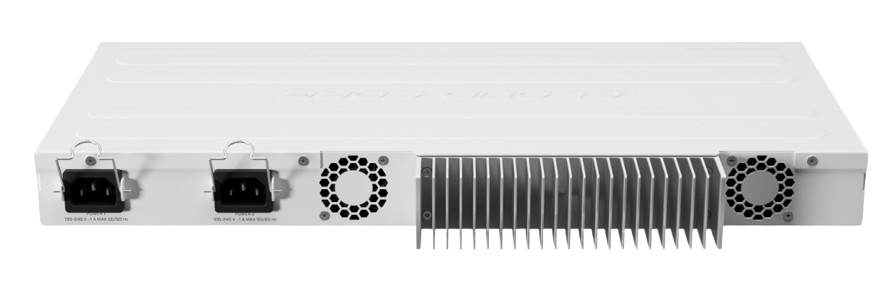

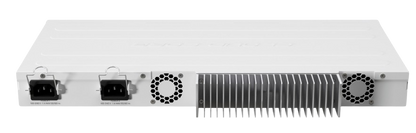

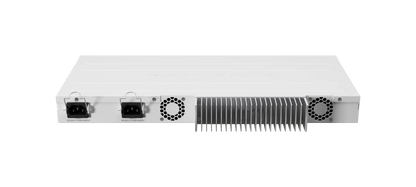

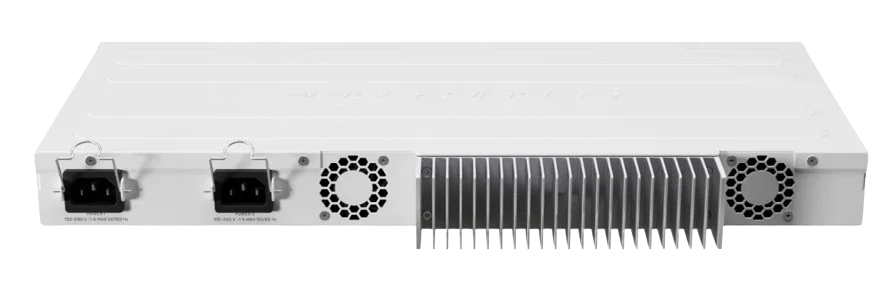

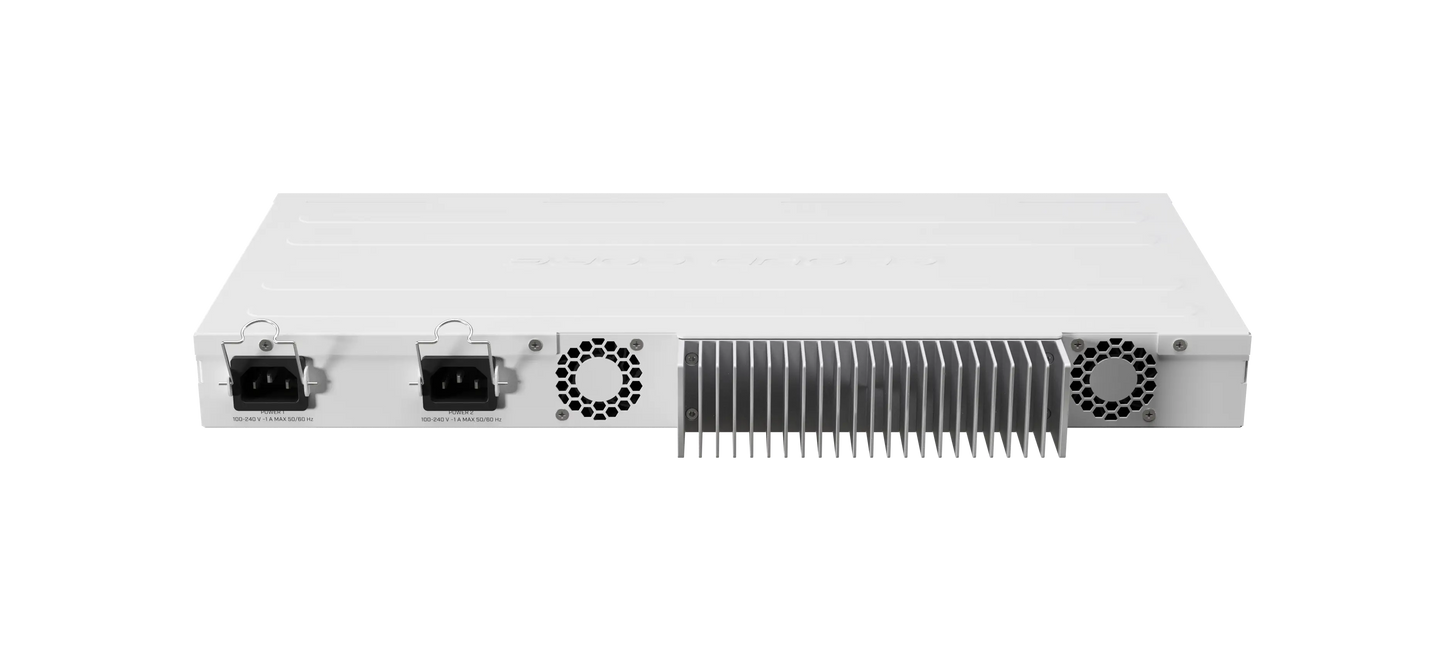

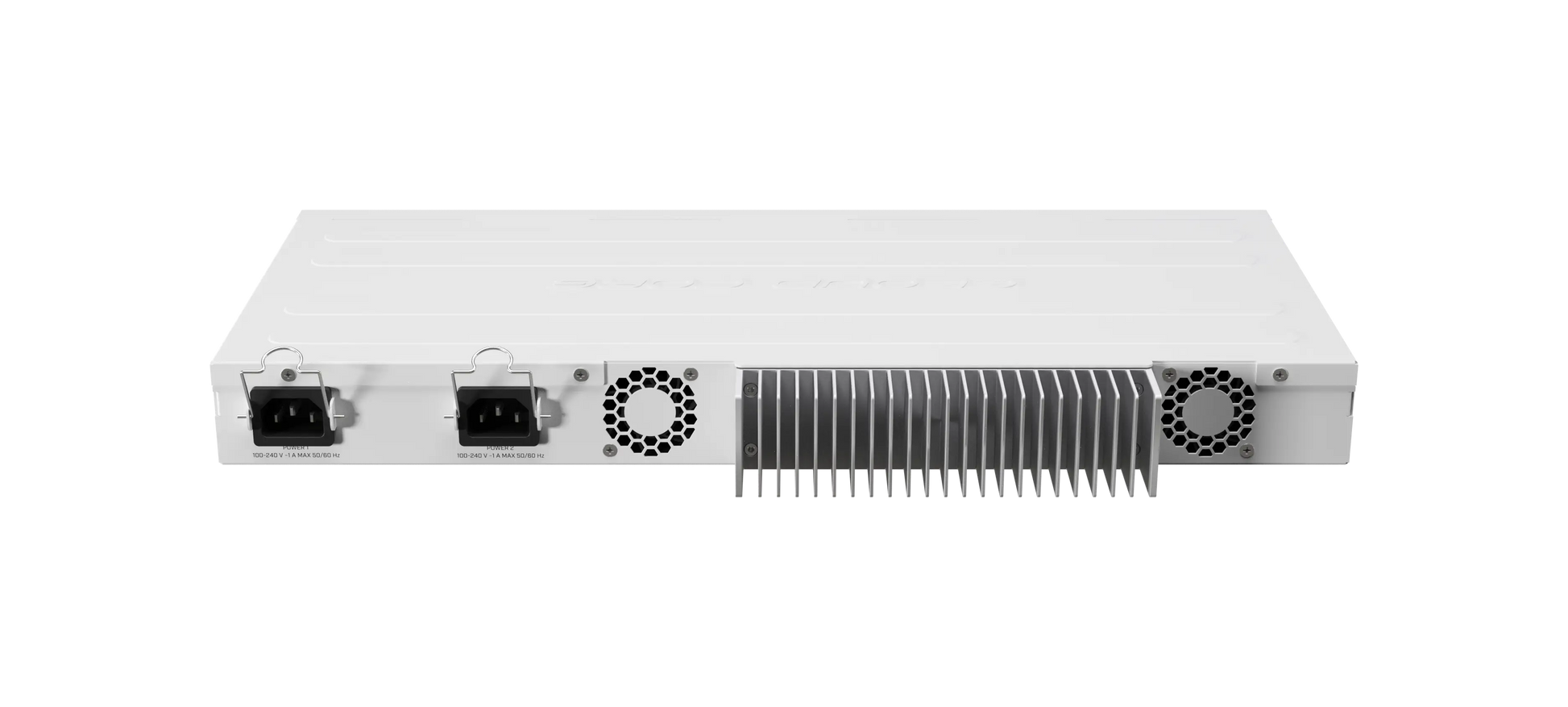

Number of AC inputs 2
AC input range 100-240
Max power consumption 49 W
Max power consumption without attachments 32 W
Cooling type 2 fans

Ethernet

DETAILS
10/100/1000 Ethernet ports 1

Fiber

DETAILS
SFP+ ports 12
Number of 25G SFP28 ports 2

Peripherals

DETAILS
Serial console port RJ45

Other

DETAILS
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

DETAILS
Certification CE, EAC, ROHS
IP 20



Additional information

Weight 2.3 kg
Dimensions 52 × 40 × 37 cm
Brand

Mikrotik



Click here to download the Datasheet.
