PRODUCT SPECIFICATIONS

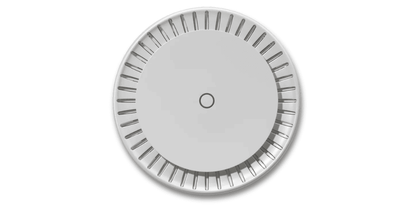

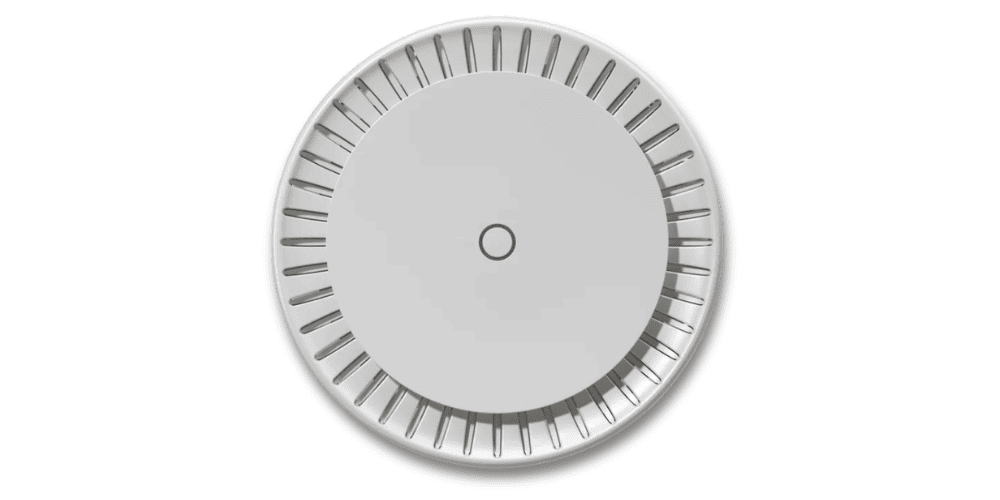

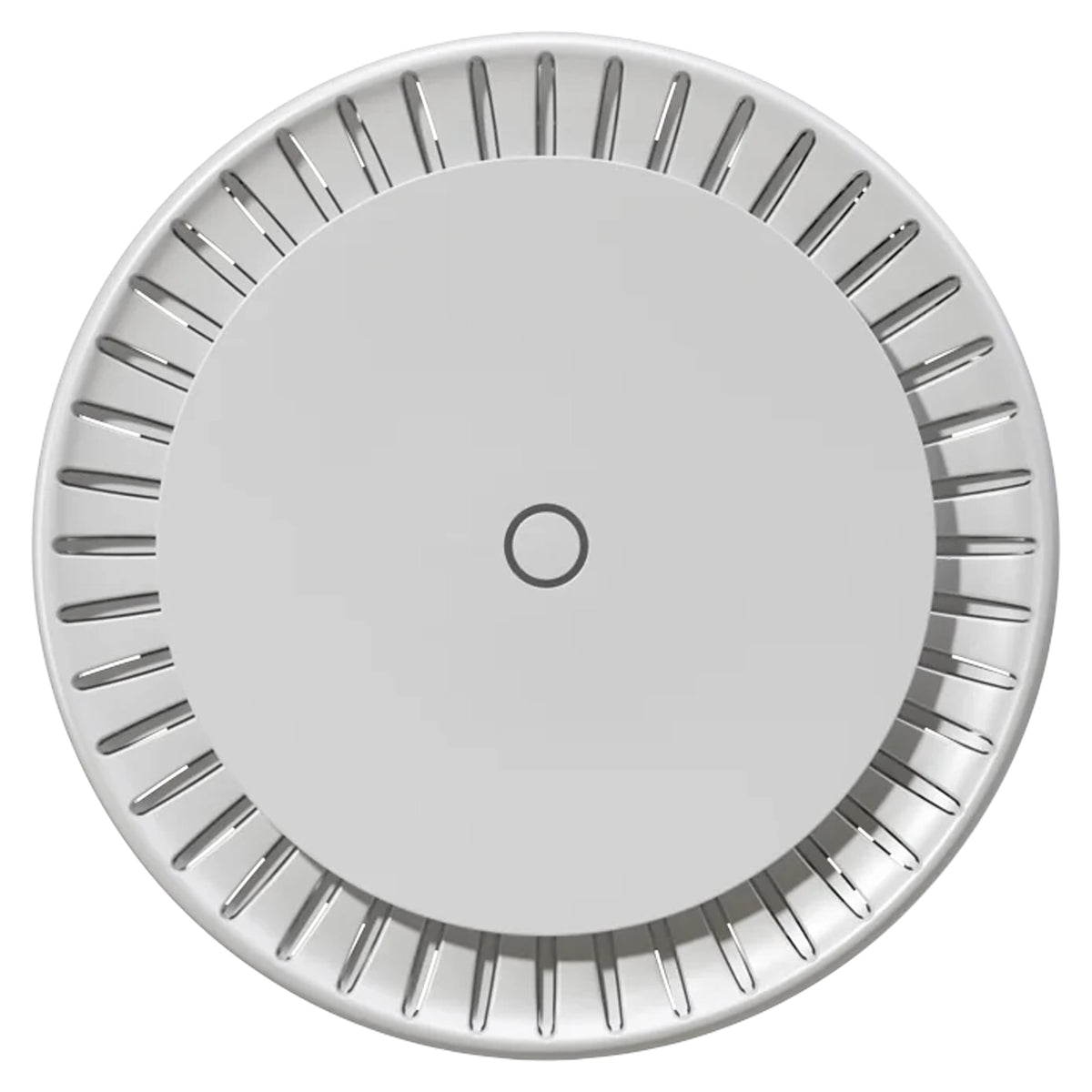

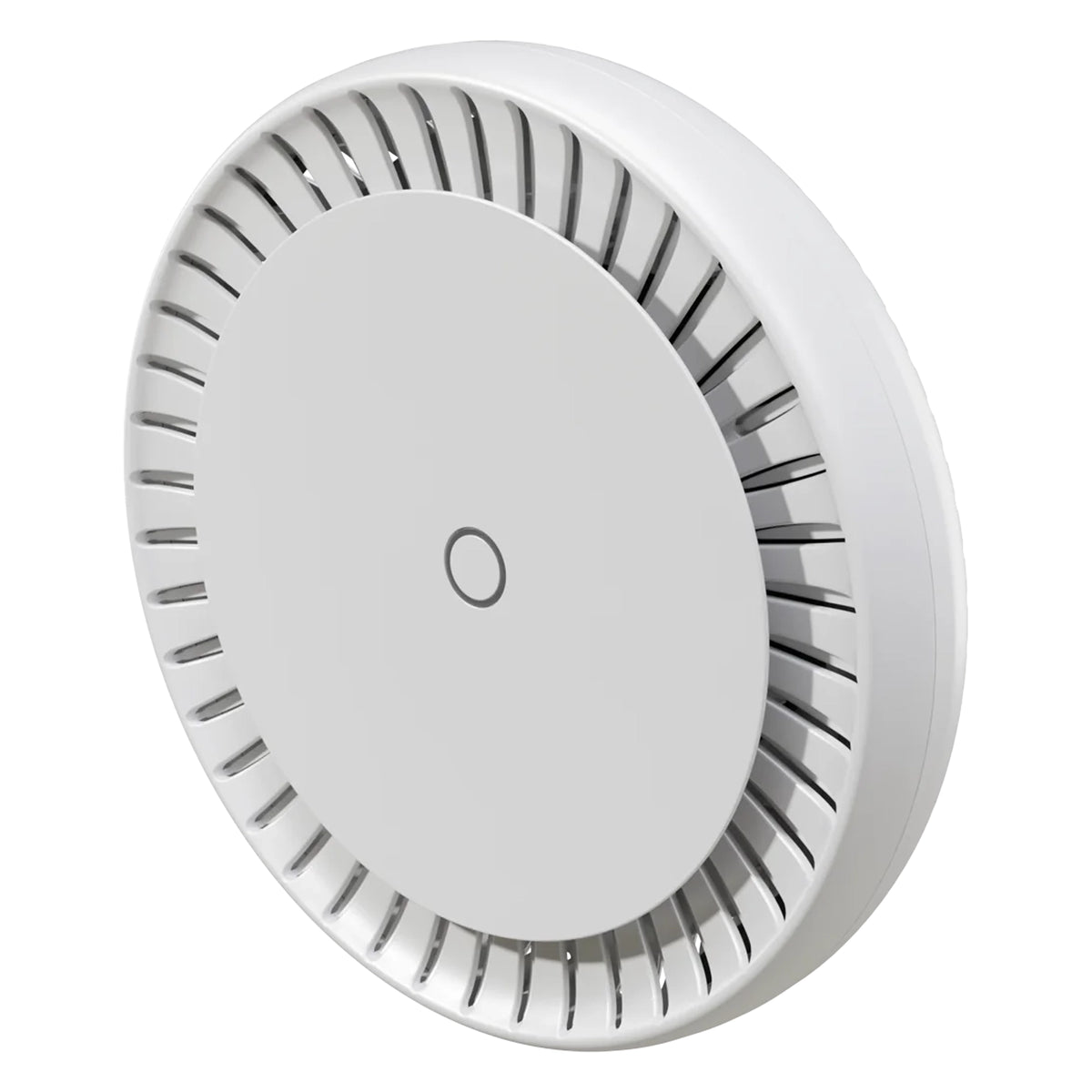

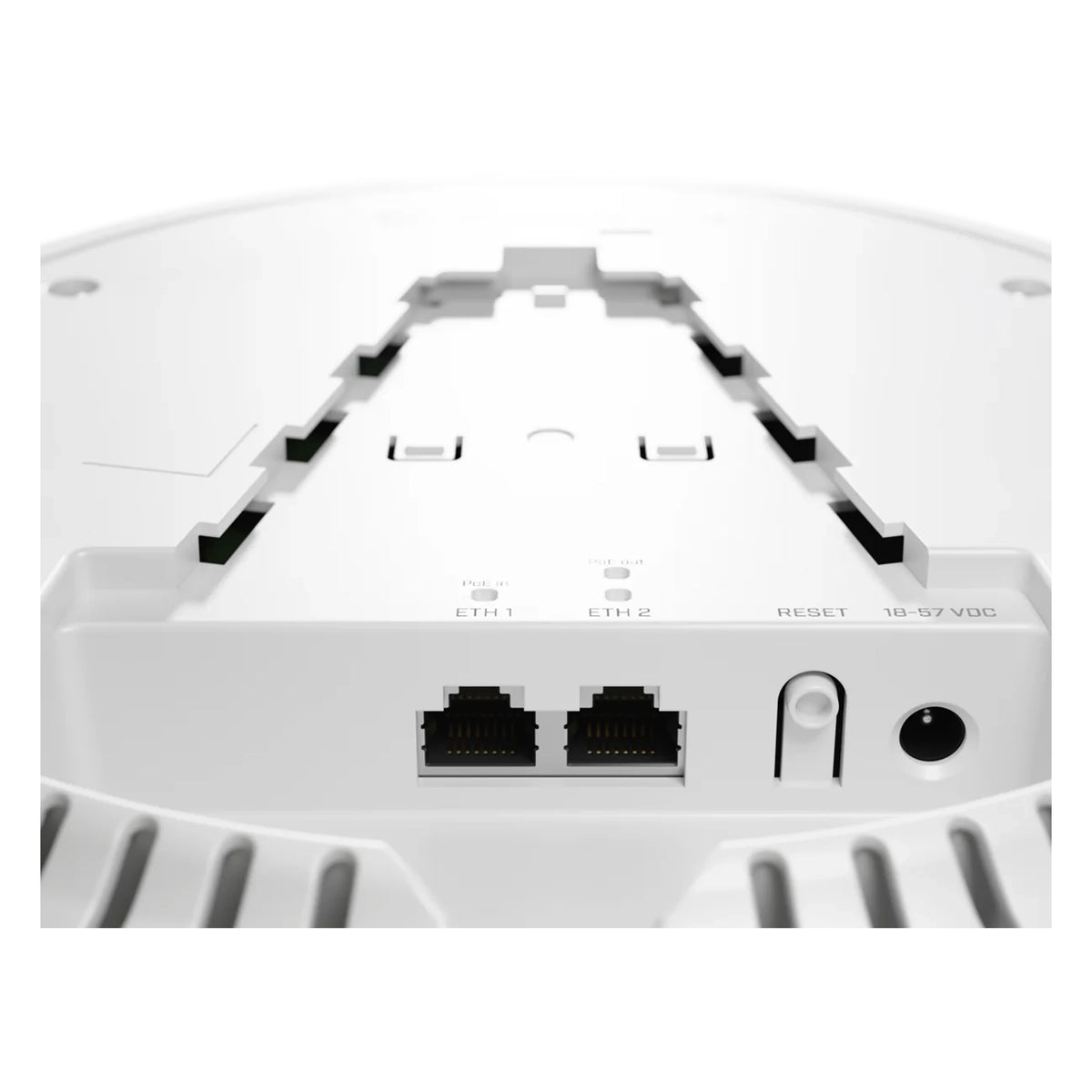

Mikrotik cAPGi-5HaxD2HaxD-US
The best-selling ceiling access point is back – stronger than ever! A new generation of wireless greatness for your office, hotel, mall, or any other setups in crowded areas. Modern quad-core CPU, 1GB of RAM, 2x Gigabit Ethernet ports, PoE, Gen 6 802.11ax wireless, PSU – included!
Dimensions
- Unit: 228 x 48 mm
- Box: 21 x 17 x 5'
Weight
- 13Lb
Included Parts:
- 48 V 0.95 A power adapter
- Gigabit PoE injector
- Ceiling mount
- Mounting bracket
- Fastening set
Technical Description
-
Specifications
- Product code: cAPGi-5HaxD2HaxD
- Architecture: ARM 64bit
- CPU: IPQ-6010
- CPU core count: 4
- CPU nominal frequency: auto (864 - 1800) MHz
- Switch chip model: IPQ-6010
- RouterOS license: 4
- Operating System: RouterOS v7
- Size of RAM: 1 GB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- IPsec hardware acceleration: Yes
-
Wireless capabilities
- Wireless 2.4 GHz Max data rate: 574 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz: 6
- Wireless 2.4 GHz chip model: QCN-5022
- Wireless 2.4 GHz generation: Wi-Fi 6
- Wireless 5 GHz Max data rate: 1200 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz: 5.5
- Wireless 5 GHz chip model: QCN-5052
- Wireless 5 GHz generation: Wi-Fi 6
- WiFi speed: AX1800
-
Ethernet
- 10/100/1000 Ethernet ports: 2
- Number of 1G Ethernet ports with PoE-out: 1
-
Powering
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 18-57 V
- Max power consumption: 36 W
- Max power consumption without attachments: 9 W
- Cooling type: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 18-57 V
-
PoE-out
- PoE-out ports: Ether2
- PoE out: Passive PoE up to 57V
- Max out per port output (input 18-30 V): 600 mA
- Max out per port output (input 30-57 V): 400 mA
- Max total out (A): 600 mA
- Total output current: 0.4
- Total output power: 19.2
-
Certification & Approvals
- Certification: CE, FCC, IC, EAC, ROHS
- IP: 20
-
Other
- CPU temperature monitor: Yes
- Mode button: Yes
More Information
MFRPartNum:
cAPGi-5HaxD2HaxD-US
