Technical Description
-

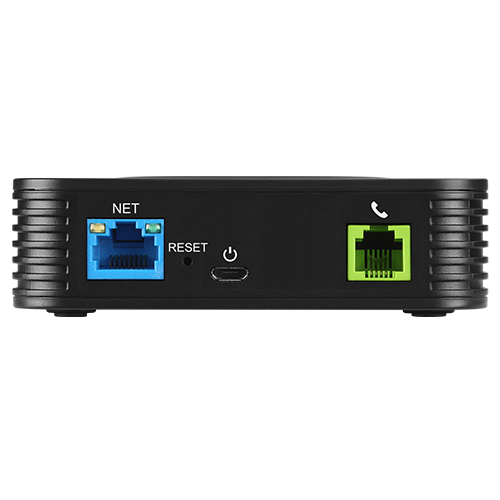

Interfaces
- Telephone Interfaces: One (1) FXS port
- Network Interfaces: One (1) 10/100Mbps auto-sensing Ethernet port (RJ45)
- LED Indicators: POWER, INTERNET, PHONE
- Factory Reset Button: Yes
-
Voice, Fax, Modem
- Telephony Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
- Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
- Fax Over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
- Short/Long Haul Ring Load: 2 REN: Up to 1km on 24 AWG
- Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
- Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current Signaling
-
Network Protocols
- TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
- QoS: Layer 3 (ToS, DiffServ, MPLS)
- DTMF Method: In-audio, RFC2833 and/or SIP INFO
- Provisioning and Control: HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
- Security
- Media: SRTP
- Control: TLS/SIPS/HTTPS
- Management: Syslog support, telnet, remote management using web browser
-
Physical
- Universal Power Supply: Input: 100-240VAC, 50-60Hz, Output: 5.0VDC/1.0A
-
Environmental
- Operational: 32º – 104ºF or 0º – 40ºC
- Storage: 14º – 140ºF or -10º – 60ºC
- Humidity: 10 – 90% Non-condensing
-
Dimension and Weight
- Dimensions: 100mm x 100mm x 29.5mm
- Weight: 102 g
-
Compliance
- FCC: Part15B
- CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
- RCM: AS/NZS CISPR22, AS/NZS60950.1, S003
Click here to download the Datasheet.
