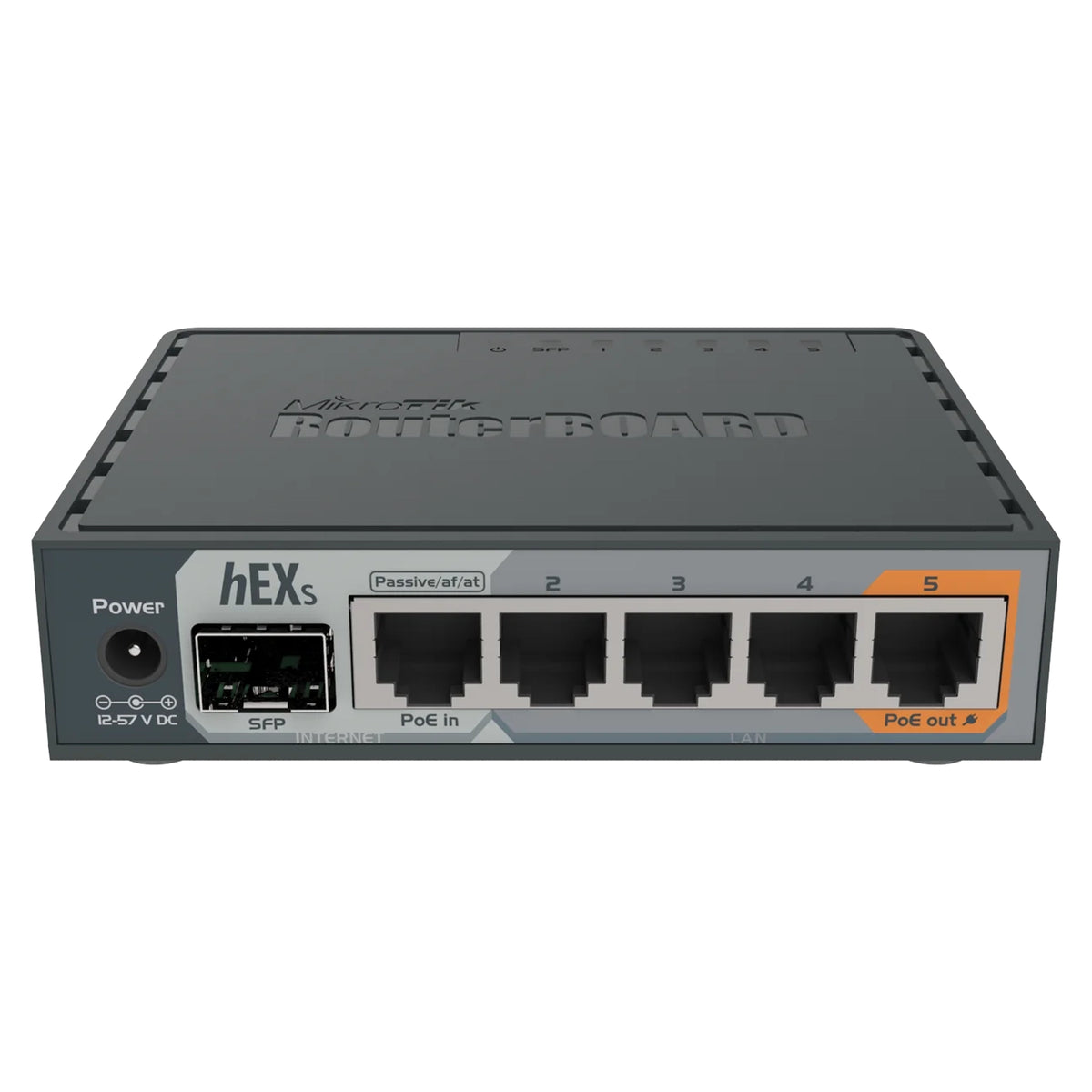

MikroTik hEX S (RB760iGS) 5-Port Gigabit Router with SFP and PoE

Regular price $99.55 CAD
Sale price $99.55 CAD Regular price
Sale Sold out
In stock (18 units), ready to be shipped

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package

The hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.



Click here to download the Datasheet.

Payment methods

Payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    MikroTik

View Product Details

Specifications

  • Product Code: RB760iGS
  • Architecture: MMIPS
  • CPU: MT7621A (Dual-Core, 880 MHz, 4 Threads)
  • RAM: 256 MB
  • Storage: 16 MB (FLASH)
  • OS / License: RouterOS (Level 4)
  • Dimensions: 113 x 89 x 28 mm
  • Operating Temperature: -40°C to 70°C
  • MTBF: ~100,000 hours @ 25°C
  • Power Input: DC Jack & PoE-IN (12–57V)
  • Power Consumption: Max 24W (6W without load)
  • Cooling: Passive
  • Ethernet Ports: 5x Gigabit
  • SFP Ports: 1
  • PoE In: 802.3af/at (12–57V)
  • PoE Out: Passive PoE (Ether5, up to 57V, 500mA)
  • USB: 1x USB Type-A (Max 1A, Power Reset Supported)
  • Memory Card: microSD Slot
  • Monitoring: PCB Temp, Voltage Monitor
  • Extras: Mode Button, Beeper
  • Certifications: CE, EAC, ROHS
  • IP Rating: IP20
The MikroTik hEX S (RB760iGS) is a compact wired router designed for users who need reliable Gigabit networking, fiber connectivity, and flexible power options in a small form factor. It is suitable for home labs, offices, small businesses, and other network environments where dependable routing and wired performance are important. The router provides five Gigabit Ethernet ports along with an SFP port for compatible fiber connections. This gives users the flexibility to combine standard Ethernet devices with fiber uplinks, making the hEX S useful for a wide range of network layouts. The RB760iGS also supports PoE output on a compatible Ethernet port, helping power supported network equipment without requiring a separate adapter. Combined with RouterOS, USB connectivity, and MikroTik’s routing features, the hEX S is a practical choice for compact but capable network deployments.

FAQs : MikroTik hEX S (RB760iGS)

The hEX S is a compact Gigabit Ethernet router with an SFP port, designed for wired networks that need flexible routing and fiber connectivity.
It provides 5 Gigabit Ethernet ports, giving users multiple wired connection options for computers, switches, access points, and other devices.
Yes. The RB760iGS includes an SFP port for compatible fiber modules, making it suitable for networks that require fiber uplinks.
You can buy the MikroTik hEX S (RB760iGS) from JRS Global Technologies Canada through jrsglcanada.com for MikroTik networking products and solutions.
