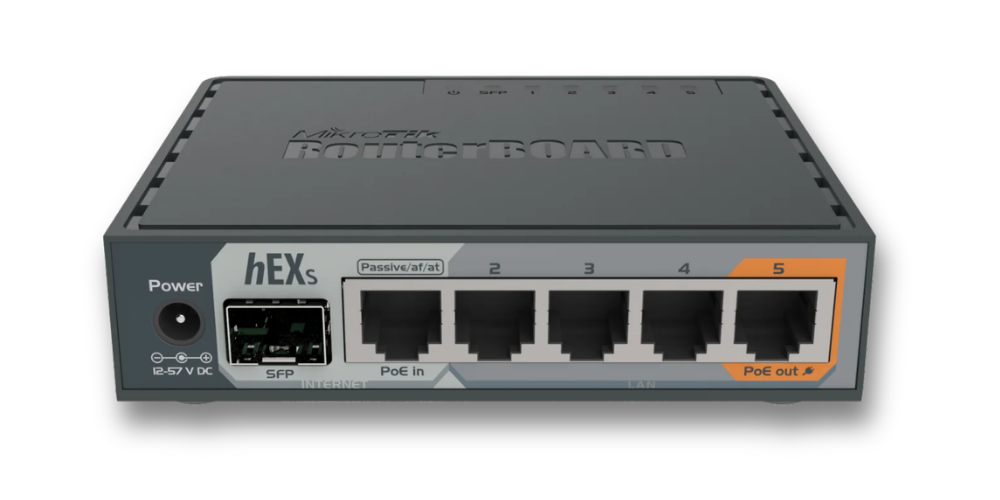

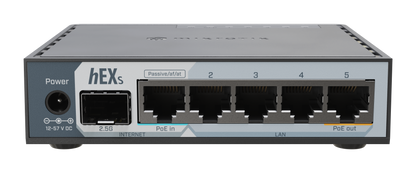

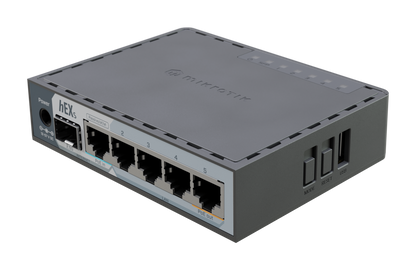

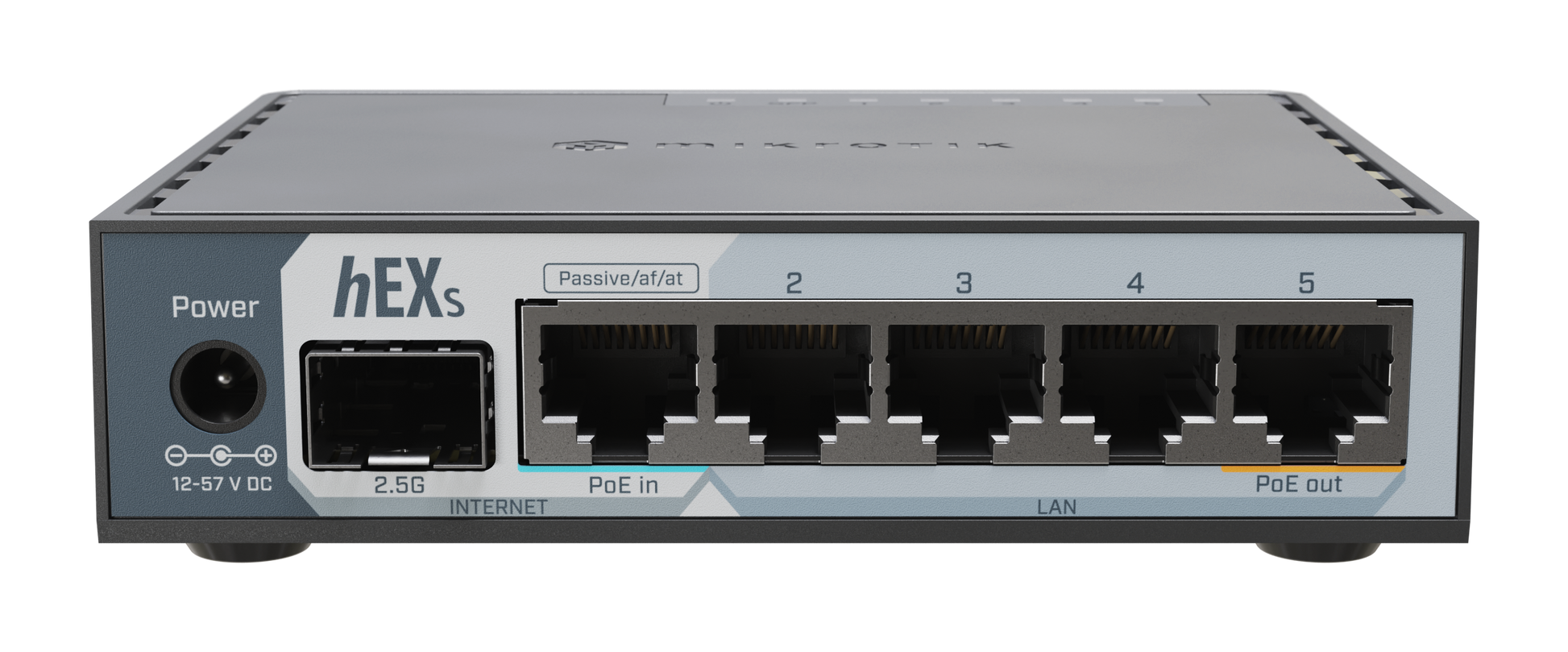

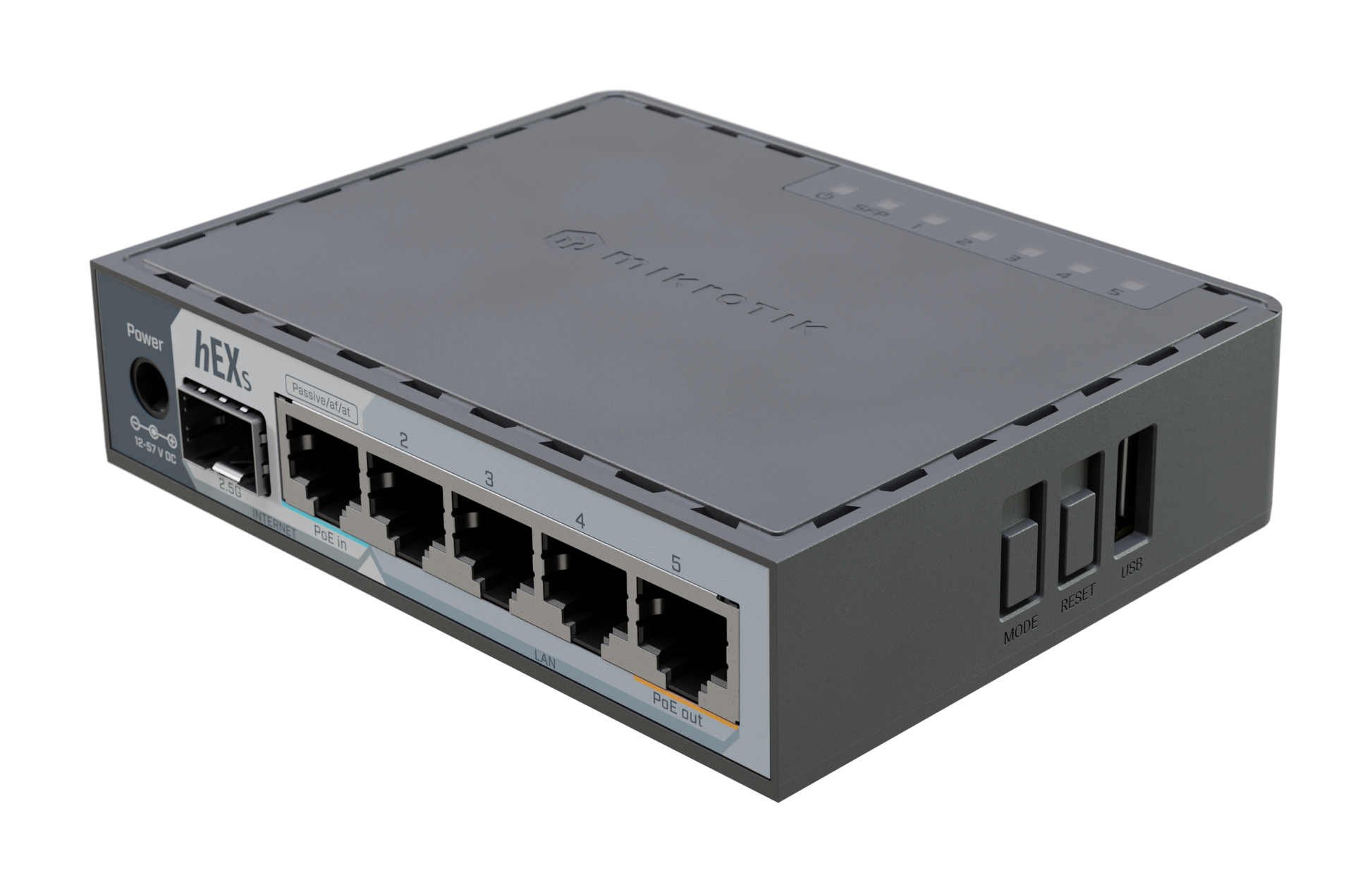

hEX S

Regular price $96.50 CAD
Sale price $96.50 CAD Regular price
Sale Sold out
Only 1 units left

A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU – ideal for homes, offices, or underfunded labs that need reliable performance.

Need a wired router that won’t slow you down or drain your budget? The new hEX S is a compact, truly budget-friendly device that does a little bit of everything – and does it fast. Whether you’re building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.

With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge – full flexibility right out of the box. That’s just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more – so you can build the wired network you’ve always wanted.

Click here to download the Datasheet.

Payment methods

Payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

General

  • Product Code: RB760iGS
  • Architecture: MMIPS
  • CPU: MT7621A (Dual-core, 880 MHz, 4 Threads)
  • Switch Chip: MT7621A
  • Dimensions: 113 × 89 × 28 mm
  • Operating System: RouterOS (License Level 4)
  • RAM: 256 MB
  • Storage: 16 MB FLASH
  • MTBF: ~100,000 hours at 25°C
  • Operating Temperature: -40°C to 70°C

Power

  • DC Inputs: 2 (DC Jack, PoE-In)
  • Input Voltage: 12–57 V
  • PoE-In: 802.3af/at (12–57 V)
  • Max Power Consumption: 24 W
  • Power Consumption (No Attachments): 6 W
  • Cooling: Passive

PoE-Out

  • PoE-Out Ports: Ether5
  • Type: Passive PoE (up to 57V)
  • Current Limit: 500 mA (Low & High Voltage)
  • Max Total Output: 500 mA

Ethernet

  • Ports: 5 × 10/100/1000 Gigabit Ethernet

Fiber

  • SFP Ports: 1

Peripherals

  • Memory Card: microSD (1 Slot)
  • USB Ports: 1 × USB Type-A
  • Max USB Current: 1 A
  • USB Power Reset: Yes

Monitoring & Features

  • PCB Temperature Monitor
  • Voltage Monitor
  • Mode Button
  • Beeper

Certification & Protection

  • Certifications: CE, EAC, RoHS
  • IP Rating: IP20
