Mikrotik Logo

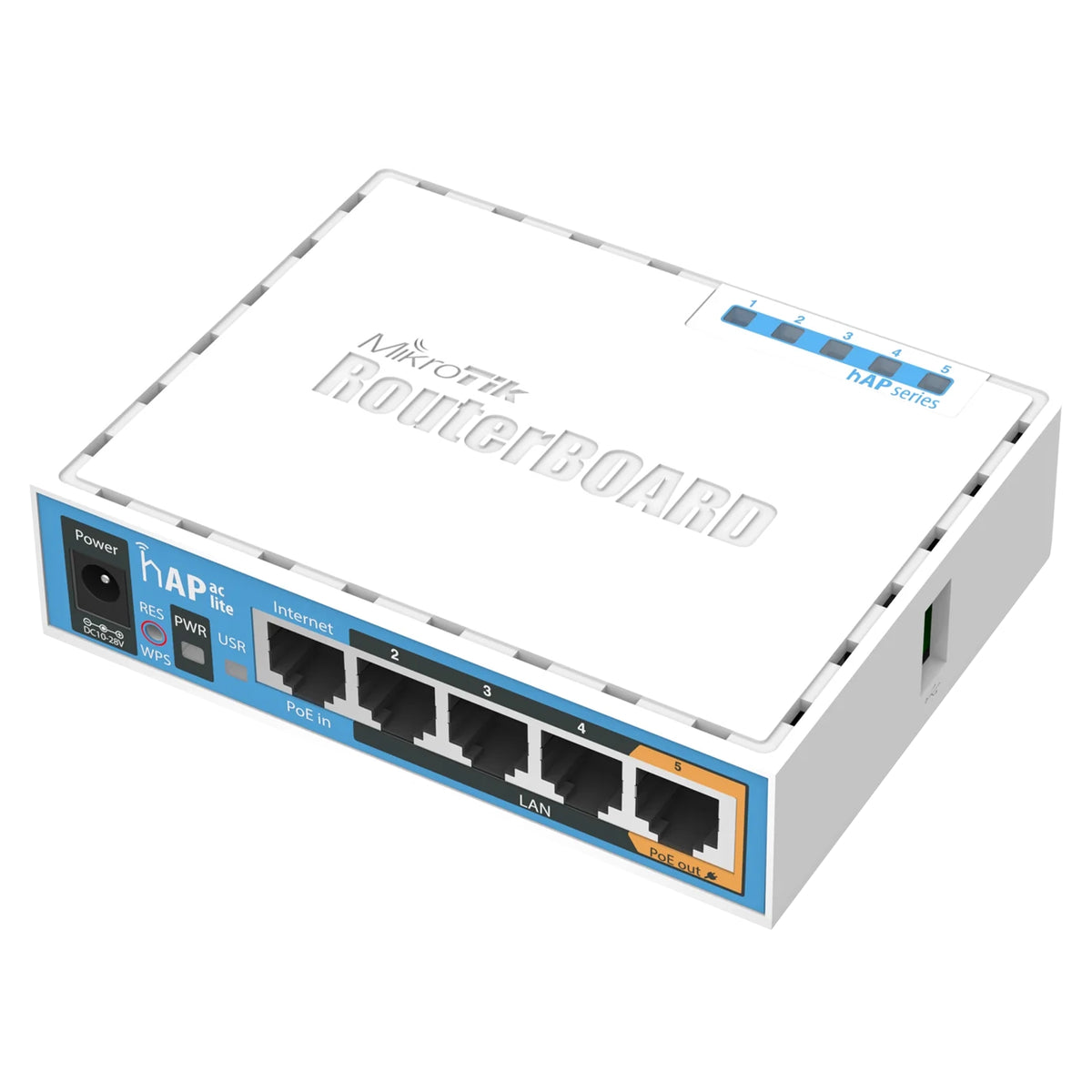

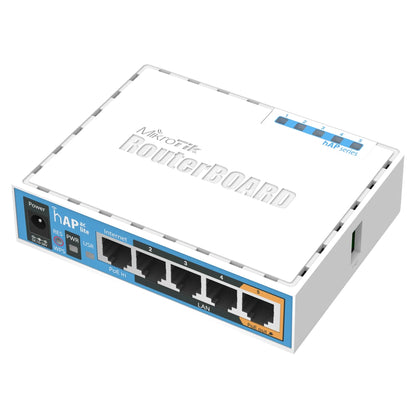

hAP ac lite(RB952Ui-5ac2nD-US)

$71.20 CAD
$71.20 CAD
Sale Sold out
In stock (40 units), ready to be shipped

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

We have two versions available - RB952Ui-5ac2nD (International) and RB952Ui-5ac2nD-US (USA). RB952Ui-5ac2nD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz - 5875MHz range (Specific frequency range can be limited by country regulations).

Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • Product code: RB952Ui-5ac2nD-US
  • Architecture: MIPSBE
  • CPU: QCA9531
  • CPU core count: 1
  • CPU nominal frequency: 650 MHz
  • Switch chip model: QCA9531
  • Dimensions: 113 x 89 x 28 mm
  • RouterOS license: 4
  • Operating System: RouterOS
  • Size of RAM: 64 MB
  • Storage size: 16 MB
  • Storage type: FLASH
  • MTBF: Approximately 100,000 hours at 25°C
  • Tested ambient temperature: -30°C to 70°C
  • Wireless 2.4 GHz max data rate: 300 Mbit/s
  • Wireless 2.4 GHz number of chains: 2
  • Wireless 2.4 GHz standards: 802.11b/g/n
  • Antenna gain (2.4 GHz): 1.5 dBi
  • Wireless 2.4 GHz chip model: QCA9531
  • Wireless 2.4 GHz generation: Wi-Fi 4
  • Wireless 5 GHz max data rate: 433 Mbit/s
  • Wireless 5 GHz number of chains: 1
  • Wireless 5 GHz standards: 802.11a/n/ac
  • Antenna gain (5 GHz): 2 dBi
  • Wireless 5 GHz chip model: QCA9887
  • Wireless 5 GHz generation: Wi-Fi 5
  • WiFi speed: AC750
  • 10/100 Ethernet ports: 5
  • Number of USB ports: 1
  • USB power reset: Yes
  • USB slot type: USB Type-A
  • Max USB current: 1 A
  • Number of DC inputs: 2 (DC jack, PoE-IN)
  • DC jack input voltage: 10–28 V
  • Max power consumption: 20 W
  • Max power consumption (without attachments): 8 W
  • PoE in: Passive PoE
  • Cooling type: Passive
  • PoE input voltage: 10–28 V
  • PoE-out ports: Ether5
  • PoE out type: Passive PoE
  • Low voltage PoE-out current limit: 500 mA
  • Max total output: 500 mA
  • Certification: CE, FCC, IC, EAC, ROHS
  • IP rating: IP20
