hAP ac lite

$79.00 CAD
$79.00 CAD
Sale Sold out
Only 8 units left

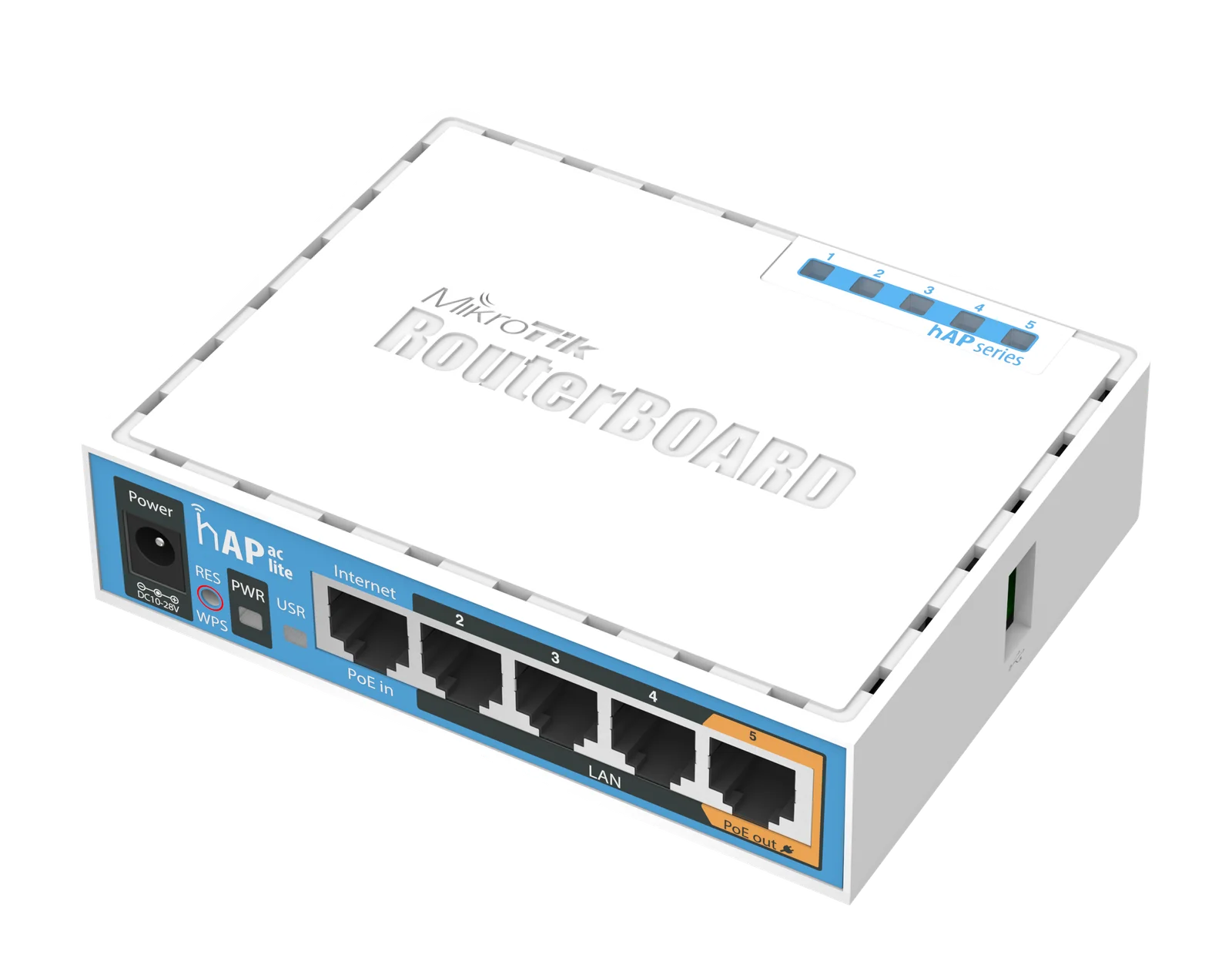

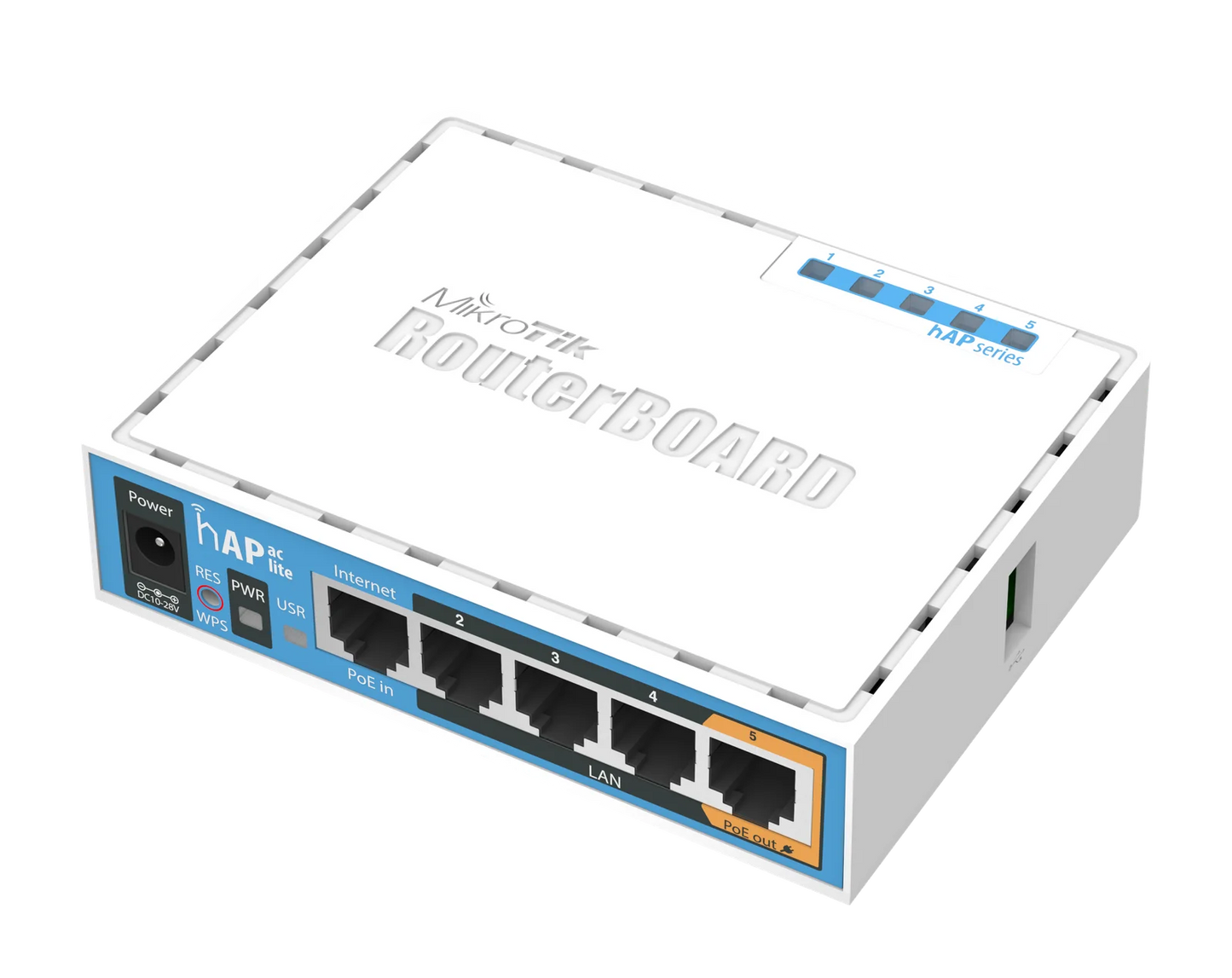

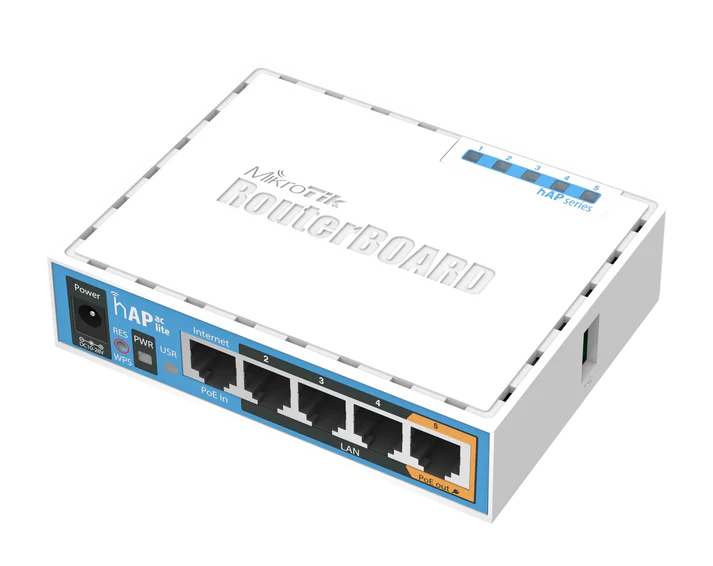

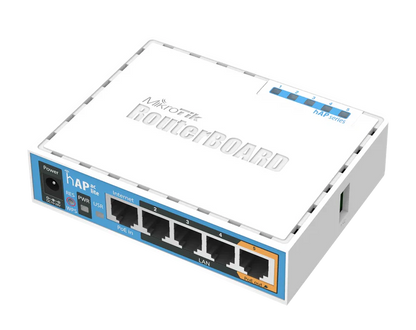

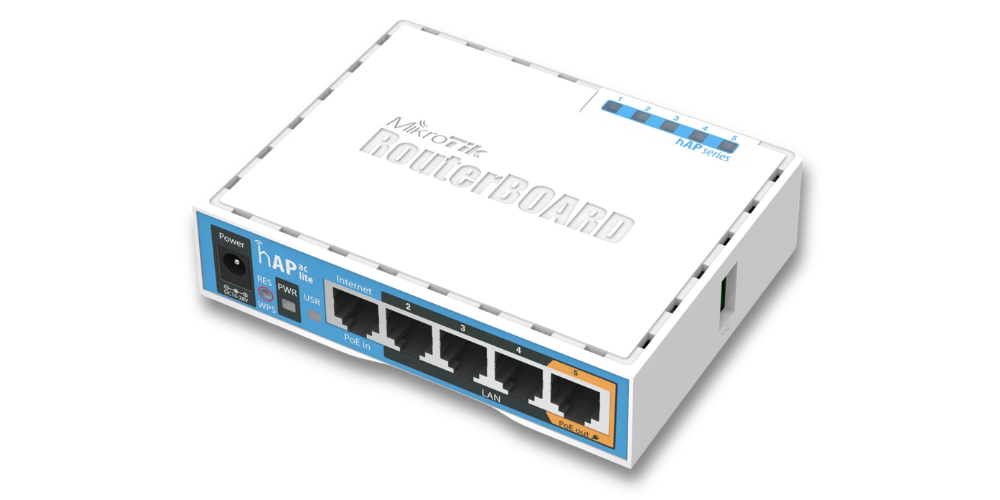

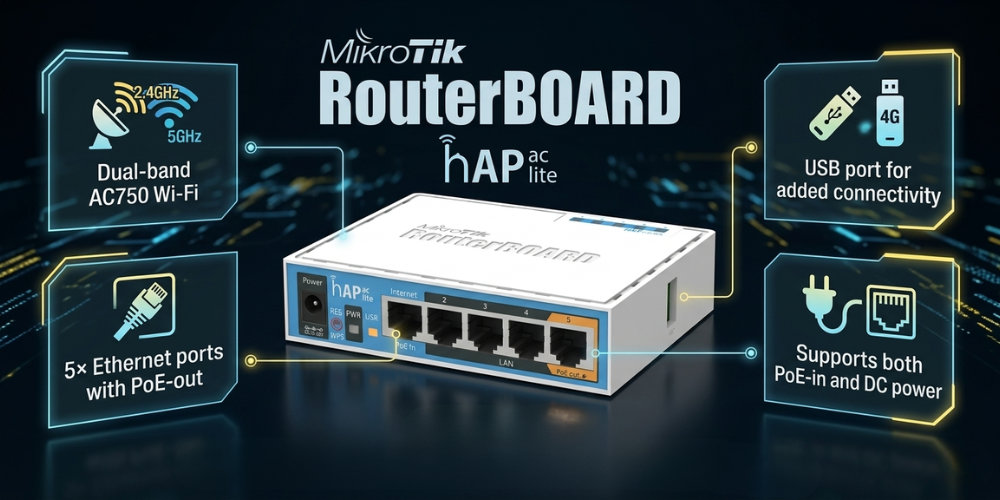

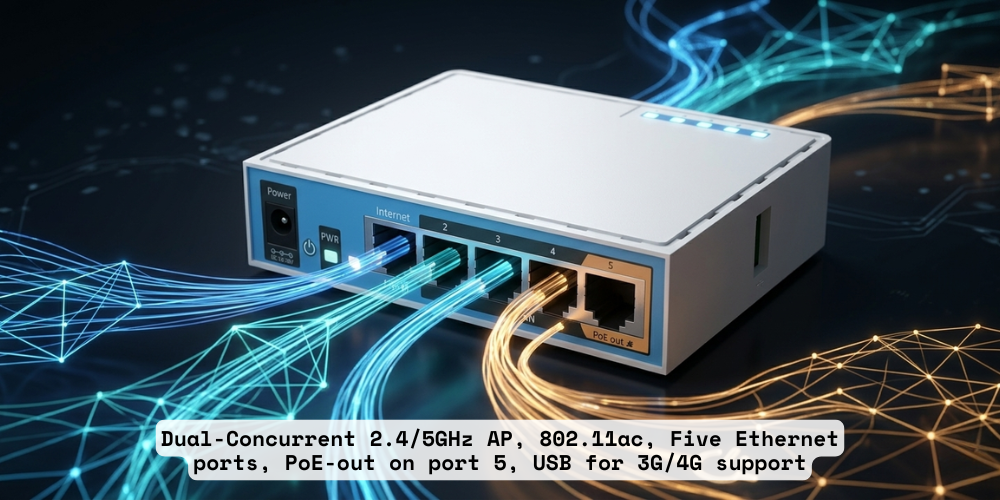

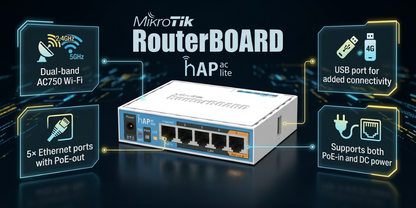

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

We have two versions available – RB952Ui-5ac2nD (International) and RB952Ui-5ac2nD-US (USA). RB952Ui-5ac2nD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz – 5875MHz range (Specific frequency range can be limited by country regulations).

Clicke here to Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

General

  • Product Code: RB952Ui-5ac2nD
  • Architecture: MIPSBE
  • CPU: QCA9531 (Single-core, 650 MHz)
  • Switch Chip: QCA9531
  • Dimensions: 113 × 89 × 28 mm
  • Operating System: RouterOS (License Level 4)
  • RAM: 64 MB
  • Storage: 16 MB FLASH
  • MTBF: ~100,000 hours at 25°C
  • Operating Temperature: -30°C to 70°C

Wireless

  • Wi-Fi Standard: AC750 Dual-Band
  • 2.4 GHz: 300 Mbps, 2 Chains, 802.11b/g/n, 1.5 dBi Antenna
  • 2.4 GHz Chip: QCA9531 (Wi-Fi 4)
  • 5 GHz: 433 Mbps, 1 Chain, 802.11a/n/ac, 2 dBi Antenna
  • 5 GHz Chip: QCA9887 (Wi-Fi 5)

Ethernet

  • Ports: 5 × 10/100 Ethernet

Peripherals

  • USB Ports: 1 × USB Type-A
  • Max USB Current: 1 A
  • USB Power Reset: Yes

Power

  • DC Inputs: 2 (DC Jack, PoE-In)
  • Input Voltage: 10–28 V
  • PoE-In: Passive PoE (10–28 V)
  • Max Power Consumption: 20 W
  • Power Consumption (No Attachments): 8 W
  • Cooling: Passive

PoE-Out

  • PoE-Out Ports: Ether5
  • Type: Passive PoE
  • Current Limit: 500 mA
  • Max Total Output: 500 mA

Certification & Protection

  • Certifications: CE, FCC, IC, EAC, RoHS
  • IP Rating: IP20
