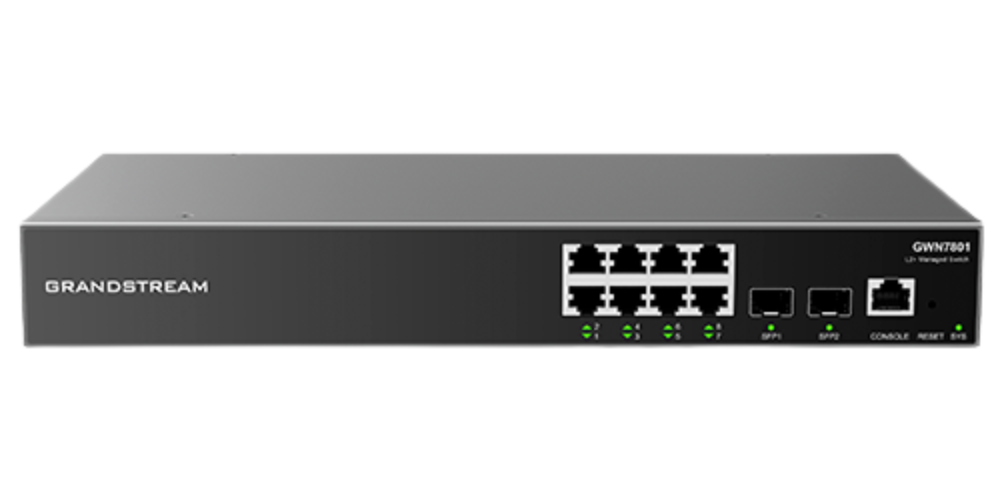

Grandstream GWN7801

$159.00 CAD
$159.00 CAD
Sale Sold out
In stock (120 units), ready to be shipped

PRODUCT SPECIFICATIONS

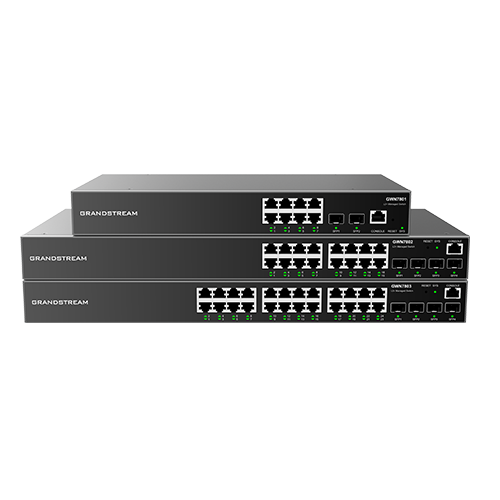

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable

  • 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
  • Supports deployment in IPv6 and IPv4 networks
  • Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Local Web UI to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
  • Built-in QoS allows for prioritization of network traffic

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Product Highlights

  • Network Protocol: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
  • Gigabit Ethernet Ports: 8
  • Gigabit SFP/SFP+ Ports: 2 SFP Ports
  • PoE Ports (PoE Models Only): 8
  • Total PoE Output Power (PoE Models Only): 120W (30W per Port)
  • Total Non-Blocking Throughput: 10Gbps
  • Switching Capability: 20Gbps
  • Forwarding Rate: 14.88Mpps
  • Switching: 8K MAC addresses (static, dynamic, filtering, sticky), 4K VLANs (port-based, IEEE 802.1Q tagging, MAC-based, protocol-based, QinQ), Voice VLAN (auto, tagged & untagged OUI), 16 VLAN interfaces (9216 MTU), 256 ARP/NDP, GVRP (pending), 8 link aggregation groups, Spanning Tree (STP/RSTP/MSTP/PVST(+)/RPVST+), ERPS (pending)
  • Security: User management & password protection, HTTPS, SSH, Telnet, 802.1X & MAC authentication, AAA (RADIUS, TACACS+), Storm control, Port isolation & security, Sticky MAC, MAC filtering, IP/IPv6 source guard, DoS prevention, ARP inspection, DHCP/DHCPv6 snooping, Loop protection (BPDU, root, loopback), Kensington lock support
