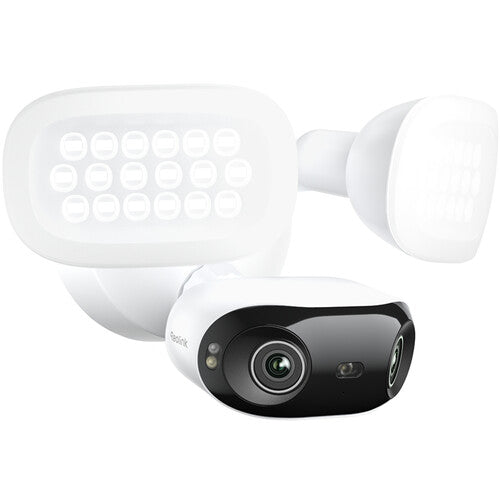

Floodlight Series F751W

Video & Audio

Image Sensor1/2.7" CMOS Sensors Resolution5120 × 1552 (8 Megapixels) @ 20fps Lensf=2.8mm fixed, F=1.6Field of View

• Horizontal: 180°
• Vertical: 59°

Infrared Night VisionUp to 30 meters (100ft); LED: 9pcs/850nm (Auto-switching with IR-cut filter) Color Night VisionWith Floodlights: 19W, 3000 Lumens / 3000K–6000KFrame Rate

• Main stream: 2fps–20fps (Default: 20fps)
• Sub stream: 4fps–20fps (Default: 20fps)

Code Rate

• Main stream: 3072Kbps–8192Kbps (Default: 5120Kbps)
• Sub stream: 256Kbps–2048Kbps (Default: 1024Kbps)

AudioTwo-way audio

Power Requirements

DC PowerAC 100V–240V, 50–60Hz; DC 5V⎓2A (For Setup Only)

Interface

Power PortDC power port Reset ButtonYes microSD Card SlotSupports microSD cards up to 512GB Audio In/OutBuilt-in microphone and speaker

Wi-Fi

Wireless StandardIEEE 802.11 ac/ax/a/b/g/n Operating Frequency2.4GHz / 5GHz Wireless SecurityWPA/WPA2/WPA3

Software

Browsers SupportedEdge, Chrome, Firefox, Safari OS SupportedPC: Windows, Mac OS; Smartphone: iOS, Android Protocols & StandardsHTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P User AccessMaximum 20 users (1 admin & 19 users); maximum 12 simultaneous streams (2 main & 10 sub streams)

Other Features

Smart AlarmMotion detection; person/vehicle/animal detection; line crossing alert; zone intrusion alert; zone loitering alert Record ModeMotion-triggered recording (Default); scheduled recording; 24/7 recording Time LapseYes Smart Home CompatibilityGoogle Assistant

Working Environment

Operating Temperature-10°C to +55°C (14°F to 131°F) Operating Humidity10%–90% WeatherproofIP66

Mechanical

Dimensions174 × 184 × 295 mm Weight1321g
