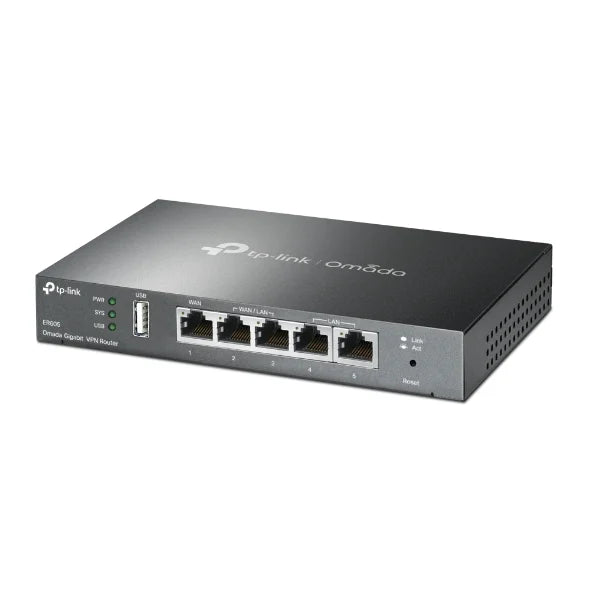

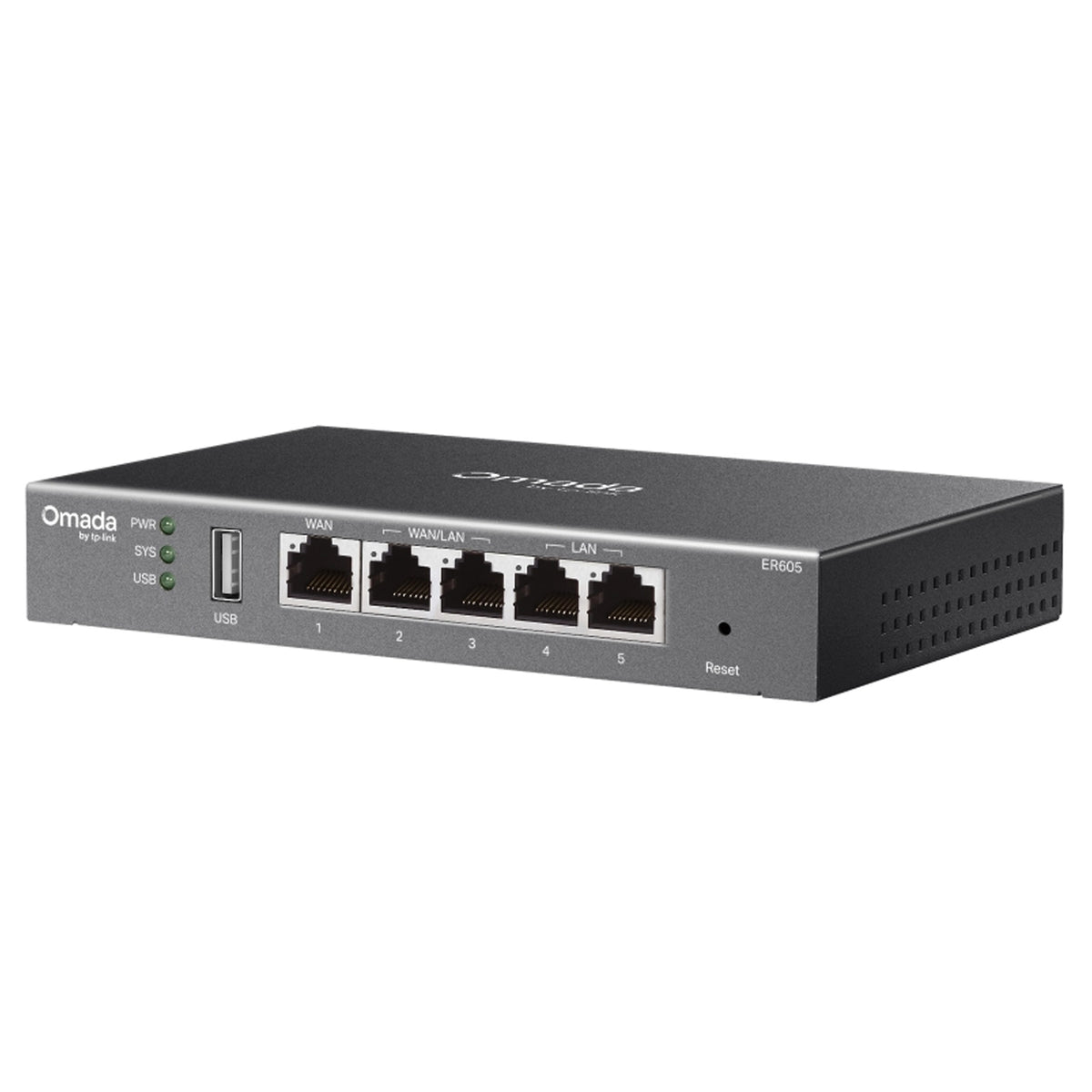

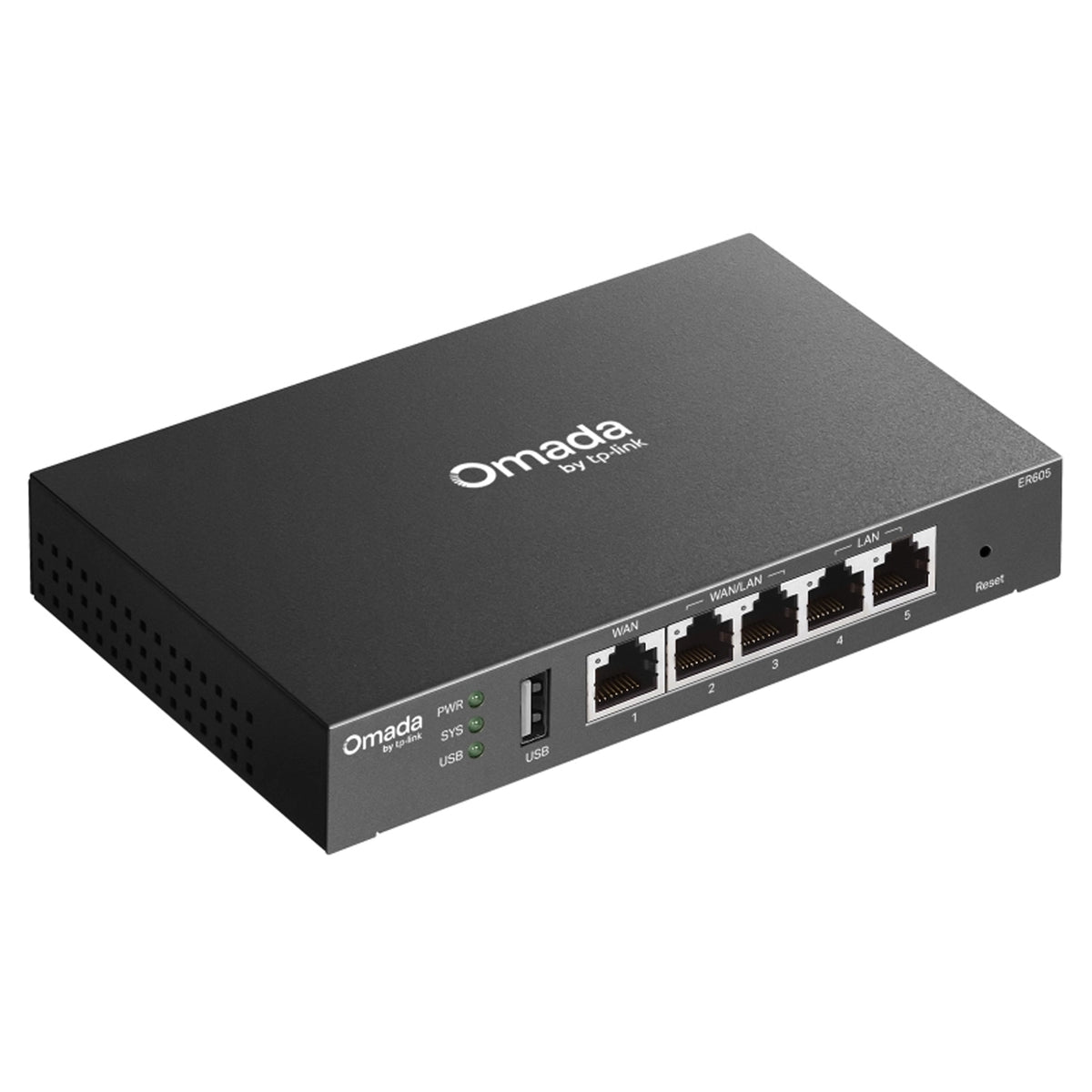

ER605

Security

• Access Control: Source/Destination IP Based Access Control
• Filtering:

  WEB Group Filtering§
  URL Categories and URLs Filtering
  Web Security§


• ARP Inspection:

  Sending GARP Packets§
  ARP Scanning§
  IP-MAC Binding


• Attack Defense:

  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN



Hardware Features

• Standards and Protocols:

  IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q
  TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

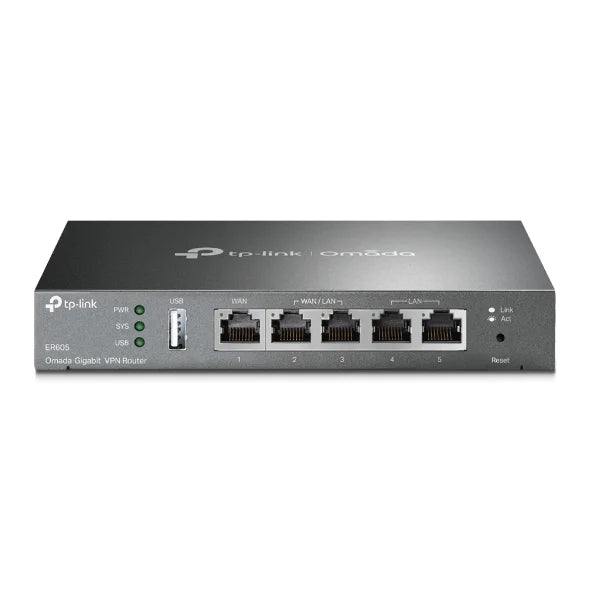

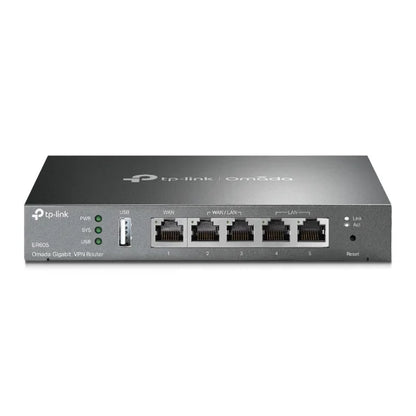

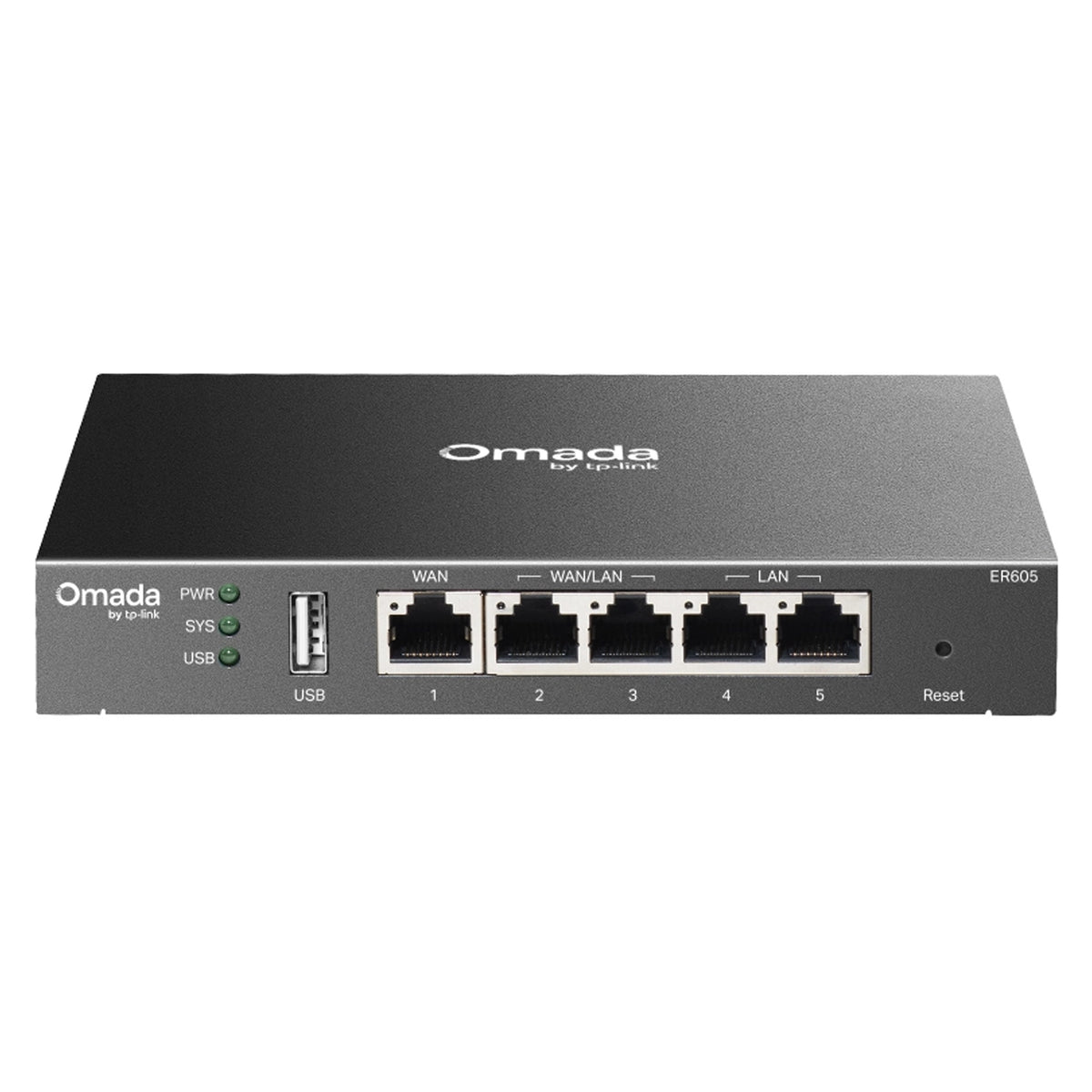

• Interface:

  1 Gigabit WAN port
  2 Gigabit LAN/WAN ports
  2 Gigabit LAN ports
  1 USB2.0 (supports USB LTE dongle‡)


• Network Media:

  10BASE-T: UTP category 3,4,5 cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m)
  100BASE-TX: UTP category 5,5e cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m)
  1000BASE-T: UTP category 5e,6 cable (Max 100 m)


• Fan Quantity: Fanless
• Button: Reset Button

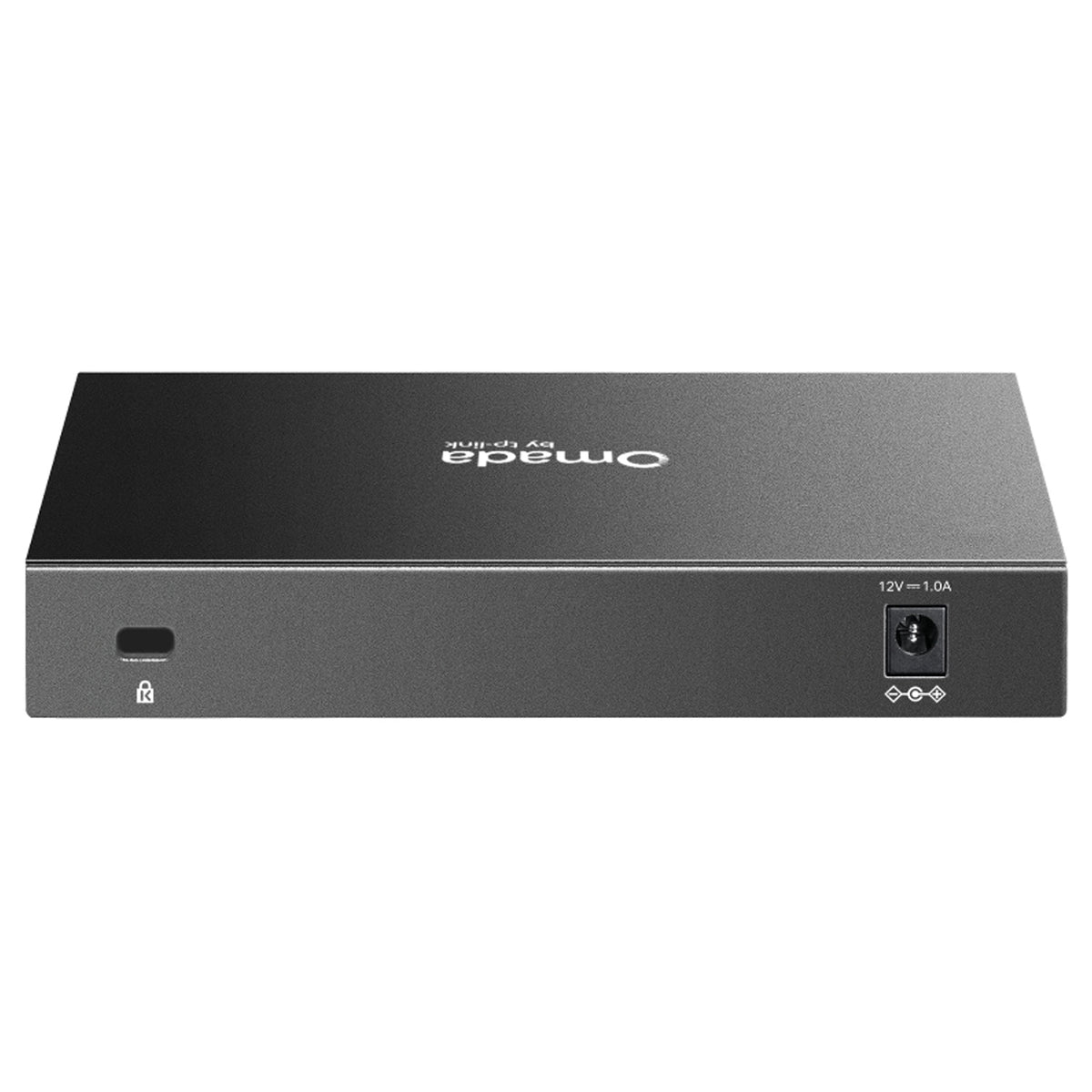

• Power Supply: External 12V/1A DC Adapter
• PoE Budget: -
• Flash: 128 MB NAND
• DRAM: 256 MB DDR

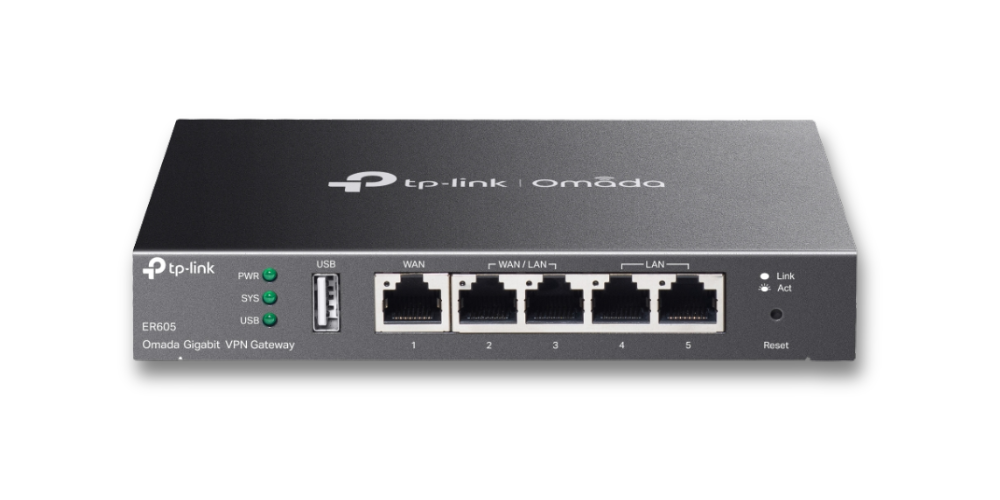

• LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
• Dimensions (W × D × H): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
• Protection: 4 kV surge protection
• Enclosure: Steel

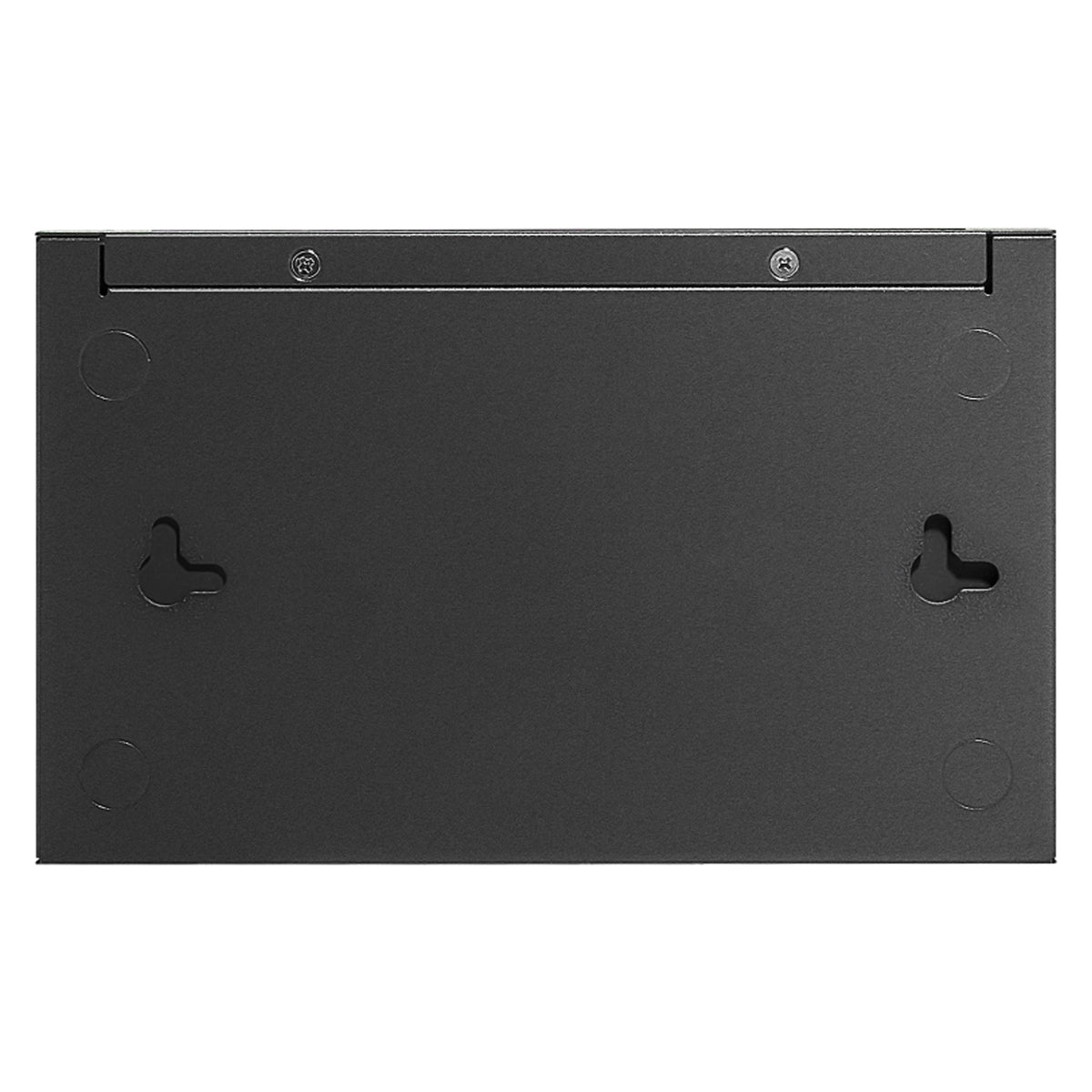

• Mounting: Desktop/Wall-mount
• Max. Power Consumption: 7.94 W

Performance

• Concurrent Session: 150,000
• New Sessions / Second: 1,800
• NAT (Static IP):

  Upload: 941.64 Mbps
  Download: 944.35 Mbps
  Bi-Directional: 1775.32 Mbps


• NAT (DHCP):

  Upload: 941.23 Mbps
  Download: 943.85 Mbps
  Bi-Directional: 1782.27 Mbps


• NAT (PPPoE):

  Upload: 938.83 Mbps
  Download: 940.27 Mbps
  Bi-Directional: 1781.77 Mbps


• NAT (L2TP):

  Upload: 637.66 Mbps
  Download: 502.34 Mbps
  Bi-Directional: 657.92 Mbps


• NAT (PPTP):

  Upload: 655.36 Mbps
  Download: 511.95 Mbps
  Bi-Directional: 665.43 Mbps


• 66 Byte Packet Forwarding Rate: Upload: 1,388,815 pps; Download: 1,388,806 pps
• 1,518 Byte Packet Forwarding Rate: Upload: 81,067 pps; Download: 81,067 pps
• IPsec VPN Throughput:

  ESP-SHA1-AES256: 239.39 Mbps
  ESP-SHA256-AES256: 250.94 Mbps
  ESP-SHA384-AES256: 31.44 Mbps
  ESP-SHA512-AES256: 53.57 Mbps


• GRE: Unencrypted: 460.97 Mbps; Encrypted: 161.83 Mbps
• OpenVPN: 15.90 Mbps
• L2TP VPN Throughput: Unencrypted: 558.60 Mbps; Encrypted: 143.60 Mbps
• PPTP VPN Throughput: Unencrypted: 616.33 Mbps; Encrypted: 49.83 Mbps
• DPI Throughput: TCP: 944 Mbps; UDP: 940 Mbps
• WireGuard VPN Throughput: 82.62 Mbps

Basic Functions

• WAN Connection Type:

  Static
  Dynamic IP
  PPPoE (supports MRU Configuration)
  PPTP
  L2TP


• MAC Clone: Modify WAN/LAN MAC Address†
• DHCP:

  DHCP Server
  DHCPv6 PD Server (Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP


• Stateful ACL: √
• Quality of Service: √
• Bridge VLAN: √
• mDNS Repeater: √
• IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non-Address mode
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features

• Advanced Routing: Static Routing, Policy Routing, RIP§, OSPF§
• Bandwidth Control: IP-based Bandwidth Control
• Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection
• NAT: One-to-One NAT, Multi-Net NAT, Port Forwarding, Port Triggering§, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
• Session Limit: IP-based Session Limit

VPN

• GRE: √ (Standalone Mode)
• SD-WAN: √ (Controller Mode)
• IPsec VPN: 20 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, DES/3DES/AES128/AES192/AES256, SHA2-384/512, IPsec Failover, IKEv1/v2, MD5/SHA1/SHA2, NAT Traversal (NAT-T), DPD, PFS
• PPTP VPN: Server, 10 Clients, 16 Tunnels, MPPE Encryption
• L2TP VPN: Server, 10 Clients, 16 Tunnels, L2TP over IPSec
• OpenVPN: Server, 10 Clients, 16 Tunnels, Certificate + Account Mode, Full Mode
• WireGuard VPN: 20 Tunnels

Authentication

• No Authentication
• Simple Password
• Hotspot (Local User / Voucher† / SMS† / Radius†)
• External Radius Server
• External Portal Server†
• LDAP§

Management Features

• Omada App: Yes (Requires OC300, OC200, Omada Cloud-Based Controller, or Software Controller)
• Centralized Management: Cloud Controller, OC300, OC200, Software Controller
• Cloud Access: Yes (Requires Controller)
• Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance:

  Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)§
  NTP Synchronize§
  Port Mirroring
  CLI (Standalone Mode)
  Syslog Support


• Zero-Touch Provisioning: Yes (Requires Cloud Controller)
• Other Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration

Others

• Certification: CE, FCC, RoHS
• Package Content: ER605, Power Adapter, RJ-45 Ethernet Cable, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™, 7/8/8.1/10, MAC OS, NetWare, UNIX, Linux
• Environment:

  Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  Operating Humidity: 10% to 90% non-condensing
  Storage Humidity: 5% to 90% non-condensing
