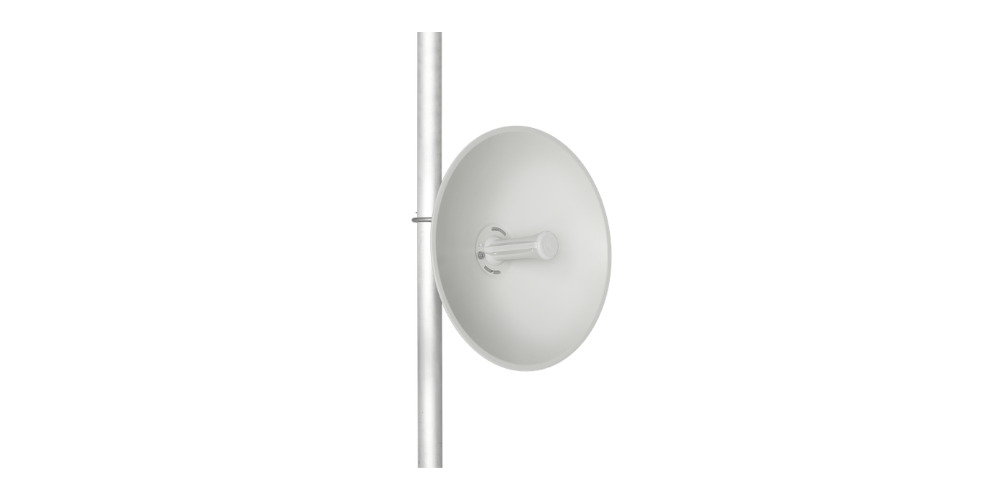

Cambium Networks’ ePMP™ Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
The High-gain ePMP Force 300-25 802.11AC Wave 2 solution provides 500+ Mbps peak throughput and always-on spectrum analysis.
Click here to download the Datasheet.
Payment methods
Payment methods-
Vendor:
cambium Networks
- Tags: 5 ghz wireless links, Cambium epmp force 300-25, Cambium networks, Enterprise & isp backhaul solutions, Epmp force 300-25, High-performance outdoor radios, Point-to-point (ptp) radios, Radio, Wireless broadband equipment
Specifications
Spectrum
- Channel Spacing: Configurable in 5 MHz increments
- Frequency Range: Wide Band Operation 5.150–5.970 MHz (subject to country regulations)
- Channel Width: 20 | 40 | 80 MHz
Interface
- Physical Layer: 2x2 MIMO/OFDM (Proprietary)
- Ethernet Interface: 10/100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts
- Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Performance
- Nominal Receive Sensitivity @20 MHz: MCS0 = -87 dBm to MCS8 (256 QAM-3/4) = -63 dBm (per chain)
- Nominal Receive Sensitivity @40 MHz: MCS0 = -85 dBm to MCS9 (256 QAM-5/6) = -59 dBm (per chain)
- Nominal Receive Sensitivity @80 MHz: MCS0 = -82 dBm to MCS9 (256 QAM-5/6) = -56 dBm (per chain)
Physical
- Environmental Rating: IP55
- Operating Temperature: -30°C to +60°C (-22°F to +140°F)
- Weight: 2.4 kg (5.3 lbs)
- Dimensions (Dia x Depth): 47 cm x 31 cm (18.5 in x 12.2 in)
Security
- Encryption: 128-bit AES (CCMP mode)
