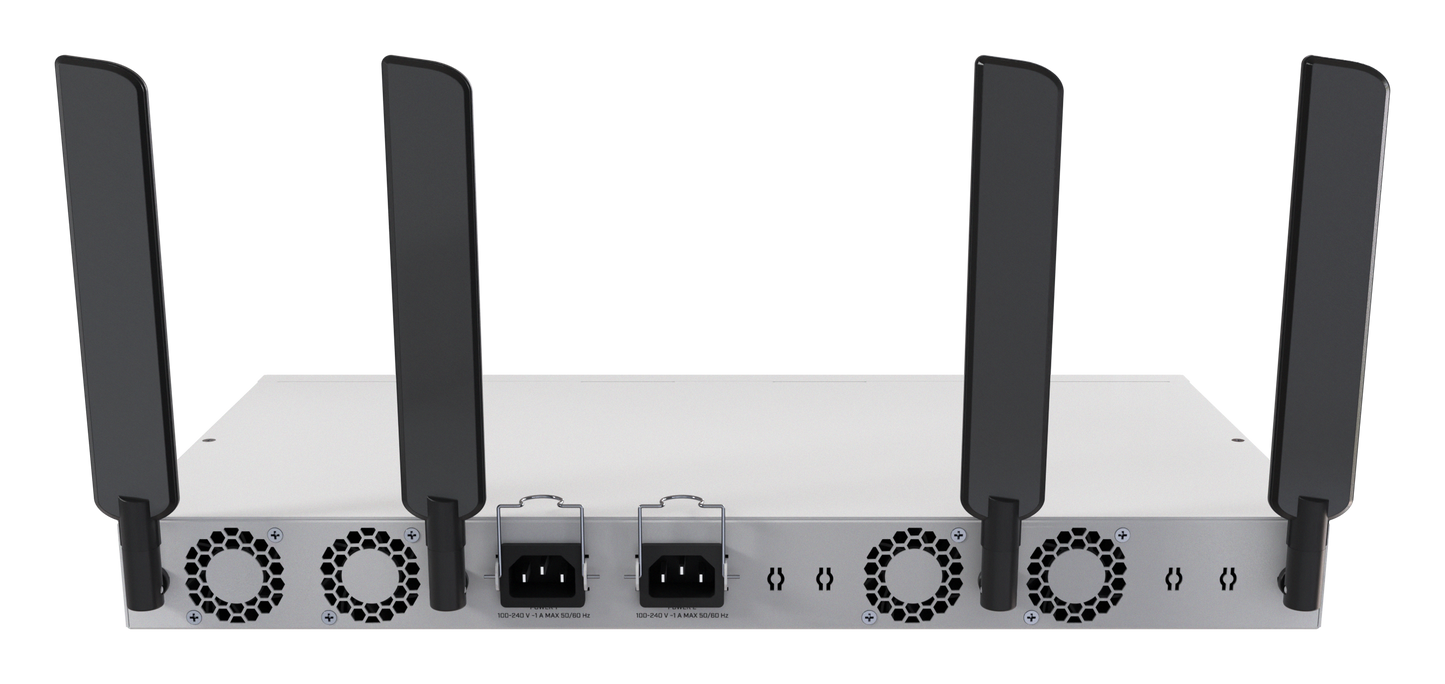

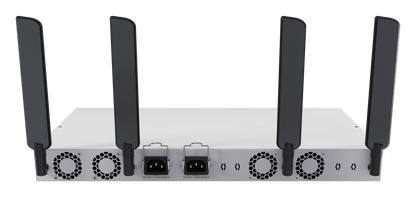

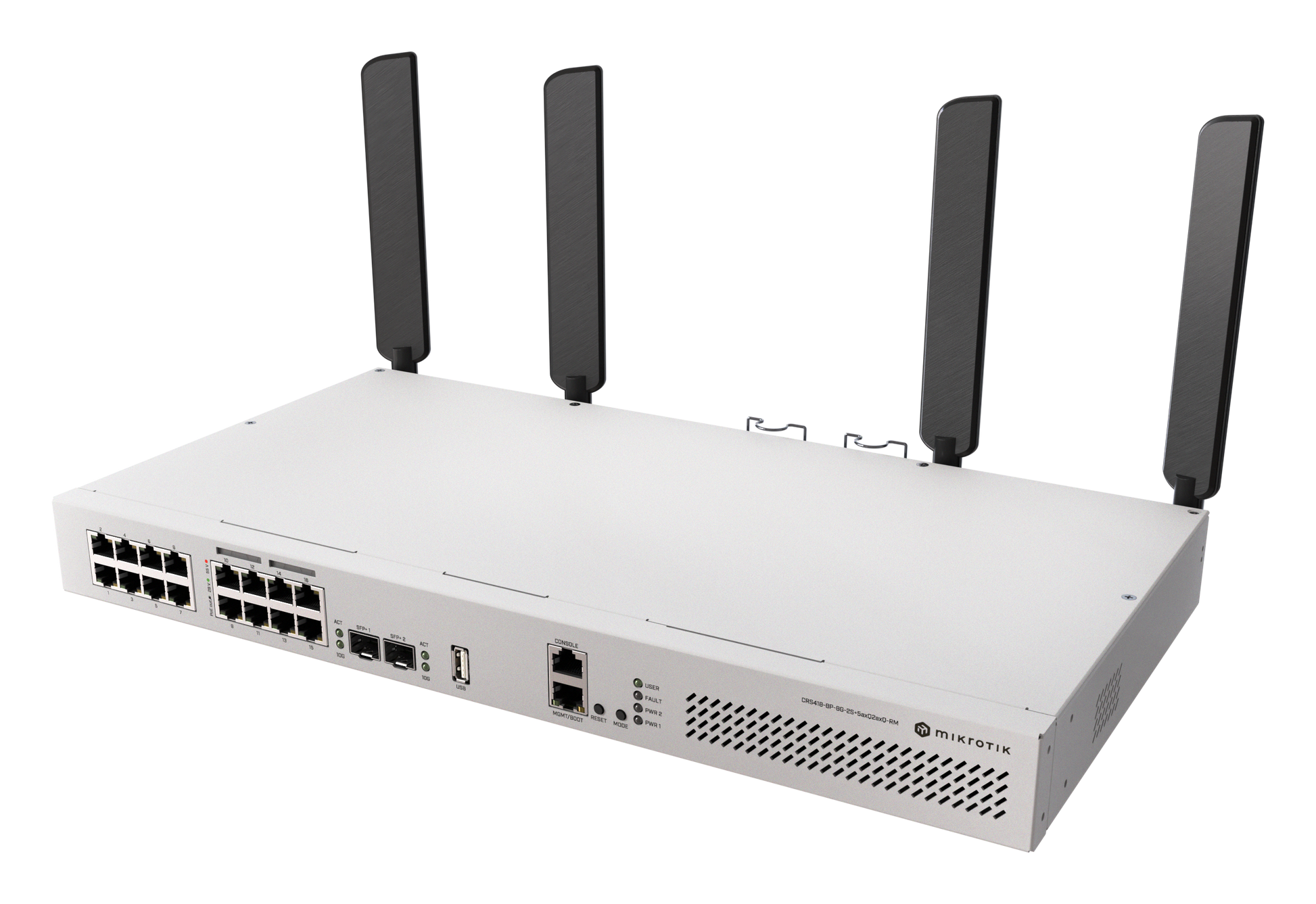

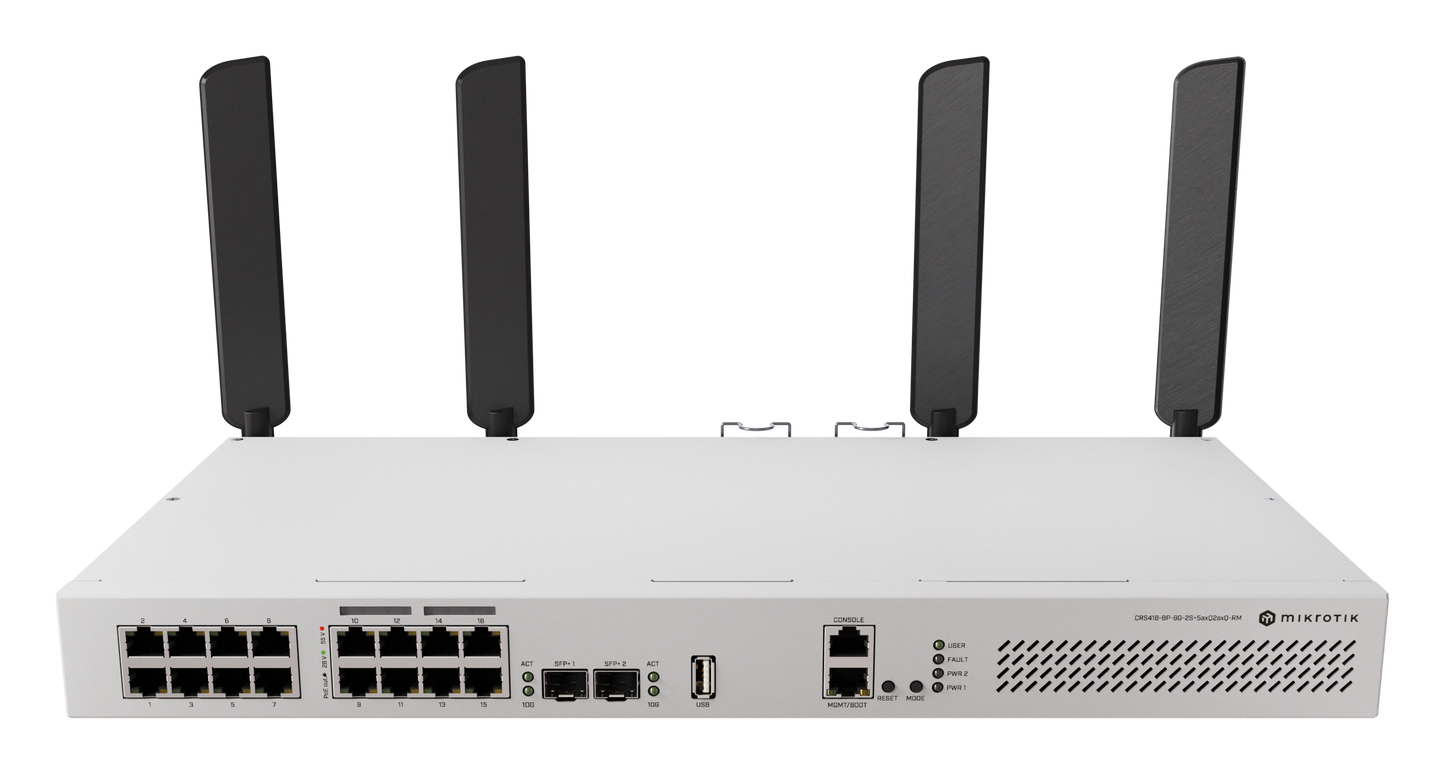

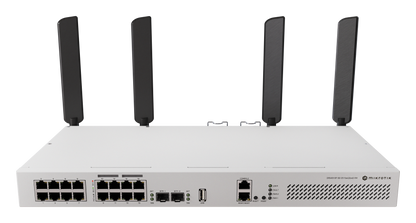

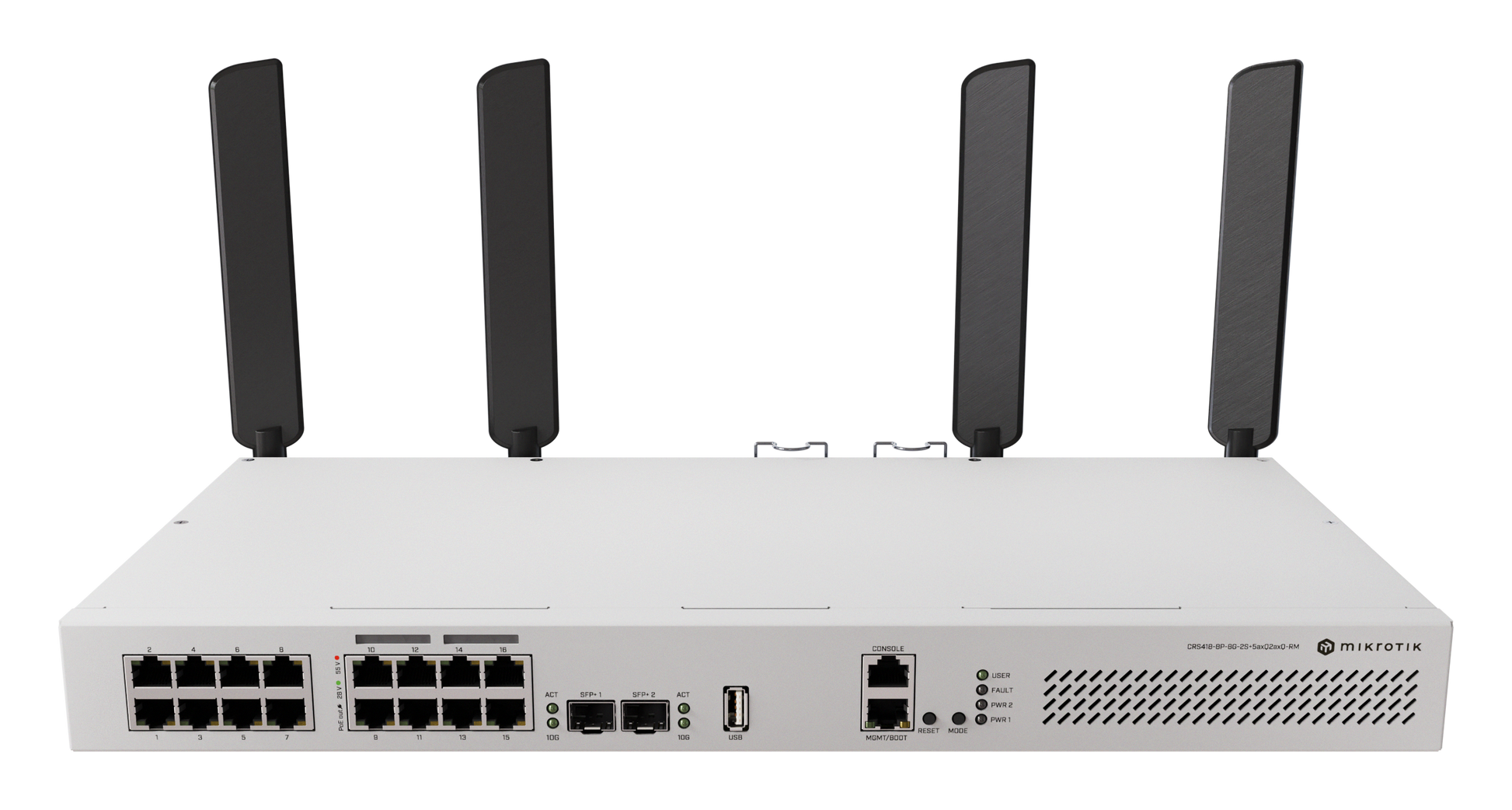

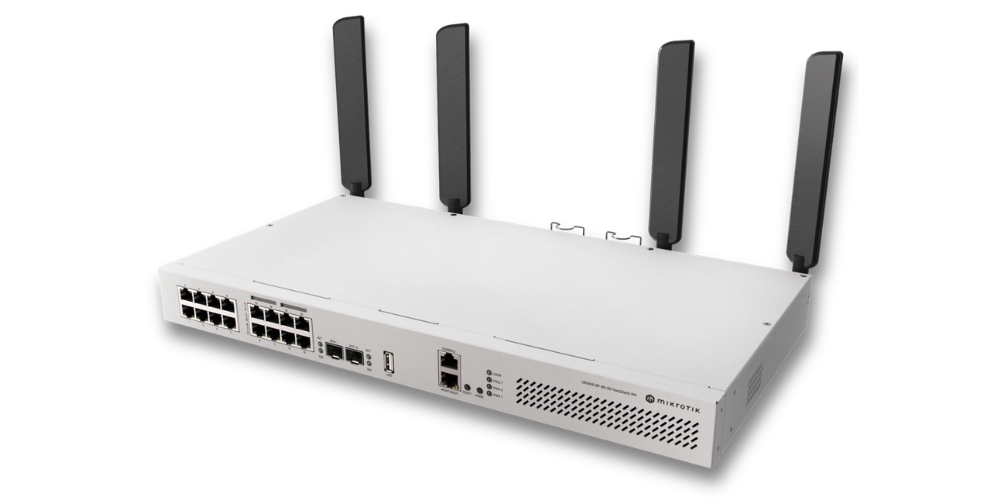

CRS418-8P-8G-2S+5axQ2axQ-RM

$693.78 CAD
$693.78 CAD
Sale Sold out
Only 2 units left

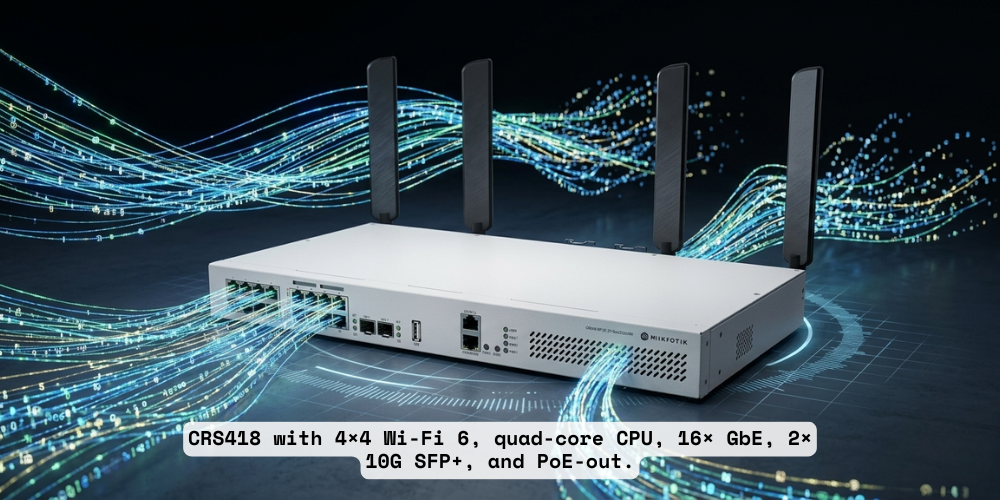

The Wi-Fi version of CRS418... with our strongest 4x4 MIMO Wi-Fi 6! L3 HW offloading, quad-core 2.2 GHz ARM CPU, 16x Gigabit Ethernet ports + a Gigabit management port with a direct CPU line, 2x 10G SFP+ ports, PoE-out.

The Wi-Fi-enabled version of the CRS418 features powerful 4x4 MIMO Wi-Fi 6 technology, combined with advanced Layer 3 hardware offloading, making it ideal for high-performance networking environments.

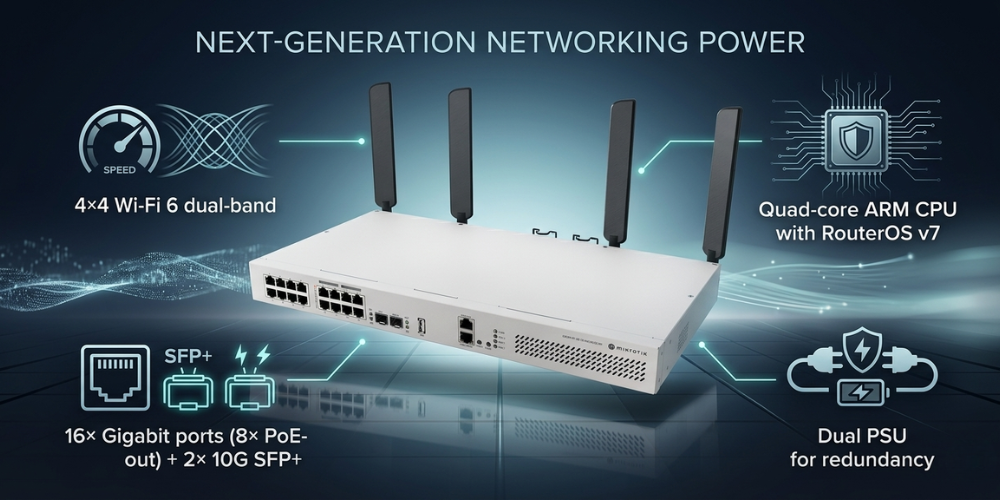

Key Features

  • 4x4 MIMO Wi-Fi 6 for high-speed wireless performance
  • Layer 3 Hardware Offloading for enhanced routing efficiency
  • Powerful Quad-core 2.2 GHz ARM CPU
  • Dual-redundant power supplies for reliability
  • 1 GB RAM for smooth operation
  • USB 3.0 port for additional connectivity
  • Dual-band Wi-Fi 6 support
  • 16x Gigabit Ethernet ports for extensive wired connectivity
  • PoE-out support for powering devices
  • 2x 10G SFP+ ports for high-speed uplinks
Download Datasheet




Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

General

  • Product Code: CRS418-8P-8G-2S+5axQ2axQ-RM
  • Architecture: ARM 64-bit
  • CPU: IPQ-8072A (Quad-core, 2208 MHz)
  • CPU Threads: 4
  • Switch Chip: 98DX226S
  • Operating System: RouterOS v7 (License Level 5)
  • RAM: 1 GB
  • Storage: 128 MB NAND
  • MTBF: ~200,000 hours at 25°C
  • Operating Temperature: -20°C to 70°C

Power

  • AC Inputs: 2 (100–240V, 50–60 Hz)
  • PSU Slots: 2
  • Max Power Consumption: 227 W
  • Power Consumption (Without Attachments): 43 W
  • Cooling: 4 Fans

PoE-Out

  • PoE-Out Ports: Ether9–Ether16
  • Standard: 802.3af/at
  • Low Voltage Current Limit: 1.1 A
  • High Voltage Current Limit: 0.56 A
  • Total Output Power: 150 W

Wireless

  • 2.4 GHz: 1148 Mbps, 4 Chains, Wi-Fi 6 (802.11b/g/n/ax), 5 dBi Antenna
  • 2.4 GHz Chip: QCN-5024
  • 5 GHz: 2400 Mbps, 4 Chains, Wi-Fi 6 (802.11a/n/ac/ax), 6 dBi Antenna
  • 5 GHz Chip: QCN-5054

Ethernet

  • Total Ethernet Ports: 17 (10/100/1000)
  • PoE-Out Ethernet Ports: 8

Fiber

  • SFP+ Ports: 2 (10G)

Peripherals

  • Serial Console Port: RJ45
  • USB Ports: 1 × USB 3.0 Type-A
  • Max USB Current: 1 A
  • USB Power Reset: Yes

Monitoring & Controls

  • CPU Temperature Monitor
  • PCB Temperature Monitor
  • Voltage Monitor
  • Current Monitor
  • Mode Button

Certification & Protection

  • Certifications: CE, FCC, IC, EAC, RoHS
  • IP Rating: IP20
