Product description

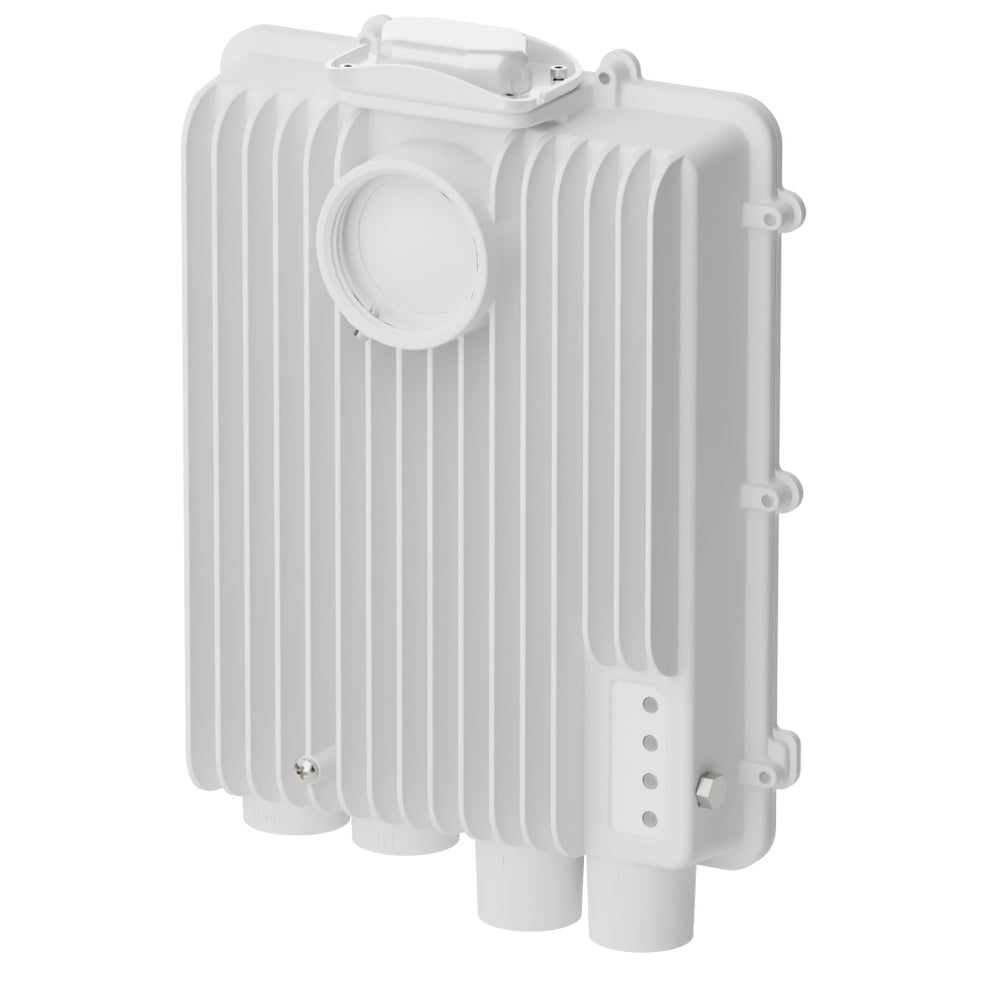

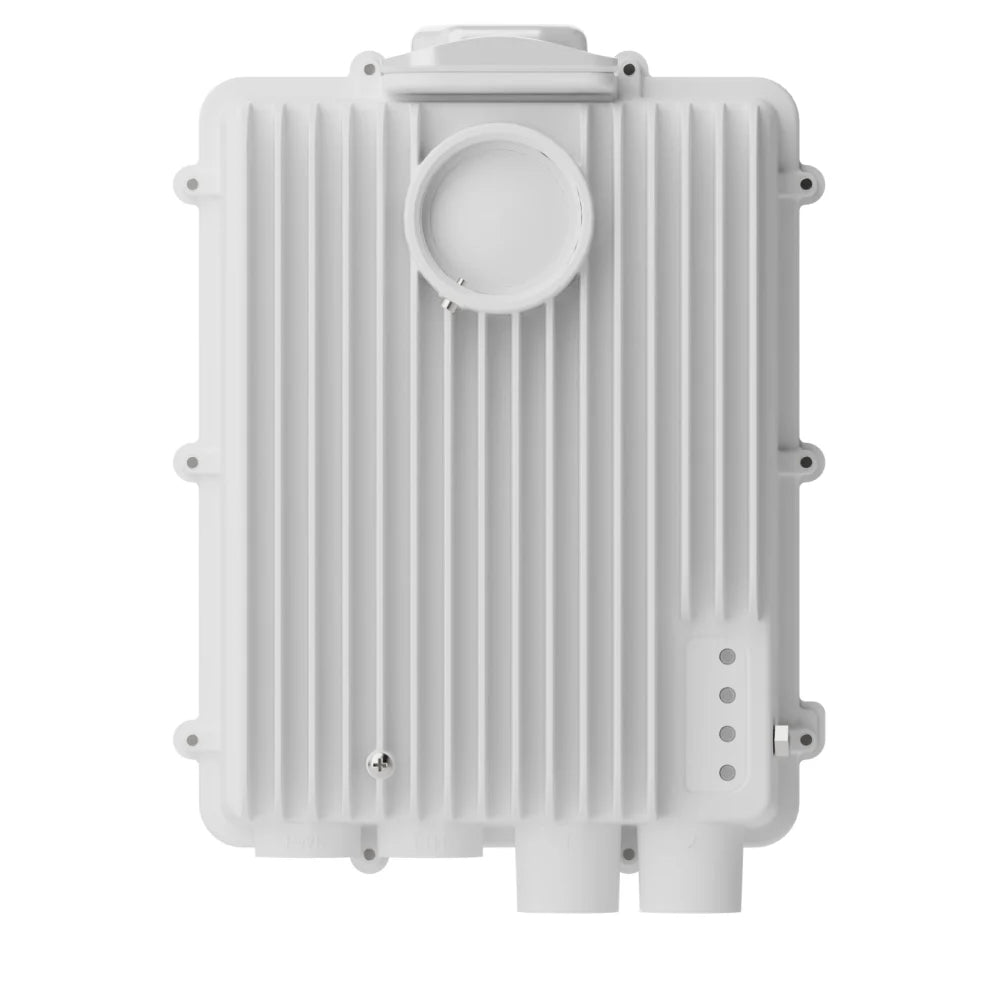

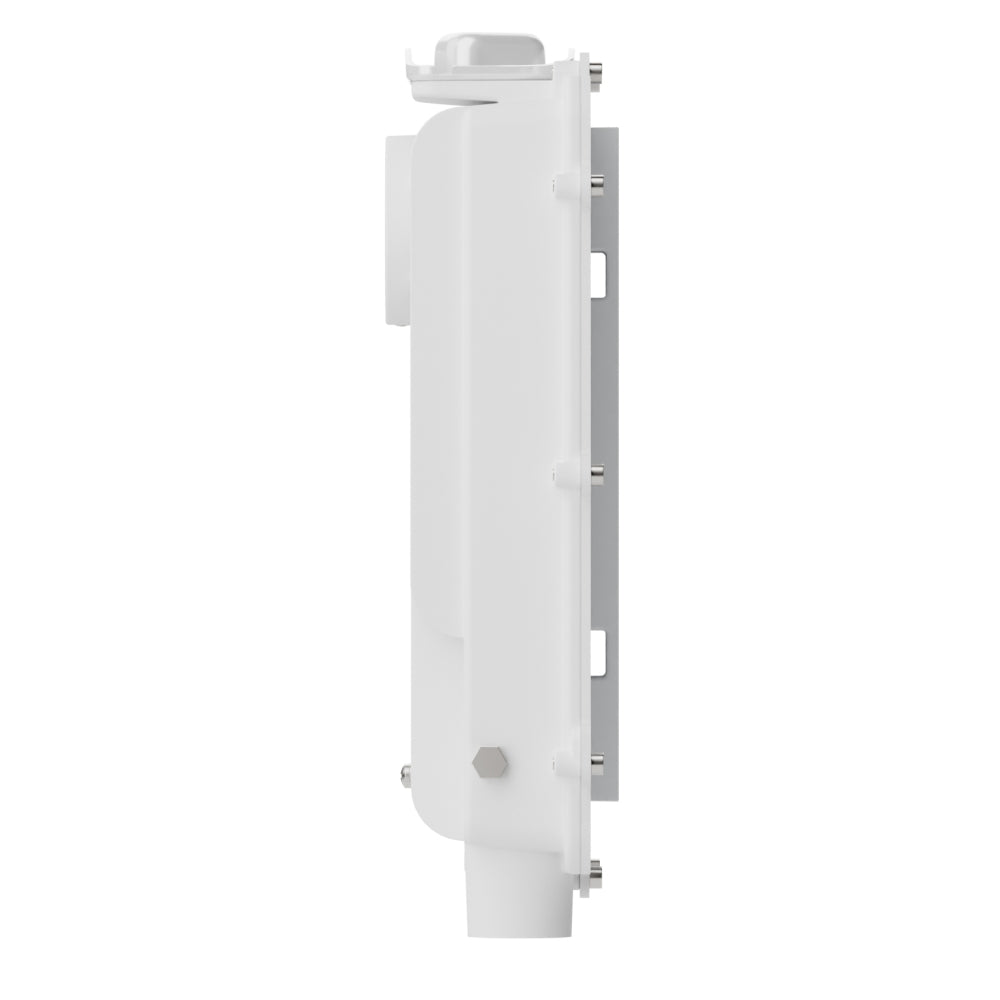

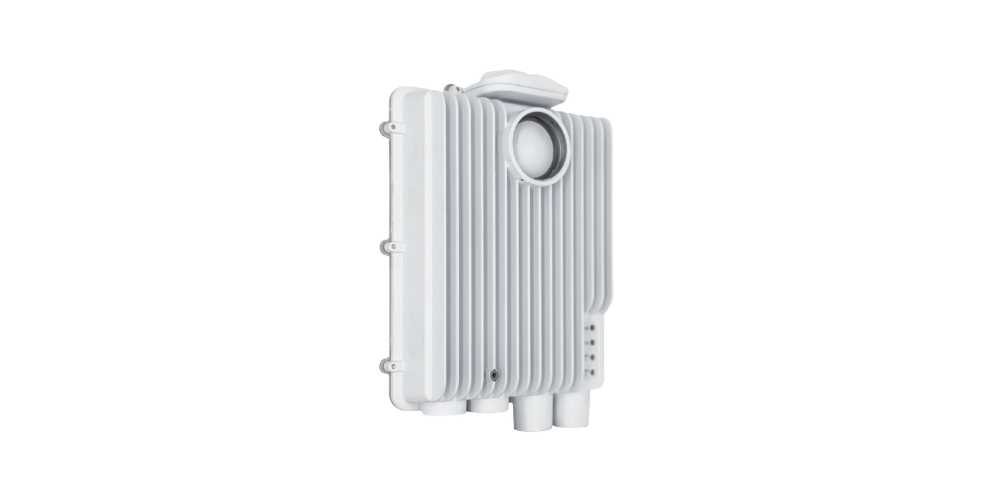

Mimosa B6x is an outdoor PtP unit. It operates in the 5.15 to 6.4 GHz band. The unit can be connected to N5-X twist on compatible antennas (antenna not included). It has the new Wi-Fi 6E technology with OFDMA. With access to the 6 GHz band, the B6x achieves extremely low latency (1ms) with speeds up to 3.14 Gbps. The transmit power in the 6 GHz band is 24 dBm. The advantage is also higher reliability due to new anti-noise features. High resistance is guaranteed by IP67 certification.
Key features:
- Outdoor PtP unit
- Bandwidth: 5.15 to 6.14 GHz
- Possibility to connect an N5-X twist one compatible antenna
- Low latency of 1 ms
- Certificiaton IP67
SPECIFICATIONS
Wireless features
Sensitivity [dBm]:-93
F/B ratio [dB]:21
Maximum modulation:1024 QAM
Wireless frequency:5 GHz, 6 GHz
WiFi standards:Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]:2402
Transmission speed - 6GHz [Mb/s]:2402
Tx power 5GHz [dBm]:24
Tx power 6GHz [dBm]:24
Elevation beam width (-6dB) [°]:60
Azimuth beam width (-6dB) [°]:60
5GHz MIMO:2 x 2
6GHz MIMO:2 x 2
Type of antenna:Built-in
Internal antennas:1
Antenna gain [dBi]:8
Connectors and Interfaces
RF connectors:Twist-on port (Mimosa)
LAN speed:(1) 10/100/1000Mbps
Gigabit LAN:Yes
Power
Power over Ethernet:24V DC
PoE type:PoE-In (only)
Max. power consumption [W]:20
Physical characteristics
Protection class:IP67
Purpose:Outdoor
Buttons:Reset
Operating temperature [°C]:-40 up to 55
Weight [g]:700
Width [mm]:113
Height [mm]:178
Depth [mm]:67
Software
Operating mode: Client
IPv6 support: Yes
Default IP address: 192.168.1.20
Default login and password: Is set by the user at the first startup
Click here to download the Datasheet.
