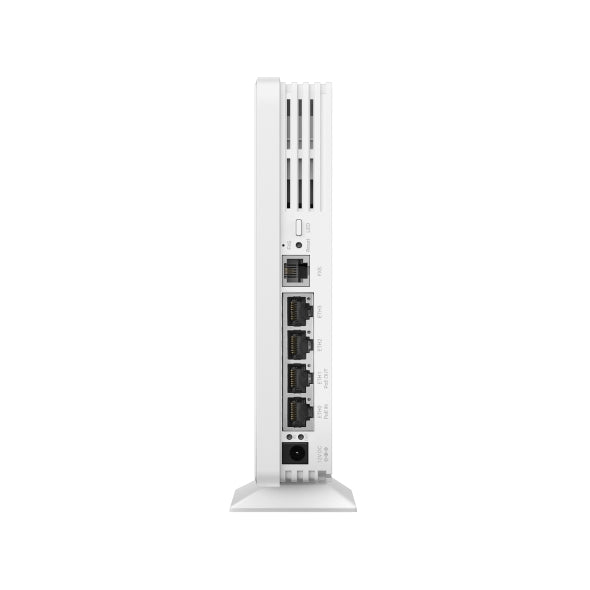

TP-Link EAP650-Desktop

$194.99 CAD

$194.99 CAD $199.99 CAD

Sale Sold out

Product variants

In stock (21 units), ready to be shipped

Quantity

Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds. ^†
Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
No Installation needed:Supports desktop installation without the need for additional setup.
High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.^§
Centralized Cloud Management: Integrates with the Omada SDN platform for Centralized Management.

Download Datasheet

Payment methods

View Product Details

HARDWARE FEATURES
Interface: 4× 1 Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
Button: Reset, LED
Power Supply: 802.3 af/at/bt PoE or 12 V/1.5 A DC (*PoE Out requires 802.3at/bt PoE power supply)
Max. Power Consumption: DC power (PoE Out off) EU: 15.8 W, US: 16.8 W; 802.3at/bt (PoE Out off) EU: 18.7 W, US: 19.9 W; 802.3af (PoE Out off) EU: 10 W, US: 12 W
Weight: 0.5 kg (excluding mounting base)
Dimensions (W x D x H): 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna: Internal Omni (2.4 GHz: 2× 5 dBi, 5 GHz: 3× 4.7 dBi)
Range: 1500 ft² (140 ㎡)*
Mounting: Desktop / Wall Mounting (Kits included)
WIRELESS FEATURES
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz: 2402 Mbps†, 2.4 GHz: 574 Mbps
Wireless Functions: 2×2 (2.4G & 5G) MU-MIMO‡, HE160 (160 MHz Bandwidth)‡, OFDMA‡, Omada Mesh, Seamless Roaming§, Multiple SSIDs (16 SSIDs, 8 on each band), Enable/Disable SSID Broadcast, Enable/Disable Wireless Radio, Guest Network, Automatic Channel Assignment, Beamforming, Rate Limit (Based on SSID/Client), Band Steering, Load Balance, Airtime Fairness, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), RADIUS Accounting, MAC Authentication, Reboot Schedule, Wireless Schedule and Statistics, Static IP/Dynamic IP
Wireless Security: Captive Portal Authentication§, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power: CE: <20 dBm (2.4 GHz, EIRP), <23 dBm (5 GHz, band 1 & 2, EIRP), <29 dBm (5 GHz, band 3, EIRP); FCC: <26 dBm (2.4 GHz), <27 dBm (5 GHz)
MANAGEMENT FEATURES
Omada App: Yes
Centralized Management: Omada Hardware Controller, Omada Software Controller, Omada Cloud-Based Controller
Cloud Access: Yes (Require the use of an Omada controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: System Log
SSH: Yes
Web-based Management: Yes
Zero-Touch Provisioning: Yes (Require the use of Omada Cloud-Based Controller)
OTHERS
Certification: CE, FCC, RoHS, IC
Package Content: EAP650-Desktop, Desktop/Wall Mounting Kit, Installation Guide, Power Adapter
Environment: Operating Temperature 0–40 ℃ (32–104 ℉), Storage Temperature -40–70 ℃ (-40–158 ℉), Operating Humidity 10–90% RH non-condensing, Storage Humidity 5–90% RH non-condensing
