TP-Link EAP613

$99.99 CAD
$99.99 CAD
Sale Sold out
Only 4 units left

AX1800 Ceiling Mount WiFi 6 Access Point

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
  • Ultra-Slim Design: 160 mm × 33.6 mm elegant design brings more agility.
  • Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.



Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

HARDWARE FEATURES

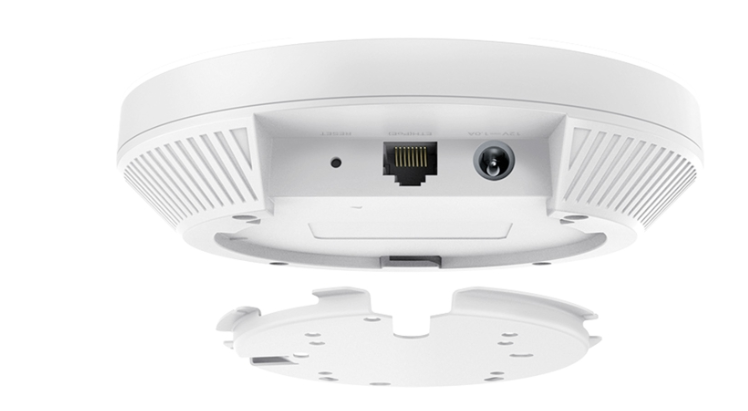

  • Interface: 1 × Gigabit Ethernet (RJ-45) Port
  • Button: Reset
  • Power Supply:

    802.3at PoE
    48 V Passive PoE
    12 V / 1 A DC (Power Adapter NOT included)

  • Max. Power Consumption:

    11.0 W (PoE)
    9.9 W (DC)

  • Dimensions (W × D × H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
  • Antenna: Internal Omni Antenna

    2.4 GHz: 2 × 4 dBi
    5 GHz: 2 × 5 dBi

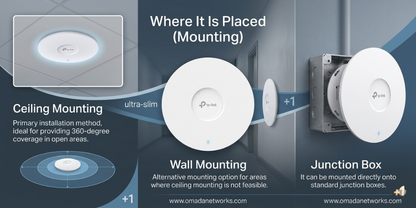

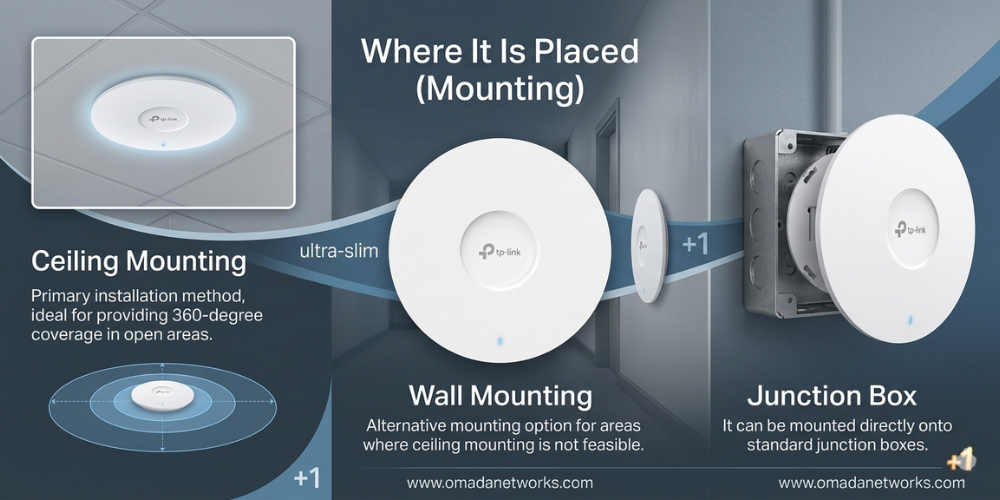

  • Mounting:

    Ceiling / Wall Mounting (Kits included)
    Junction Box Mounting

WIRELESS FEATURES

  • Coverage: 115㎡ (1250 ft²)
  • Concurrent Clients: 250+
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate:

    5 GHz: Up to 1201 Mbps
    2.4 GHz: Up to 574 Mbps

  • Wireless Functions:

    1024-QAM & 4× Longer OFDM Symbol
    OFDMA
    Multiple SSIDs (Up to 16, 8 per band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust in dBm)
    QoS (WMM)
    MU-MIMO
    Seamless Roaming
    Omada Mesh
    Band Steering & Load Balance
    Airtime Fairness & Beamforming
    Rate Limit
    Reboot & Wireless Schedule
    Wireless Statistics (per SSID / AP / Client)

  • Wireless Security:

    Captive Portal Authentication
    Access Control
    MAC Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

  • Transmission Power:

    CE: <20 dBm (2.4 GHz, EIRP), <23 dBm (5 GHz band1/2, EIRP), <25 dBm (5 GHz band3)
    FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)

MANAGEMENT FEATURES

  • Omada App: Yes
  • Centralized Management:

    Omada Cloud-Based Controller
    Omada Hardware Controller OC300 / OC200
    Omada Software Controller

  • Cloud Access:

    Via OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller

  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging: Local/Remote Syslog
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Contents:

    EAP613
    Ceiling / Wall Mounting Kits
    Installation Guide

  • System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux
  • Environment:

    Operating Temperature: 0–40 ℃ (32–104 ℉)
    Storage Temperature: -40–70 ℃ (-40–158 ℉)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
