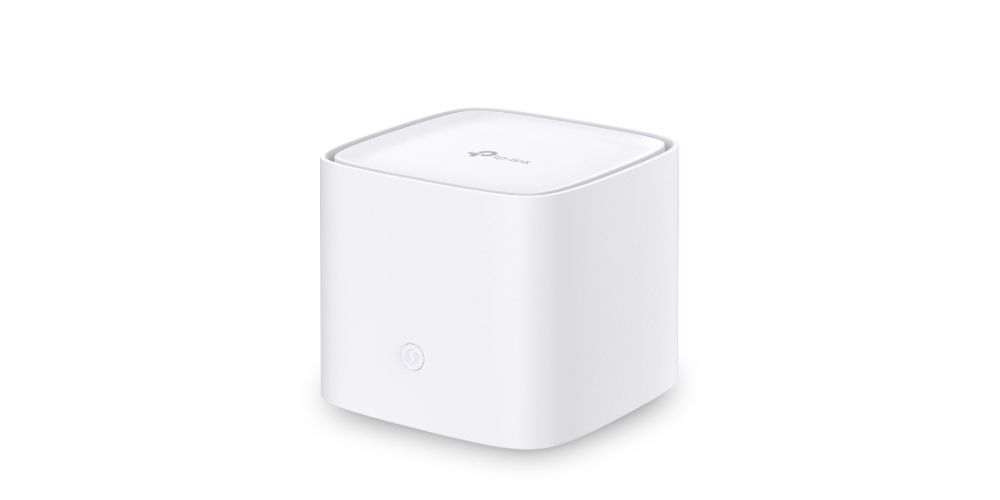

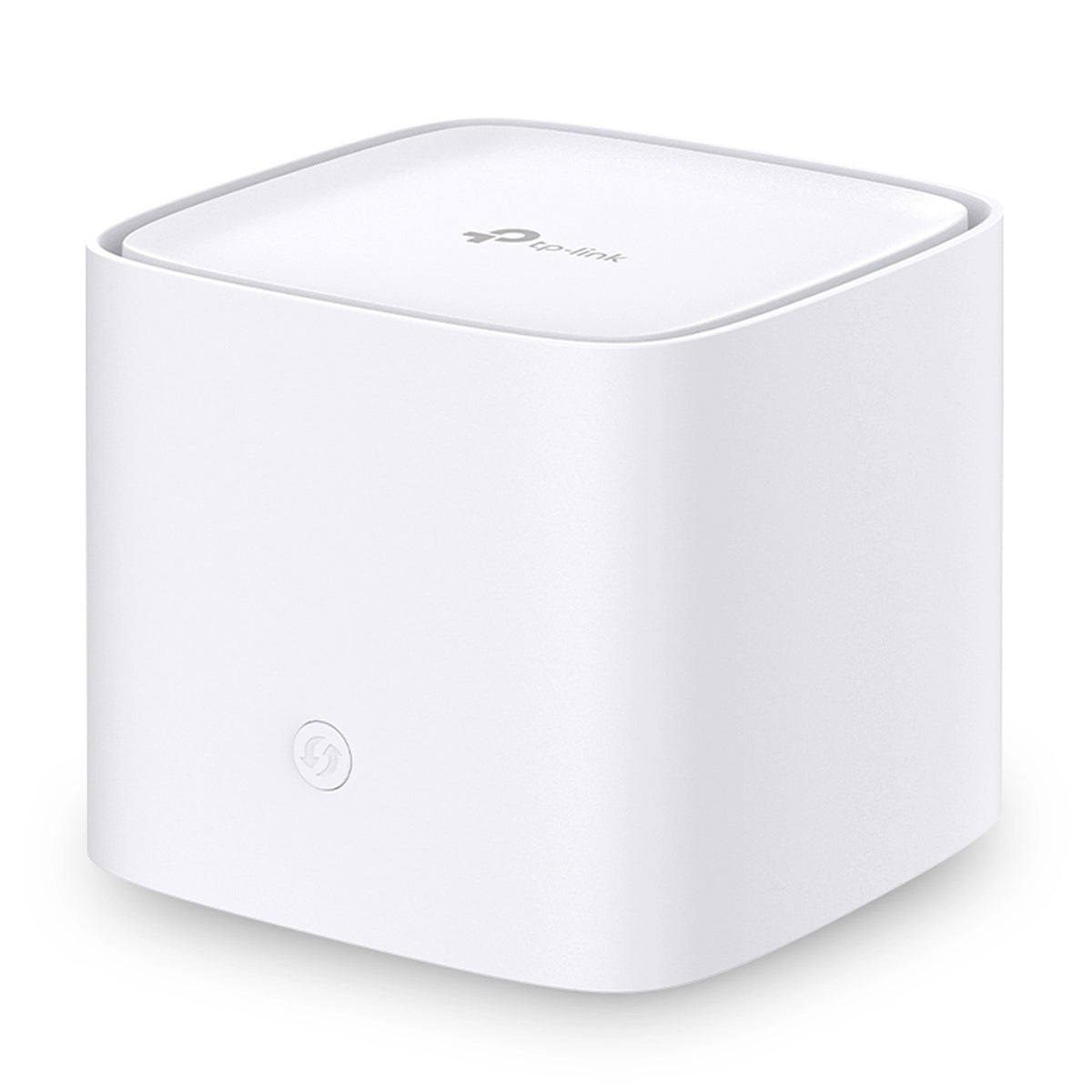

HX220 (1-pack)

Regular price $68.99 CAD
Sale price $68.99 CAD Regular price
Sale Sold out
In stock (53 units), ready to be shipped

AX1800 Whole Home Mesh WiFi 6 AP

Features & Compatibility

  • Dual-Band Wi-Fi 6: Delivers speeds up to 1800 Mbps—1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz..*
  • 802.11ax Technology: Create a seamless Wi-Fi network in your home with the revolutionary combination of OFDMA, HE80, and Beamforming technologies.**
  • Gigabit Wired Speed: Support lightning fast Wi-Fi 6 speeds with (1) x Gigabit WAN/LAN port uplink and connect multiple devices with (2) × Gigabit LAN ports for ultimate connectivity.
  • Boosted Seamless Coverage: Client Steering & Band Steering intelligently connect devices to the mesh AP with the strongest signal – ensuring connectivity regardless of physical location. A unified wireless network (SSID) is used throughout the whole home – providing a truly seamless wireless experience.****
  • EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility.***
  • Enhanced Security: WPA3 encryption, Multi-SSID, VPN, and Parent Control provide personalized and safer online experience.
  • Easy Cloud Management:  Compatible with TAUC (TP-Link Aginet Unified Cloud) to allow service providers to manage multiple devices remotely.



Specifications

HARDWARE FEATURES

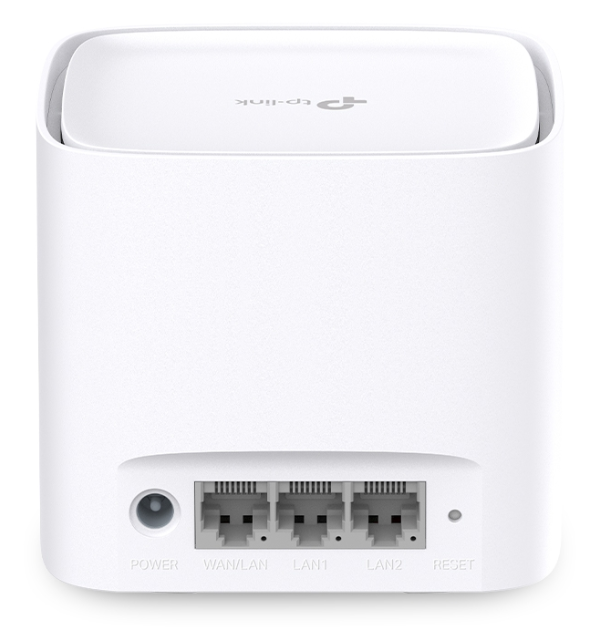

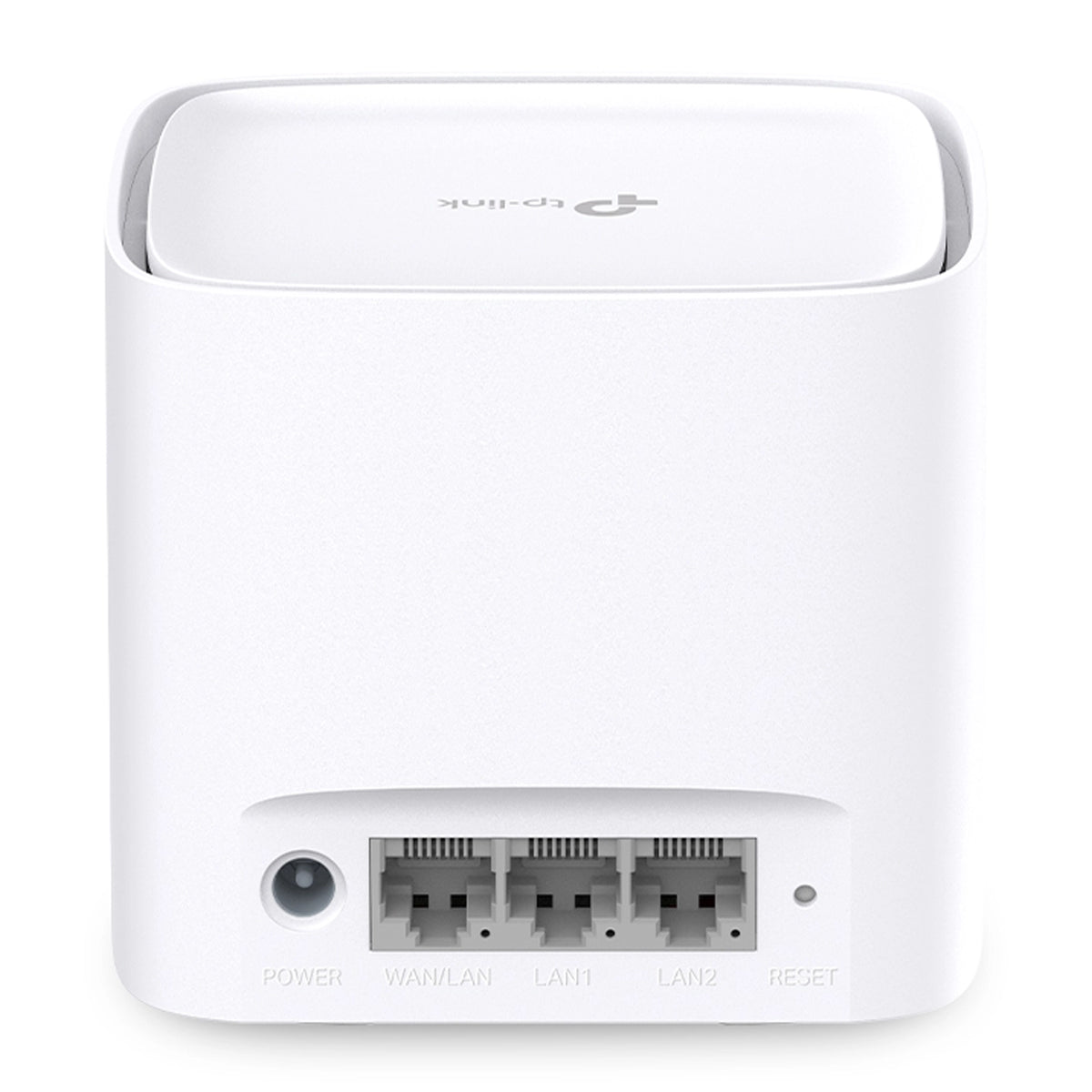

Interface 3 × Gigabit Ports



*Per Unit
1 Port supports WAN/LAN auto-sensing

Button Reset Button
WPS Button
External Power Supply 12 VDC/1.0 A
Dimensions ( W x D x H ) 3.9 x 3.9 x 3.5 in
(100 x 100 x 89.5 mm)
WIRELESS FEATURES
Wireless Standards Wi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate AX1800
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Transmit Power FCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz)
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Wireless Security WPA/WPA2/WPA3 Personal, WPA/WPA2 Enterprise
Multi-SSID 4 × 5 GHz Multi-SSID
4 × 2.4 GHz Multi-SSID
SOFTWARE FEATURES
Quality of Service WMM
Advanced Features Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule
WAN Type Dynamic IP/Static IP/PPPoE
Management Local Management, TAUC Cloud Management
Firewall Security SPI Firewall
Protocols Supports IPv4 and IPv6
Encryption WPA/WPA2/WPA3 Personal, WPA/WPA2 Enterprise
Working Modes Router Mode
Access Point Mode
OTHERS
Package Contents 1 x HX220 Unit
1 x RJ45 Ethernet Cable
1 x Power Adapter
1 x Quick Installation Guide
Smartphone/Tablet Requirements Android 4.4 or later
iOS 9.0 or later
Certifications CE, FCC
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

Additional information

Weight .450 kg
Dimensions 16.5 × 12.7 × 12.7 cm
Brand

TP-Link



Click here to download the Datasheet.
