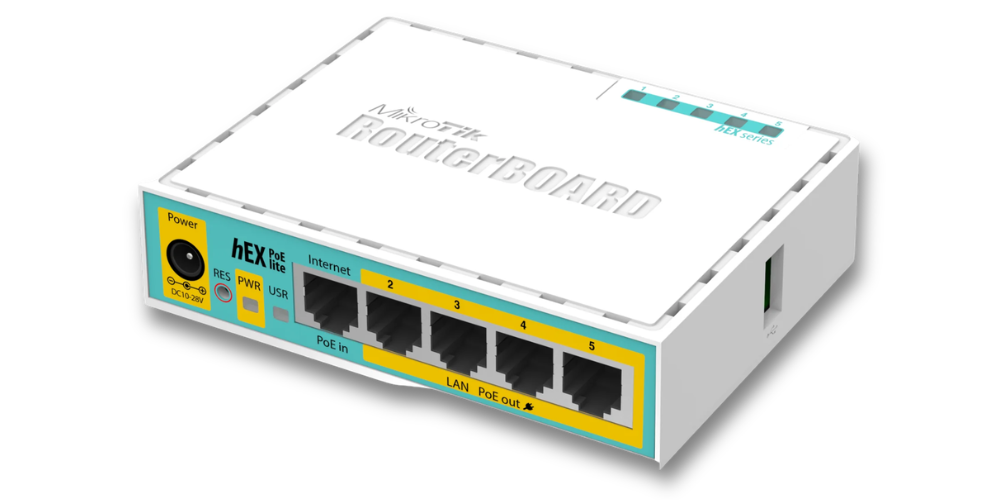

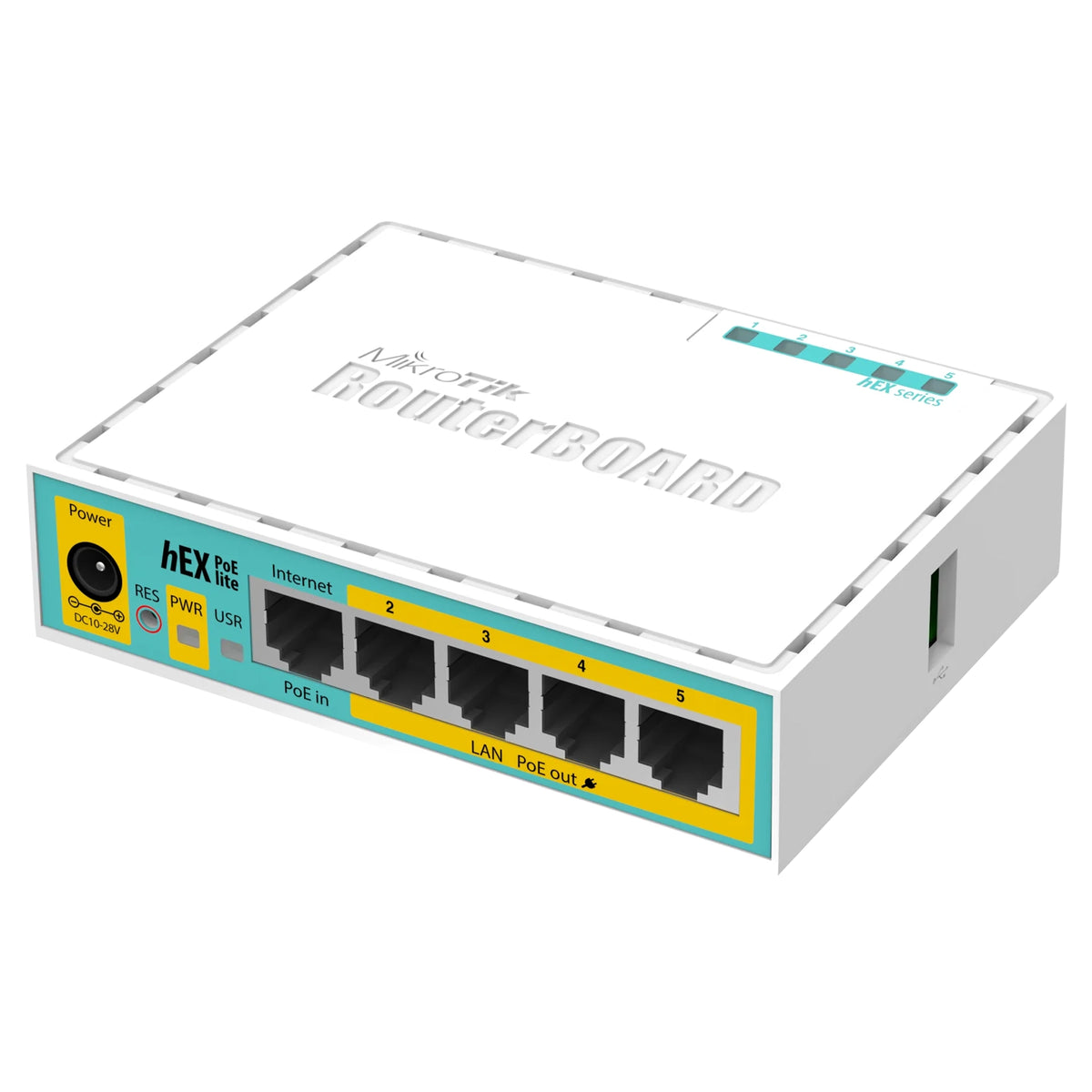

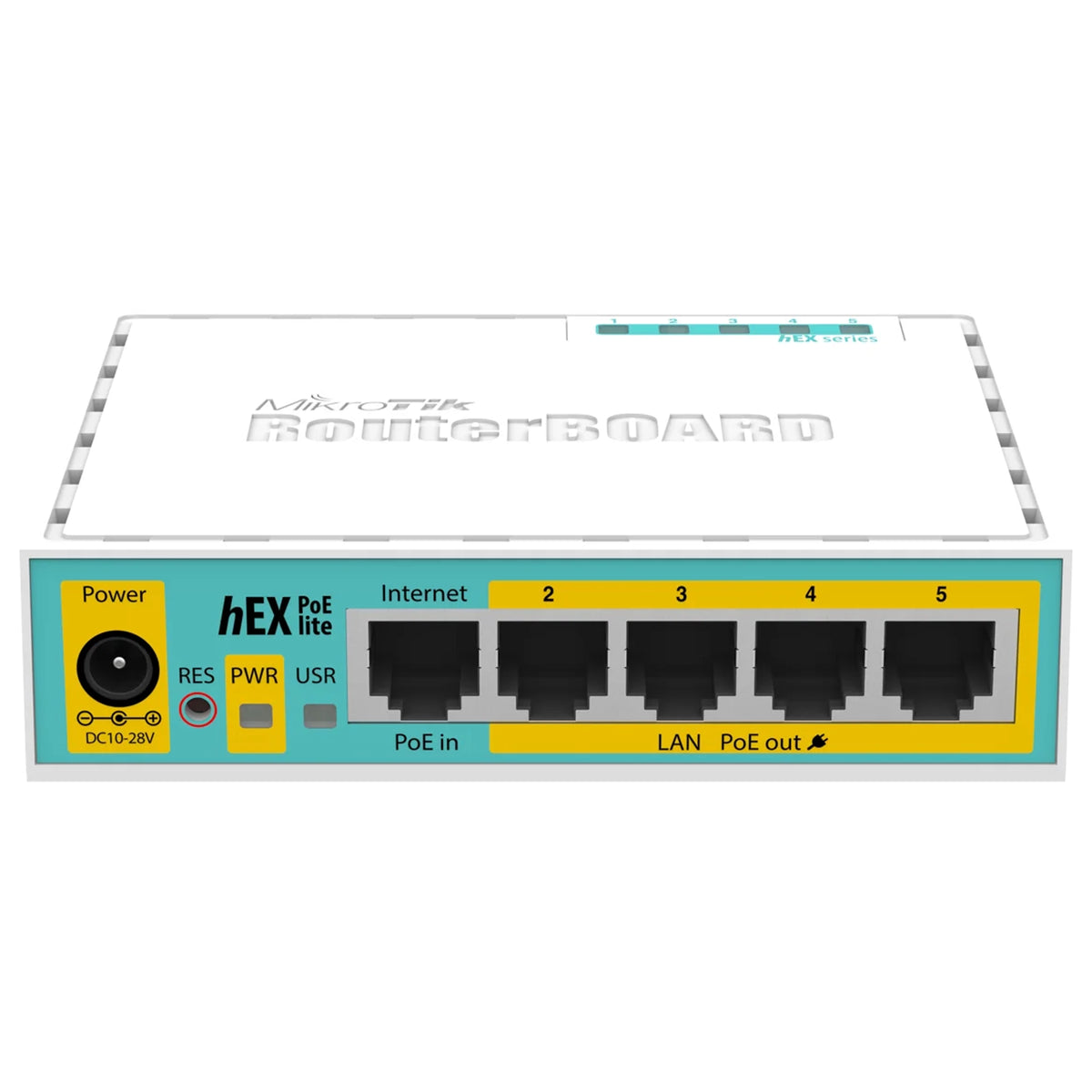

hEX PoE lite (RB750UPr2)

$59.00 CAD
$59.00 CAD
Sale Sold out
In stock (20 units), ready to be shipped

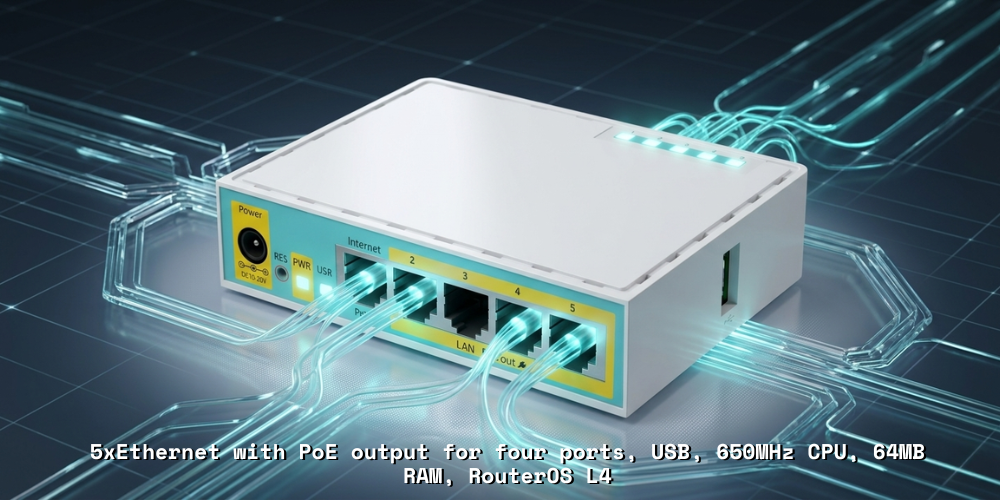

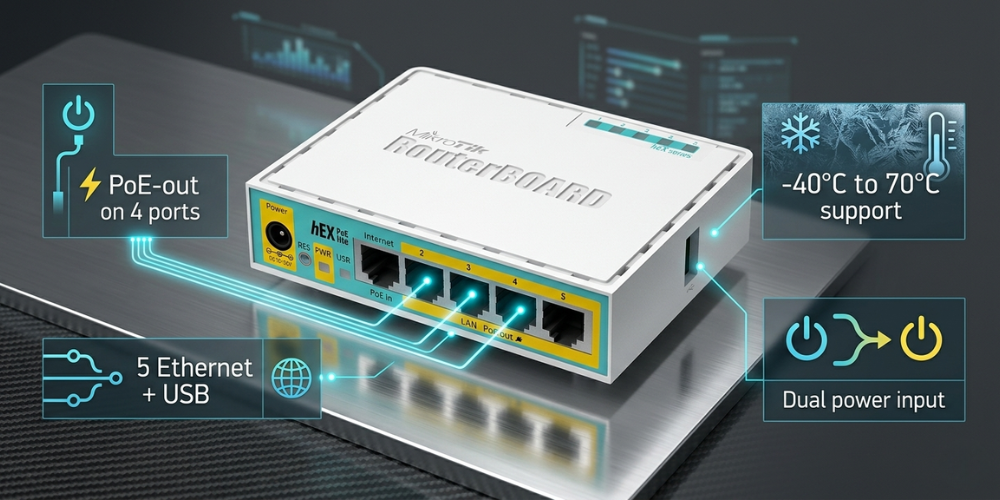

5xEthernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4

hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output.

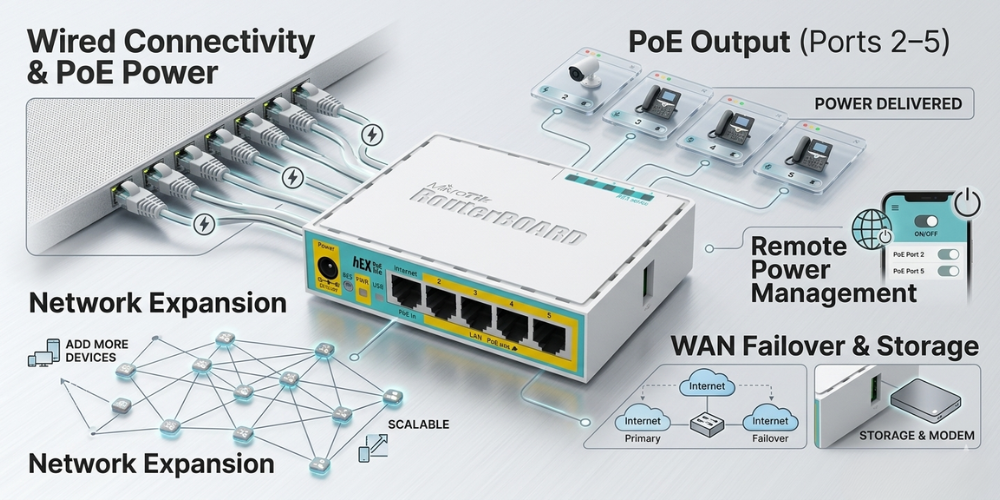

Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.



Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

General

  • Product Code: RB750UPr2
  • Architecture: MIPSBE
  • CPU: QCA9531 (650 MHz, Single-core)
  • Switch Chip: QCA9531
  • Dimensions: 113 x 89 x 28 mm
  • Operating System: RouterOS (License Level 4)
  • RAM: 64 MB
  • Storage: 16 MB FLASH
  • MTBF: ~100,000 hours at 25°C
  • Operating Temperature: -40°C to 70°C

Power

  • DC Inputs: 2 (DC Jack, PoE-In)
  • Input Voltage: 8–30 V
  • PoE-In: Passive PoE (8–30 V)
  • Max Power Consumption: 51 W
  • Power Consumption (No Attachments): 3 W
  • Cooling: Passive

PoE-Out

  • PoE-Out Ports: Ether2–Ether5
  • Type: Passive PoE
  • Per Port Current Limit: 1 A
  • Max Total Output: 2 A

Ethernet

  • Ports: 5 × 10/100 Ethernet

Peripherals

  • USB Ports: 1 × USB Type-A
  • Max USB Current: 1 A
  • USB Power Reset: Yes

Monitoring & Features

  • Current Monitor
  • PCB Temperature Monitor
  • Voltage Monitor

Certification & Protection

  • Certifications: CE, EAC, RoHS
  • IP Rating: IP20
