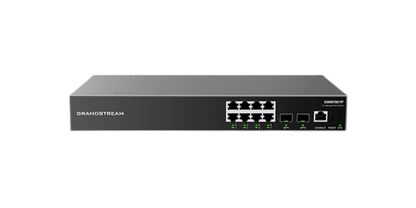

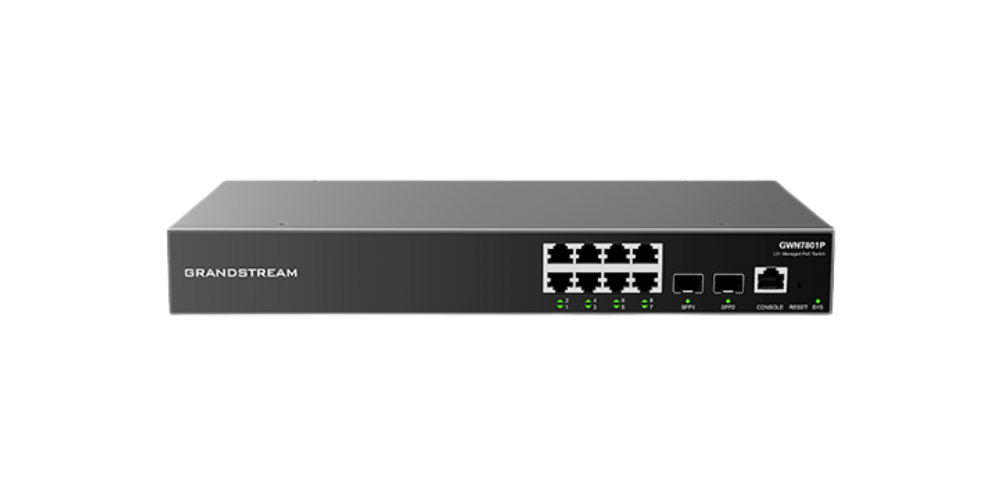

Grandstream GWN7801P

$169.50 CAD
$169.50 CAD
Sale Sold out
In stock (14 units), ready to be shipped

PRODUCT SPECIFICATIONS

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable

  • 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
  • Supports deployment in IPv6 and IPv4 networks
  • Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Local Web UI to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
  • Built-in QoS allows for prioritization of network traffic

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

  • Network Protocols: IPv4, IPv6, IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af/at, 802.1p, 802.1Q, 802.1w, 802.1d, 802.1s
  • Gigabit Ethernet Ports: 8
  • Gigabit SFP/SFP+ Ports: 2 SFP Ports
  • PoE Ports (PoE Models Only): 8
  • Total PoE Output Power (PoE Models Only): 120W (30W per port)
  • Total Non-Blocking Throughput: 10 Gbps
  • Switching Capability: 20 Gbps
  • Forwarding Rate: 14.88 Mpps
  • Switching:

    8K MAC addresses (static, dynamic, filtering, sticky)
    4K VLANs: port-based, 802.1Q tagging, MAC-based, protocol-based, QinQ
    Voice VLAN: auto voice VLAN, tagged & untagged OUI
    16 VLAN virtual interfaces with 9216 MTU
    256 ARP/NDP entries
    GVRP (pending)
    8 Link Aggregation Groups
    Spanning Tree: 64 instances (STP/RSTP/MSTP/PVST(+)/RPVST(+))
    ERPS (pending)

  • Security:

    User hierarchical management & password protection
    HTTPS, SSH, Telnet
    Identity authentication: 802.1X and MAC
    AAA authentication: RADIUS, TACACS+
    Storm control
    Port isolation, port security, sticky MAC
    MAC address filtering
    IP/IPv6 source guard, DoS prevention, ARP inspection
    DHCP/DHCPv6 Snooping
    Loop protection: BPDU, root, loopback
    Kensington Security Slot (Kensington Lock) support
